| Technical Data |

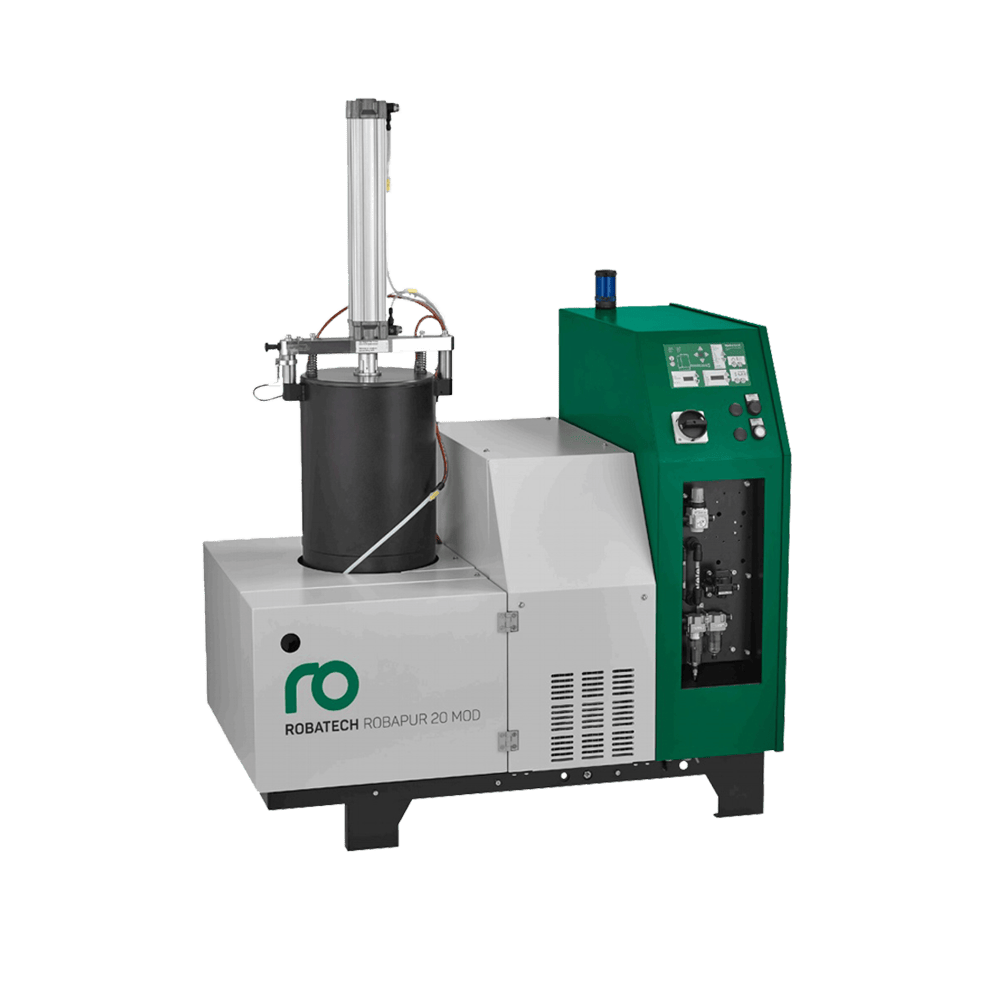

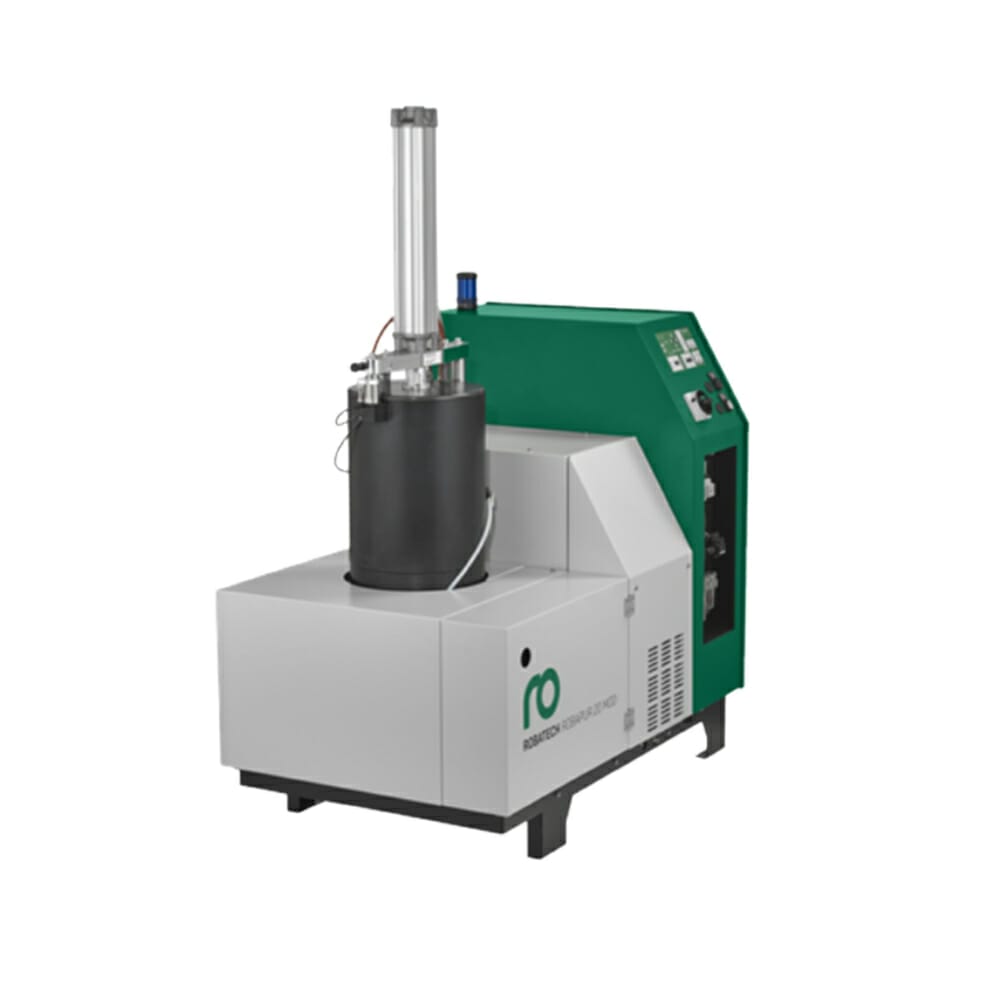

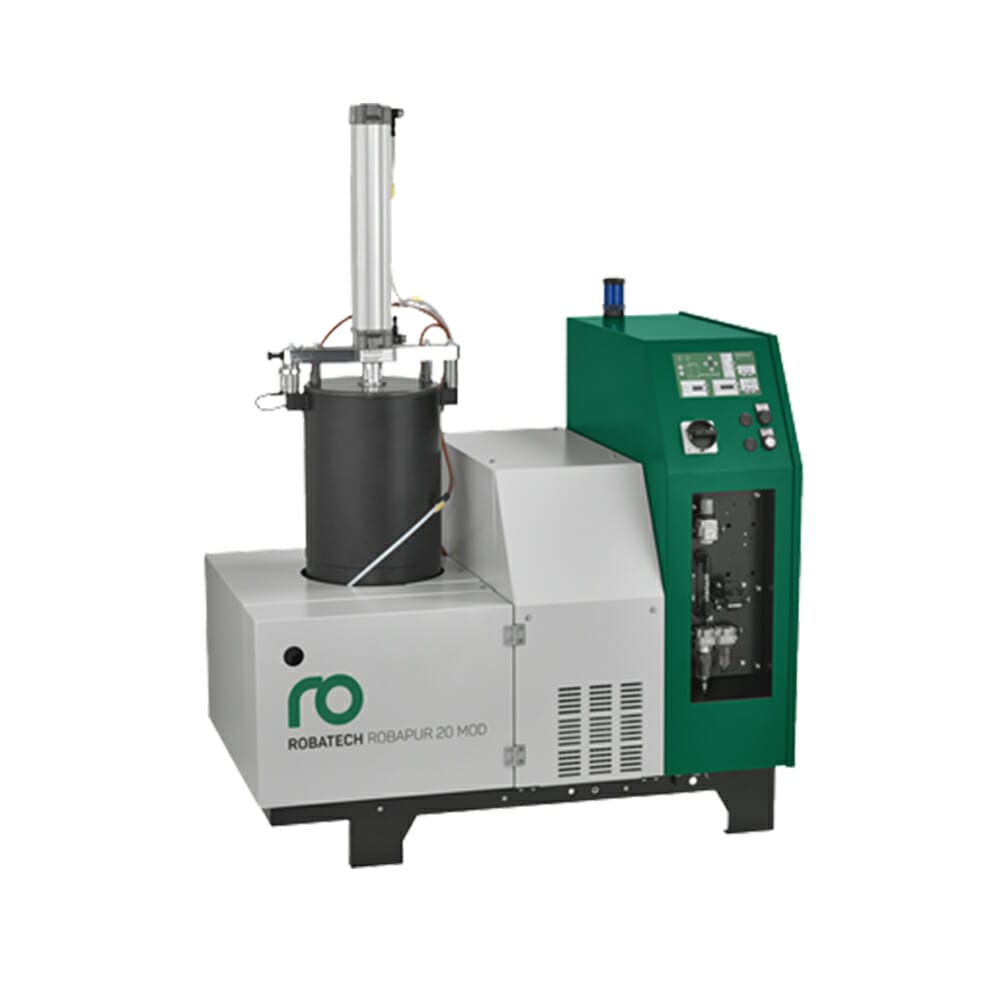

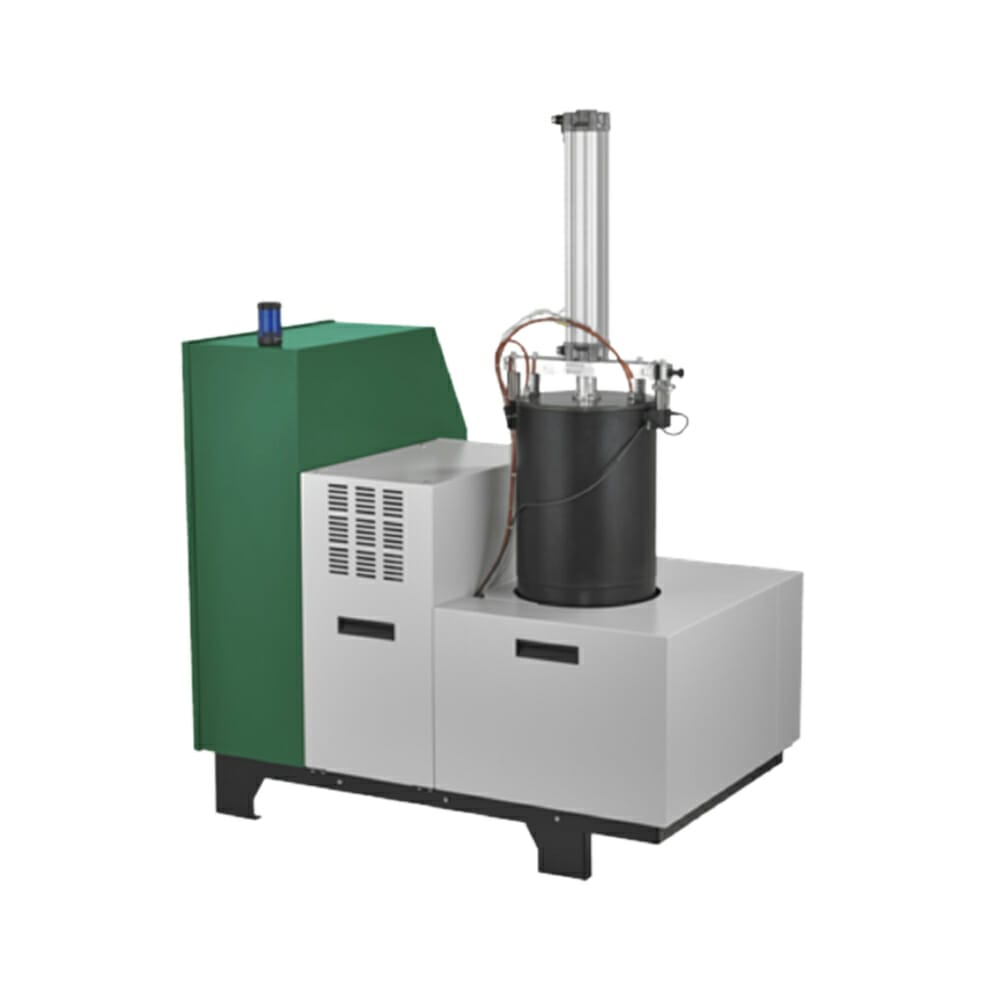

RobaPUR 20 MOD |
|
RobaPUR Premelt 20 MOD |
| Tank volume |
20 liters, without inliner for PUR blocks |
20 liters |
| Melting capacity * |
25 kg/h |
|
25 kg/h |
| Container size (PUR block) |
Diameter 120 to 280 mm, height 120 to 320 mm |
|
| Operating temperature |
20 to 150°C (68 to 302°F) |
|
|
| Adhesive viscosity |
100 to 70,000 mPas |
|
|
| Heated hose connections |
8, can be extended to 12 or 16 |
4 |
| Delivery pump |
Max. 100 bar, continuously adjustable |
Max. 30 bar |
| Supply voltage |
400 V, 3LNPE, 50/60 Hz |
|
|
| Electrical power |
8.25 kW |
|
|
| Commpressed air supply |
At least 6 bar, oil-free air acc. to Class 4 |
|
| Control panel |
Membrane keyboard (TRM) |
|
| Weight |
Approx. 190 kg |
|
|
| Dimensions (LxWxH) |
577 x 338 x 566 mm |
|
|
| Safety standard |
CE |
|
|
| * Depending on adhesive, viscosity, and temperature |
|
|
