High performance spraying applicator with economical price

The insulated spray heads are specially developed for spiral application. Application width and quantity of the adhesive can be adjusted easily and quickly. The robust hot melt adhesive application heads are suited for applications, such as pallet stabilization with anti-slip gluing or for anti-scratch applications when transporting tiles and ceramic plates. However, they are also used in other areas.

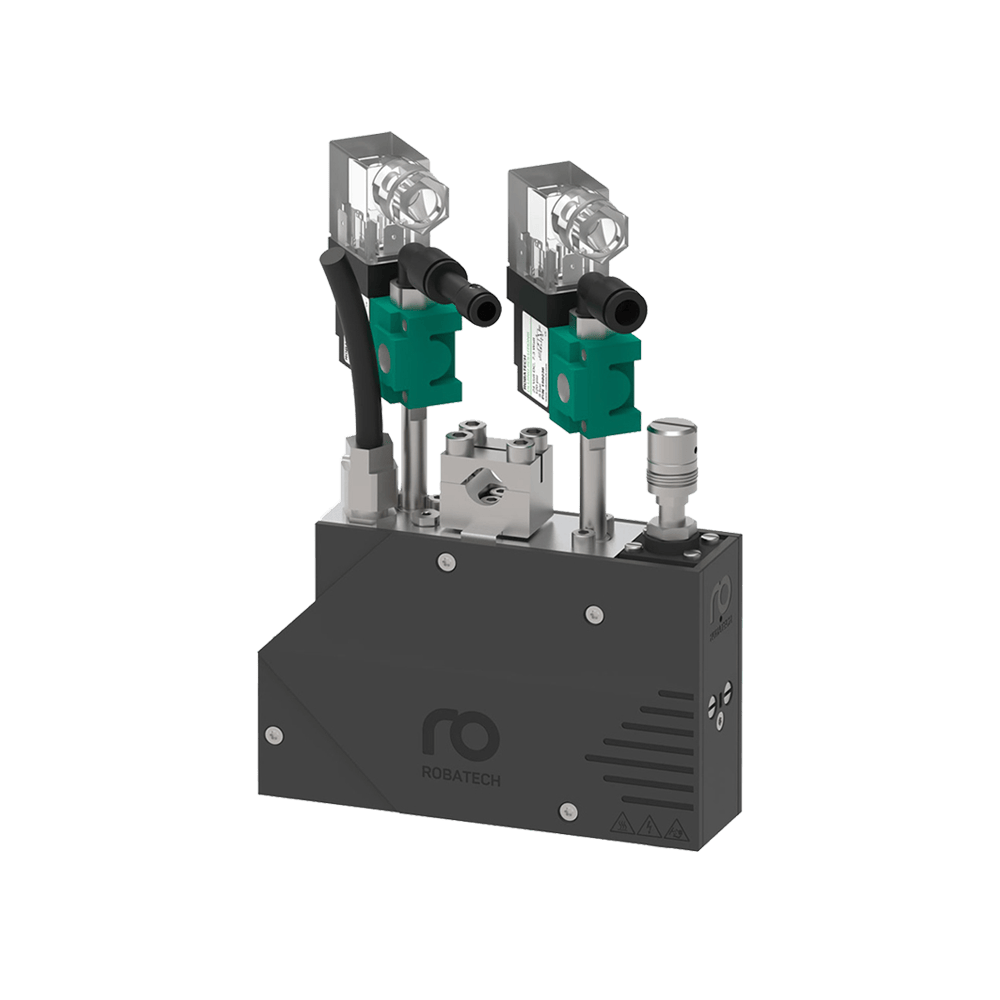

The hot melt adhesive application head AX 1 SP NV Diamond applies precise and consistent adhesive spirals with a width of 10 – 25 mm and achieves a stabile application pattern. The easy fine adjustment allows precise matching of adhesive application width and quantity to the respective application. Thanks to the filter integrated in the heating block, nozzle blockage is prevented. The sturdy design makes the spiral spray head very resilient, especially under harsh conditions.

With CoolTouch insulation, the Diamond series increases operational safety. The spray head insulation protects operators from burns. In addition, the heat-resistant insulation reduces energy consumption and ensures a constant adhesive temperature for highest adhesive quality.

Contact form



Temperature range 20 to 200°C
Adhesive pressure Max 100 bar
Adhesive Thermoplastic adhesives
Adhesive viscosity Up to 10,000 mPas (sprayable)
Operating cycles 10 million *
Nozzles Needle valve (NV) curl Ø0.4 and 0.7 mm
Application width Spirals from 10 to 25 mm
Air connection, control air 5 to 6 bar, unoiled, cleaned acc. to ISO 8573-1 Class 4
Air consumption Approx. 6 ml per jetting element / cycle (5 bar)
Supply voltage 230 VAC (EN60204), 50/60 Hz
Supply voltage, solenoid vale 24 VDC / 7.3W
Attachment For shaft Ø12 mm, flat steel or M5 thread
Noise level Approx. 35 dB (A)
Degree of protection IP55
* For jetting element and valve. Depending on operating environment and conditions (adhesive, temperatue, frequency, etc.)
