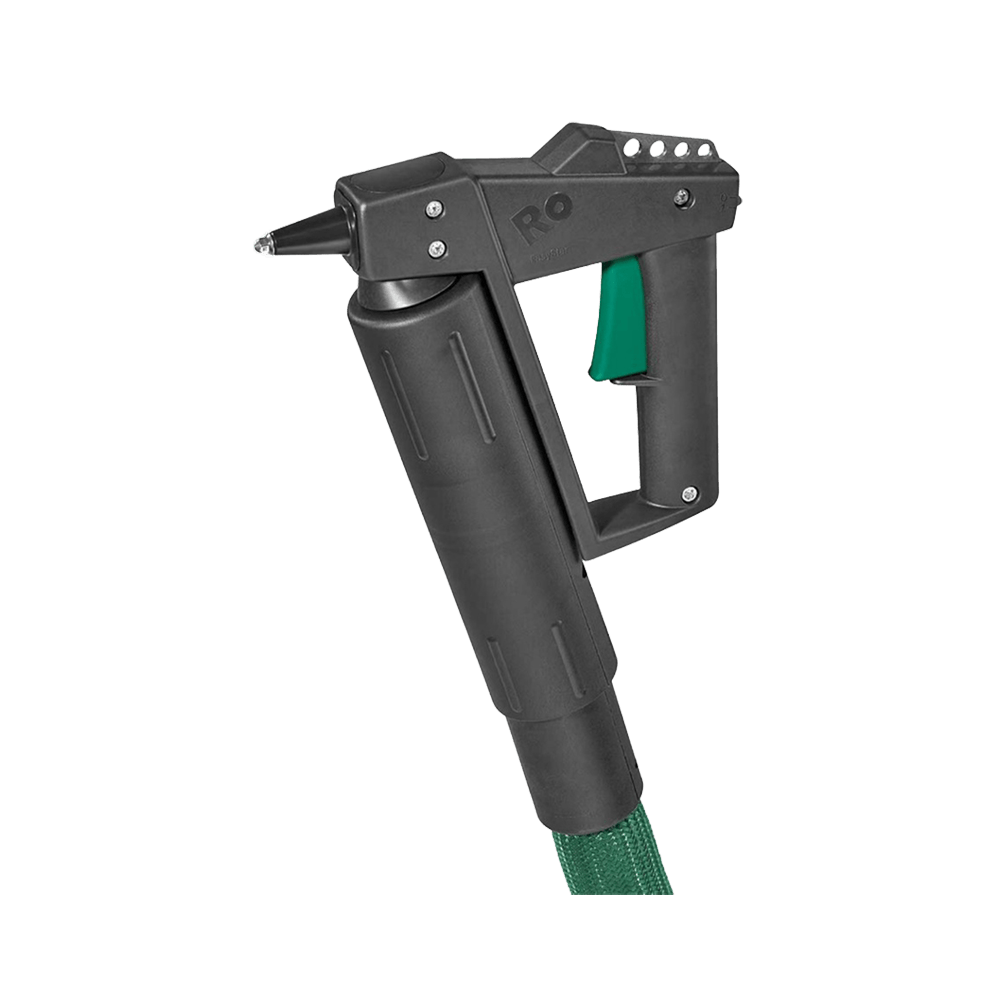

Manual Gun

Manual Gun

most convenient way to manually apply adhesive quickly and safely to handle all types of adhesives in beads, spirals and sprays

Our gun-style hand applicators are the easiest, most convenient way to manually apply adhesive quickly and safely. These lightweight, flexible units can handle all types of adhesives and compounds including EVA, PUR and PE hot melts in beads, spirals and sprays.

EasyStar

This model is suitable for the application of thermoplastic hot melt adhesives in bead, spiral, and spray form. it can be operated easily with minimum effort.

Adhesive viscosities from 500 to 20,000 mPas
Large range of nozzles for different application techniques
CoolTouch handle with nozzle guard for additional safety
User-friendly handle
Hose feed possible from bottom or top
Ergonomic design and energy efficient

ErgoStar

This hand applicators are the ideal way to apply EVA, PUR and PSA hot melts and sealants in beads, spirals and sprays. It poises unique, award-winning, in which its design prevents fatigue and significantly increases productivity.

Adhesive viscosities from 100 to 20,000 mPas
Fatigue-free and health-conscious operation
Ergonomic design and adjustable holder
CoolTouch handle for additional safety
Large range of nozzles for different application techniques

Category Jetting head Tags hotmelt, Jetting head, Manual Gun

Share

Description

TECHNICAL DATA	Bead application R	Spial and spray application SP
Weight without adhesive hose	700 g
Adhesive	Thermoplastic adhesives
Adhesive pressure	Max 72 bar	Max. 50 bar
Adhesive viscosity	500 to 20,000 mPas
Operating temperature	max. 200°C or 392°F
Power supply	200 – 240 V, 50/60 Hz
Spray gun thermal output	150 watt
Hose thermal output	330 watt (3 m), 550 watt (5 m), 900 watt (7 m)
Temperature sensor	NTC
Spraying air pressure	–	0.2 – 3.0 bar
Air consumption	–	Ca. 150 I min
Spray gun-heating gose connection	SAE 37° 9/16″ – 18 UNF
Melter-heating hose connection	NW6: 1/4″,NW8: M16x1.5
Heating hose lengths	3, 5 and 7 m
Nozzles	0.5 – 2.0 mm	Various spiral and spray nozzles
Operating cycles	2 million cycles guaranteed *
* depending on adhesive, viscosity and temperature

TECHNICAL DATA	Bead application	Spray application
Weight without adhesive hose	700 g	Up to 1000 g. depending on spray nozzle
Adhesive pressure	Max. 80 bar
Adhesive viscosity	100 – 20 000 mPas
Operating temperature	max. 200°C or 392°F
Power supply	230 V, 50/60 Hz
Heating power	Applicator: 250 watt / hose: 330 watt (3 m) & 530 watt (5 m)
Air consumption	5 I/min	105 I/min
Heating hose lengths	3, 5 and 7 m
Nozzles	0.5 – 2.0 mm	Various spiral and spray nozzles
