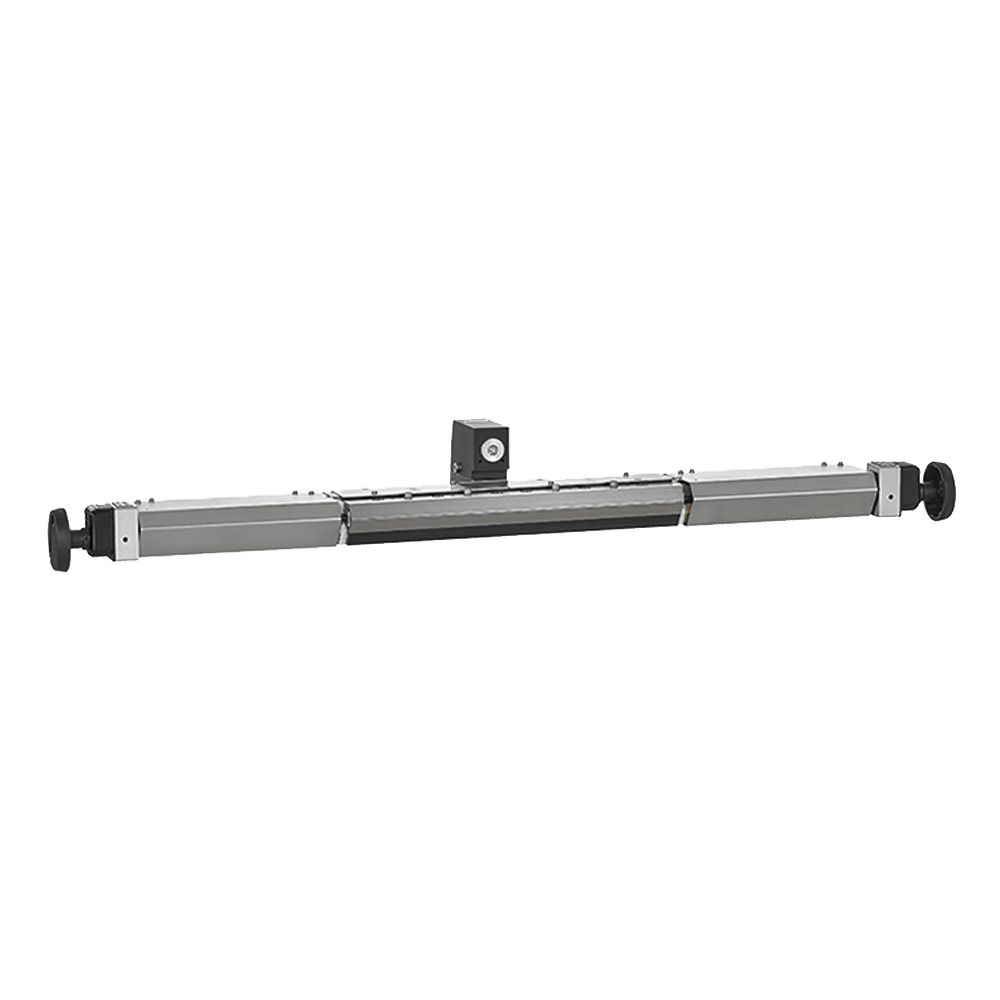

FK-V Coating Head – wide width

Easy width adjustment by manual or automatic (motorized)

The hot melt coating heads of the FK V series are designed for Wide coating width of thermoplastic adhesives. The compact design, fast changeover speeds and great features, makes the FKV a benchmark in pre-metered coating technology today. The FKV is typically used for laminating and profile wrapping equipment in the wood-working industry, as well as in coating and laminating systems for textiles, hygiene products, fabrics and foam materials, etc.

Finely adjustable coating widths from 200–2,600 mm. (manual or motorised)
Precisely controls the weight of the coat and reduce adhesive consumption
Compact construction
High production output

Category Jetting head Tags FKV Coating Head – wide width, hotmelt, Jetting head

Description

Description

	FKV 200 … 2600
Application range	Continuous coating application e.g for profile wrapping
	and panet lamination in the wood working and other industries
Adhesive types	EVA-, APAO-, Polyester- and PUR hotmelts
Adhesive viscosity	200 to 100,000 mPas *
Adhesive pressure	Max50 bar
Speed range	1 to 500 m/min *
Coating width	FKV 200 : 10 to 200 mm	FKV 1400: 200 to 1400 mm
	FKV 350 : 20 to 350 mm	FKV 1700: 600 to 1700 mm
	FKV 520 : 20 to 520 mm	FKV 2000: 800 to 2000 mm
	FKV 820 : 20 to 820 mm	FKV 2300: 1100 to 2300 mm
	FKV 1100 : 100 to 1100 mm	FKV 2600: 1400 to 2600 mm
Coating tolerance
in case of free outflow and	< 40 g/m² ± 2 g/m²
a Newtonian fluid	< 40 g/m² ± 5%
Hose connectors	FKV 200 … 1400: 1 x G 1/2″
(inlet valves with filter)	FKV 1700 … 2600: 2 x G 1/2″
