Barcode Reader

Barcode Reader

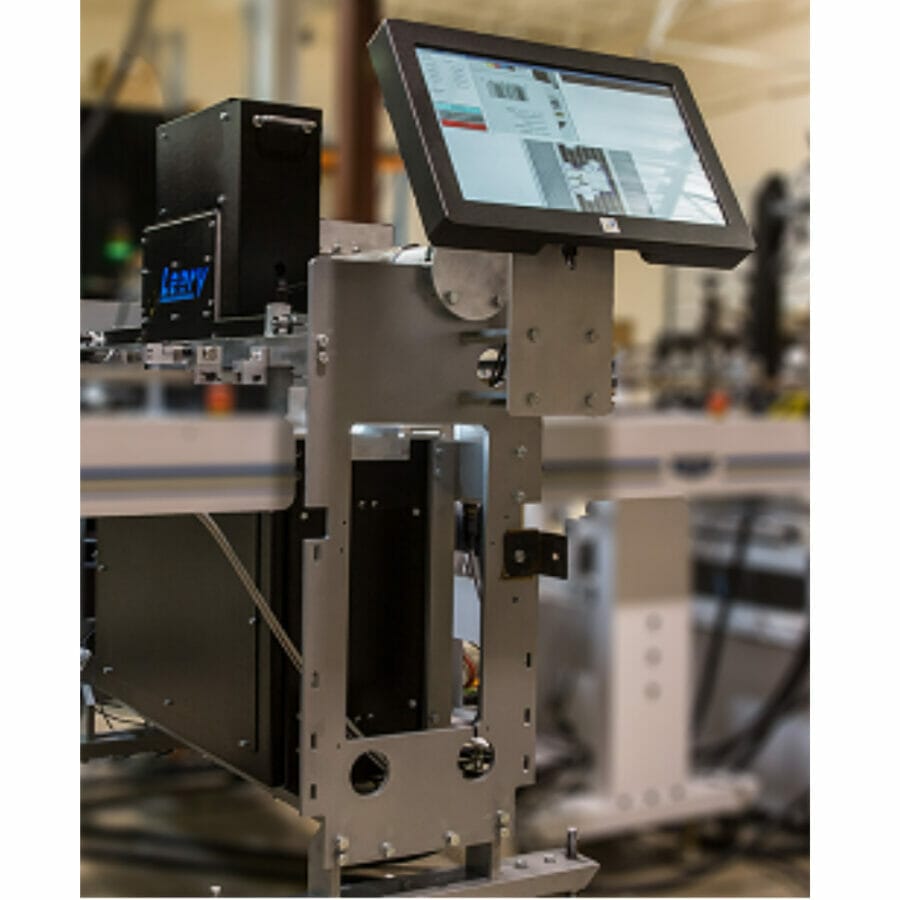

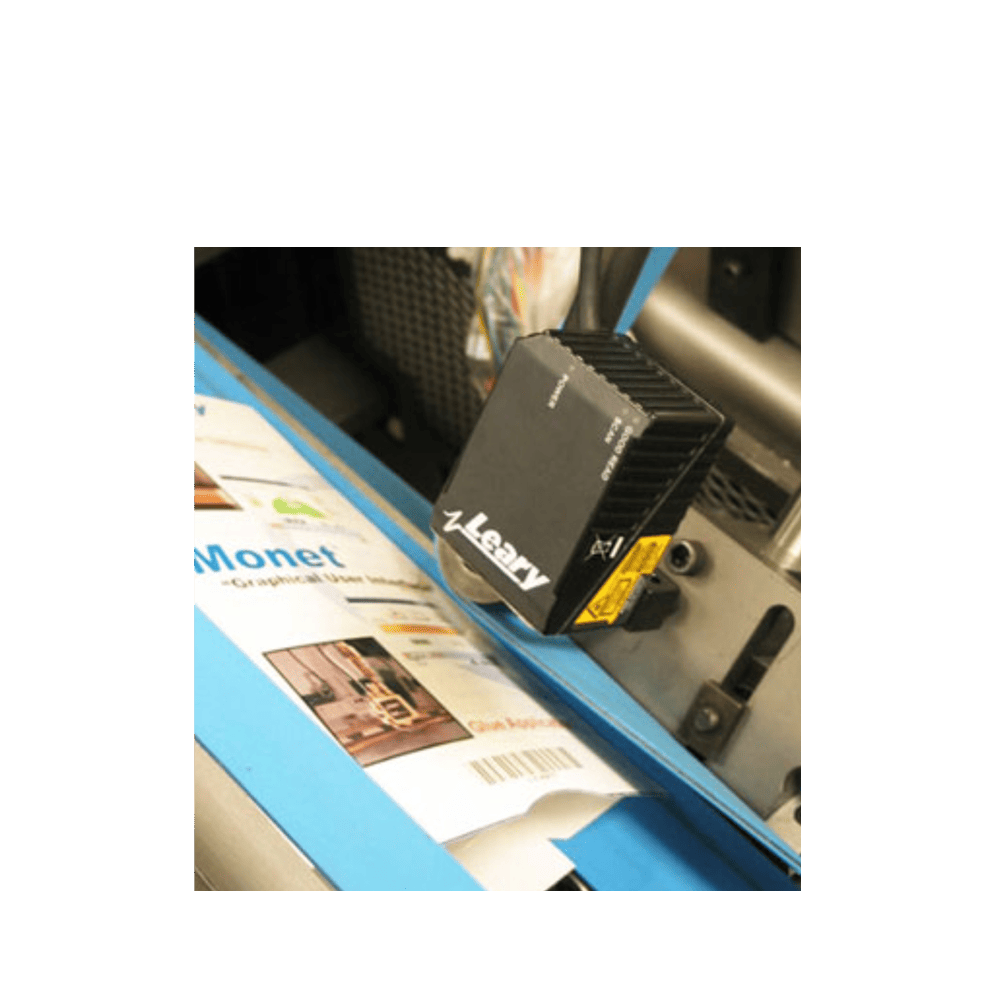

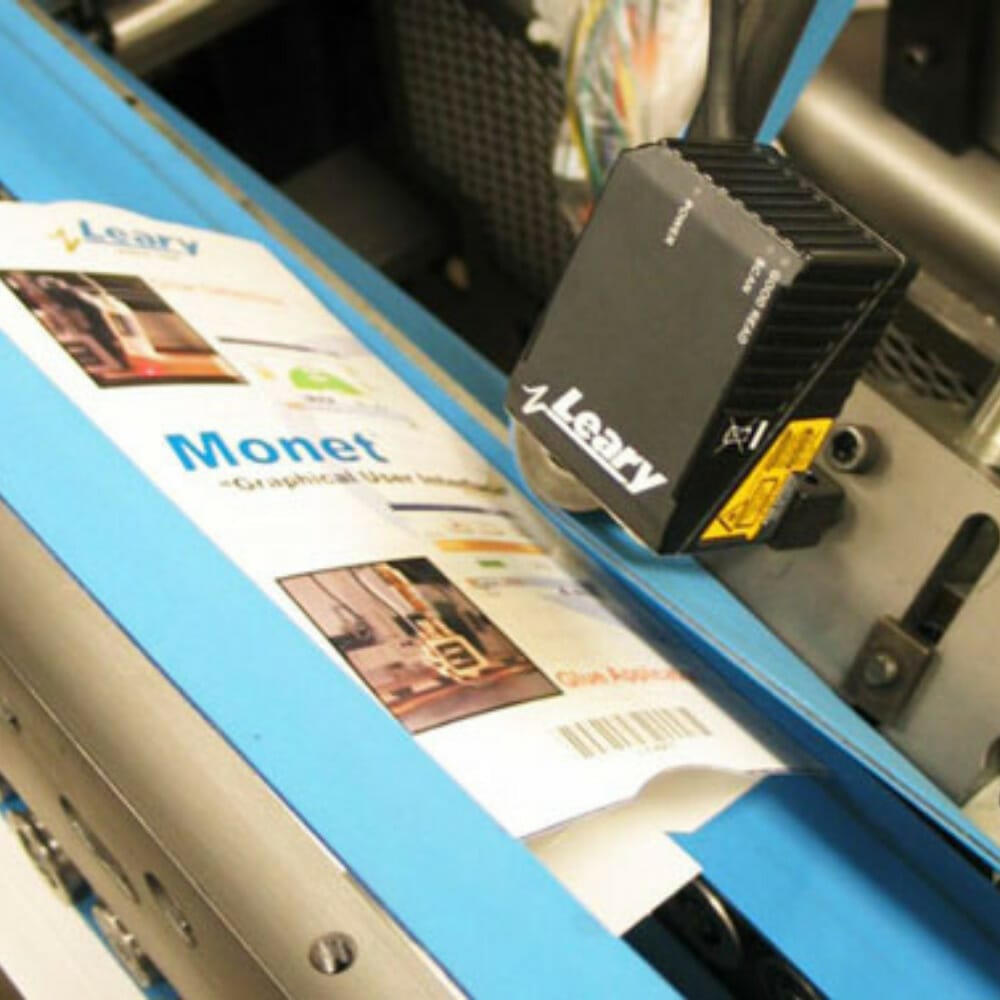

Our barcode readers accurately scans for Good Read, No Read, Match, and No Match conditions. Each barcode scan is visually verified on the scanner. This is also a valuable setup tool for validating optimal scanner alignment.

All codes, whether scanned in the single or raster mode, are read several times guaranteeing reliability and accurate detection.

Reduce set up times for reoccurring jobs. Monet allows jobs with multiple item numbers to store barcode settings and strings in the item number along with gluing, detection and other pertinent job settings. This feature is useful for reoccurring jobs and is available with all Monet enabled controllers using a Laser 1D, 2D, and Pharmacode scanner. Enable this feature in System Setup when choosing the logic for the barcode station, installer password is required. Monet version update may be required.

Add barcode strings directly from Production Reports. Barcodes are often learned through the Master Learn feature of Monet. While this feature is simple to use and reliable, there may be instances when an operator inadvertently learns a barcode from an incorrect carton. Leary offers the ability to send the barcode string for the intended job directly from the PDF job/production report, as opposed to manually learning during set up. This further reduces set up time and ensures the intended barcode for the specific product does not get re-learned during production. System settings also prohibit the use of Master Learn for barcodes if desired.

For Pharmacode system, our quality assurance system will protect against mixed copy, check for the absence and presence of color, measure print-to-cut registration in both the in-line direction and the cross machine direction. The scanner will read expanded Pharmacode at 900 m/min with print-to-cut accuracy of up to (+/-) .1mm (.004 in).

The color bar sequence and print-to-cut values are master learned with the touch of a button or they may be manually entered. Our MAQ, LS-4 or LS-916 controllers, when integrated, allow you to see real-time passed or failed code values.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share



1-D Barcode
Model BC9 Model BC3
PHYSICAL CHARACTERISTICS PHYSICAL CHARACTERISTICS
Dimensions
• 76 mm (3.0 in)
• 57 mm (2.3 in)
• 41 mm (1.6 in)
Weight 311 grrams (11 oz)
Dimensions
• 44 mm (1.7 in)
• 44 mm (1.8 in)
• 22 mm (0.9 in)
Weight 57 grrams (2 oz)
BARCODE SCANNING BARCODE SCANNING
• Reads all standard linear barcodes
• Reads Code 39,EAN-13,UPC l 2 of 5 and others
• Scans per second: up to 2000
• Single line model or raster scan model
• Reads all standard linear barcodes
• Reads Code 39,EAN-13,UPC l 2 of 5 and others
• Scans per second: up to 1000
• Avaliable in raster model only
SCANNER DISTANCES SCANNER DISTANCES
• Read range:101-229 mm (2-9 in)
• Bar Width/Focal Distance Range
.190 mm (.0075 in)/51-127 mm (2.0-5.0 in)
.254 mm (.0100 in)/38-152 mm (1.5-6.0 in)
.381 mm (.0150 in)/25-178 mm (1.0-7.0 in)
.508 mm (.0200 in)/25-229 mm (1.0-9.0 in)
• Read range:79-390 mm (2-10 in)
• Bar Width/Focal Distance Range
.190 mm (.0075 in)/76-152 mm (3.0-6.0 in)
.254 mm (.0100 in)/51-178 mm (2.0-7.0 in)
.381 mm (.0150 in)/51-203 mm (2.0-8.0 in)
.508 mm (.0200 in)/51-254 mm (2.0-10.0 in)
COMPATIBLE CONTROLLERS COMPATIBLE CONTROLLERS
• Array LS-4,LS-916,LS-924
• MAQ
• MAQ
2-D Barcode Pharmacode
DIMENSIONS PHYSICAL CHARACTERISTICS
• 67 mm (2.7 in) l
• 74 mm (2.9 in) w
• 441 mm (17.4 in) h
Dimensions (Standard style)
• 107 mm (4.2 in) l
• 47 mm (1.8 in) w
• 104 mm (4.1 in) h
Dimensions (Bobst style)
• 115 mm (4.5 in) l
• 80 mm (3.2 in) h
• 40 mm (1.8 in) h
Dimensions (Pre-break style)• 579 mm (22.8 in) l
172 mm (6.8 in) w
• 101 mm (4.0 in) h
COMPLETE STATION INCLUDES PHARMACODE SENSOR SPECIFICATIONS
• Camera
• Mounting hardware
• Cables
• Trigger
• High speed RGB LED sensor for accurate color detection
• Excellent at detecting pale colors including pale yellow and pale blue
• Background does not have to be white
• Can detect print-to-cut variation in both in-line and cross machine directions
• Reads expanded Pharmacode (1-2-3) and True Pharmacode (0-1-2)*
OTHER SPECIFICATIONS
• Reads 1D and 2D codes up to 150,000 cartons/hr
SYSTEM REQUIREMENTS
• Leary Array or MAQ controller
• Barcode input on the controller
• Ethernet port on the controller
• Monet version 2.39 or higher
• 8120 controller processor or higher
