Glue Detection

Glue Detection

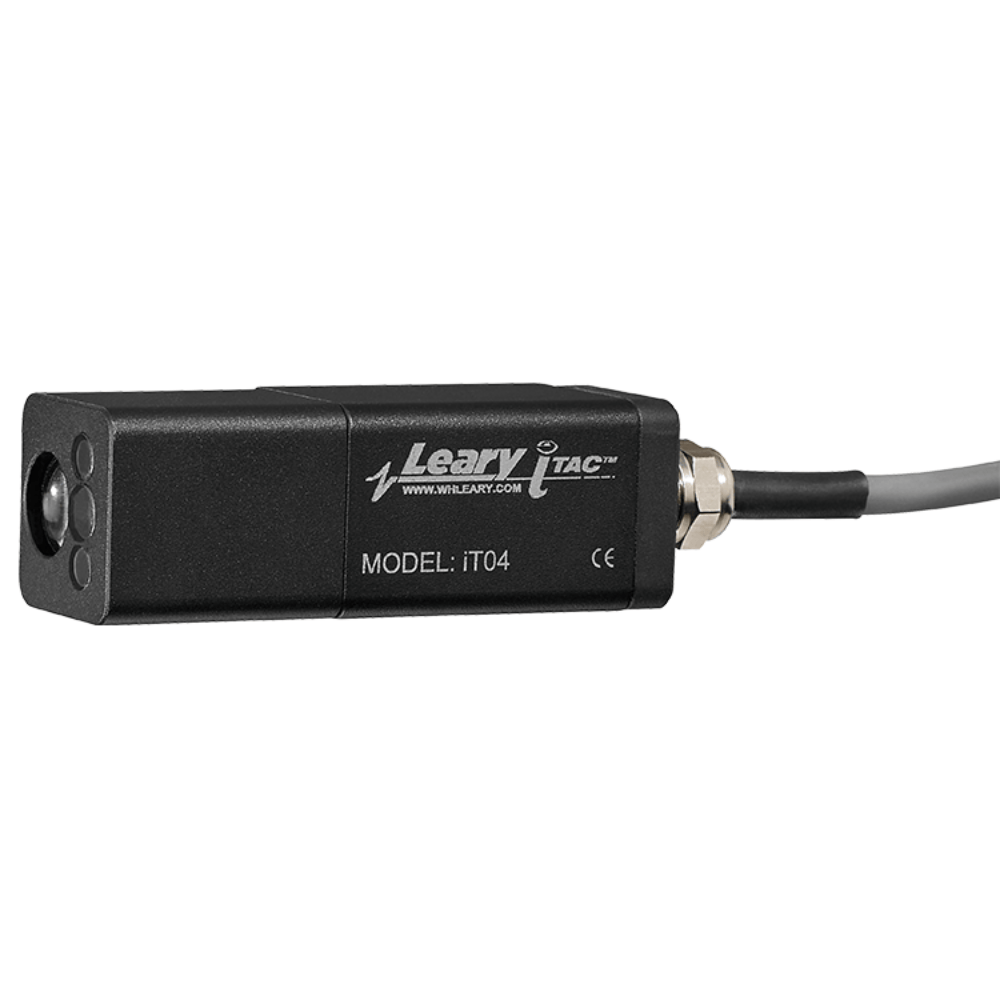

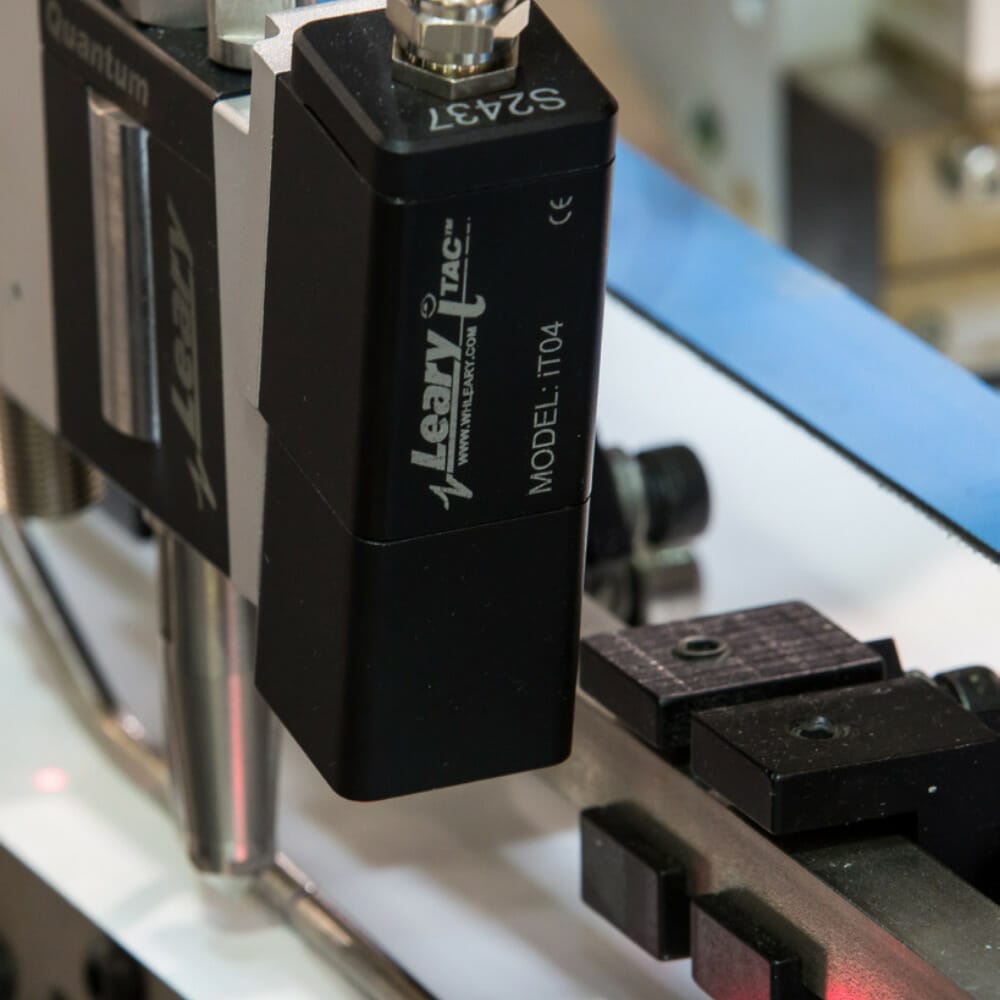

The iTac™ glue sensor is a highly advanced glue detector capable of detecting for glue absence, presence, placement and volume at line speeds in excess of 650 m/min (2,150FPM). Used in conjunction with our MAQ™ or Array™ line of controllers, this scanner exceeds the proven UV method of detection. A bright light spot, small profile and remote amplifier make the iT04 sensor extremely versatile.

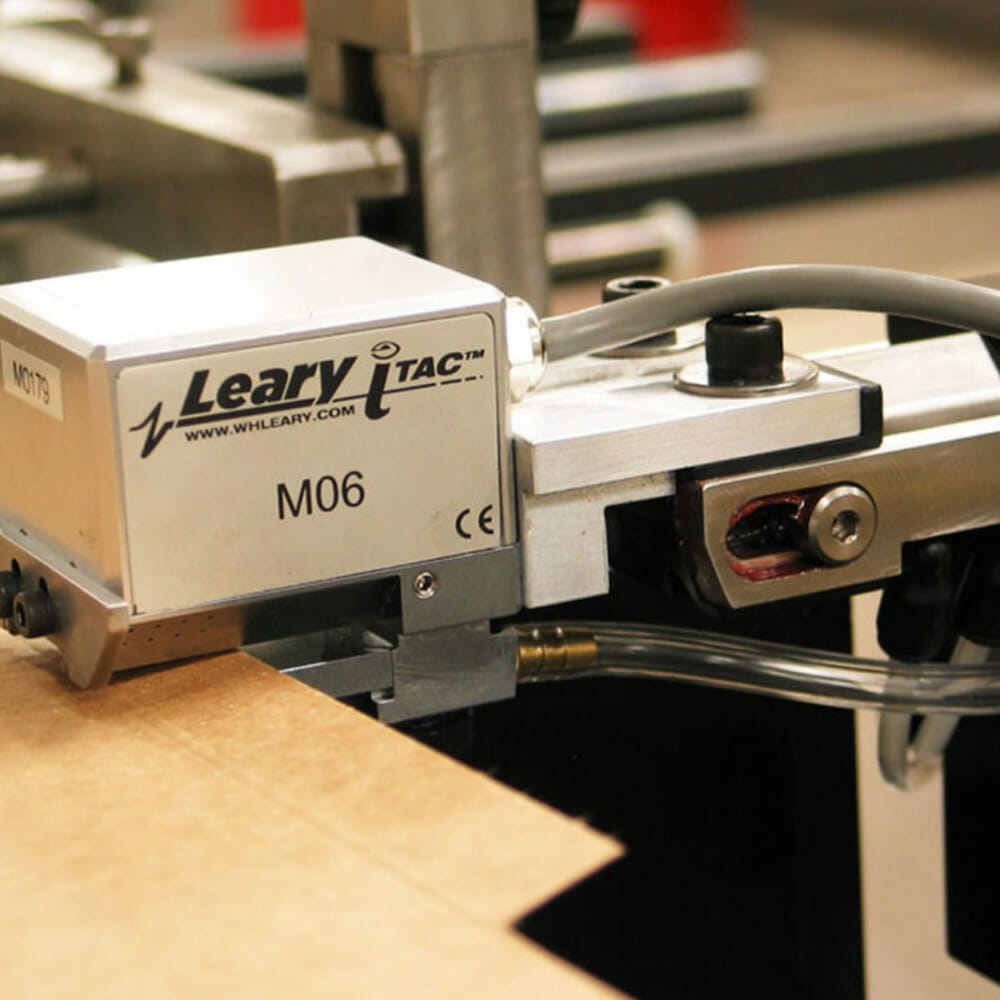

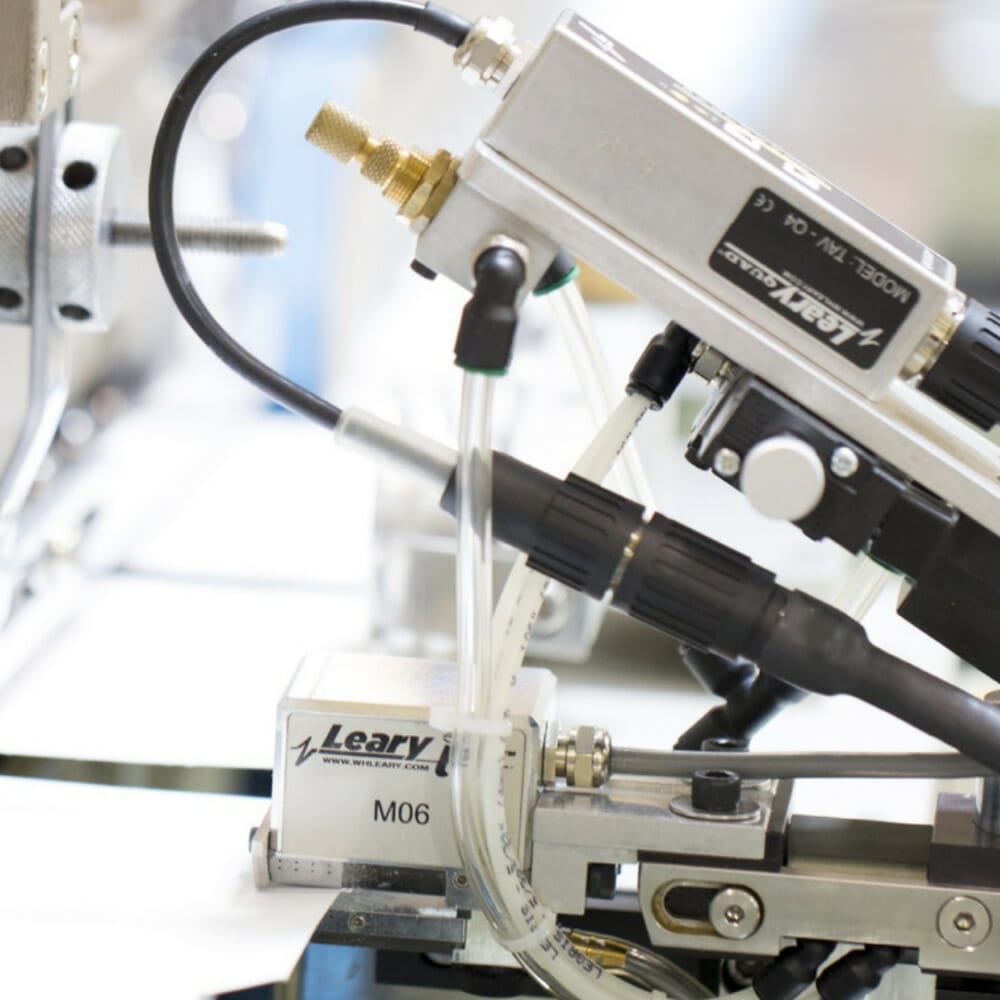

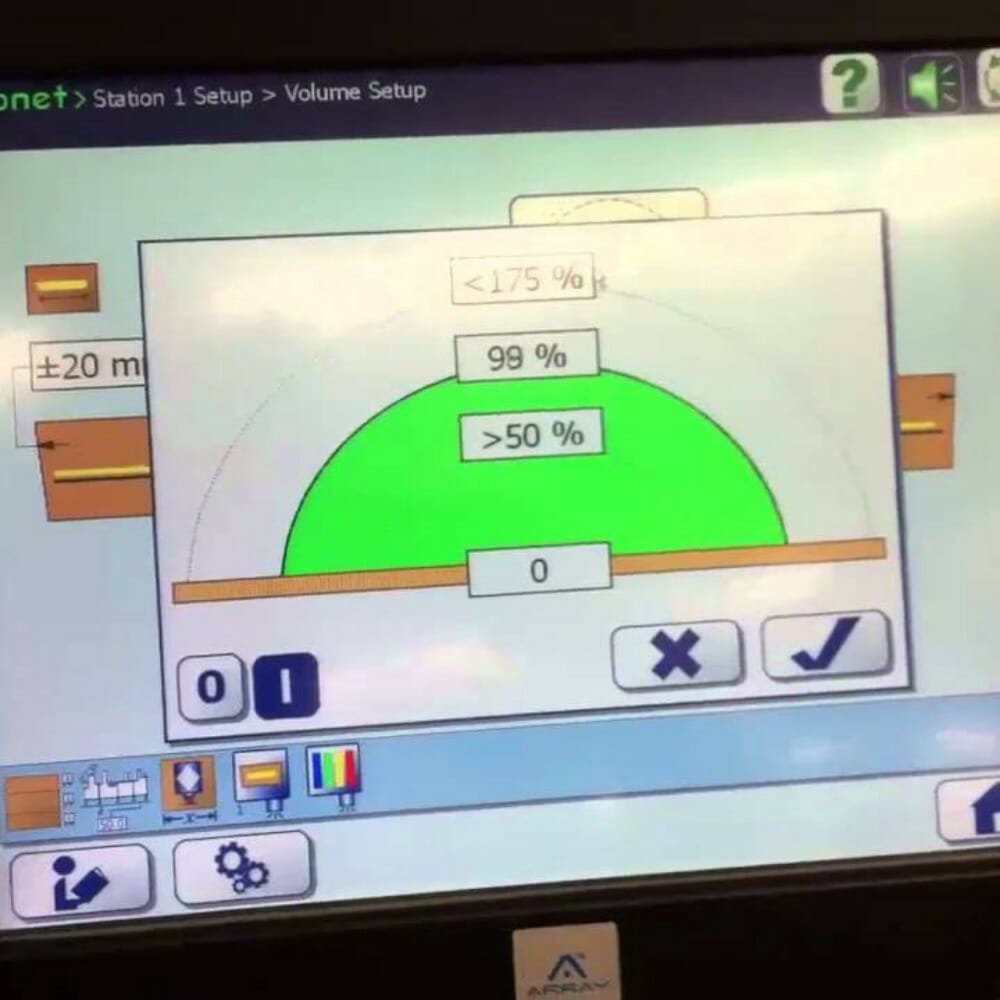

This includes the sensor that provides accurate readings of glue placement, including skips and volume applied by a glue pot (wheel), in which this type of sensor (M06) immune to color variation in the board and requires no UV additives to the glue. A built-in shuttle feature is used to set up the station and test the performance by offsetting the sensor from the glue line for zero adjustments and online validation.

Whether you are scanning for pot or extrusion applications, our iTac™ line of interchangeable optical heads gives you the flexibility needed for scanning any type of glue pattern.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



iTAC i04 (for dispensing/ extrusion gun) iTAC M06 (for Wheel and Glue Pot)
PHYSICAL CHARACTERISTICS POWER REQUIREMENTS
Amplifier Dimensions
• 25.4 mm (1.00 in) l
• 25.9 mm (1.02 in) w
• 88.9 mm (3.50 in) h
Sensor head Dimensions
• 25.4 mm (1.00 in) l
• 25.4 mm (1.00 in) w
• 73.7 mm (2.90 in) h
• 24 VDC for sensor
• 24 VDC for shuttle
• 6 bar (80 psi) required
POWER REQUIREMENTS AMPLIFIER FEATURES
• 185 mA at 24 VDC
• 24 VDC
• LED DISplay:status,output and light meter indicators
• Learn carton background button
• Learn glue button
AMPLIFIER FEATURES SENSOR HEAD FEATURES
• LED Display:status,output and light meter indicators
• Learn carton vackground button
• Learn glue button
• Microwave sensor sensitive to moisture
• Scanning width of 6 mm (.24 in)
• Detects glue lines up to 25 mm (1 in) from the outside edge og the carton
• Detects skios as short as 2 mm (.08 in)
• Detects lines as narrow as 2 mm (.08 in)
• lmmune to color variation
SENSOR HEAD FEATURES MOUNTING OPTIONS AVAILABLE
• 41 mm (1.6 in) focal distance
• 4×2 mm (.15×08 in) light spot size
• Built-in dovetailed mounting bracket
• Shuttle Desing
• Without Shuttle Desing
• Compact Desing
