Modis

Modis

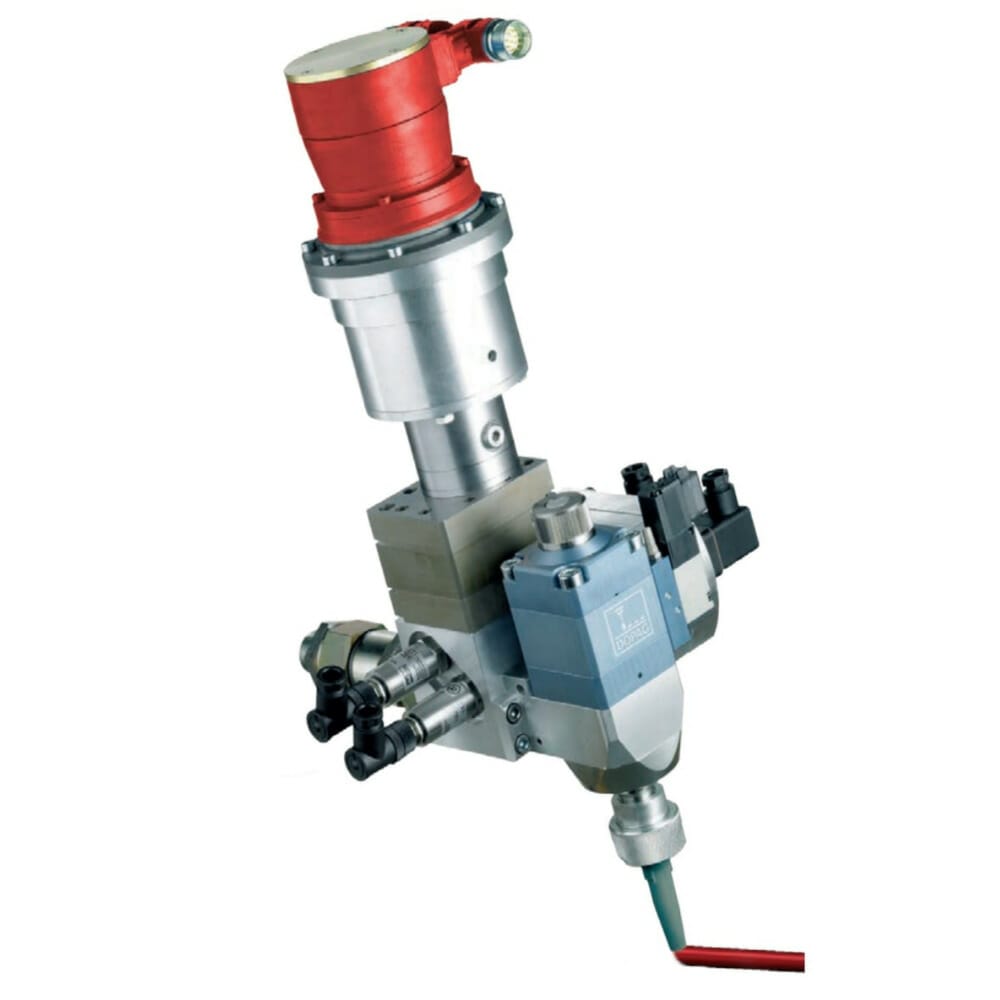

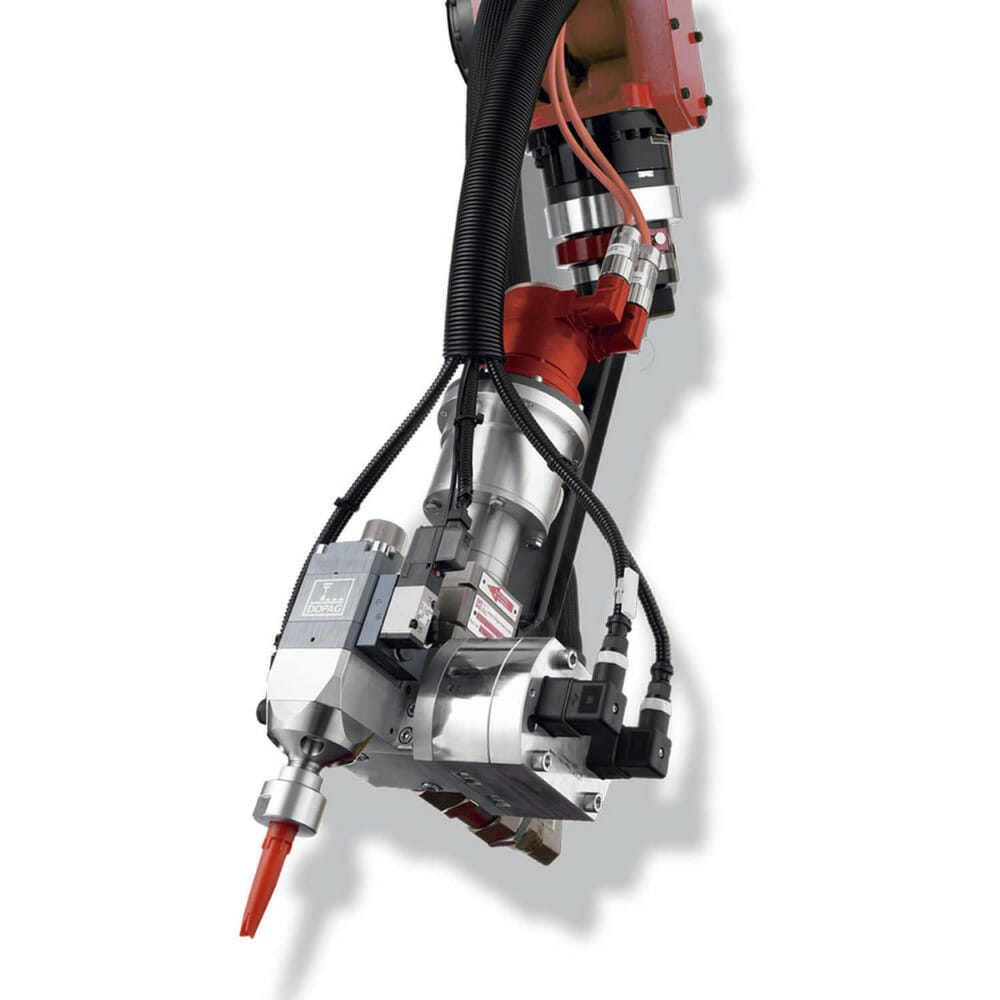

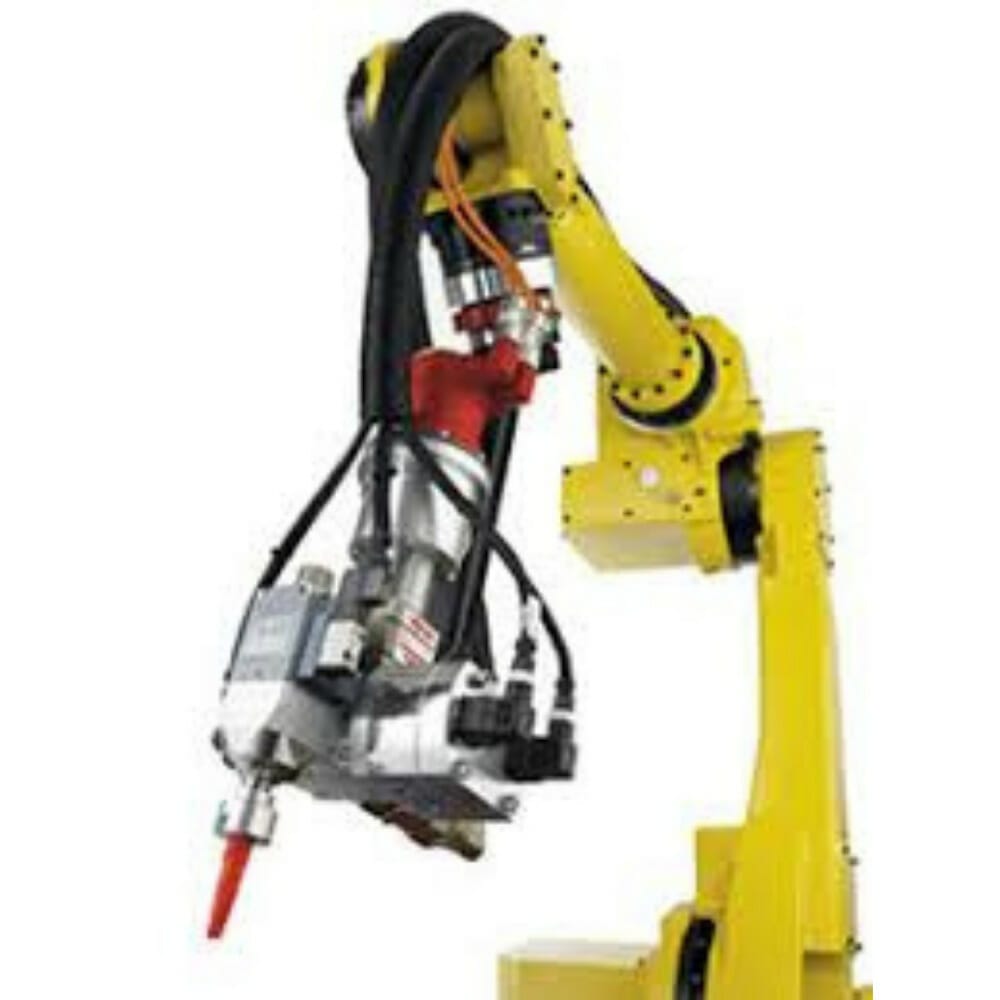

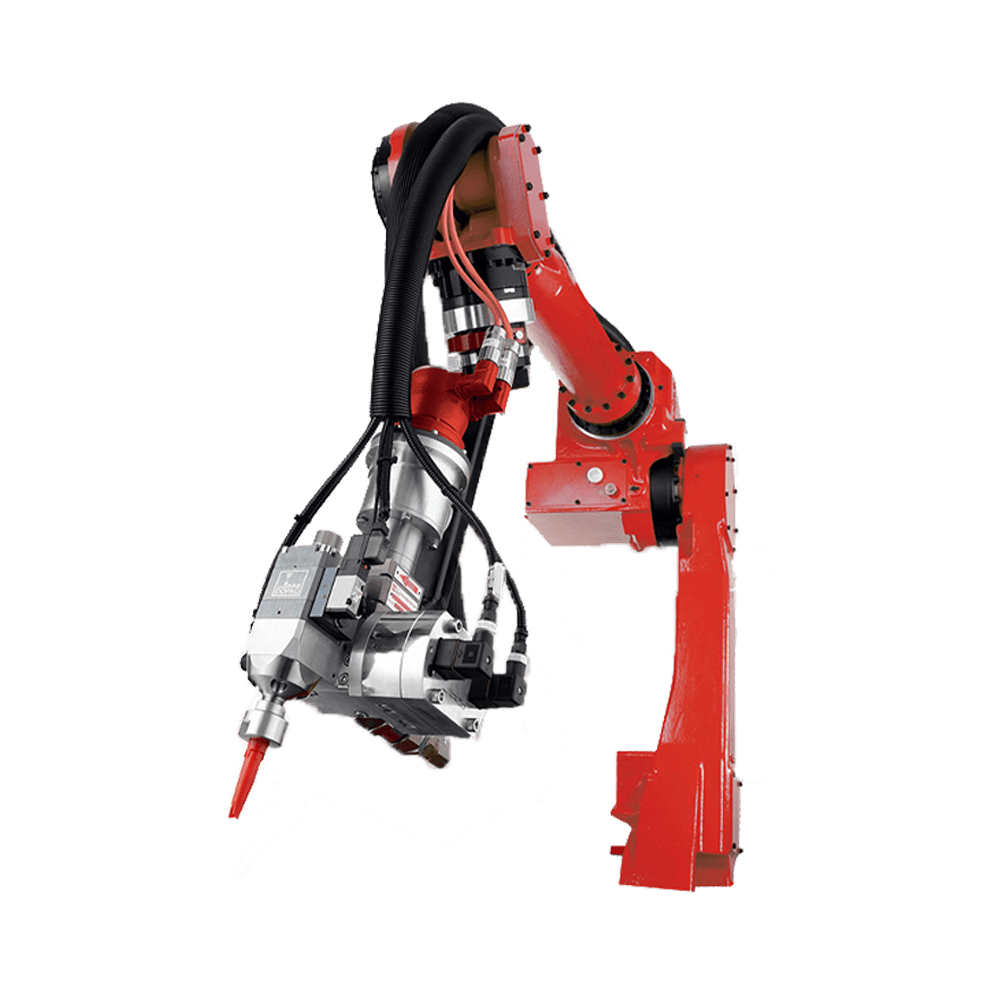

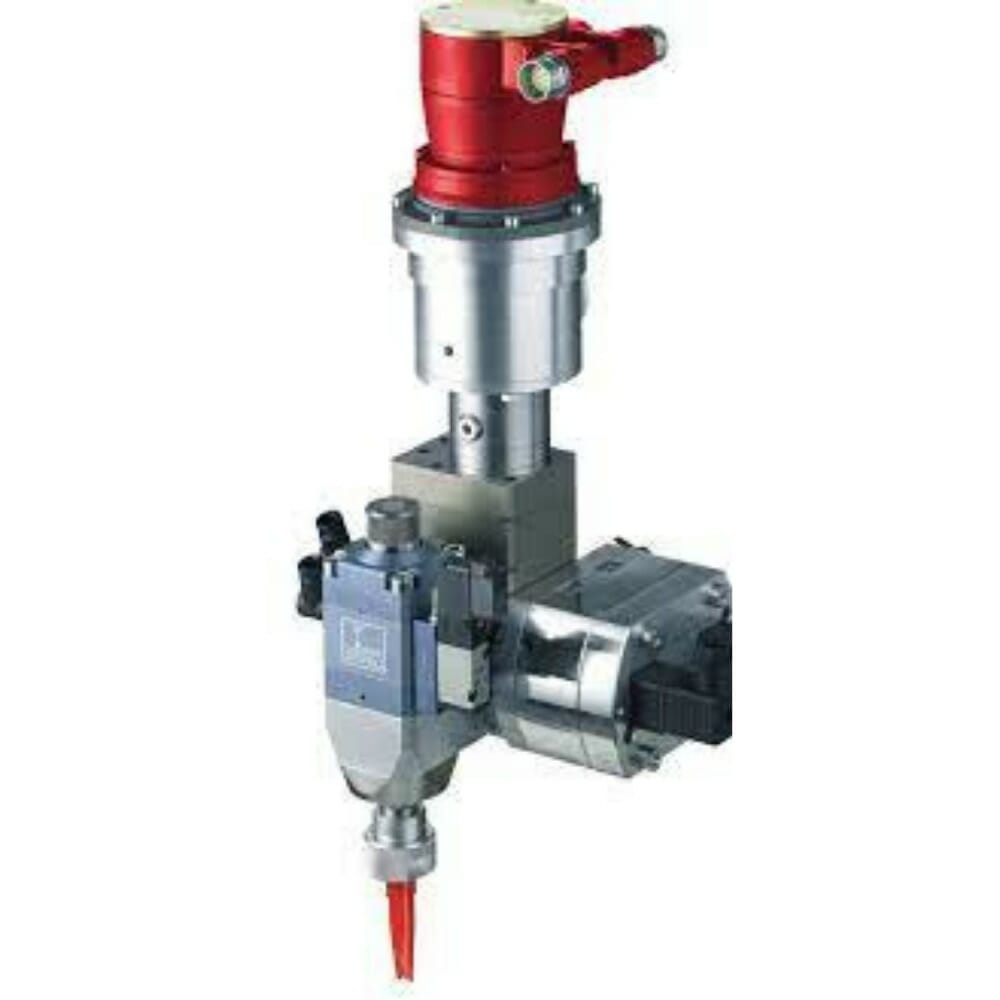

Modis is a highly dynamic, speed-proportional metering system for controlling the flow rate of single component adhesive applications in the automotive industry, as well as in the automotive supply industry. Modis allows operators the opportunity to cover a wide range of flow rates with just four different construction sizes.

Advantages compared to other metering systems

▪ Highly dynamic metering principle

▪ High metering accuracy, min. +/- 1 %

▪ First-in-first-out metering principle

▪ High machine capability, typical cmk > 3

▪ Volumetric efficiency factor = 1

▪ No shot size limit

▪ Variable output rate and system power within a range of 1 to 100 %

▪ Precise flow measurement with elective confirmation

▪ Valve drive hermetically sealed from the atmosphere

▪ Compact size and minimised weight

▪ Modular construction

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Technical Specifications
Pump size[cm³/U] 1,2/6/15
Flow rate [cm³/min] 120/600/1500
Weight [kg] 15/15/22
Material spply P30/P80/P200
Material supply optional heated/oversized ram/tandem
Woking pressure/Maximum pressure [bar] 160/200
Viscosity range medium to high viscosity,stable
Material characteristics Fillers up to MOHS hardness 6
