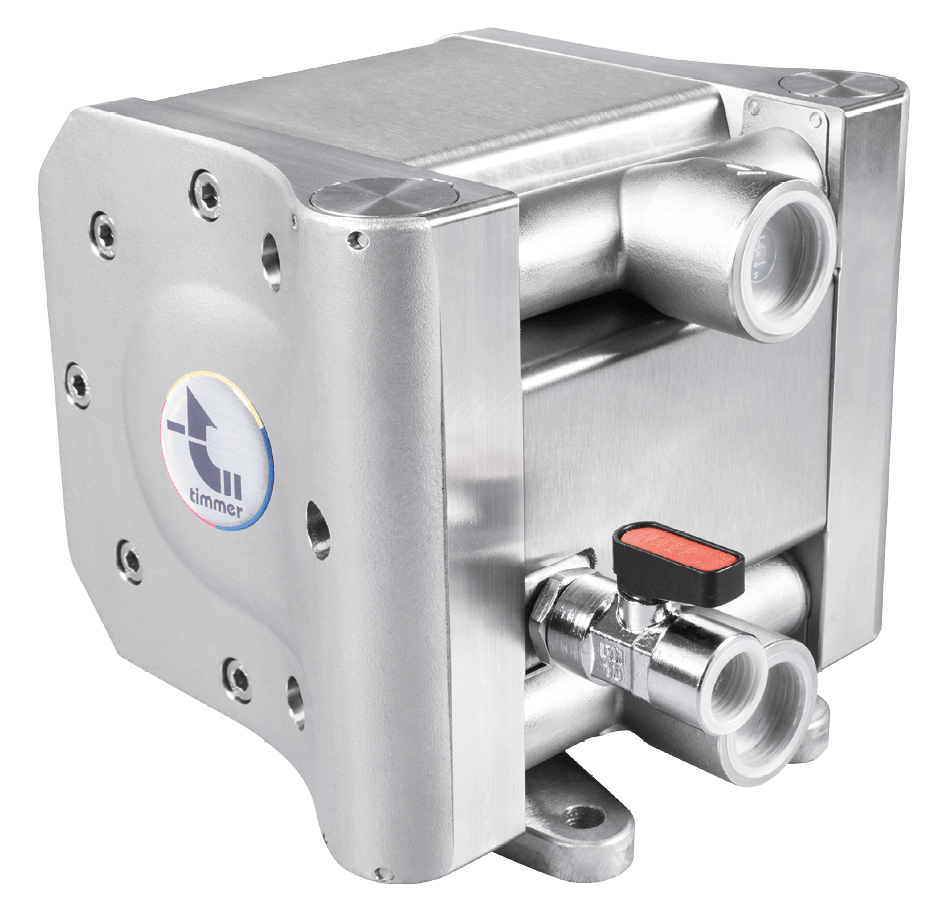

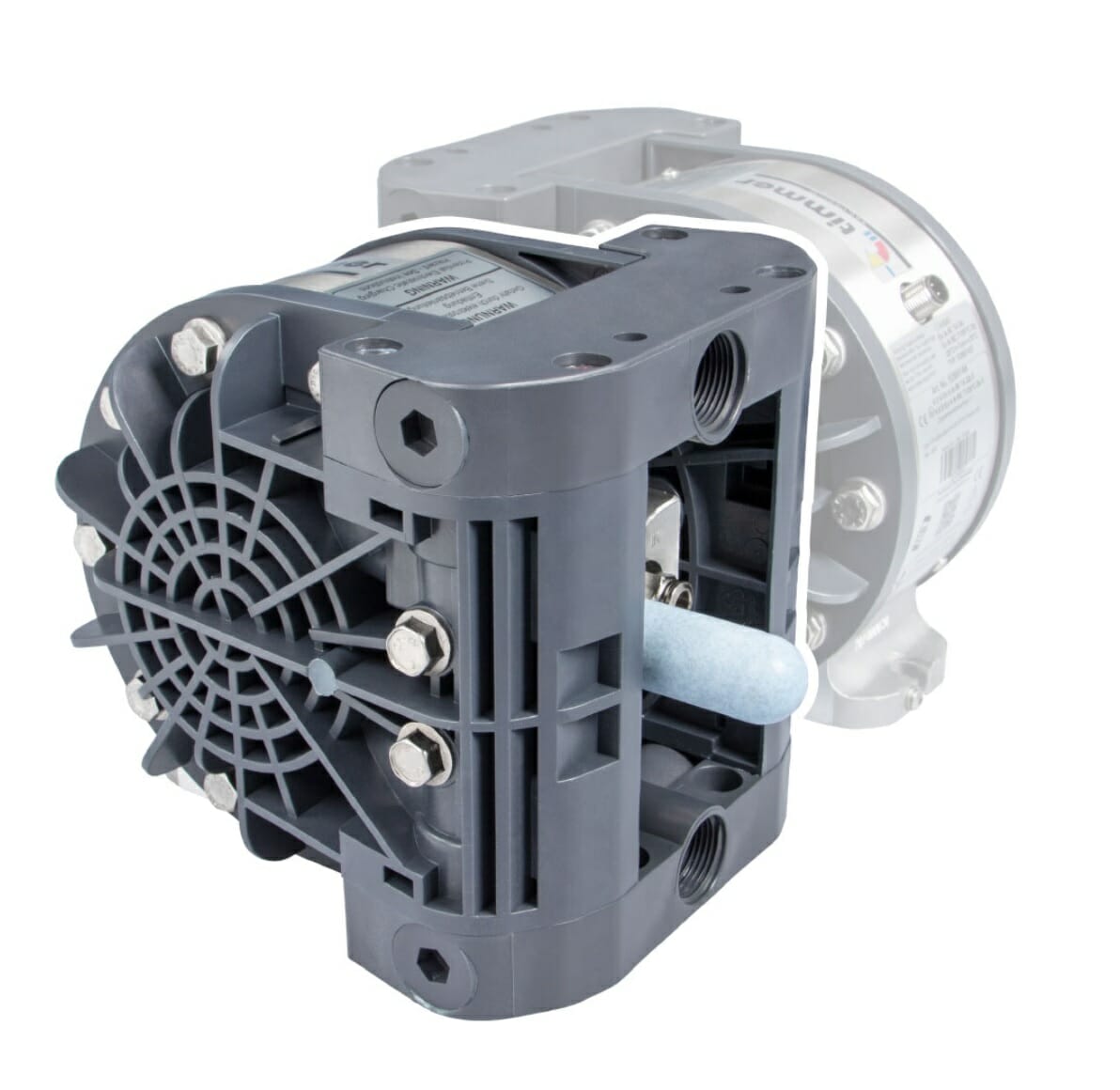

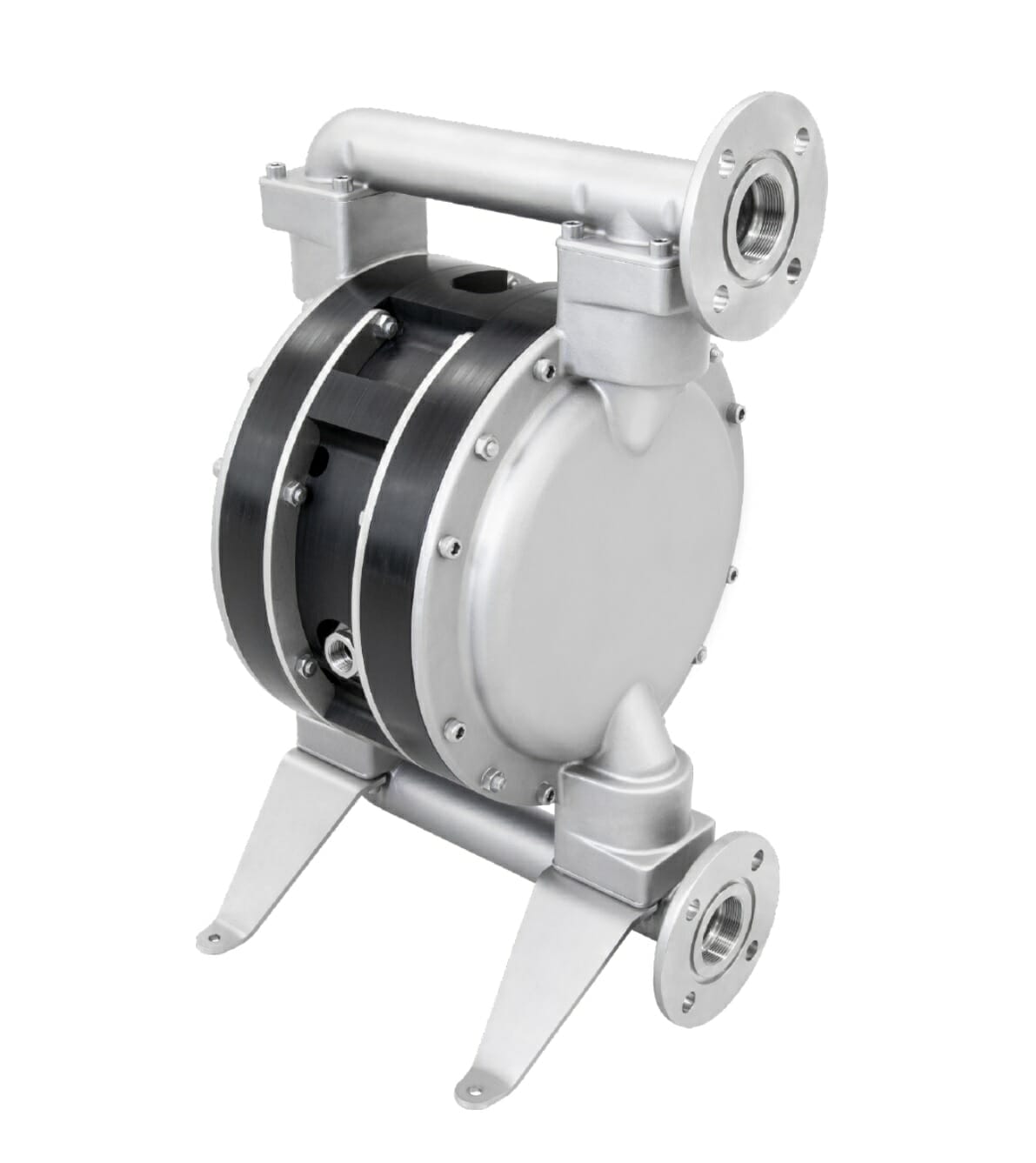

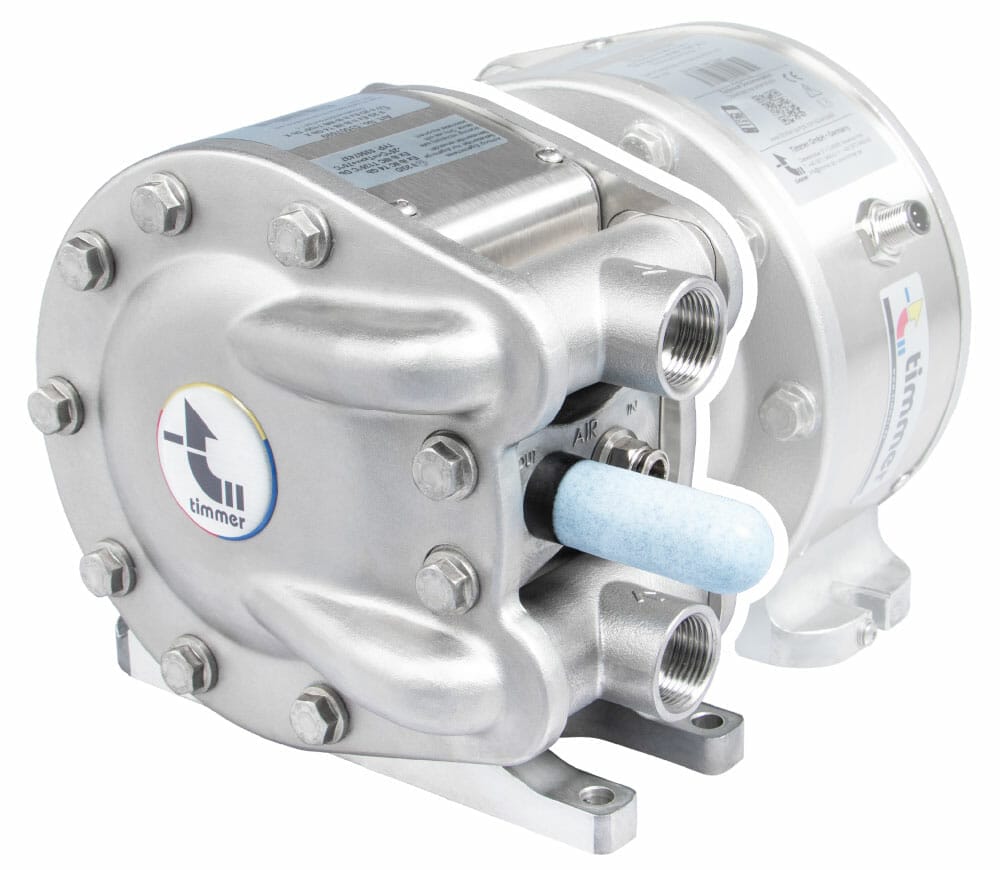

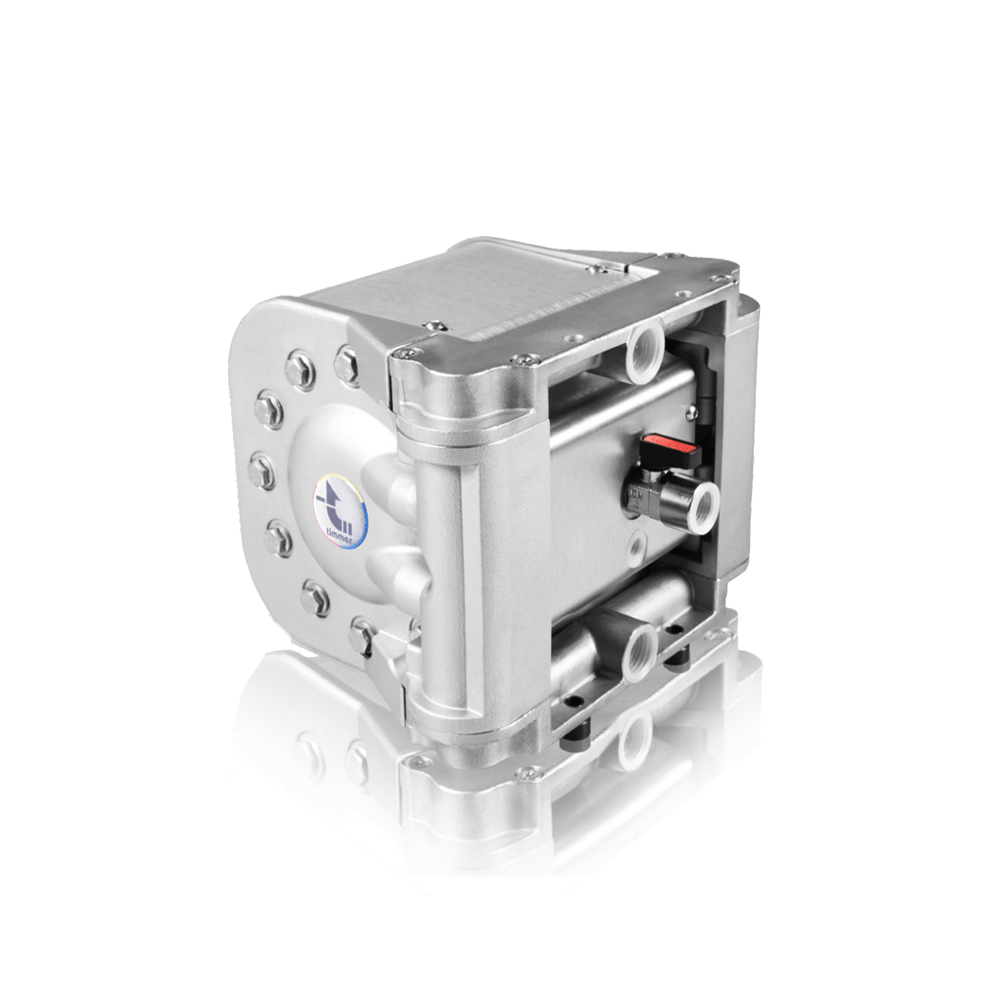

Double Diaphragm Pump

Double Diaphragm Pump

High-class quality for the highest exigencies

Long durability, even under extreme conditions, a reliable start, as well as an excellent process of the pump were key points in the development of the PTI-MEM Pump-Family. This leads to the optimization of the entire process and cause a significant reduction of system downtimes.

The reduction of maintenance costs and the lower necessity of maintenance are another advantages that our pumps offer in comparison with other systems. The extremely lower pulsations and a process starting from 0.5 bar cause an additional optimization of power. The extremely compact design allows an easy integration into existing or new systems. The ATEX approval allows its use in potentially explosive atmospheres.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Technical Data
Transmission 1 to 1
Output(max.) approx. 60 l/min (with water) With PTFE-compound diaphragm
Drive pneumatic
Fluid connections 3/4″ Female thread 90° rotable
Operating pressure 1-8 bar compressed air,unoiled,filtered or oiled
Compressed air connection hose external Ø8 mm,internal Ø6 mm
Suction height dry (max.) 4 m
Weight approx. 6,2 kg
Viscosity of pumped medium Up to 15.000 mPas
Temperature of fluids (max.) +65°C
Noise level 68 dB(A)
Strokes (max.) 8 doublestrokes /s
Ex-Protection ATEX (for further information see operationg manual)
