| L4 | |
|---|---|
| CONTROLLER SPECIFICATIONS | – |
| 4 or 8 channel | – |
| 20 Events per channel | – |
| 200 Spots oer channel | – |
| 8 Triggers | – |
| Trigger assignment option | – |
| Separate feed shutdown | – |
| 2 Encoder inputs | – |
| 1 or 2 Glue pressure zones | – |
| Remote purge option | – |
| Batch count option | – |
| Lockout feature | – |
| Double feed,Jam detaction-machine shutdown | – |
| Metric or Standard | – |
| Stores 1000+ jobs | – |
| Resolution | 0.25 mm (0.01 in) at 182 m/min (600 ft/min) |
| 0.75 mm (0.03 in) at 545 m/min (1,800 ft/min) | |
| 1.25 mm (0.05 in) at 910 m/mon (3,000 ft/min) | |
| PHYSICAL CHARACTERISTICS | |
| Contro Box | |
| Dimensions | 44 cm (17.5 in) w |
| 38 cm (14.8 in) h | |
| 28 cm (10.9 in) d | |

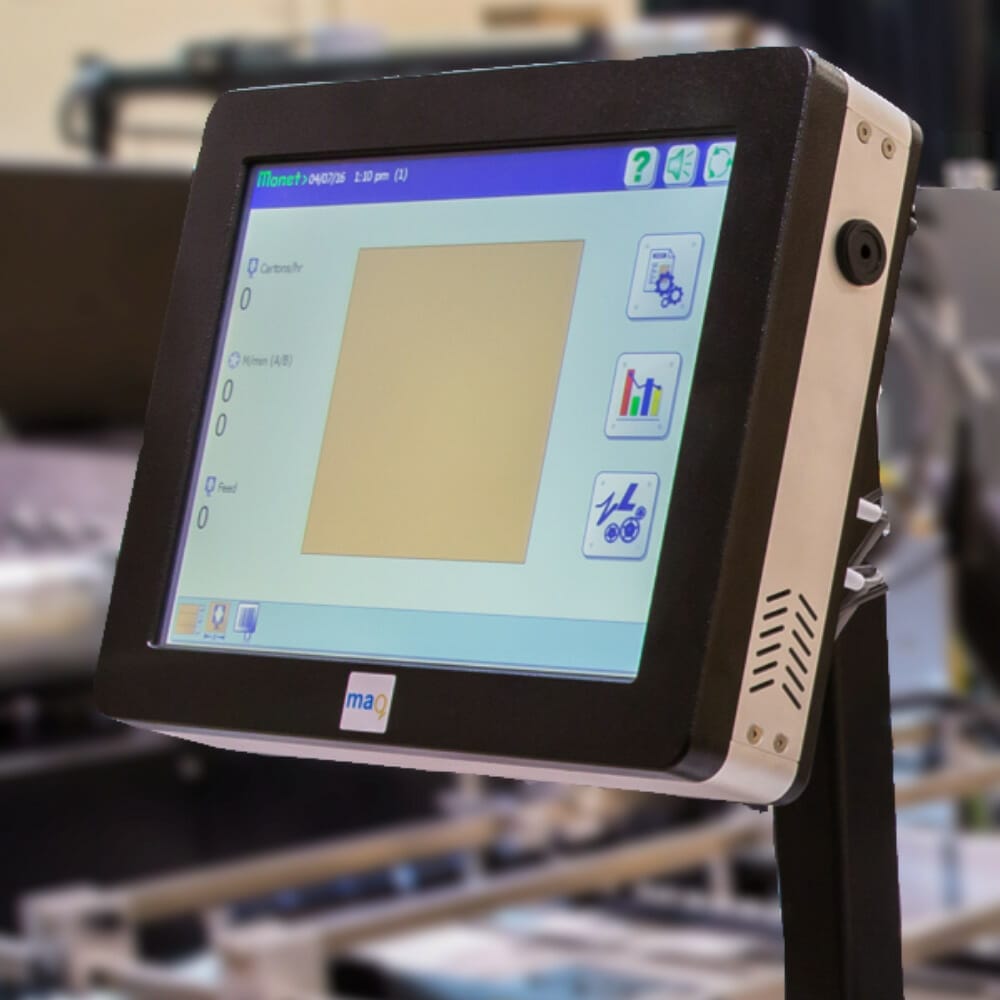

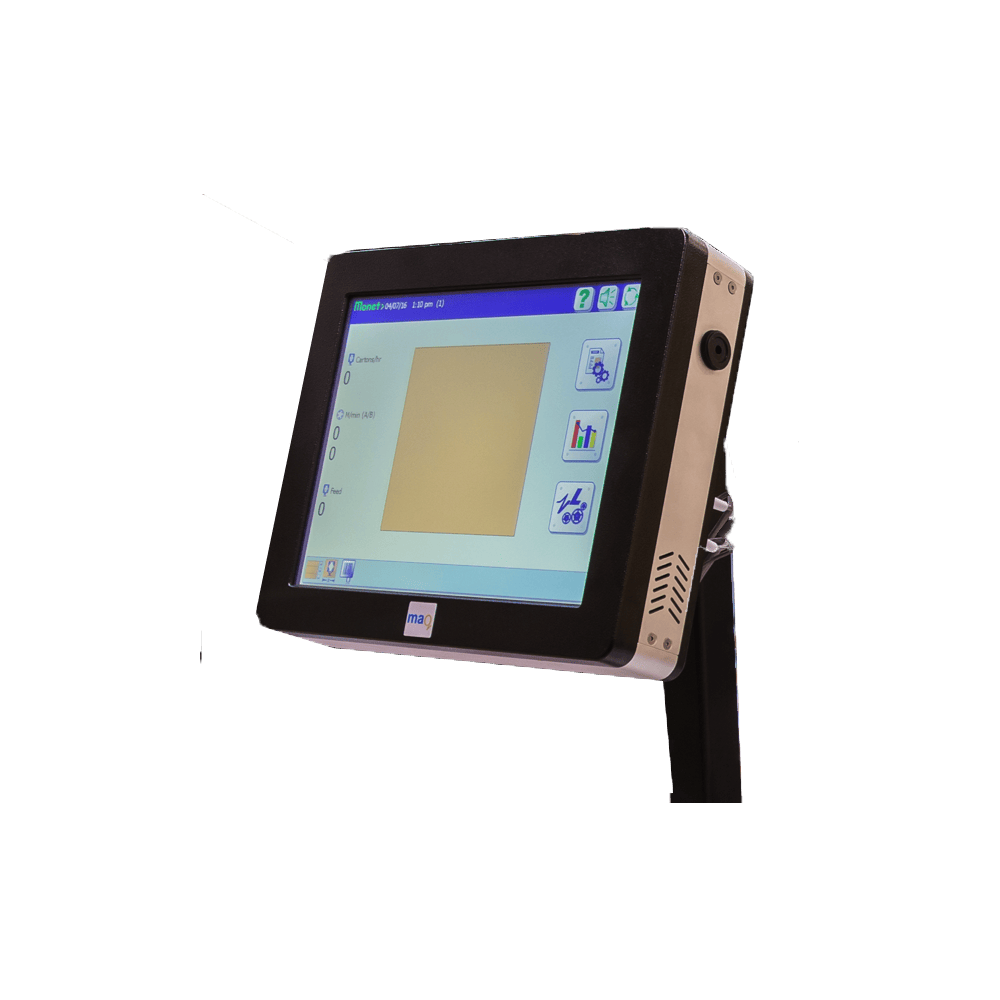

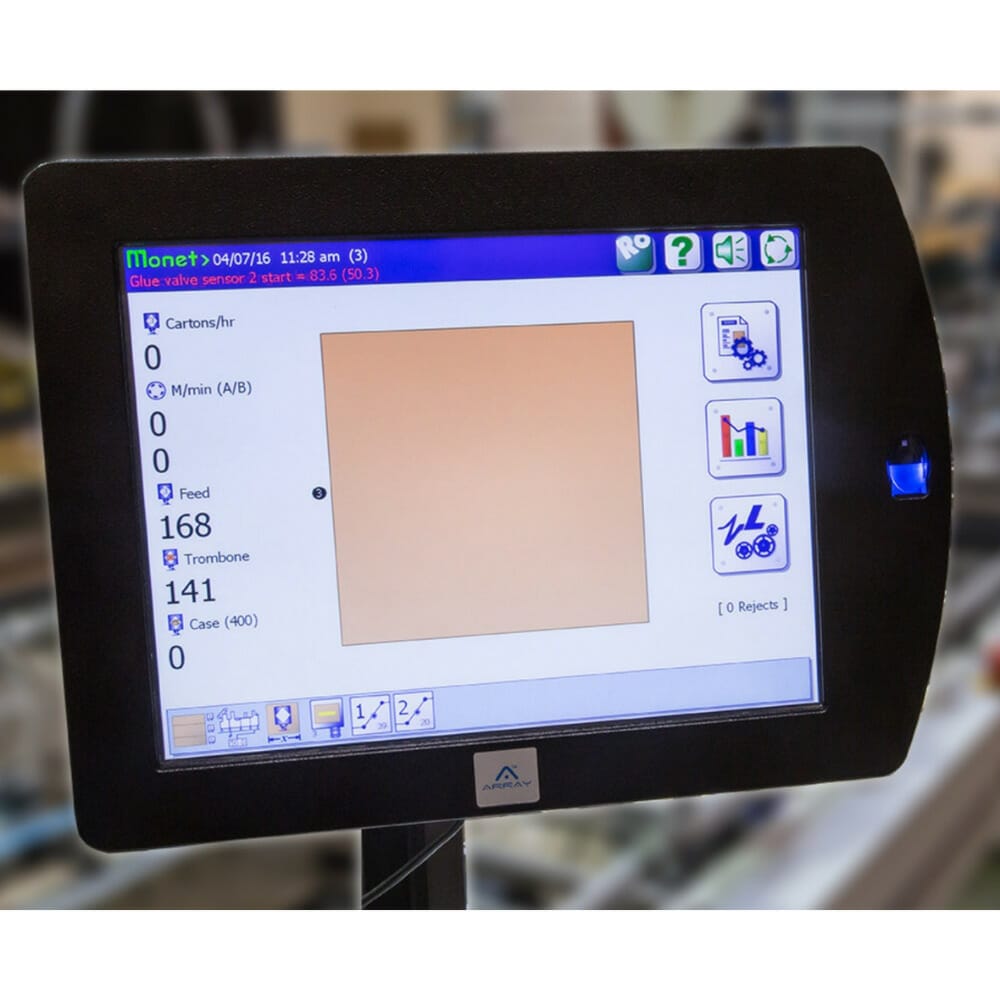

| Touch Screen | |
| Dimensions (LSI) | 38 cm (15 in) w |
| 30 cm (12 in) h | |
| 5.8 cm (2.3 in) d | |
| Dimensions (SEQURE ID LSI) | 41.3 cm (16.3 in) w |
| 30.0 cm (12.0 in) h | |
| 5.70 cm (2.20 in) d | |
| Power Requirements | Voltage 85-264 VAC |
| Frequency 47-63 Hz | |
| Power Consumption 700 VA max. | |
| L916 | |
| DETECTION PATTERN INPUTS | |
| 16 channel | |
| SENSOR CAPABILITY | |
| Glue detaction | |
| Barcode mixed copy detection | |
| Pharmacode/Color Code reader | |
| Skew detection | |
| Flaps detection | |
| Double feed/ Jam detection | |
| Many more detection options | |
| ENCODER CAPABILITY | |
| 2 Encoders | |
| EXTRUSION CHANNEL OUTPUTS | |
| 8 Channel/8 Valve | |
| 8 remote purge buttons | |
| 20 pattern events | |
| 200 spot adjustment | |
| 12 triggers | |
| GLUE APPLICATION FEATURES | |
| Low speed cut out | |
| Low speed spotting | |
| Auto spot adjustment | |
| High speed auto spotting | |
| On/Off valve compensation | |
| OTHER SPECIGICATIONS | |
| Speed – 910 m/min (3000 ft/min) | |
| Resolution | 0.25 mm (0.01 in) at 182 m/min (600 ft/min) |
| 0.75 mm (0.03 in) at 545 m/min | |
| 1.25 mm (0.05 in) at 910 m/min (3,000 ft/min) | |
| PHYSICAK CHARACTERISTICS | |
| Control Box | |
| Weight | 25 kg (54 lbs) |
| Dimensions | 51 cm (19.9 in) w |
| 45 cm (17.9 in) h | |
| 26 cm (10.3 in) d | |
| Touch Screen | |
| Dimensions | 41.3 cm (16.3 in) w |
| 30.0 cm (12.0 in) h | |
| 5.70 cm (2.20 in) d | |
| Power Requirements | |
| Voltage:85-264 VAC | |
| Frequency:47-63 Hz | |
| Power Consumption:900 VA max. | |
| L924 | |
| DETECTION PATTERN INPUTS | |
| 24 Chnnel | |
| SENSOR CAPABILITY | |
| Glue detection | |
| Barcode mixed copy detection | |
| Pharmacode/Color Code reader | |
| Skew detection | |
| Flaps detection | |
| Double feed/Jam detection | |
| Many more detection options | |
| ENCODER CAPABILITY | |
| 2 Encoders | |
| EXTRUSION CHANNEL OUTPUTS | |
| 24 Channel/24 valve | |
| 24 remote purge buttons | |
| 20 pattern events | |
| 200 spots per station | |
| 24 triggers | |
| GLUE APPLICATION FEATURES | |
| Low speed cut out | |
| Low speed spotting | |
| Auto spot adjustment | |
| Hight speed auto spotting | |
| On/Ogg valve compensation | |
| PHYSICAL CHARACTERISTICS | |
| Control Box | |
| Weight | 48 kg (106 lbs) |
| Dimensions | 41.3 cm (16.3 in) w |
| 30.0 cm (12.0 in) h | |
| 5.70 cm (2.20 in) d | |
| Touch Screen | |
| Dimensions | 41.3 cm (16.3 in) w |
| 30.0 cm (12.0 in) h | |
| 5.70 cm (2.20 in) d | |
| Power Requirements | |
| Voltage:85-264 VAC | |
| Frequency:47-63 Hz | |
| Power Consumption:1200 VA max. |
