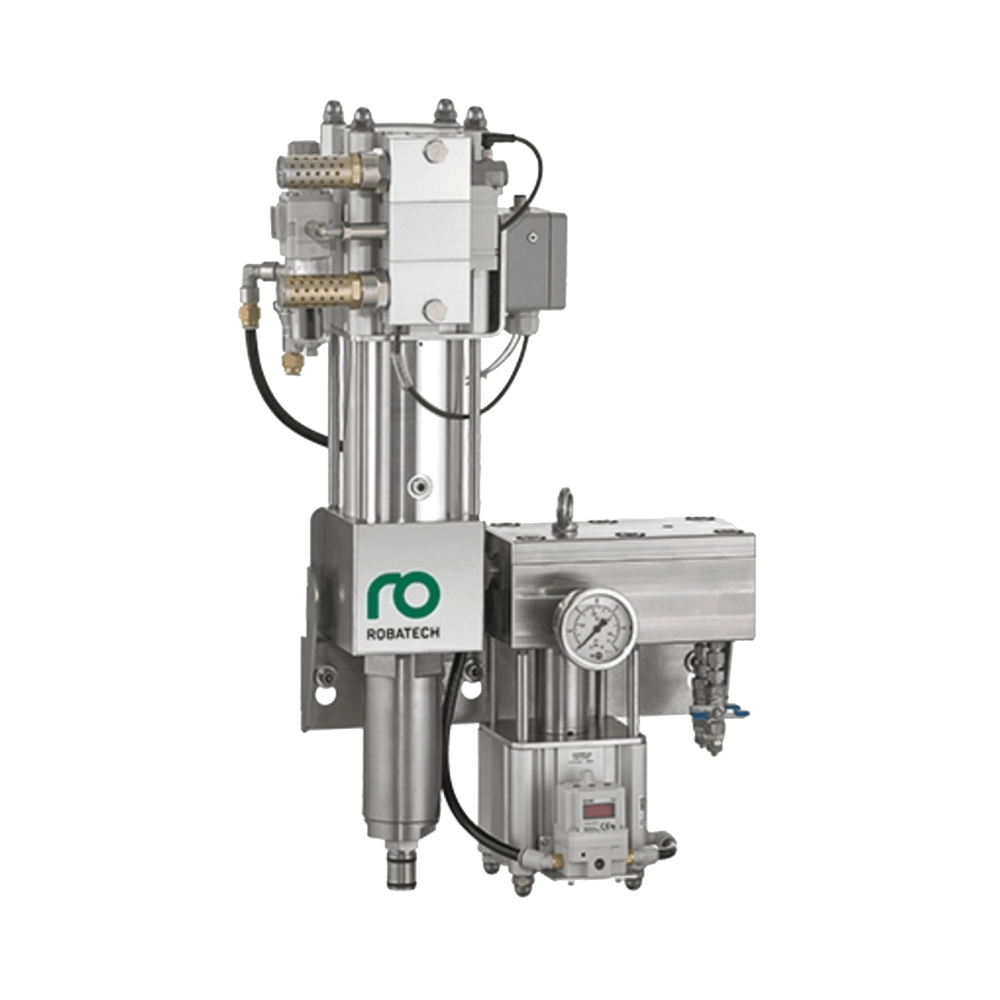

CXU High Pressure

CXU 110 GRU is designed for pumping of low-viscosity to medium-viscosity dispersion adhesives without solvent content up to 12,500 mPas. Fast switching times and a material pressure regulator ensure precise and consistent adhesive application. The modular, but compact design enables flexible use and simple, but efficient maintenance.

Category Pump and Container Tags CXU High Pressure, JumboFlex, Liquid adhesive systems, Pump and Container

Description

Technical Data	CXPP 110 Cold glue piston pump
Pressure transmission	1:9
Output volume	75 l/h (continuous operation)
Output volume	110 l/h (short term operation)
Adhesives pressure	1 to 50 bar
Adhesives	Water based dispersion adhesives
Adhesives	Acrylate adhesives
Adhesive viscosity	500 to 12.500 mPas at 20°C (Brookfield measuring method)
Compressed air quality	Dry,cleaned and unoiled. As per ISO standard 8573-1 class 4
Compressed air supply	At least 5 bar to max. 6 bar
Compressed air connection	Ø10/8 mm
Compressed air consumption	approx.5000 l/h at 75 l/h
Adhesive intake	Connection: ID 25 mm
	Intake height:2 m at 2000 mPas
	Maximum hose length:10 m at 2000 mPas
Adhesive output	1×G ½ inch
Supply voltage	24 V DC or 240/110 V AC with PSU
Weight	39 kg (entire unit)
Noise level	70 dB(A)
