Quantum

Quantum

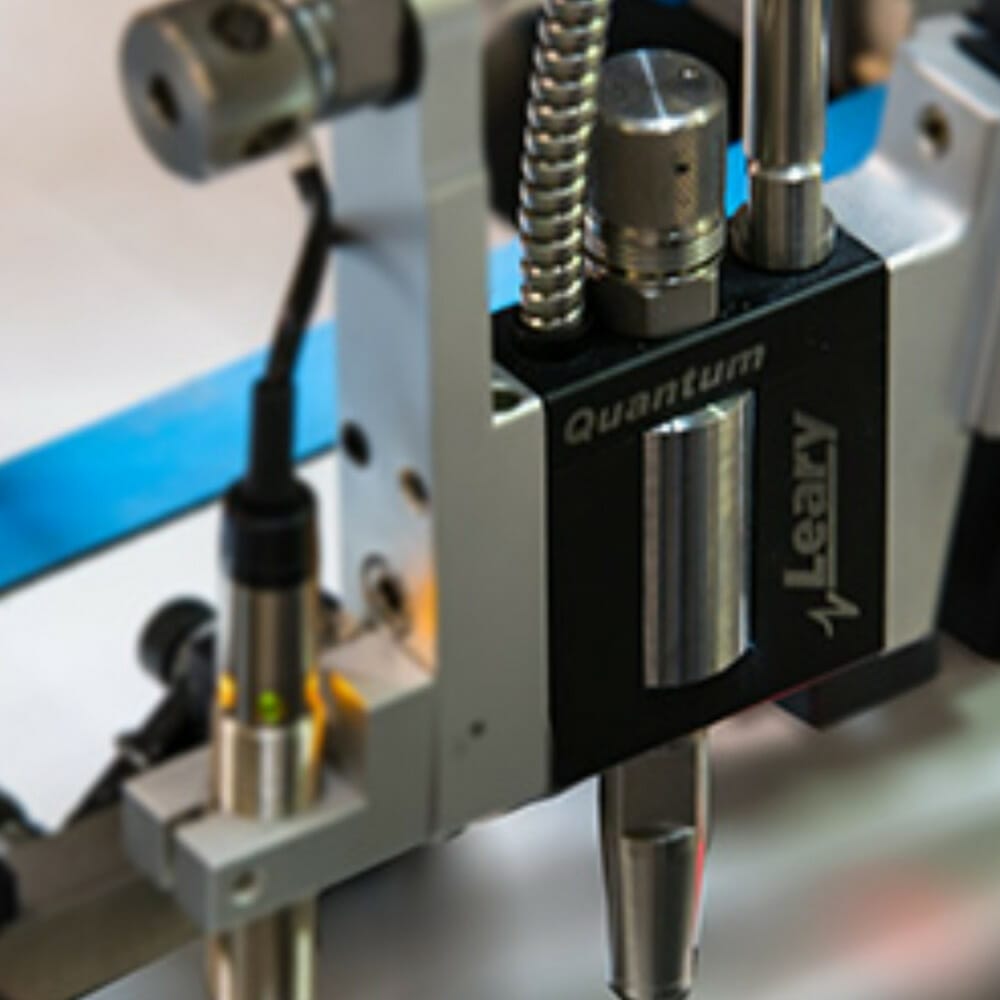

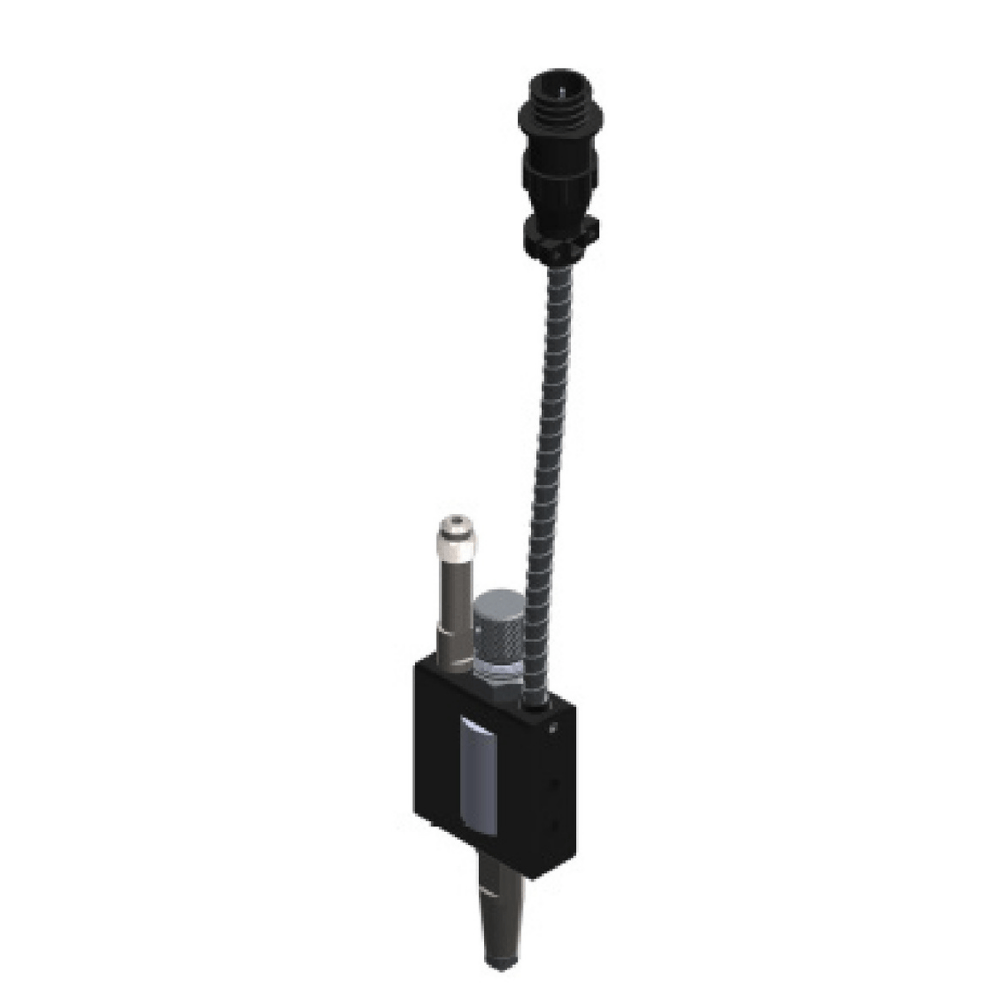

Quantum™ cold glue valves use a micro-adjust stroke that delivers up to a 1mm gluing accuracy when using extrusion grade glue. These valves are adaptable enough to be used with high, medium, or standard pressure systems. The easily-adjustable mounting hardware and slim 22.5mm valve body profile make it the ideal choice for most machines.

The two piece nozzle not only makes cleaning and changeovers simple, its 45mm long nozzle also gives the flexibility to glue in even the tightest of spaces.

Choose the valve that best ensures a perfect glue application solution for your cartons. Quantum™ Gold is optimal for specialty applications with extremely complex gluing patterns at high speeds, and where higher power consumption is not an issue. For most other applications, Quantum™ Platinum is the preferred valve.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



PHYSICAL CHARACTERISTICS
Dimensions 45 mm (1.77 in) I 22.5 mm (0.89 in) w 144.1 mm (5.67 in) h
Weight 346 kg (.77 Ibs)
POWER REQUIREMENTS
Quantum 10 Platinum Spike 48 VDC Hold 12 VDC Power 4.8 A
Quantum 6 Gold Spike 48 VDC Hold 12 VDC Power 4.8 A
ADHESIVES
Recommended glue viscosity range 0.3 to 0.8 Pa•s (300 to 800 cps)
CAPABILITIES
Quantum Platinum capable og running a 1.5 millisecond cycle time with 0.7 Pa•s glue (700 cps glue)
NOZZLE SIZES .20 mm .25 mm .30 mm
.35 mm .40 mm .45 mm
.50 mm .60 mm .70 mm
1.0 mm
*Included nozzle size, other size optional.
