PRODUCT

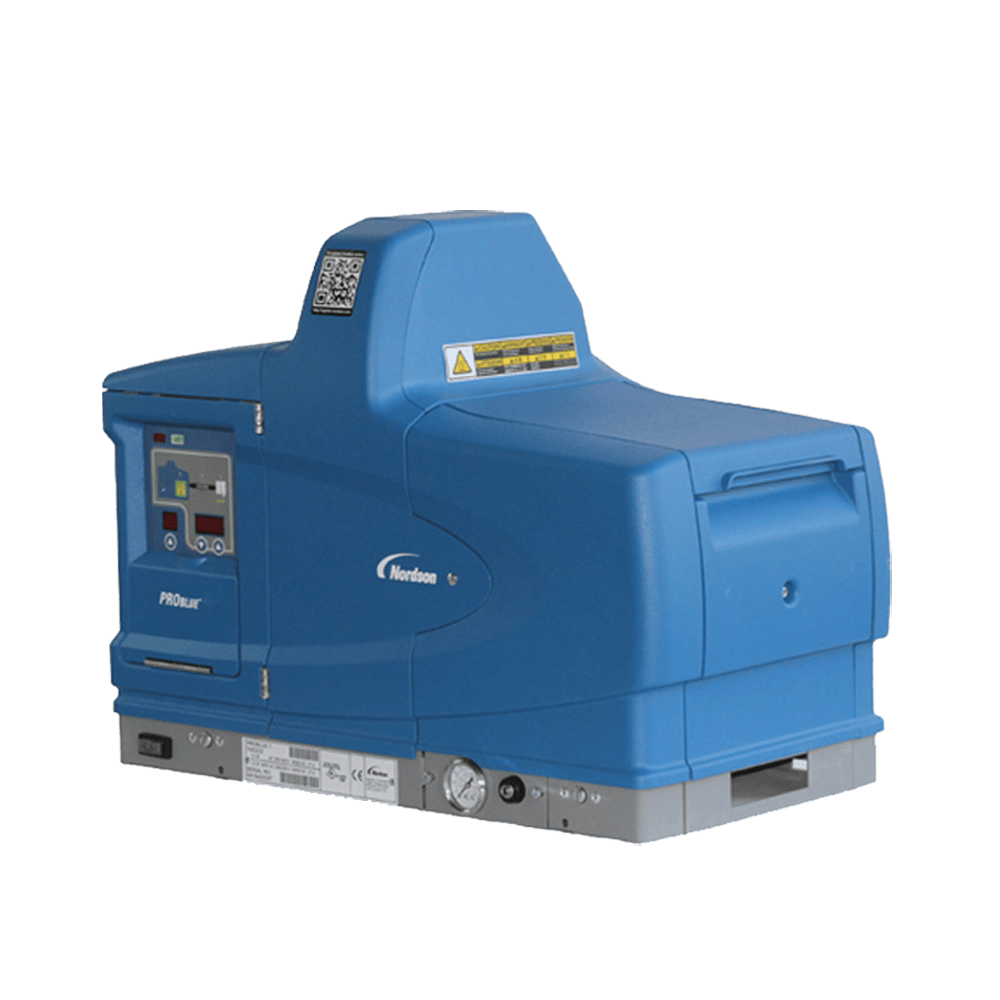

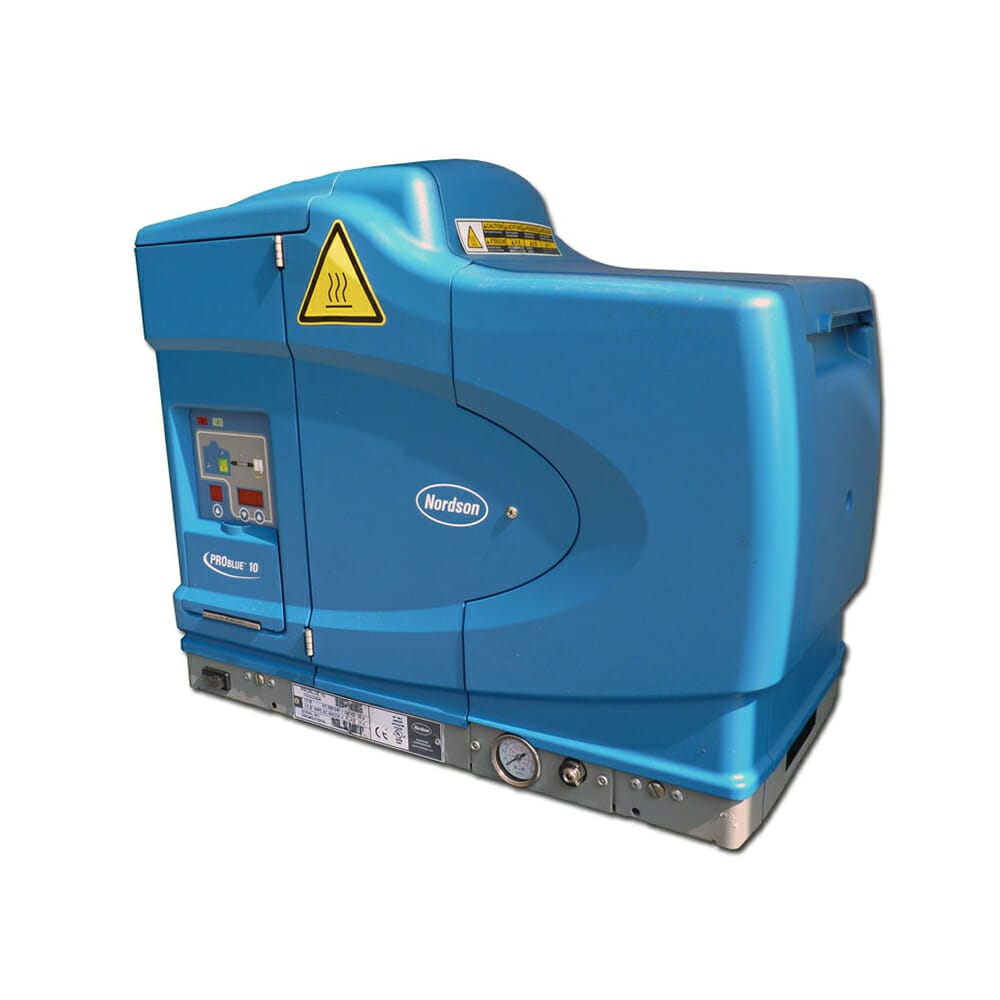

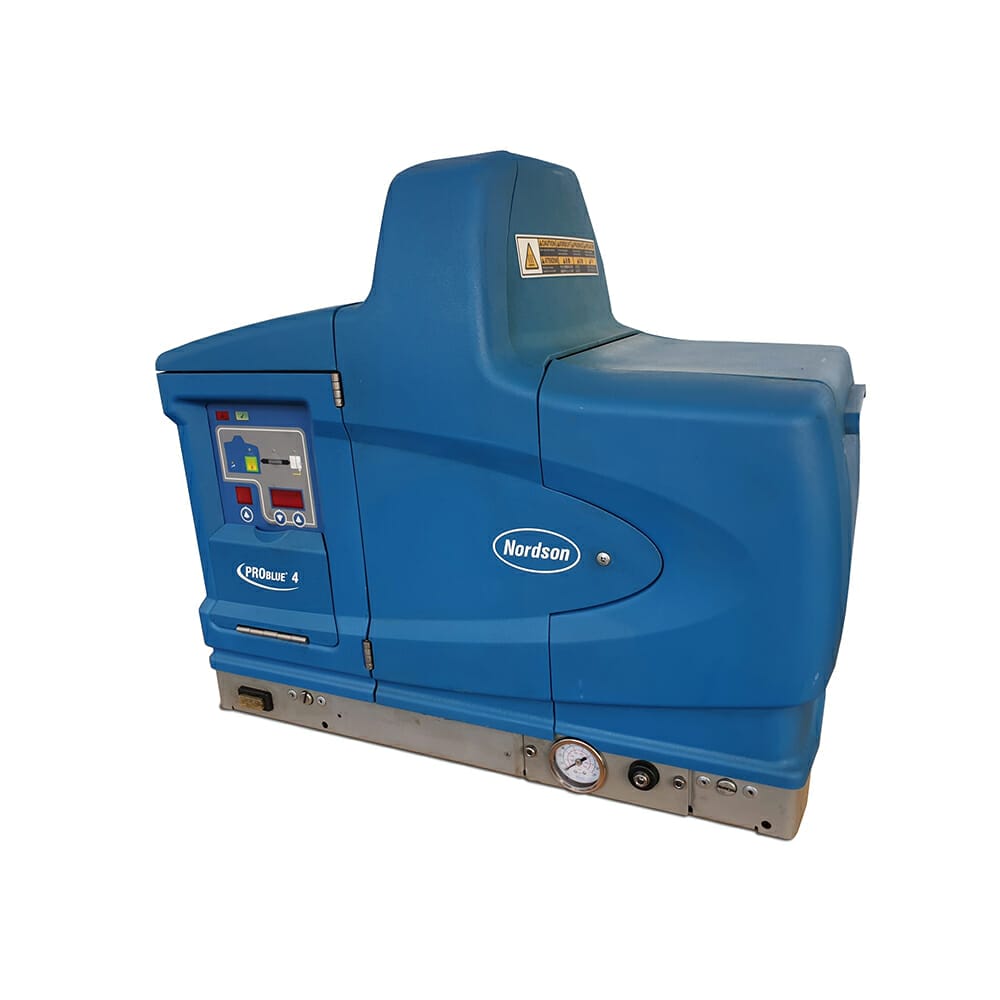

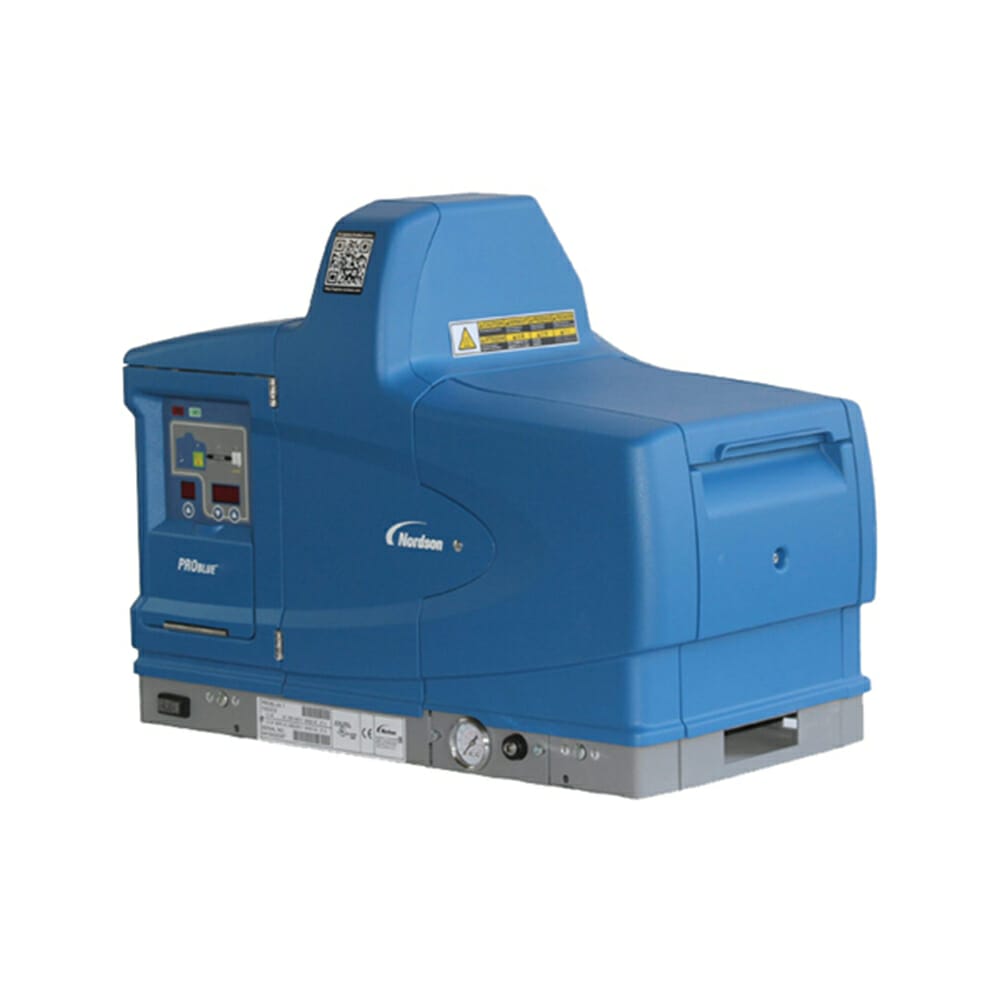

ProBlue

ProBlue

Reliable piston-pump adhesive dispensing technology delivers unmatched performance and simple daily operation. Manufacturers worldwide have made Nordson’s hot melt equipment the industry standard for reliability. ProBlue hot melt machines deliver greater simplicity, flexibility and performance. With its LED digital show, operator can intuitively use buttons to set the needed values, where error will be shown in code form for easily translate.

Thus, it offers simplify operation with an intuitive graphic operator interface, system status at-a-glance and continuously updated temperature monitoring, and improve safety with a standard, patented automatic pressure discharge, which releases residual system pressure when the pump is turned off.

Enhance performance of hot melt adhesives. Leading Zone Concept prevents any control zone temperature from exceeding the leading zone temperature, causing all zones to reach set-point temperature simultaneously.

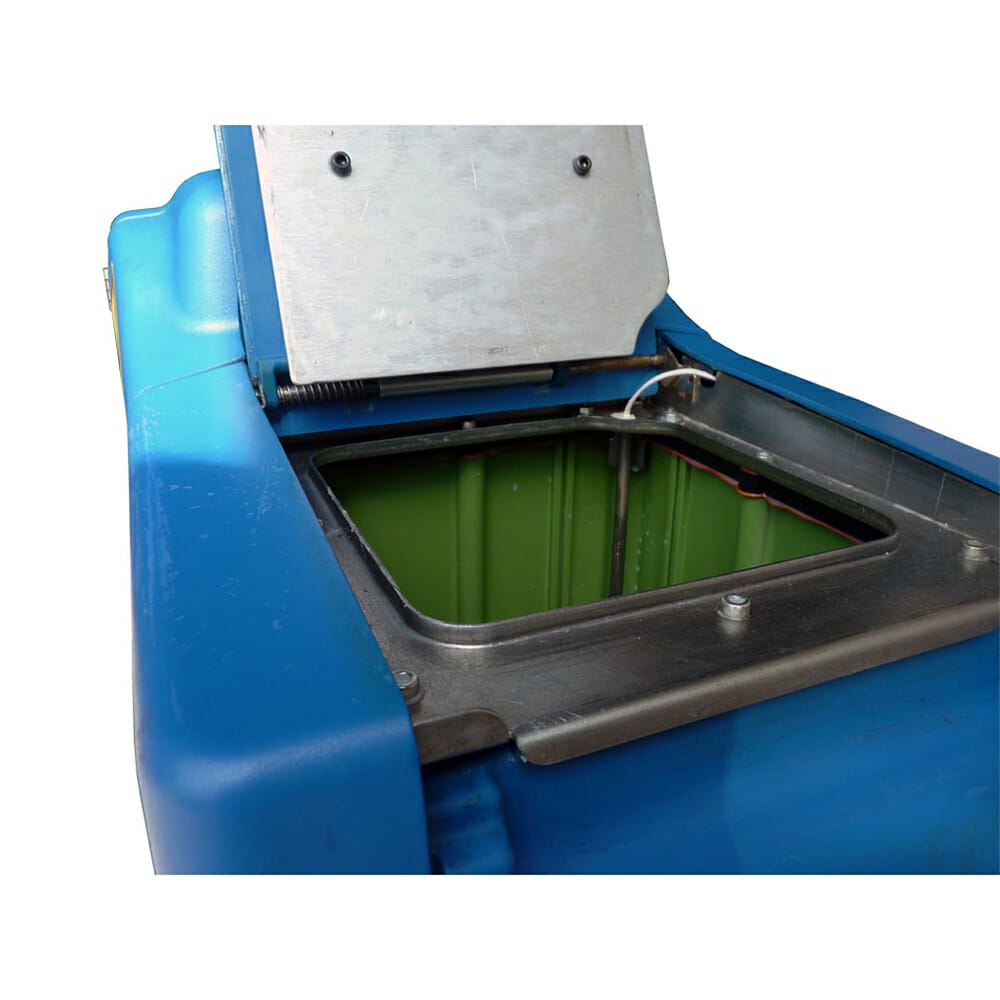

For small version, ProBlue series has offered 4, 7 and 10L capacity tank to serve standard use, but larger version of 15, 30 and 50L tank capacity are also available

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Technical Data Problue 4 Problue 7 Problue 10
Hose Ports 5 5 9
Electrical Service 200 to 240 VAC 200 to 240 VAC 200 to 240 VAC
Standard 1 or 3 phase 50/60 Hz 1 or 3 phase 50/60 Hz 1 or 3 phase 50/60 Hz
200 to 240 VAC 200 to 240 VAC 200 to 240 VAC
1 phase N/PE 50/60 Hz 1 phase N/PE 50/60 Hz 1 phase N/PE 50/60 Hz
400/230 VAC 400/230 VAC 400/230 VAC
3 Phase N/PE 50/60 Hz 3 Phase N/PE 50/60 Hz 3 Phase N/PE 50/60 Hz
w/ Opt. Transformer 400 or 480 VAC 400 or 480 VAC 400 or 480 VAC
3 Phase 50/60 Hz 3 Phase 50/60 Hz 3 Phase 50/60 Hz
Holding Capacity 3.9 kg (8.6 Ib) 3.9 kg (8.6 Ib) 9.7 kg (21.4 Ib)
4.3 kg (9.5 Ib) 4.3 kg (9.5 Ib) 11 kg (24 Ib)
6.8 kg (15 Ib) 6.8 kg (15 Ib) 12.4 (27.3 Ib)
4 liter (244       )
7 liter (427       )
10 liter (610       )
