Skip to content| Specifications | RTD Hoses | TC Hose |
|---|---|---|
| Maximum Operation | ||
| Temperature | 232°C (450°F) | 232°C (450°F) |
| Maximum Hydraulic | 1000 psi (6.89 MPa) for 5/8 and | 1500 psi (10.34 MPa) |
| 1-1/8 in. (1.58 and 2.85 cm) diameter | for TC-8 and TC-13 | |
| 1500 psi (10.34 MPa) for 5/16 in. | ||
| (.79 cm) diameter | ||
| Electrical Service | 120 VAC, 200 VAC or 240 VAC | 200 VAC or 230 VAC |
| Available Lengths | 2 to 65 ft (0.6 to 19.8m) depending | 4 to 43 ft (1.2 to 13m) depending |
| on diameter and voltage | on diameter and voltage |
PRODUCT

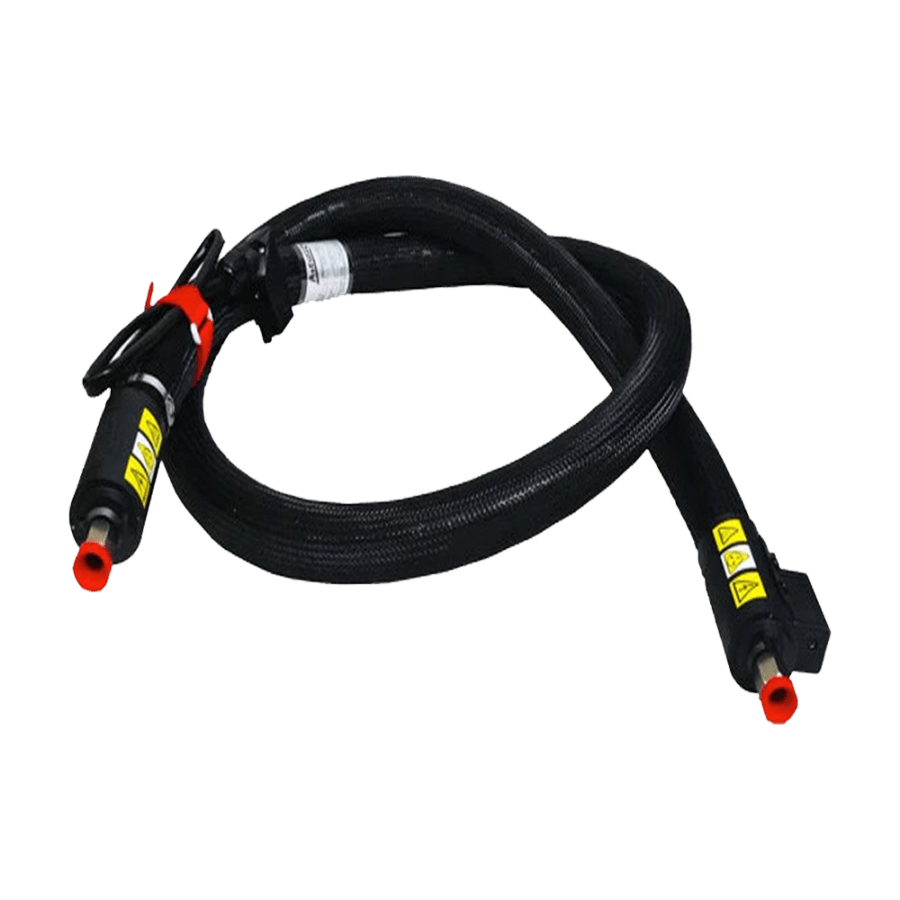

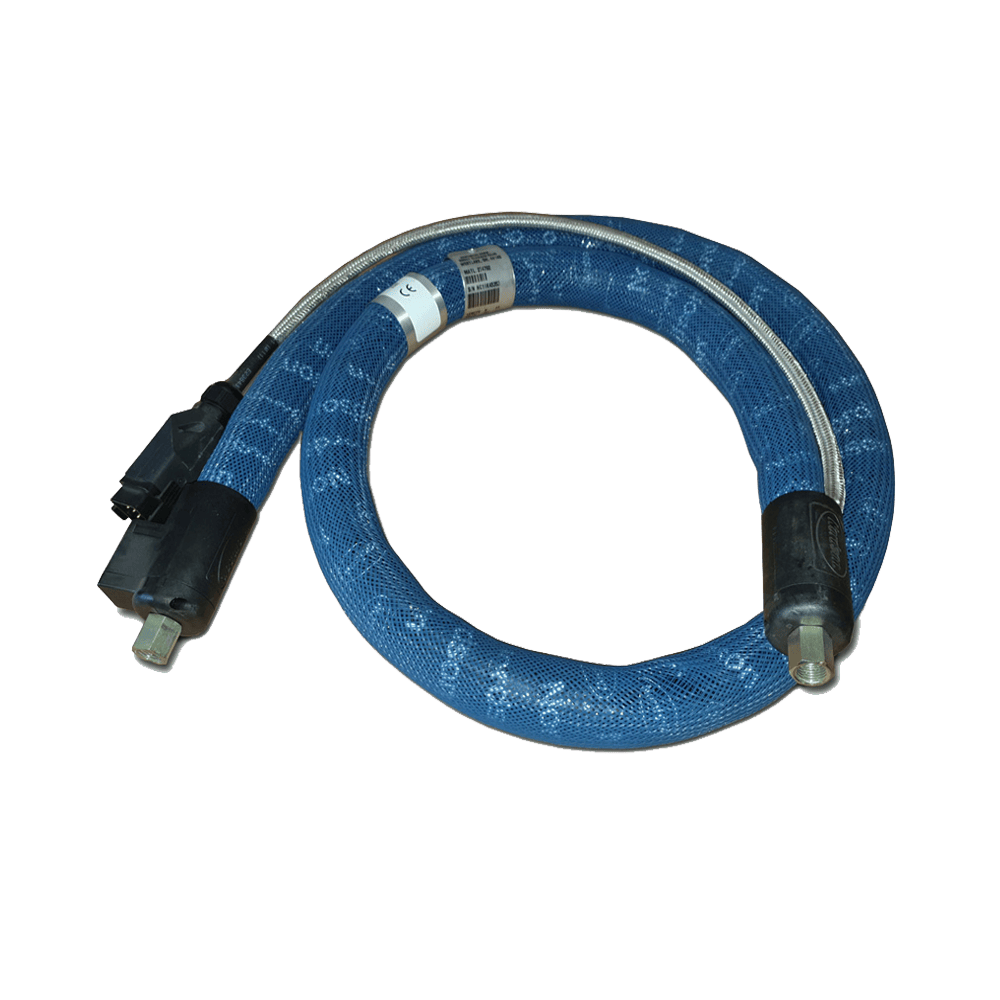

Blue Series
Blue Series
Blue Series hot melt hoses operate safely with the proven durability and performance that reduce costs and downtime. Designs include RTD-style hoses for NI120 sensor and TC-style hoses for PT100 and FeKo thermocouple. Automatic and manual versions are available.
It equipped with aramid insulation that improves chemical and moisture resistance. Along with four layers of overlapped aramid insulation, this help increasing thermal efficiency and retains hose flexibility. The possibility of high-impedance faults is reduced with dedicated low-resistance ground.
