Vision

Vision

Vision is the smart adhesive melter for high-quality adhesive application of thermoplastic hot melt adhesives. The innovative FlexPort and the advanced Smart Terminal combine energy-efficient design and new electronics into a smart melter for safe product gluing and cost-effective operation.

The innovative insulation around the melting tank effectively reduces heat radiation to the outside. Compared to Concept series melters, energy consumption is reduced by 20 percent. The heating capacity is regulated quickly and precisely via two heating zones. The adhesive is gently melted and not overheated.

Thanks to the fast-switching piston pump, the pressure conditions are stable. The advantageous heat distribution between pump and glue distributor maintains the adhesive viscosity at a constant level. Both factors are crucial so that adhesive can be applied repeatedly and evenly to products. With Vision, heated hoses and application heads remain in use longer. The sloping bottom in the melting tank causes impurities in the adhesive to sink into the collection area and not be delivered.

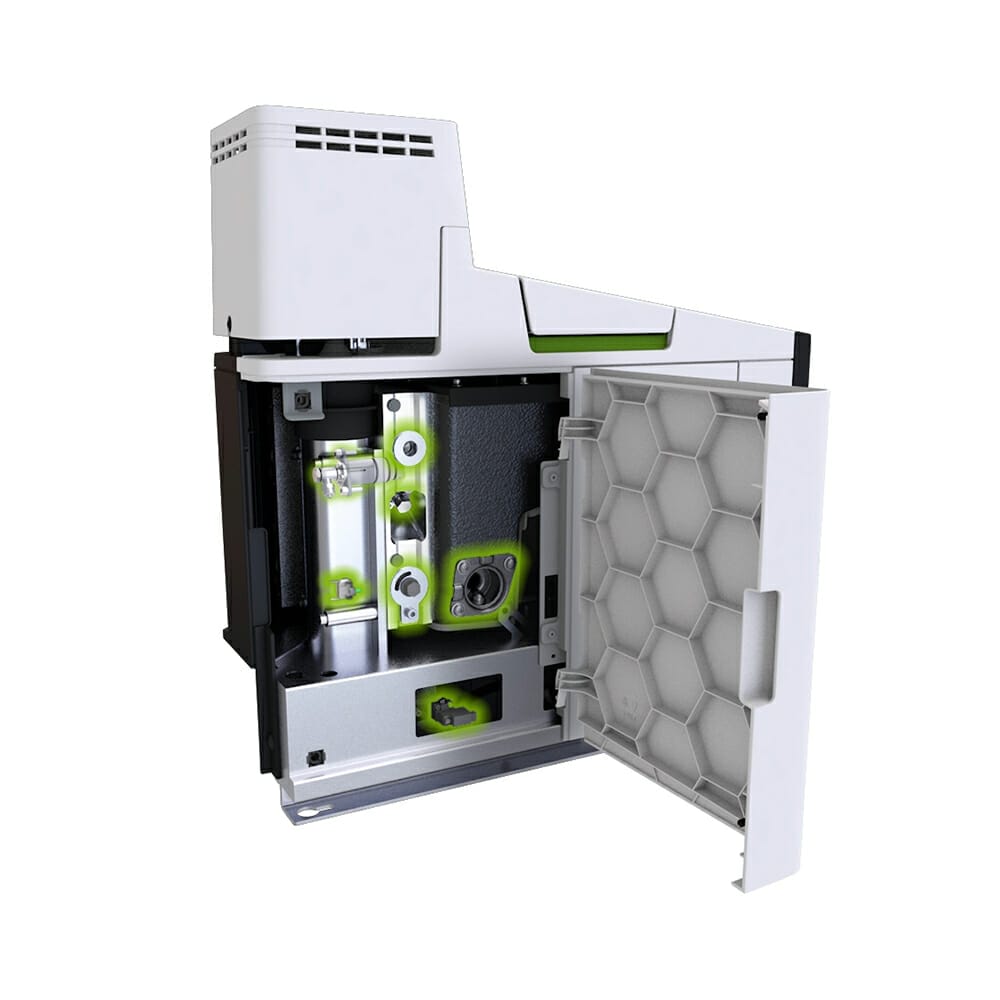

The otherwise time-consuming tank cleaning is effortless with Vision. The cleaning plug can be used to quickly and completely remove adhesive residues and impurities that have sunk into the collection area on the bottom of the tank.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Tank volume (classic) 2.5 I 2.5 I 6 I 6 I
Tank volume (tankless) 0.8 I 0.8 I 2 I 2 I
Melting capacity 5 / 9 kg/h 5 / 9 kg/h 12 / 18 kg/h 12 / 18 kg/h
Adhesive type Granulate / blocks, thermoplastic adhesive (EVA, PO, Coolmelts, APAO, PSA)
Operatring temperature 20 to 200°C / 68 to 382°F
Heat-up time (160°C)* approx. 23 minutes
Adhesive viscosity Classic: 100 to 20,000 mPas, tankless: 100 to 5,000 mPas
Heated hose connections 1 to 3 1 to 8 1 to 3 1 to 8

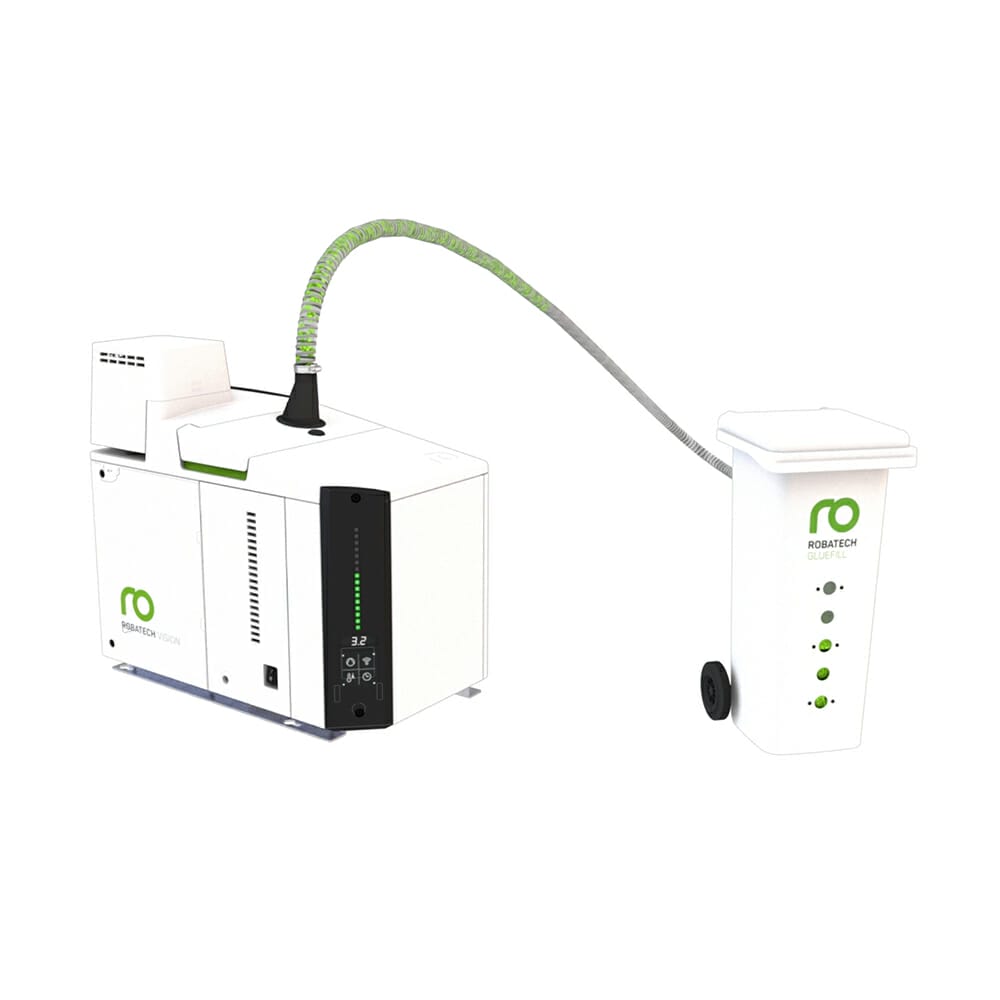

Filling Manual or automatic (RobaFeed)
Pump type Piston Pump
Supply voltage 200 bis 400 V, 1 – 3 LNPE
Electrical power 2.79 kW 2.79 kW 4.5 kW 4.5 kW
