RK700TR

RK700TR

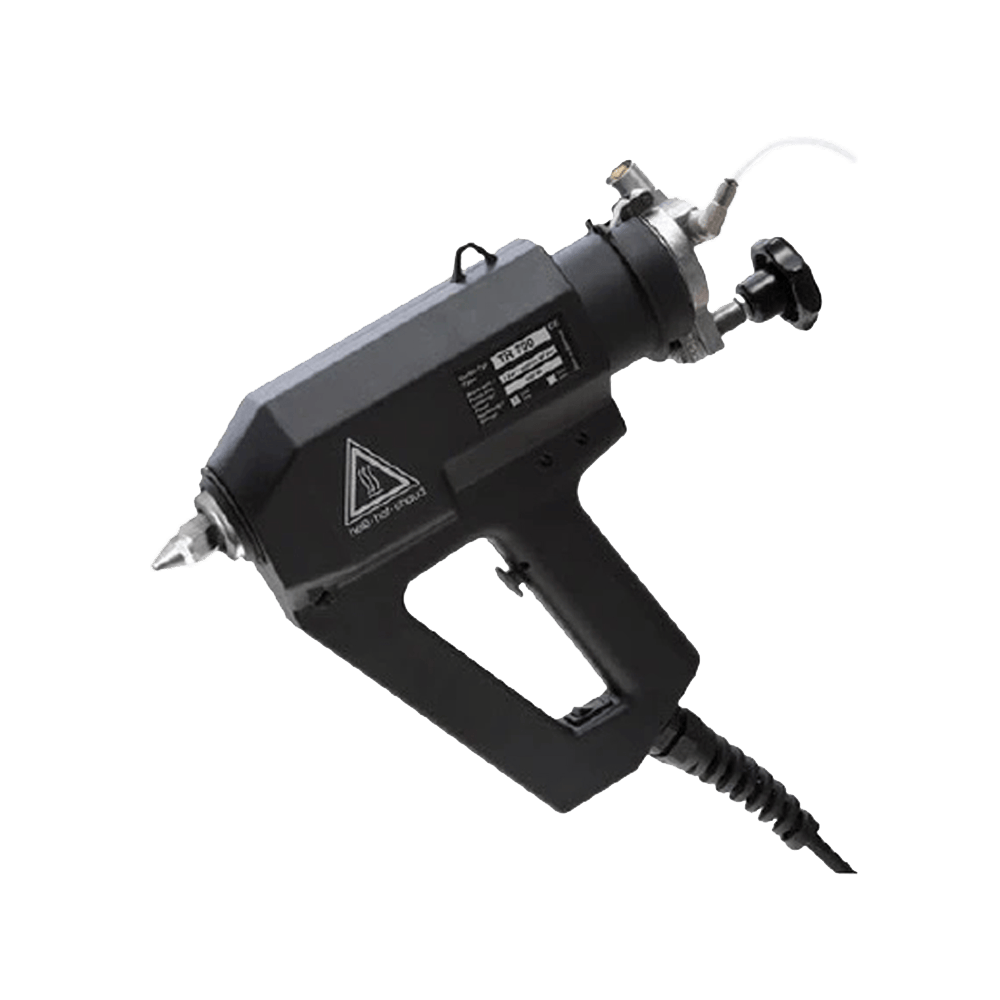

RK-700TR cartridge gun applies hot-melt adhesives from 310 ml aluminum cartridges in beads and lines.

The RK700TR lets you apply hot-melt adhesive as beads and lines. The hot-melt glue is extruded through air pressure. Pneumatic glue guns increase work speed and simplify exact dosing of the glue. Thanks to the built in electronic temperature regulation the glue gun is ready to work within 3 to 10 minutes. Furthermore, it keeps the temperature on a constant level thus is a perfect suit for processing temperature sensitive hot-melt glue. A LCD-display and push-buttons allow a precise temperature adjustment. This way, the user always knows the current temperature of the glue applicator and is able to apply the glue at the intended temperature.

The RK-700TR glue gun uses 310 ml aluminium hotmelt glue cartridges, which for instance can contain PUR-hot-melt glue or POR-hot-melt adhesive. The cartridges can be swapped easily and hassle-free. The optional cartridge pre-heater KVG heats up the glue before use and increases the available glue output per hour. The number of possible application patterns is widely extended by our nozzle range. A cartridge glue gun in combination with empty cartridges lets you test and process different hot-melts within a short period of time. This is especially useful for working in laboratories or when qualifying a new hot-melt adhesive for a big production line.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Technical Data
Weight applicator 1400 g
Power Connection 230 V (50 Hz), 2,6 A / 120 V (60 Hz), 3,3 A
Power consumption 230 V: 600 Watt / 120 V: 400 Watt
Protection class I, IP 30
Temperature control, display Electronic, digital
Temperature limitation Temperature monitor
Operating temperature 50 – 210°C (on request: max. 250°C)
Temperature constancy ± 2°C
Heat-up time ca. 3 – 10 min.
Gross capacity 310 ml
Conveyor system Air pressure
Operating pressure 0.5 – 6 bar
Length of electrical connection 8,5 m
Air hose length 5 m
