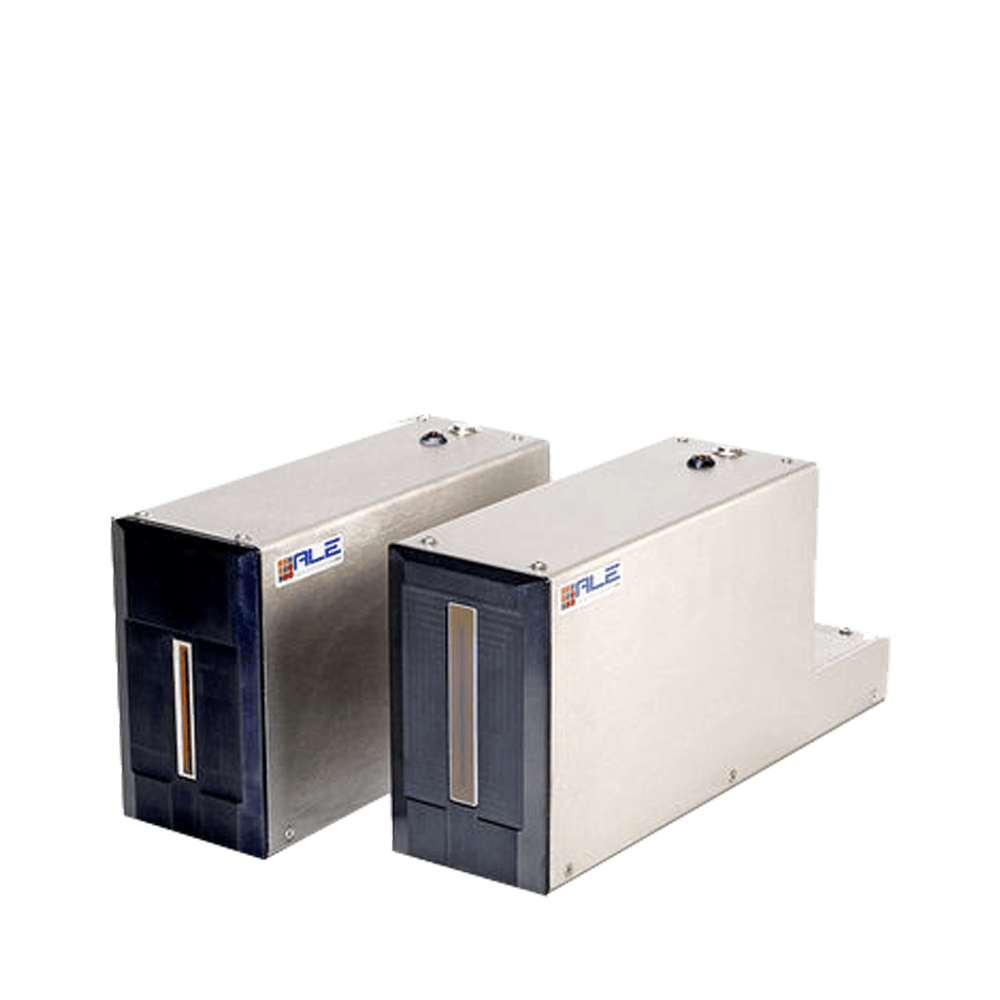

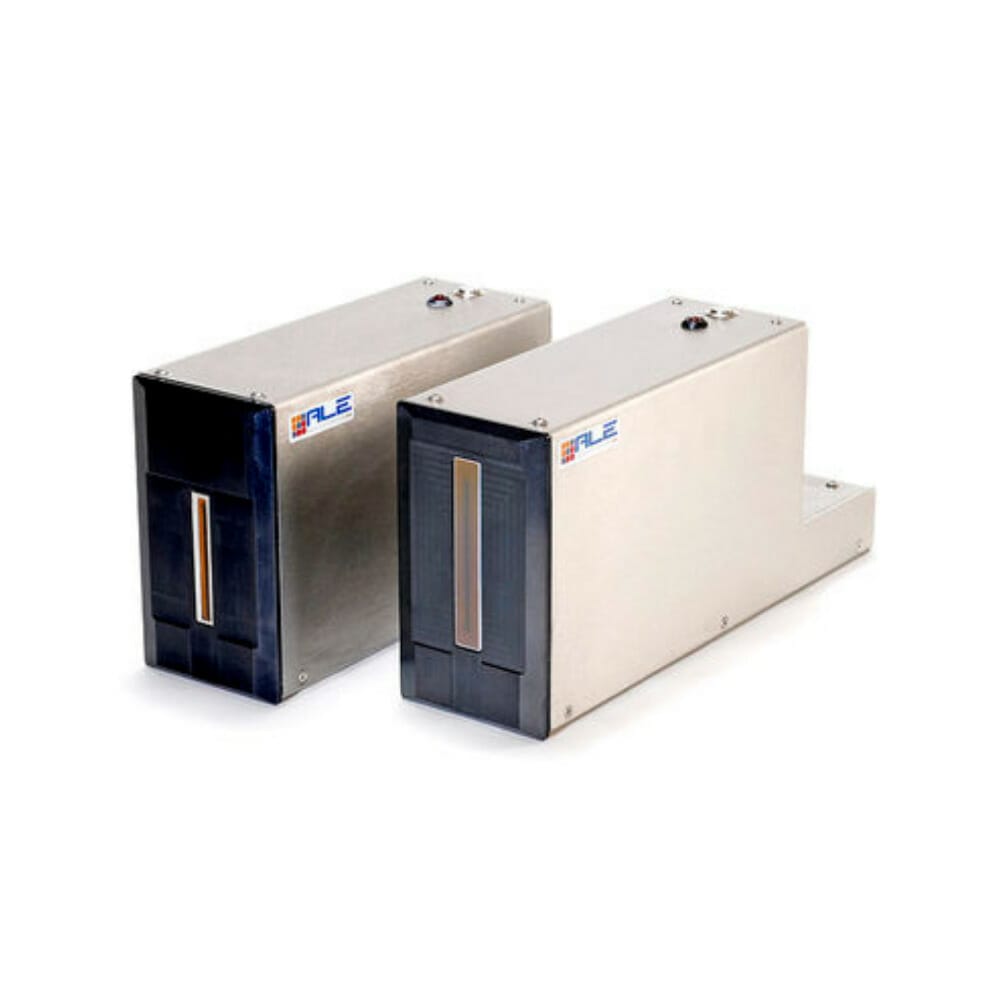

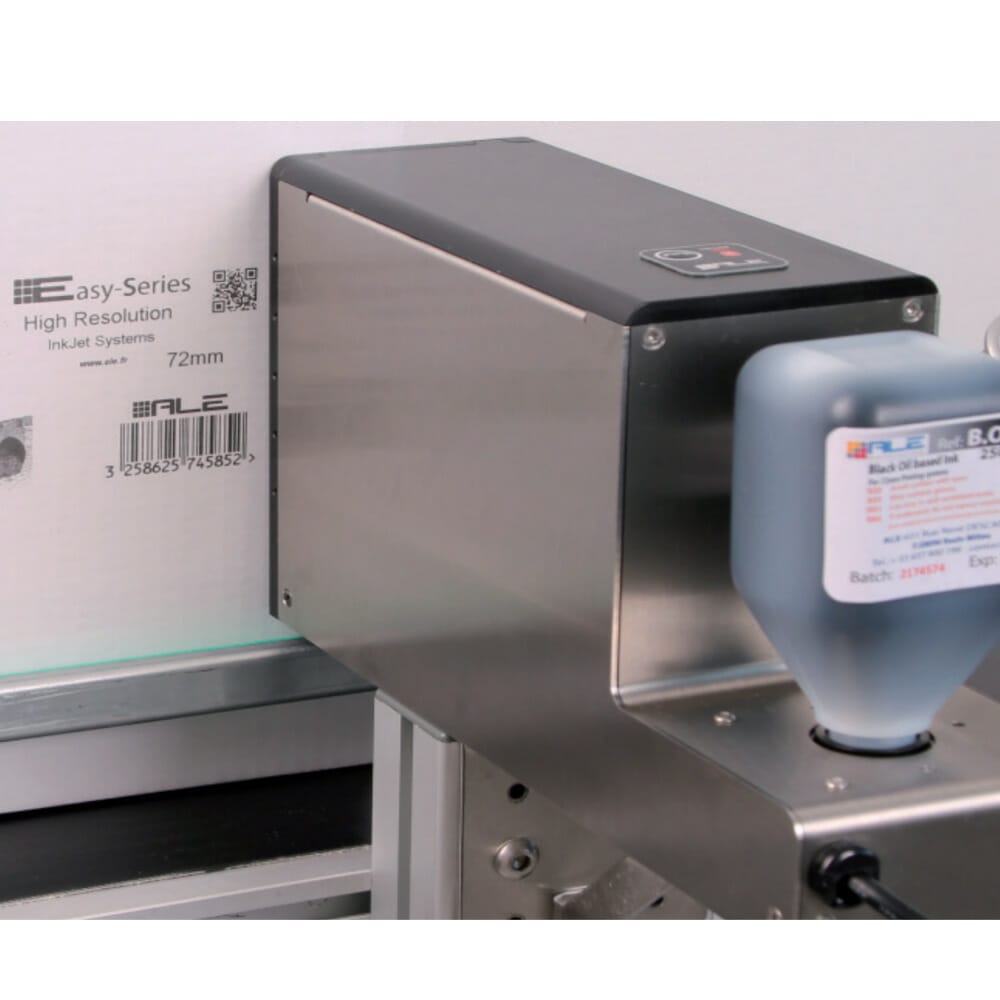

EASY series

EASY series

The EASY series is the most efficient coding solution for side printing on most surface, which can print any texts, logo, 1D-2D barcodes, QR Code, images, time/date, and even more.

Compact and based on a simple efficient manufacture, it will perform reliably in all kind of applications.

Easy to install, use and service, it requires a minimum low annual maintenance.

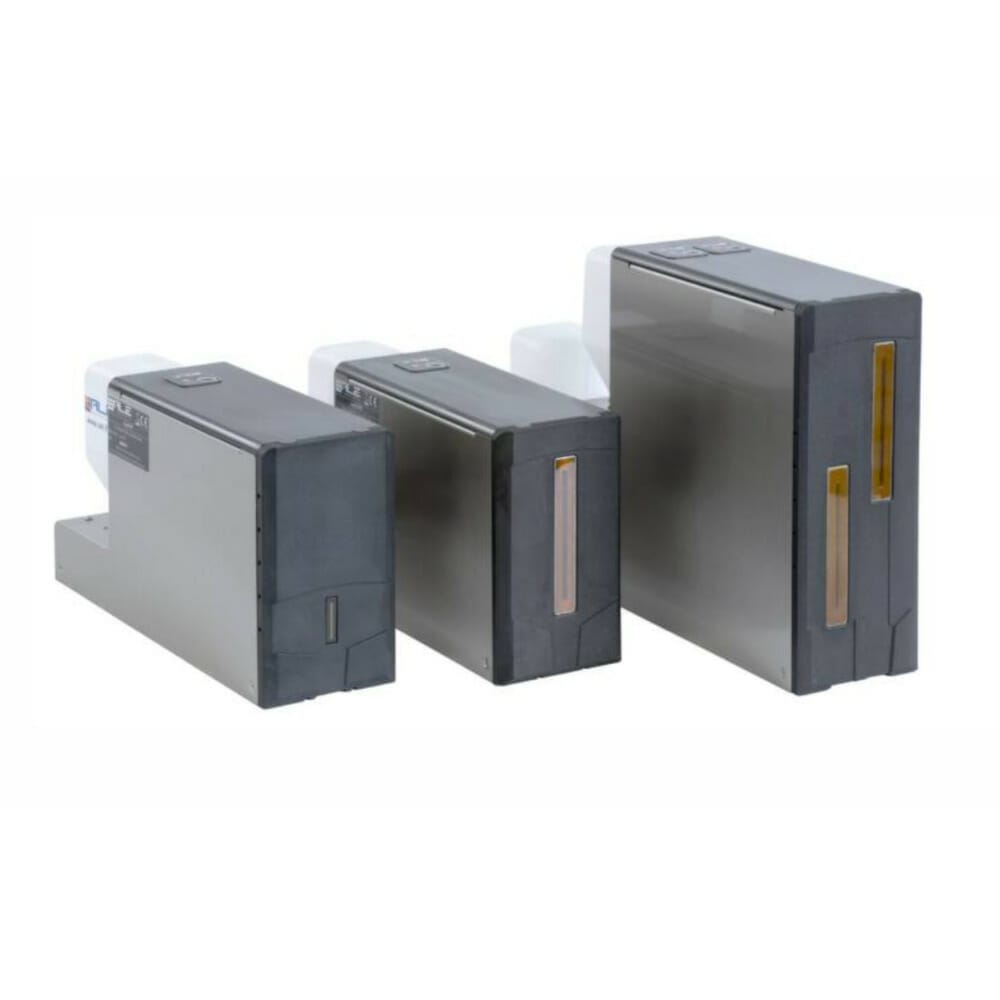

The Easy-Series will easily integrate to even the smallest production lines. Very robust, they perform well in difficult environments (dusty, cold, humid, etc) without any impact on the quality of the codes. There are 3 versions available, with different print-heads heights, to match to every coding and marking requirement:

– Easy18 – 0.7 to 18 mm print height

– Easy72 – 0.7 to 72 mm print height

– Easy144 (0.7 to 144mm which is the highest print band available in the market!)

Contact form
SOUTHERN SUPPLY CO., LTD.

Share



Specifications
Version
Easy18
Easy72-35pL
Easy72-80pL<
Easy144-35pL
Esy144-80pL
Drop size
80 pL
35 pL
80 pL
35 pL
80 pL
Max Printing Speed at 180Dpi
42m/min
60m/min
38m/min
60m/min
38m/min
Printing Frequency
5Khz
7.3Khz
4.3Khz
7.3Khz
4.3Khz
Weight
2.5Kg
2.5Kg
2.5Kg
3.6Kg
3.6Kg
Lowest printing dot
37.4mm
51mm
51mm
51mm
51mm
Housing
Anodised Aluminium and Stainless steel
Electrical Specifications
12vdc-From data cable/Controller
Operating Environment
From 5 to 45°C-Humidity from 0 to 90%(non condensing)
IP degree
IP20
Conformity
EMC Directive 2014/30/EU-RoHS 2011/65/EU-Low voltage (LVD)2014/35/EU
