ONE 18

ONE 18

The One-series is the result of ALE’s expertise in the ink-jet technology and its will to constantly innovate.

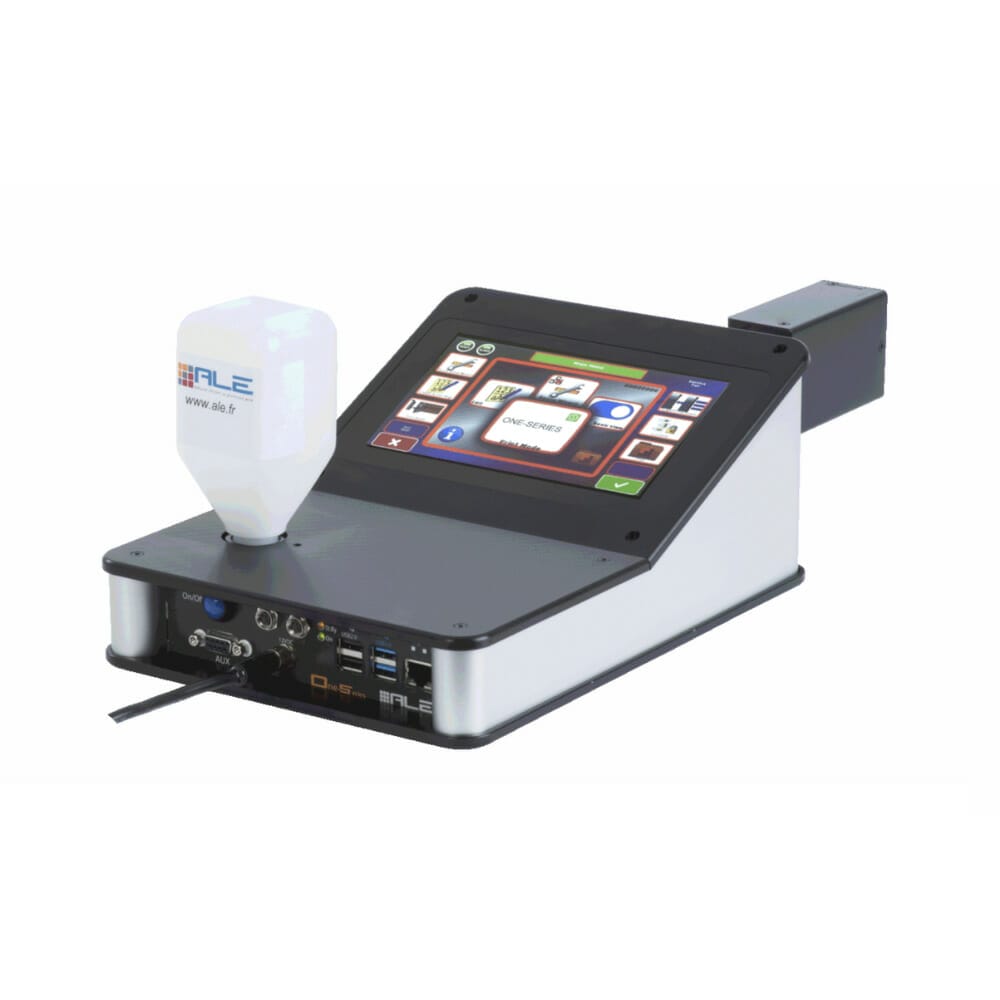

Systems of the One-Series are self-contained printers, also referred to as “all-in-one-box” systems: wide 7” touchscreen display, controller, ink-system and print-head all gathered in the same enclosure. With combining the best qualities of ALE print-heads as well as the Master+ control, ONE series are the most compact solutions of all our product range, and are made of highly resistant materials.

The main advantage of these models are the speed of installation: switch them on and they will be ready to print in just few minutes!

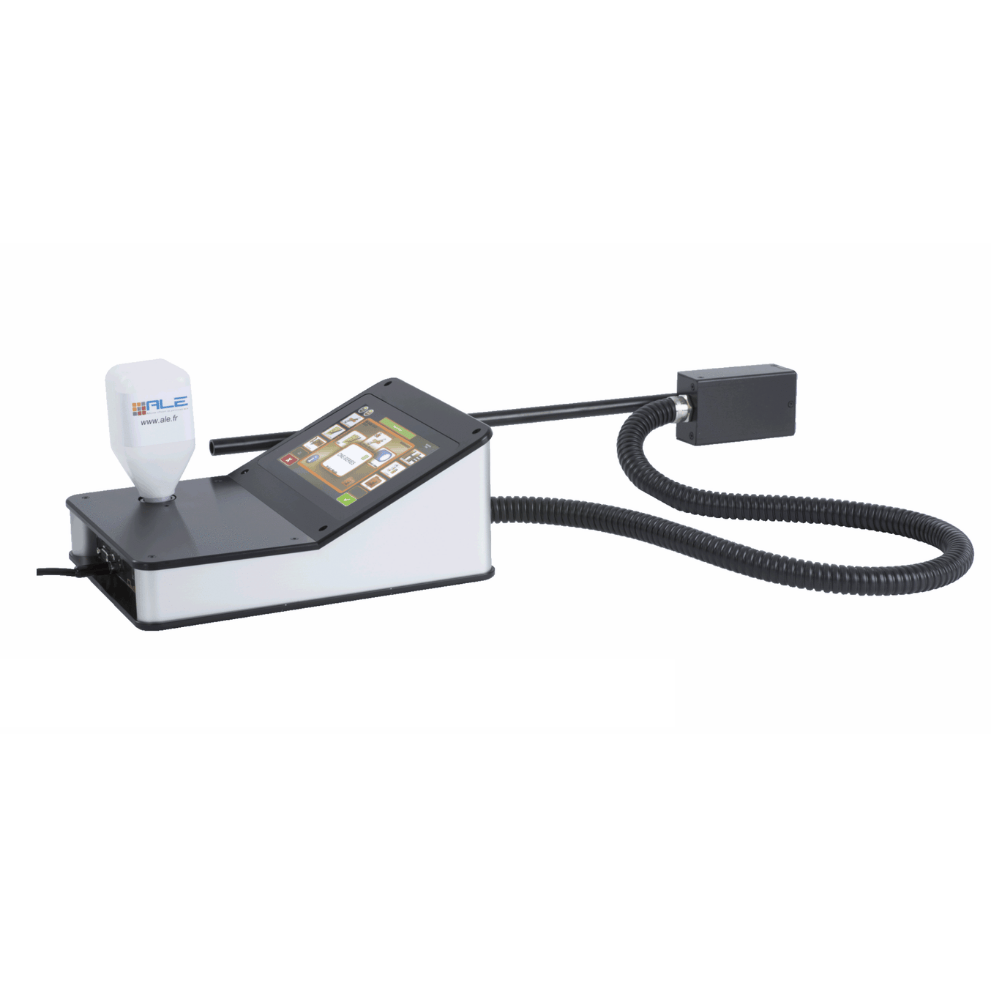

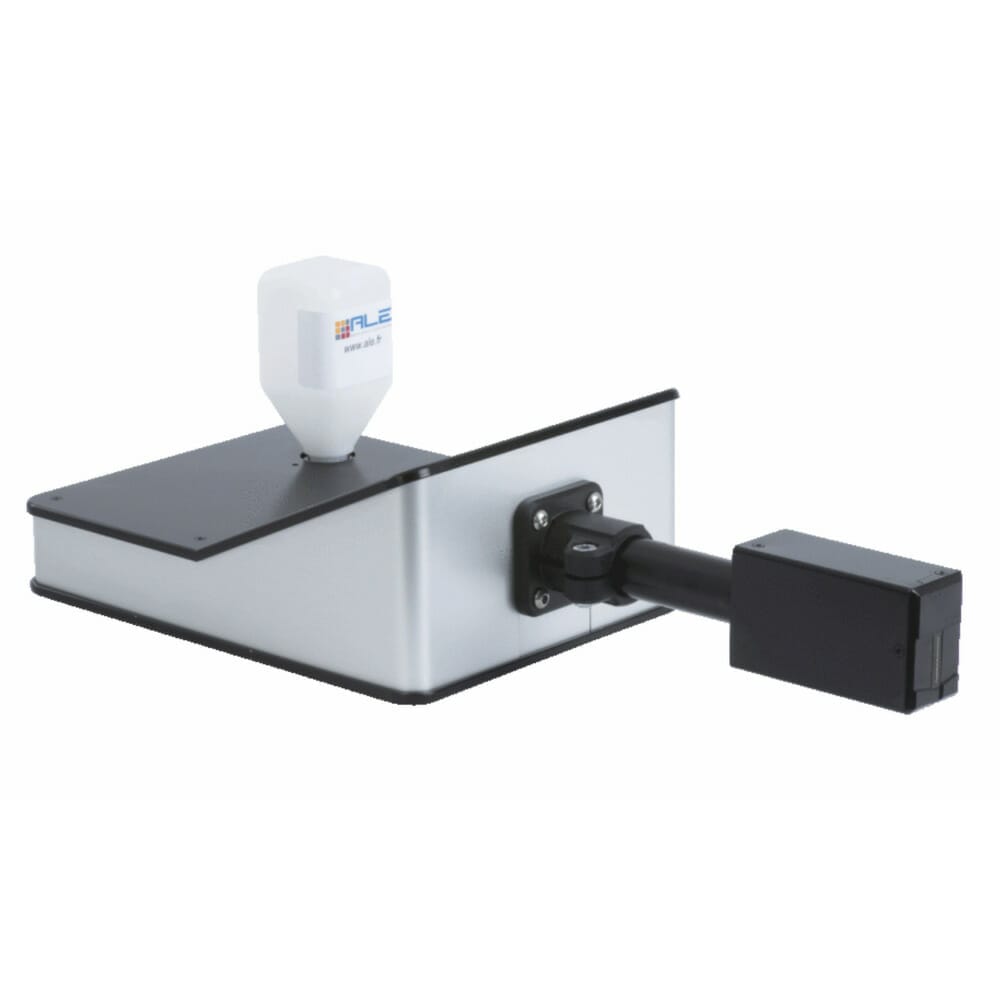

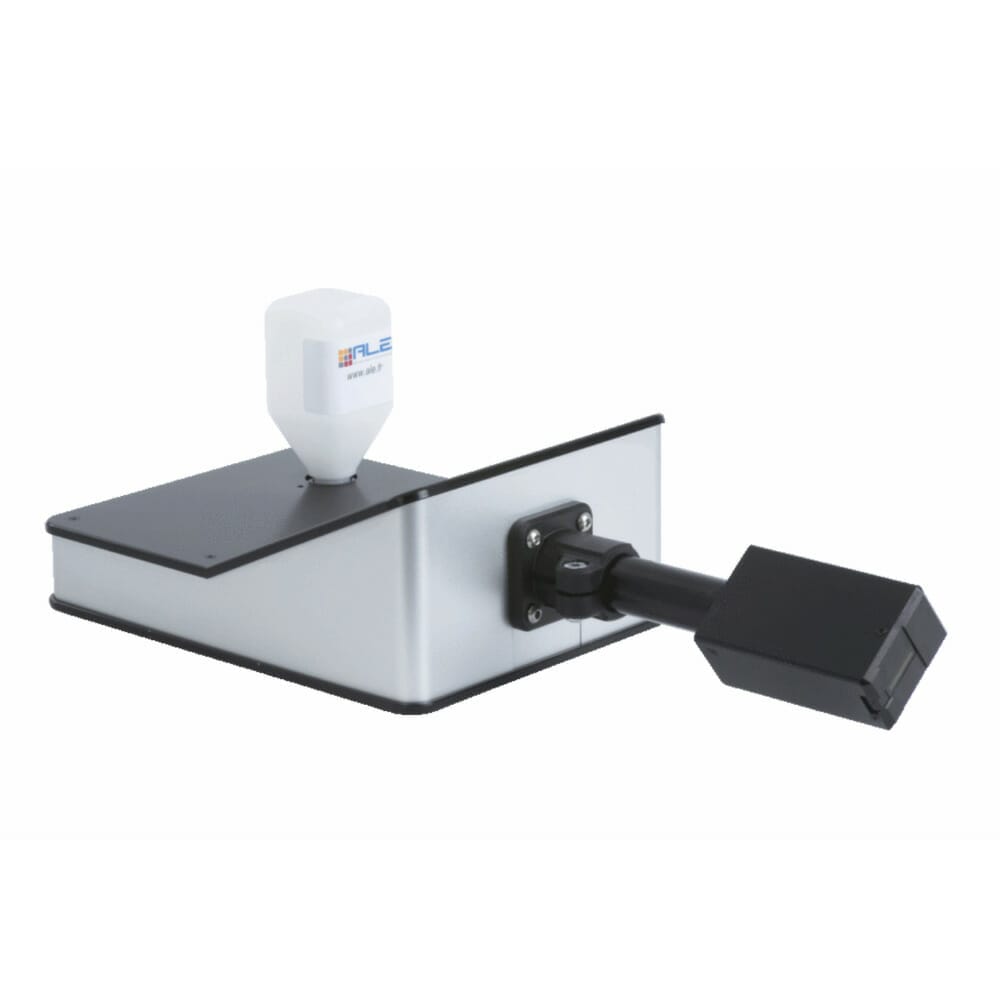

They can print on both porous and non-porous surfaces using either oil-based fluids or solvent-based fluids. There are also two different models of the One-Series: one for side-printing only (One18) and another one, supplied with umbilical cable, for printing top, bottom or with an angle (One18R).

They are integrated with the same user-friendly menu as other controllers and also work with Codex Design Software. They can be connected to TCP/IP or Wifi networks.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Specifications
Version
One18
One18R
Drop size
80 pl
80 pl
Max Printing Speed at 180Dpi
42m/min
42m/min
Printing Frequency
5Khz
5Khz
Weight
3.7Kg
4Kg
Lowest Printing dot
14mm
14mm
Housing
Anodised Aluminium and Stainless steal
Electrical Specifications
12vdc-External Power supply 5A
Operating Environment
From 5 to 45°C-Humidity from 0 to 90%(non condensing)
IP degree
IP20
Conformity
EMC Directive 2014/30/EU-RoHs 2011/65/EU-Low voltage directive(LVD) 2014/35/EU
