TC Twin

TC Twin

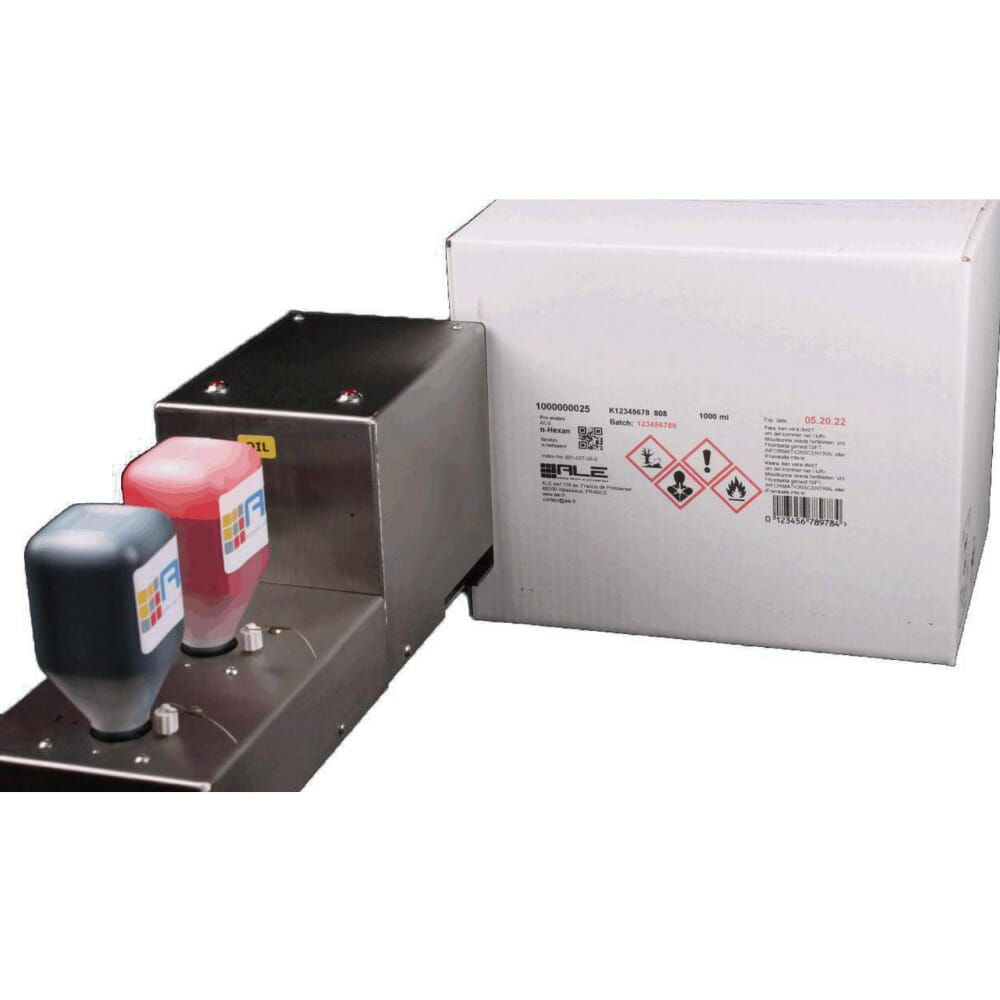

ALE’s colour printing range has recently been updated, with the introduction of two-spot colours systems, especially designed to meet the new GHS regulation and to print with maximum accuracy traceability data for dangerous products, like chemicals. GHS symbols are integrated in a library, supported by Codex software. The most common colour combination is red and black, for safety marking, but any set of colour is possible!

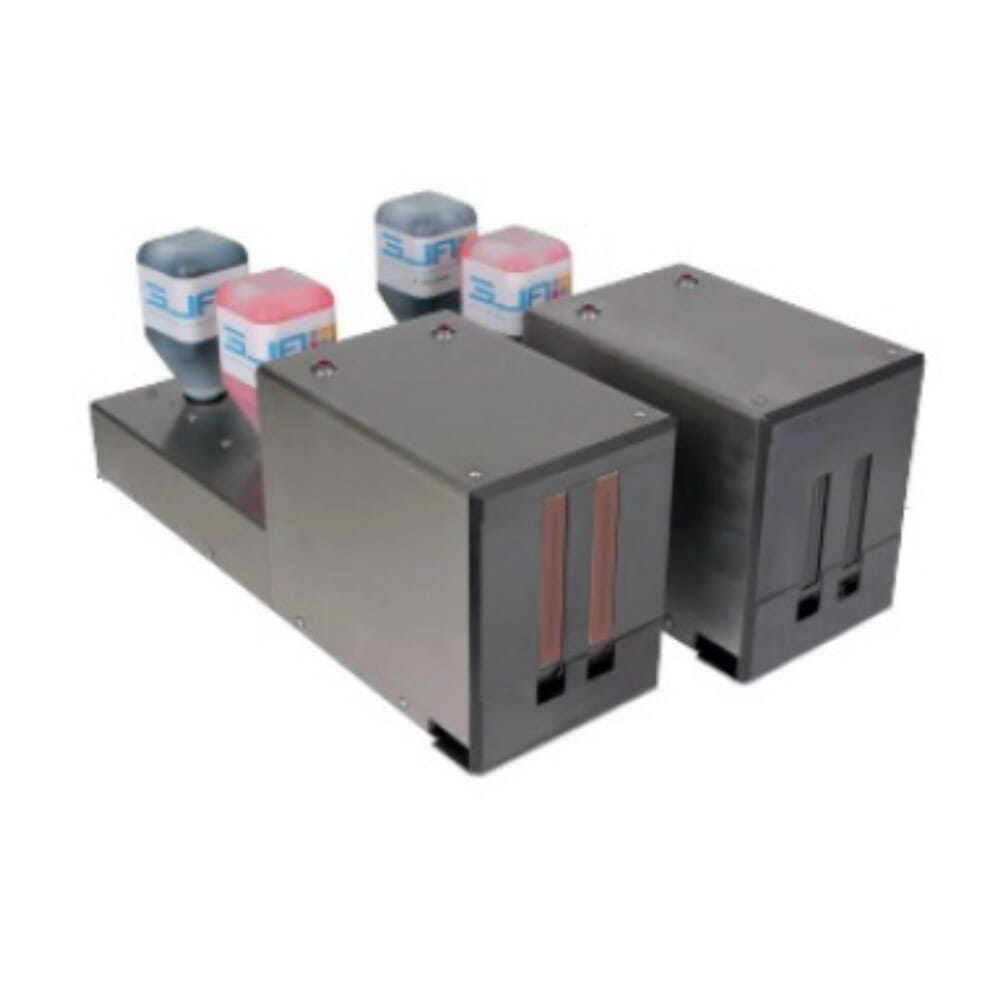

The two separate containers (one for each color) prevent the paint from overlapping or leaking. The machine comes with two different print bands, 72mm and 144mm depending on the amount of data to be printed. The TC-Twin system is a perfect alternative to expensive labels. Printers also have the option to print two-color message (logos, etc.) and all two-color sets can be selected from a variety of liquids.

The inkjet printer has an industrial compact design and can be easily integrated into your existing production. It is easy to install and use and requires minimal annual maintenance.

The TC-twin has a library of security symbols preinstalled and prints up to 50m/min at 180dpi resolution. TC-twin can print text, logos, images, barcodes, and variable data from 0.7mm size.

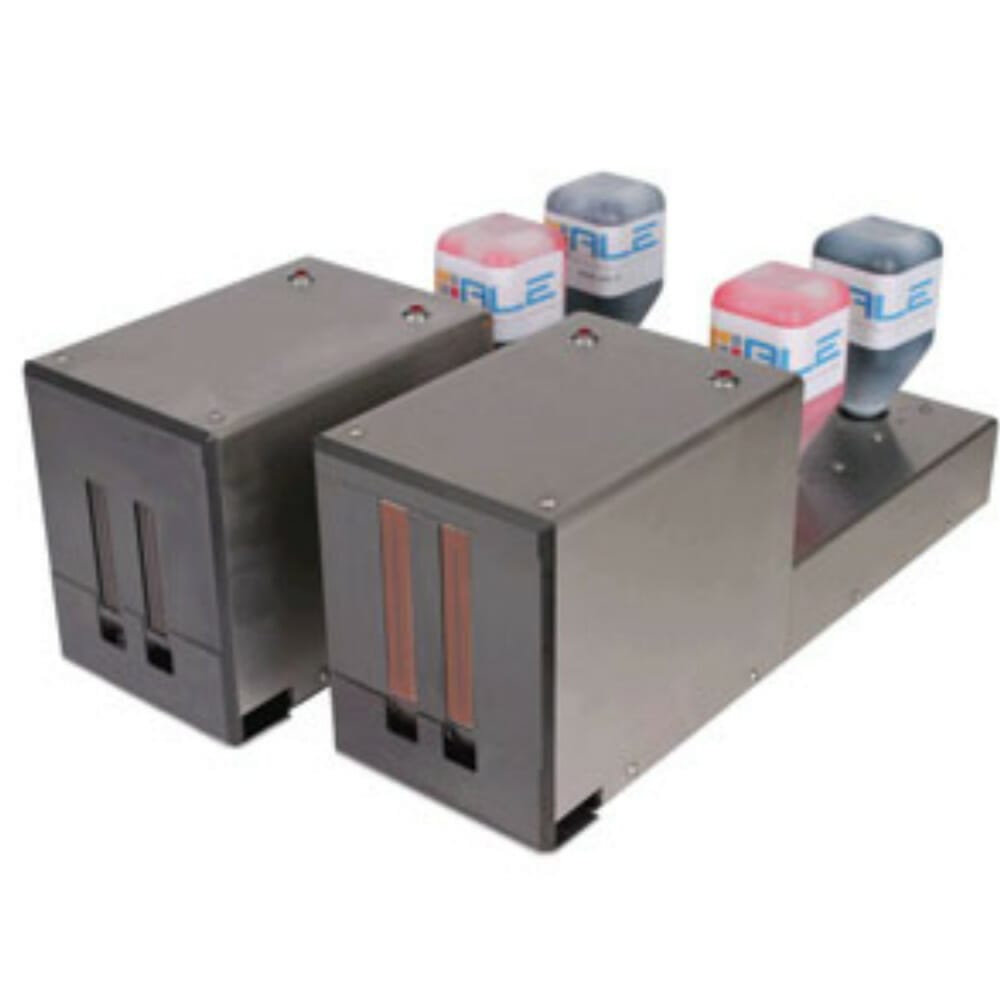

There are 2 versions available for 72 and 144mm print height:

  • TC-TWIN72: Two-spot colour systems high available for either porous or non-porous surfaces

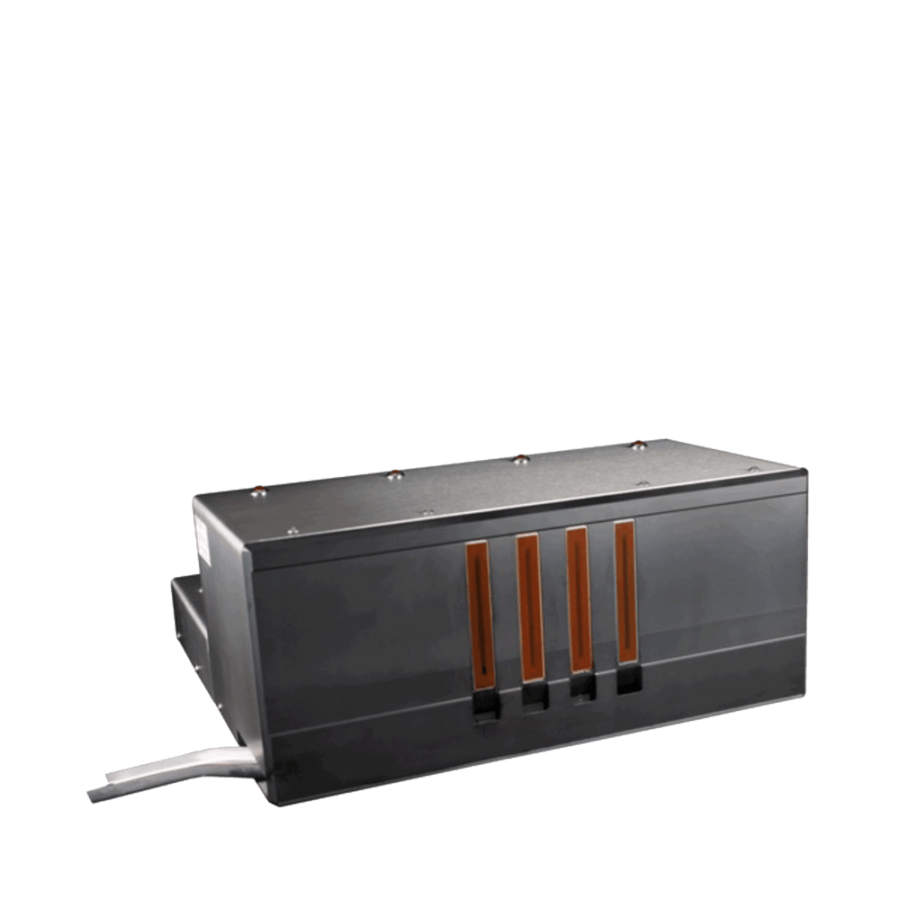

TC-TWIN144: Two-spot colour systems available for either porous or non-porous surfaces

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



TC-TWIN 72
TC-TWIN 144-35PL
TC-TWIN 144-80PL
PRINTING SPECIFICATIONS
Print Band
72 mm
144 mm
144 mm
Resolution
90-360 Dpi (Vertical)-Depending on Print density and speed
Maximum print Speed (1)
38m/min
60m/min
38m/min
Drop size
80pL
35pL
80pL
Printing Frequency
4.3 Khz
7.1 Khz
4.3 Khz
Distance of lower point from base
59 mm
48 mm
48 mm
Print distance
For optimum quality, up to 0.7 cm from substrate
Print Head orientation
Substrates
Porous (oil-based inks)-Non-porous (solvent-based inks)
Porous (oil-based inks)
Porous (oil-based inks)-Non-porous (solvent-based inks)
MESSAGE SPECIFICATIONS
Fonts
True Type-Open Type
Effects
Size,Orientation,Mirror,Negative Image
Characters size
From 0.7 to 72 mm
From 0.7 to 144 mm
Varlable data
In real time (hours,minutes,seconds,month and year-formats can be customised)/Pre or post data/Data coming from external communication devices/Batch and serial numbers,shifts,counters,etc.
Barcodes
ITF type,ITF14,UPC-A,EAN8,EAN13,EAN128,Code128,code39,DM GS1,RSS-14,Codabar,RSS-EX,Datamatrix,QR Codes
Graphic formats supported
All
MACHINE SPECIFICATIONS
Weight (2)
5.5 Kgs
8.9 Kgs
Mcenter>8.9 Kgs
Housing
Stainless steel enclosure
Operating environment
From 5° to 45°C-Humidity from 0 to 90% (non condesing)
Ink system
Two separate ink reservoirs (one per colour) 250 mL or 600 mL ink bottles-Easy clean and secured ink replacement with no production stop Automatic software colour adjustment
Four separate ink seservoirs (two per colour) 250 mL ink bottles-Easy clean secured ink replacement with no production stop Automatic software colour adjustment
Characteristics
Ink catcher,Prime Button and ink-low built in
Maintenance
Low level of maintenance-service by local teams (authorized distributors)
