TZ-PR

TZ-PR

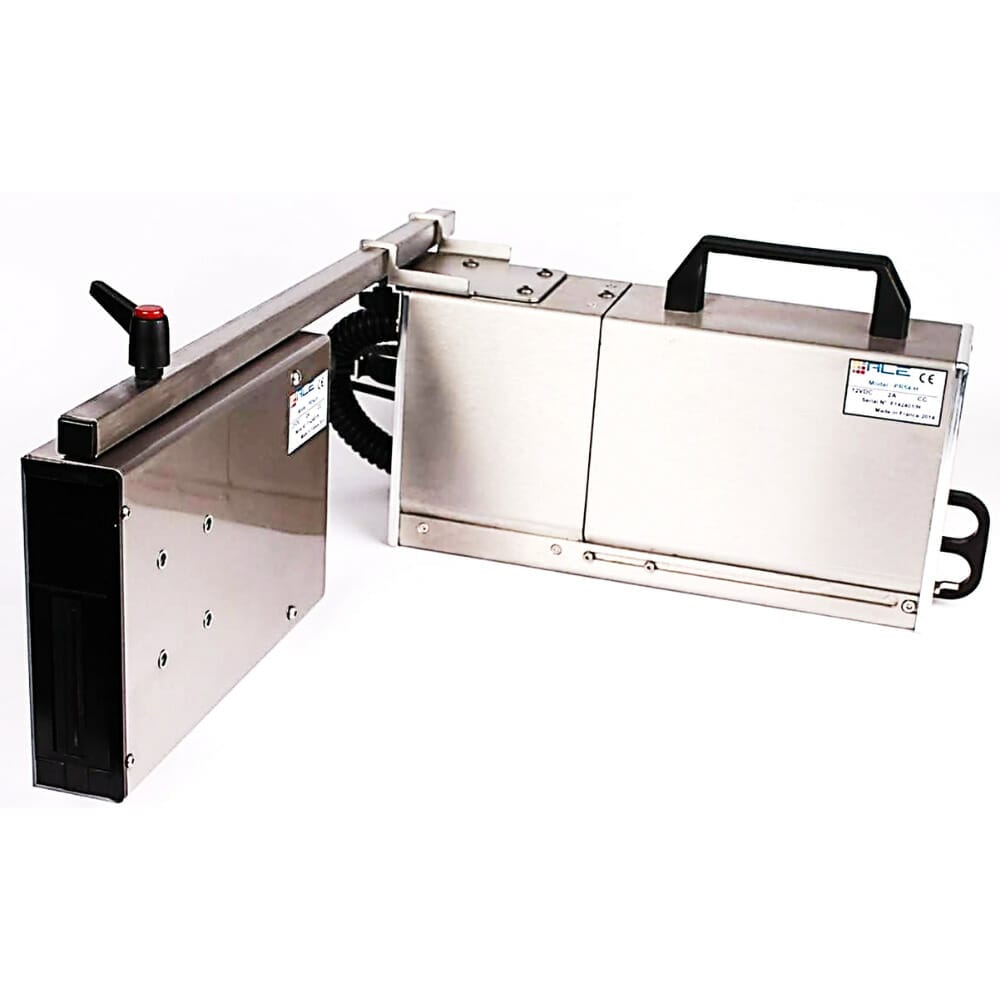

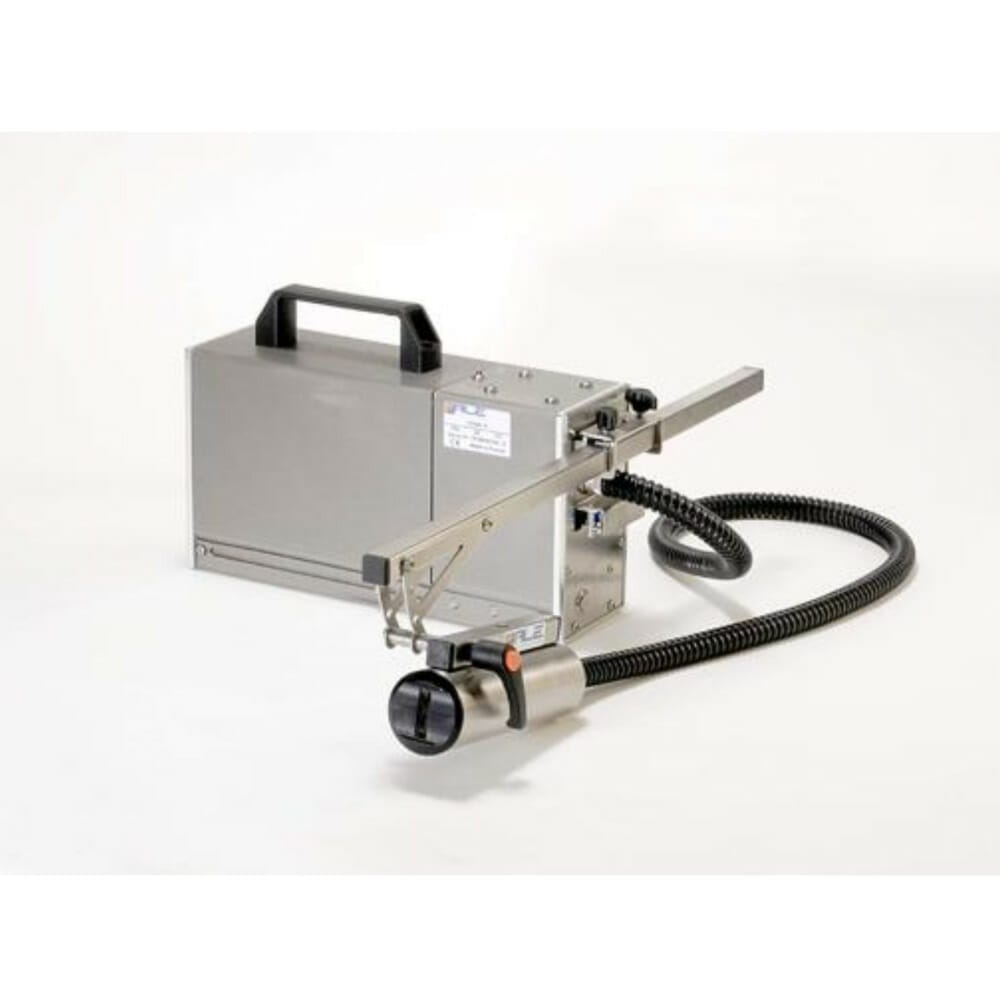

The PR Series (formerly TZ) offers the possibility to print in any direction; side, top, bottom, flat and even with an angle!

The print-heads in this range have been especially designed to fulfill Coding and Marking needs for all kinds of applications. Very robust, they can resist difficult environments (dusty, cold, Humid) without any impact on the quality of the codes.

This range is the ideal solution for industrials facing with specific marking and coding challenges (angles, lack of space) requiring a flexible solution.

There are 3 versions available, with different print-heads heights, to respond to every coding and marking requests:

The TZ-PR Ranges are the perfect printing equipment for all main industries.

TZ18 – 0.7 to 18 mm print height

TZ34 – 0.7 to 34 mm print height

PR72 – 0.7 to 72 mm print height

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



TZ18
TZ34
PR72-35PL
PR72-80PL
SPECIFICATIONS D’IMPRESSION
Print Band
18mm
34mm
72mm
Resolution
90-360 Dpi (Verticale)-Depending on print density and speed
Maximum print Speed
42m/min
42m/min
60m/min
38m/min
Drop size (1)
80pL
80pL
35pL
80pL
Printing Frequency
4.8 Khz
4.8 Khz
7.1 Khz
4.3 Khz
Distance of lower point from base
14mm
14mm
34mm
34mm
Print distance
For optimum quality,up to 0.7 cm from substrate
Print Head orientation
Ominidrectional printing (side,top,down,with an angle,etc)
Substrates
Porous (oil-based inks)-Non-porous (solvent-based inks)
SPECIFICATIONS MESSAGE
Fonts
True Type-Open Type
Effects
Size,Oreintation,Mirror,Negative Image
Characters size
From 0.7 to 18 mm
From 0.7 to 34 mm
From 0.7 to 72 mm
Variable data
In real time date(hours,minutes,seconds,month and year-fromats can be customised)/Pre or post date/Data coming from external communication devices/Batch and serial numbers,shifts,counters,etc.
Barcodes
ITF type,ITF14,UPC-A,EAN13,EAN128,Code128,Code39,DMGS1,RSS-14,Codabar,RSS-EX,Datamatrix,QR Codes
Graphic formats supported
All
SPECIFICATIONS MACHINE
Weight (2)
4.6 Kgs
4.7 Kgs
5.6 Kgs
5.6 Kgs
Housing
Boitier en acier inoxydable
Operatinf environment
De 5 à 45°C-Humidite de 0 à 90%(sans condensation)
Ink system
High capacity ink reservoir 250 or 600mL ink bottles-Easy clean and secured ink replacement with no production stop
Characterisics
prime button and ink low built-in
Maintenance
Small head for easy integration
Small head for easy intefration-Removable cover for easy service
Supplied with umbilical cable (1m/1.5m as an option) and mounting accessories
Lew level of maintenance-servic by local teams (euthorized distributors)
