UltimusPLUS I-II

UltimusPLUS I-II

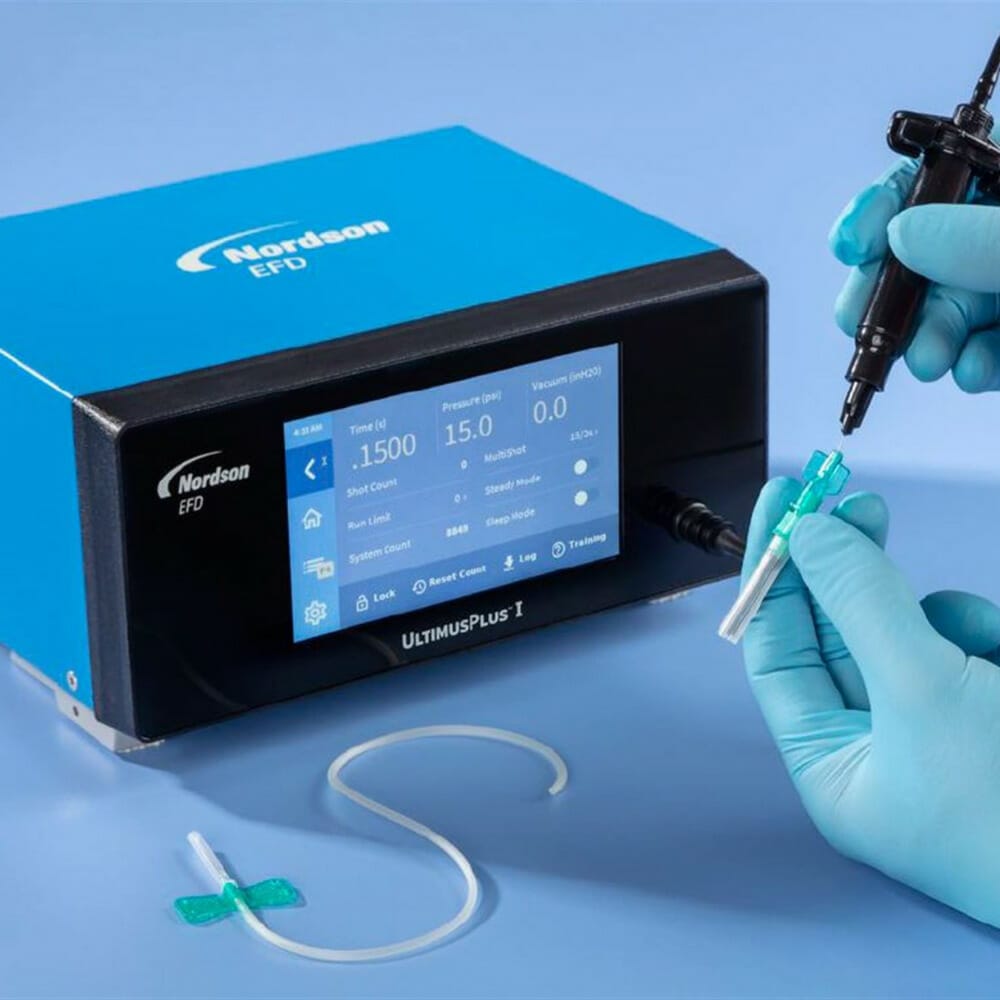

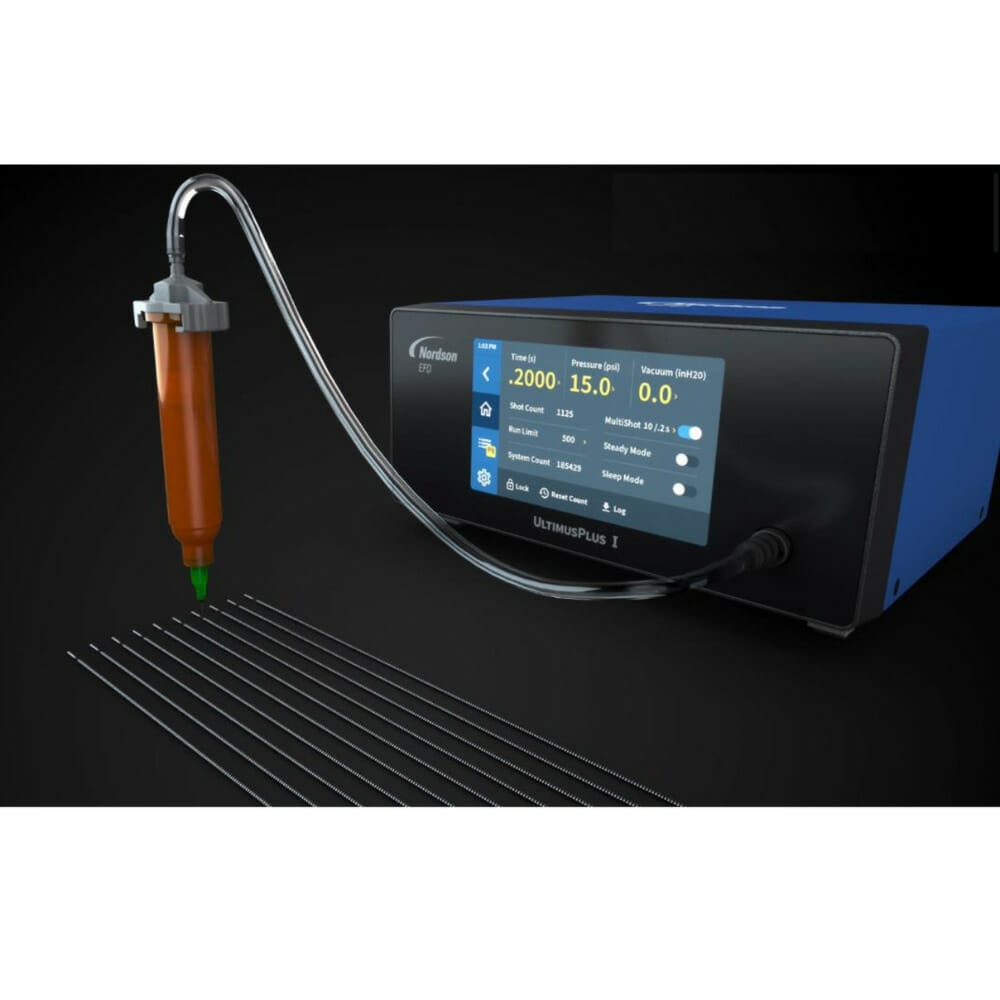

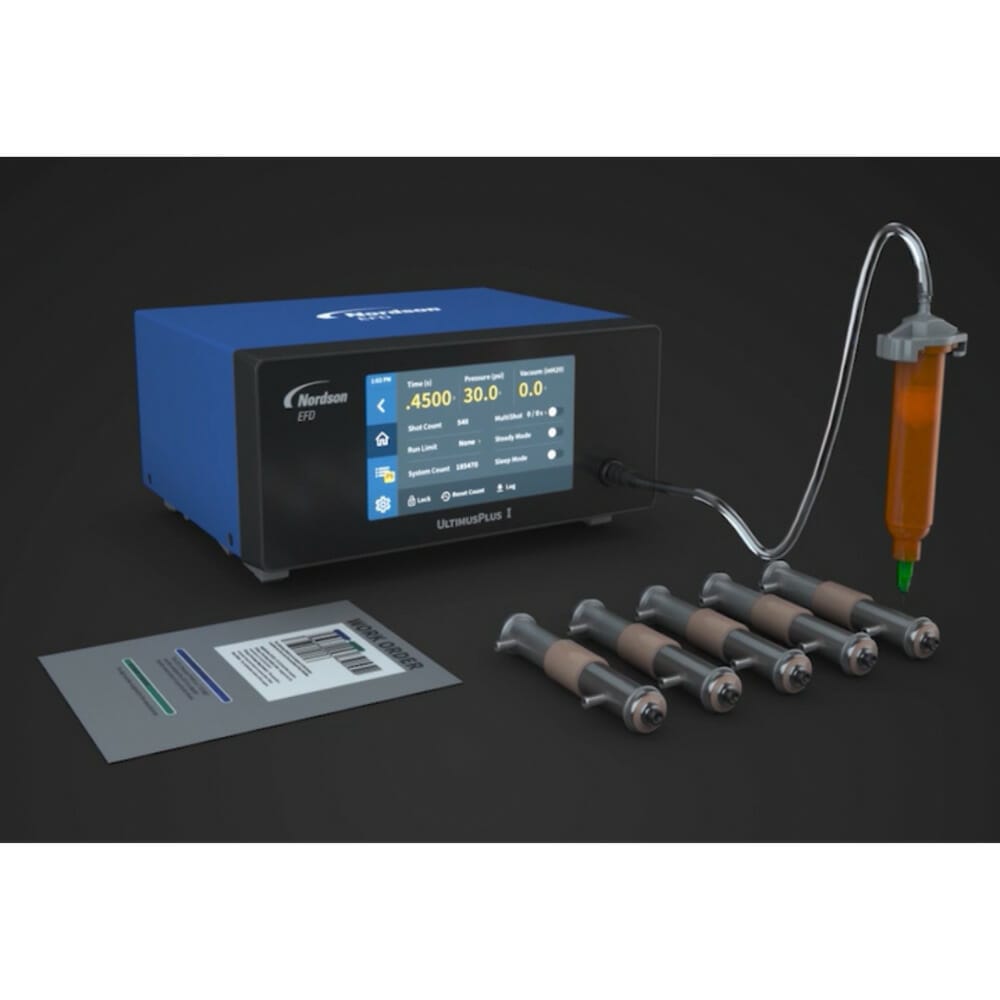

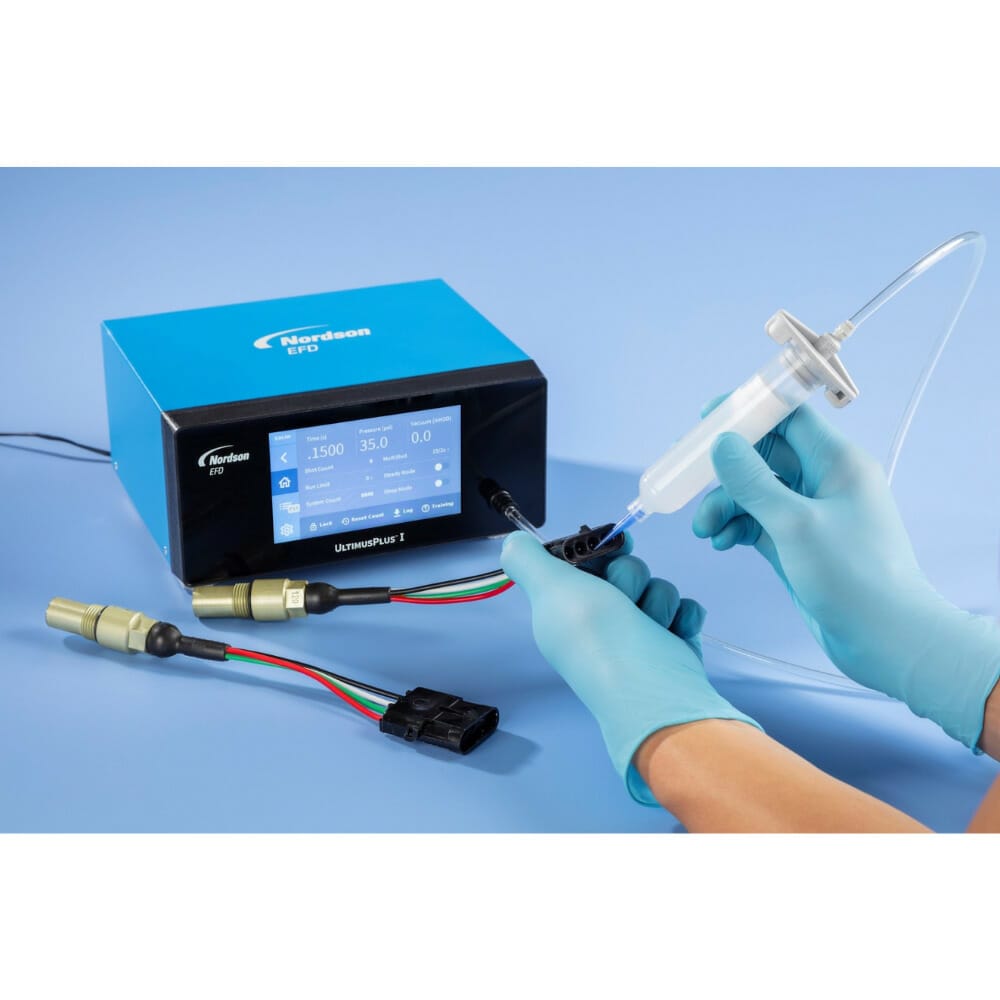

Nordson EFD UltimusPlus™ fluid dispensers provide next level process control for advanced applications of glues, oils, greases, epoxy, silicones, sealants, cyanoacrylates, solder pastes, and other assembly fluids dispensed with syringe barrels manually or on automated systems.

Simplify setup and operation with advanced touchscreen control of dispensing parameters. UltimusPlus is so easy to use it allows users to focus on making accurate, controlled deposits. Plus, full operator lockout of time, pressure, and vacuum settings prevents operator-to-operator variability between shifts.

In addition, the UltimusPlus’ Ethernet connection simplifies factory integration for high-volume, automated production. Its internal digital dispense log automatically records dispense data and can be easily downloaded through a USB port to further improve process control.

UltimusPlus I

The UltimusPlus I features a 0.7-7.0 bar (10-100 psi) pressure regulator and is ideal for dispensing a wide range of fluids.

UltimusPlus II

The UltimusPlus II features a 0.02-1.0 bar (0.3-15 psi) pressure regulator and provides greater control when dispensing low-viscosity or thin fluids.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Specifications
Item Specification
Cabinet size 21.2W×10.8H×19.2D cm (8.33w×4.27H×7.55D”)
Weight 1.8 kg (4.0 Ib)
Power adapter AC input: 100-240 VAC(+/-10%),~50/60Hz,0.6 Amp
DC Output: 24 [email protected] 3.75 Amp
Cycle rate Ezceeds 600 cycles per minute
Time range 0.0001-999.9999 s
End-of-cycle feedback circuits 24 VDC; 100 mA maximum
Cycle initiate Foot pedal,finger switch,24 VDC sigal,or mechanical contact closure
Air output UltimusPlus I:0.7-7.0 bar (10-100 psi)
UltimusPlus II: 0-1.0 bar (0.3-15 psi)
Warranty 5 year, limited (Americas and Europe)
2 year, limited (Asia)
Approvals CE,TUV,RoHS,WEEE,China RoHS
