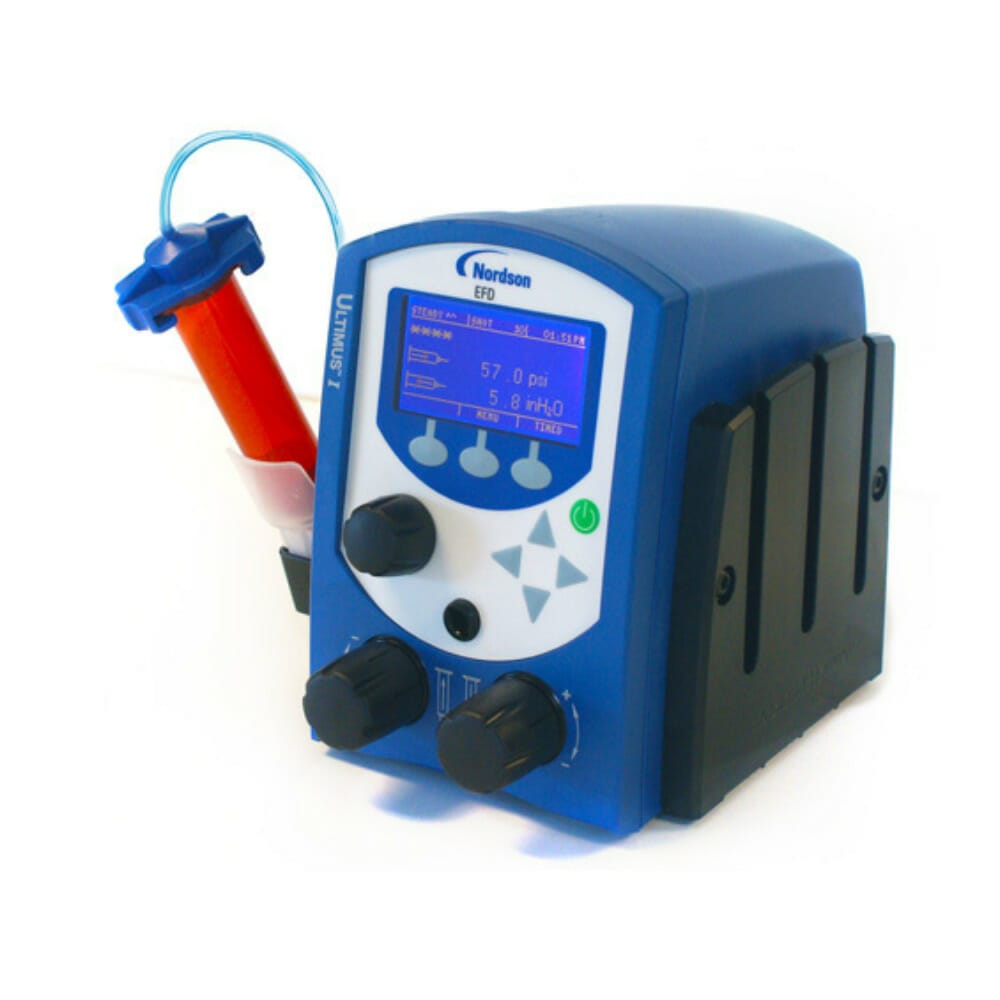

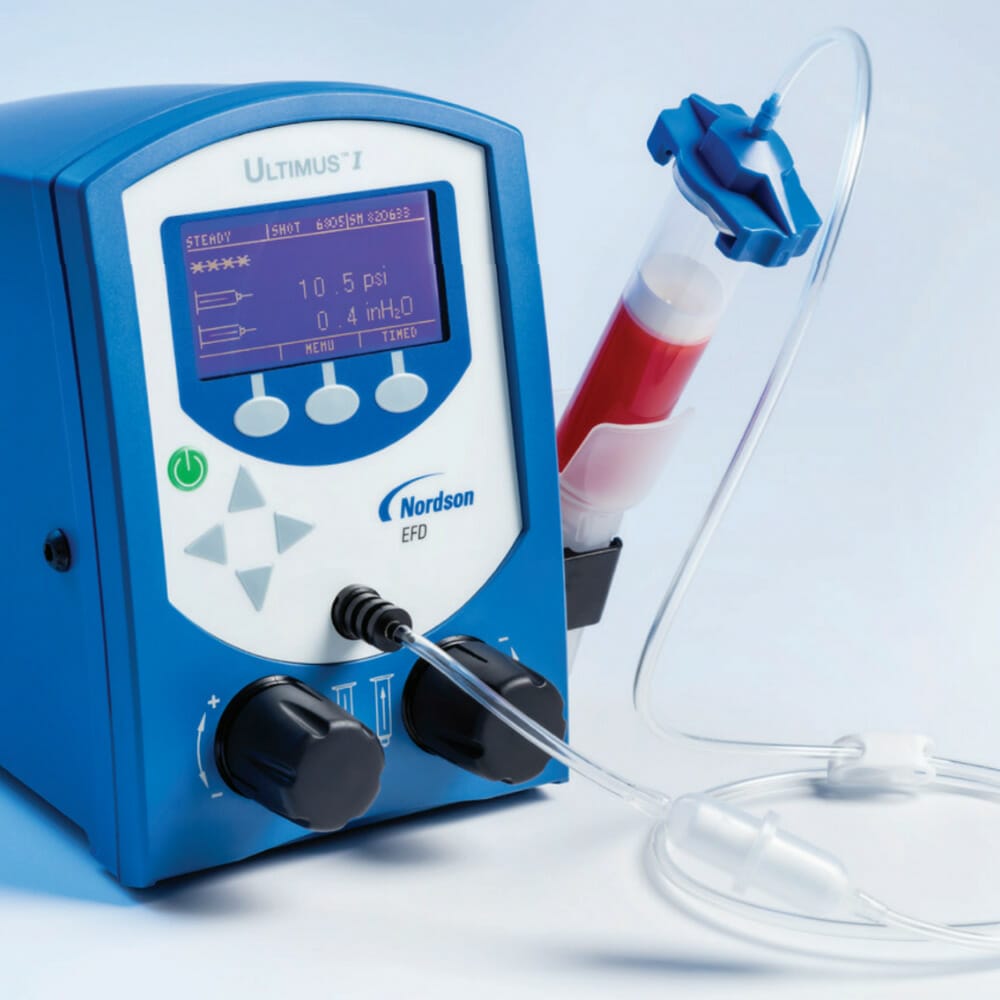

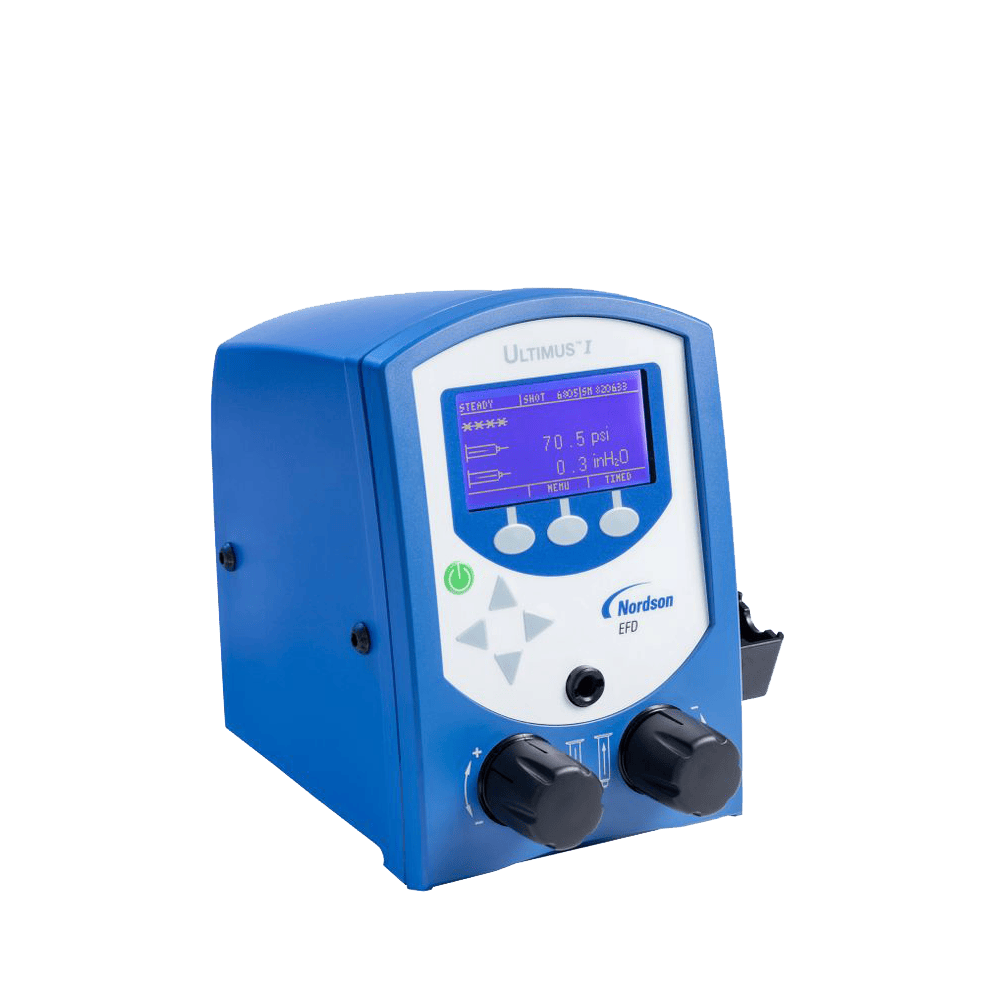

Ultimus I-II

Ultimus I-II

High-precision benchtop fluid dispensing control for advanced applications of glue, oil, grease, epoxy, silicone, sealant, cyanoacrylate, solder paste, and other assembly fluids dispensed with syringe barrels.

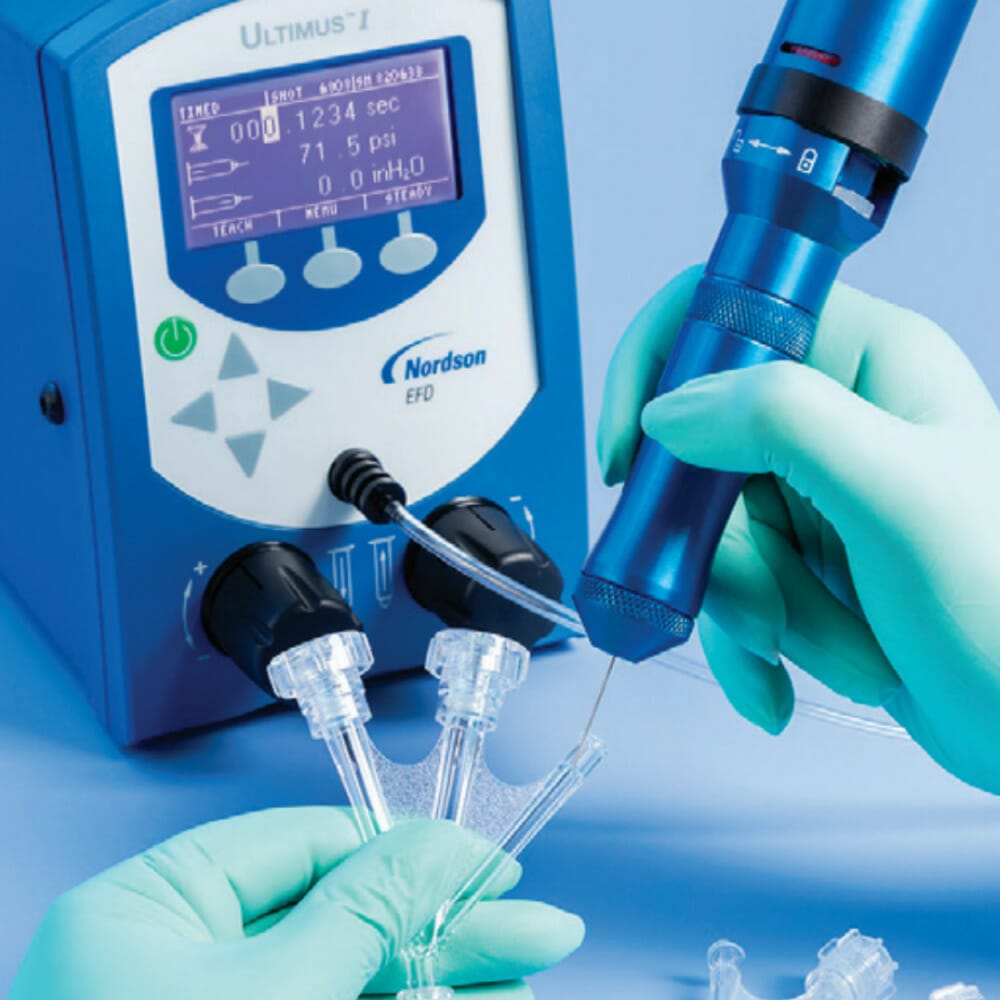

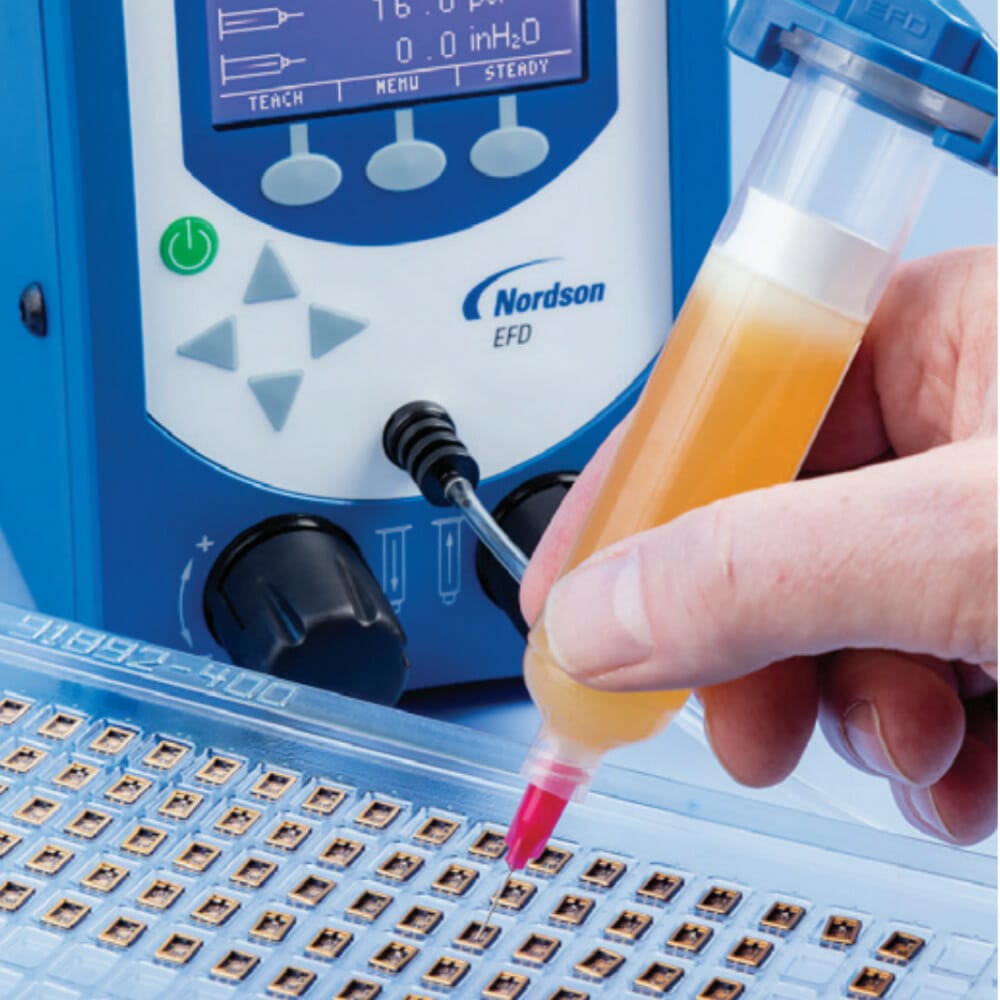

Featuring a digital display of all fluid dispenser settings and time adjustment as fine as 0.0001 seconds, Ultimus™ I-II dispensers bring exceptional control to medical device, electronics, and other critical dispensing processes.

Ultimus I features 0-100 psi (0-7 bar) constant-bleed air pressure regulation and provides greater control when dispensing any type of fluid.

Ultimus II features 0-15 psi (0-1 bar) constant-bleed air pressure regulation and provides greater control when dispensing low-viscosity or thin fluids.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Specifications
Item Specification
Cabinet size 14.3W×18.1H×17.3D cm (5.63W×7.12H×6.82D”)
Weight 2.3 kg (5.0 Ib)
Power adapter AC input:100-240 VAC(+/-10%),~50/60Hz,0.6A DC output: 24 [email protected]
End-of-cycle feedback circuits 5-24 VDC; 100mA maximum
Initiate circuits Foot pedal,finger switch,or 5-24 VDC signal
Cycle rate Exceeds 600 cycles per minute
Time Range: Programmable from 0.0001-999.9999 seconds
Accuracy: Within ±0.5% of the selected time setting
Repeatability: Less than 16 μsec at any time setting
Pressure readout accuracy Ultimus I: ±2.0 psi, 0-7.0 bar(0.100 psi)
ULtimus II: ±0.3 psi, 0-1.0 bar(0-15 psi)
Vacuum readout accuracy ±2.0 in H2O,0-18 in H2O
Anbient operating conditions Temperature: 5-45°C(41-113°F)
Humidity: 85% RH at 30°C non-condensing
Height above sea level: 2000 m maximum (6,562 ft)
Approvals CE,RoHS,WEEE,UL,and China RoHS compliant Meets or exceeds CE and CSA requirements
Note: Specifications and technical details are subject to engineering change without prior notification.
