Ultimus V

Ultimus V

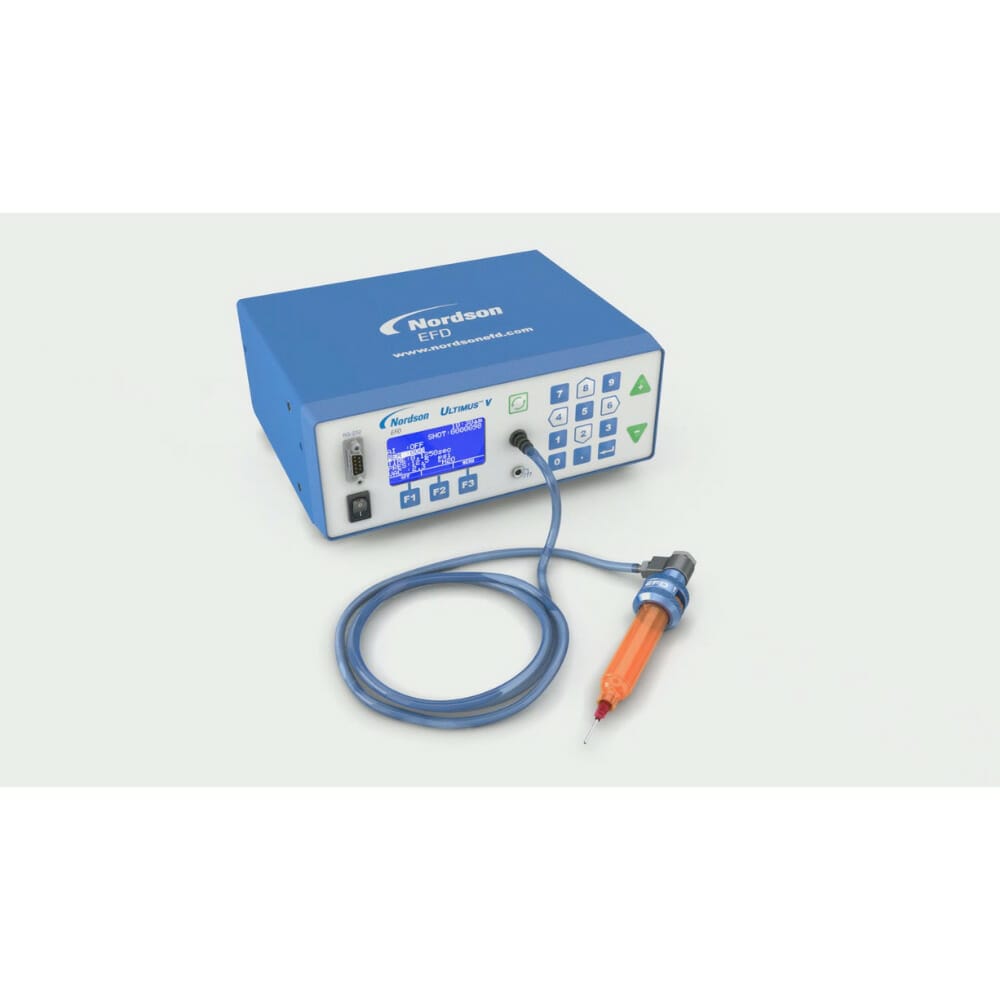

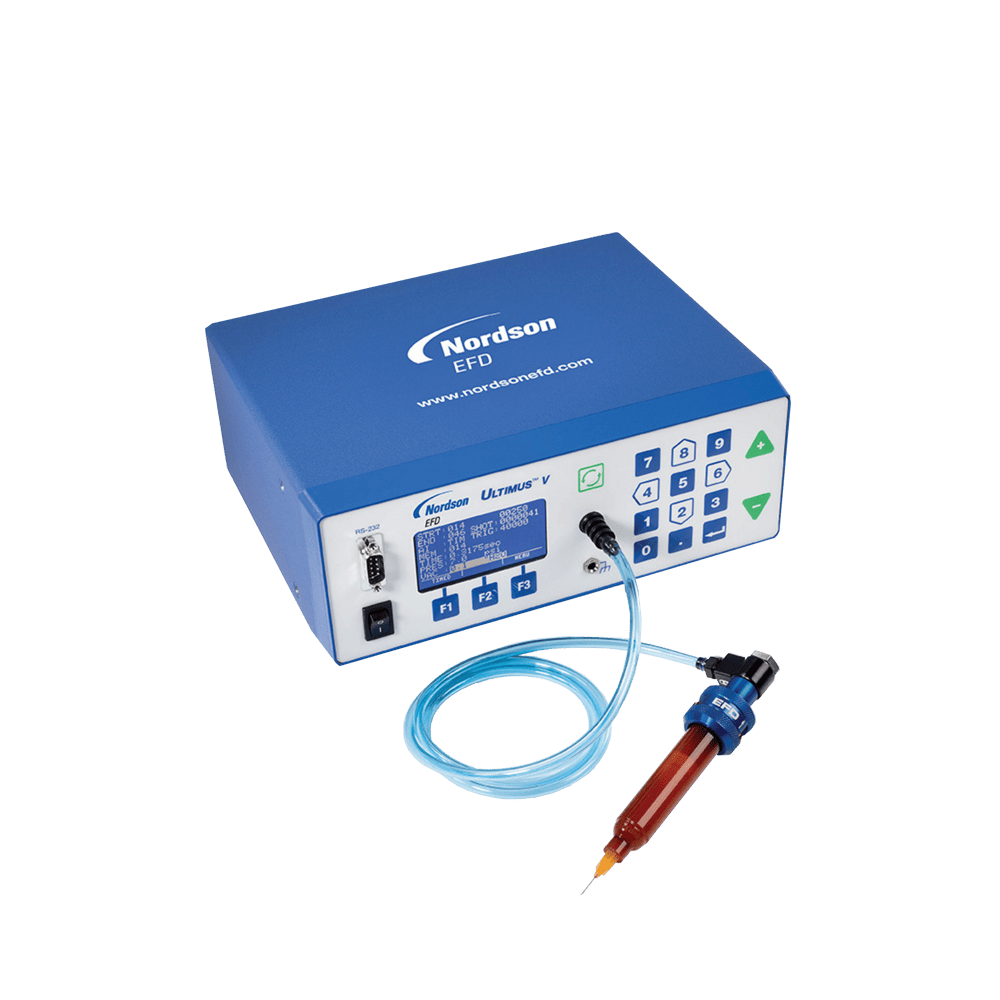

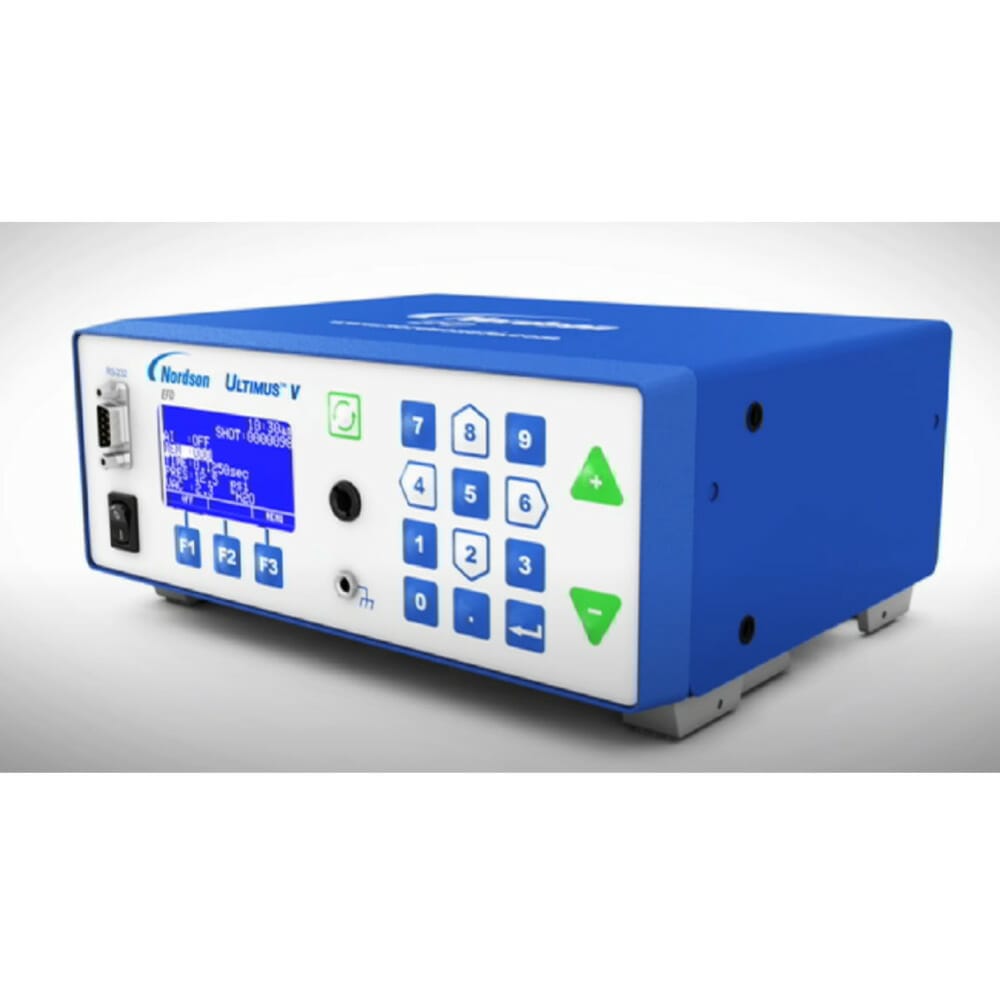

Ultimus™ V provides high-precision benchtop fluid dispensing control for advanced applications of fluids that change viscosity. Experience a new level of accuracy, consistency, and process control when dispensing glue, epoxy, oil, grease, silicone, sealant, cyanoacrylate, solder paste, and other fluids.
Ideal for applications that involve two-part epoxies, UV-cure adhesives, and other fluids that thicken over time or get thinner as ambient temperatures rise, the Ultimus V delivers consistent, repeatable deposits.

With an intuitive RS232 interface, the Ultimus V provides full electronic control of dispense time, pressure, and vacuum settings for exceptionally accurate deposits. Users can program patterns with up to three different shot sizes. The easy-to-program system keeps critical fluid dispensing processes consistent from start to finish.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Specifications
Item Specifications
Cabinet size 22.5W × 9.50H × 19.9D cm (8.86W×3.74H×7.85D”)
Weight 3.4 kg (7.7 Ib)
Power adapter AC input: 100-240 VAC (+/-10%),~50/60Hz,0.5 Amp
DC output: 24 [email protected] Amp
Cycle rate Exceeds 600 cycles per minute
Time range 0.0000-9.9999 s
End-of-cycle feedback circuits 5-24 VDC,100 mA maximum
Cycle initiate Foot pedal,finger switch,or 5-24 VDC signal
Air output 0-7.0 bar (0-100 psi)
Approvals CE,TUV,RoHS,WEEE,China RoHS
Warranty 1 year,limited
