Performus

Performus

Nordson EFD Performus™ Series fluid dispensers provide reliable benchtop dispensing control for general application of glues, oils, greases, epoxy, silicones, sealants, cyanoacrylates, solder pastes, and other assembly fluids dispensed with syringe barrels.

These air-powered (or pneumatic) dispensers reduce costs and improve productivity by delivering precise, repeatable fluid deposits ─ resulting in higher yields. Manufacturers benefit from a more controlled dispensing solution that reduces guesswork, fluid waste, and operator fatigue.

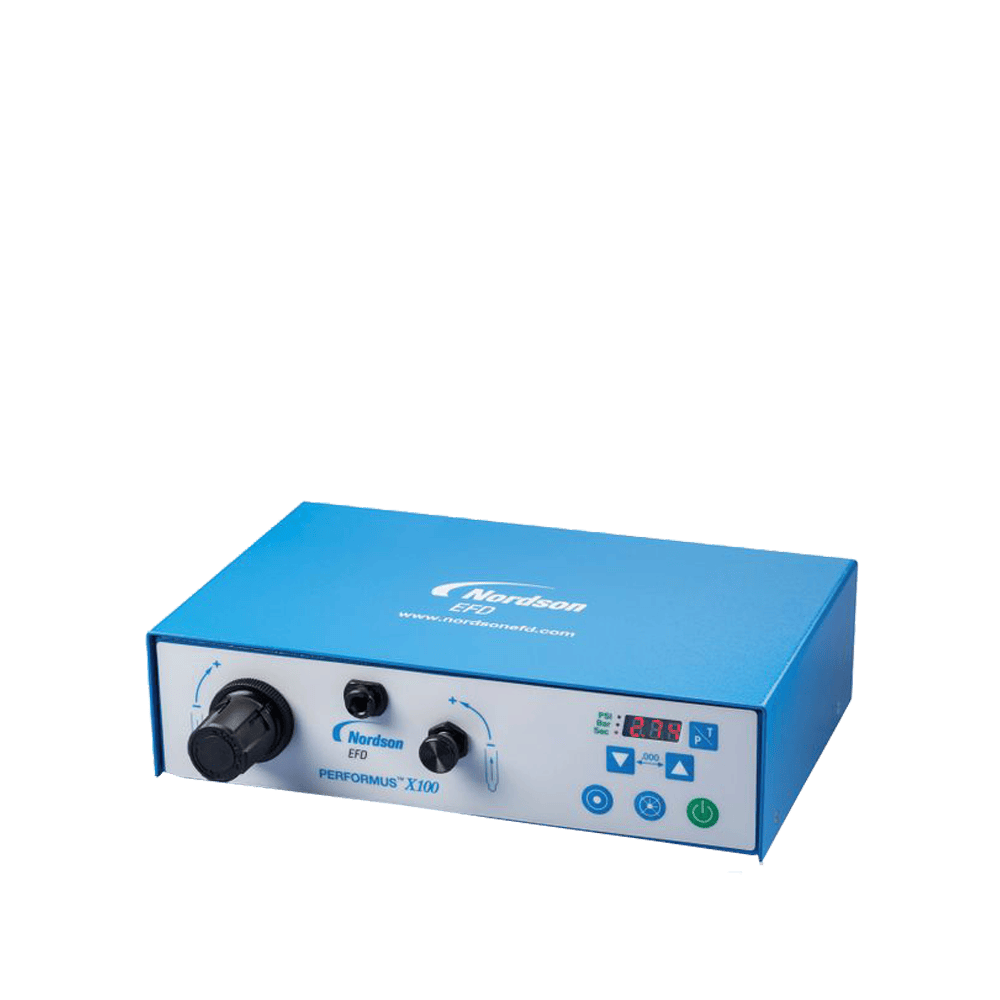

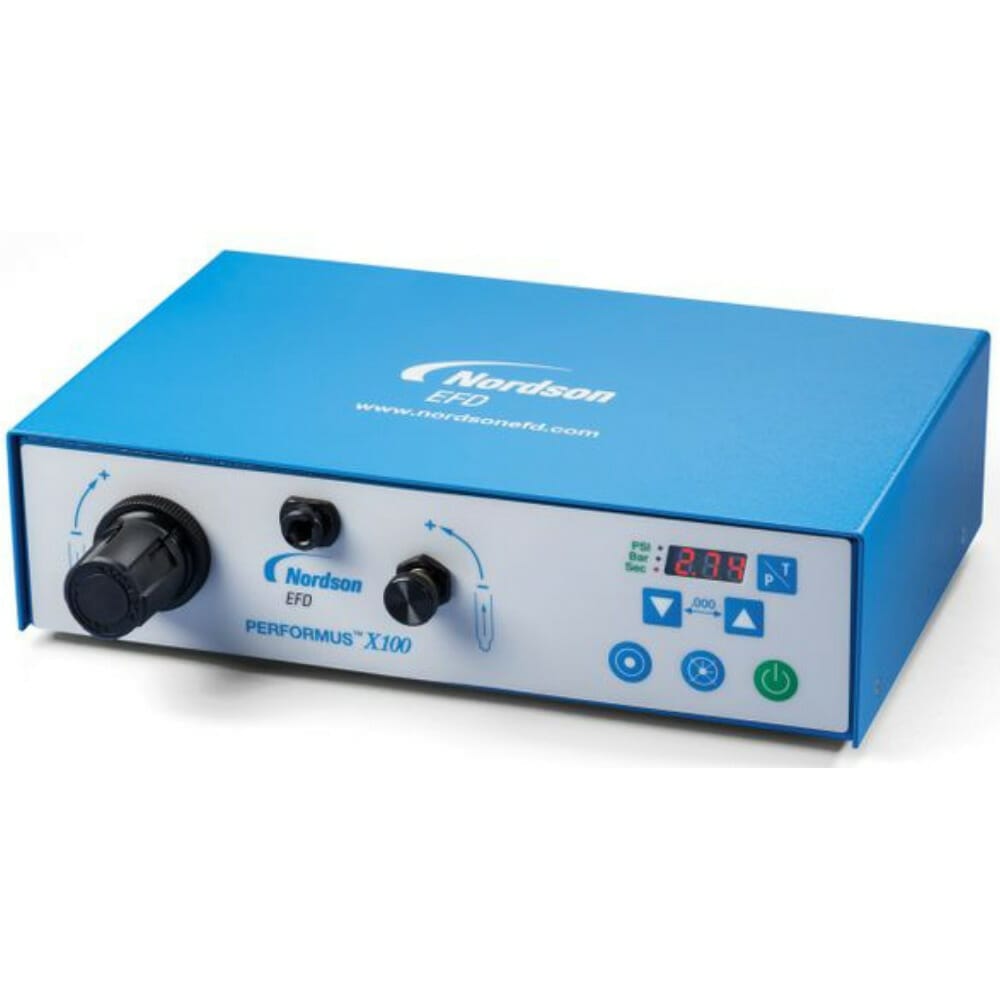

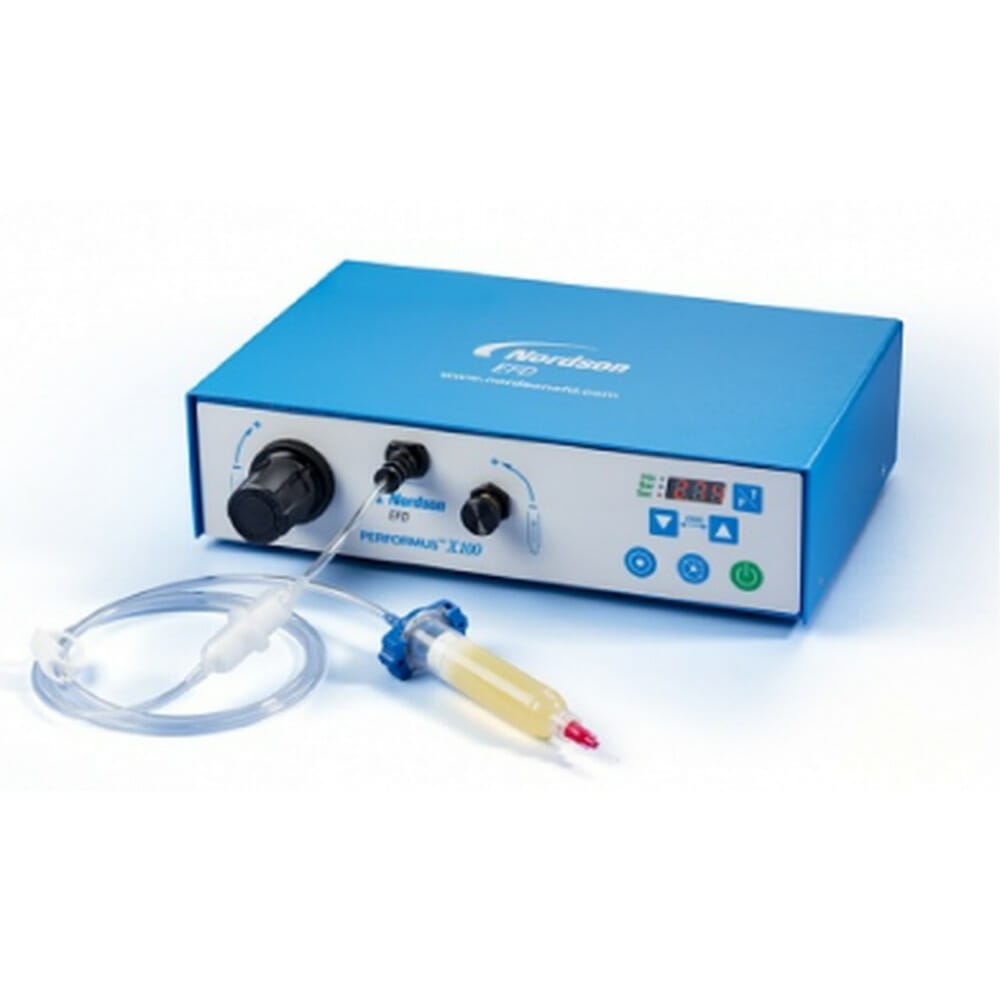

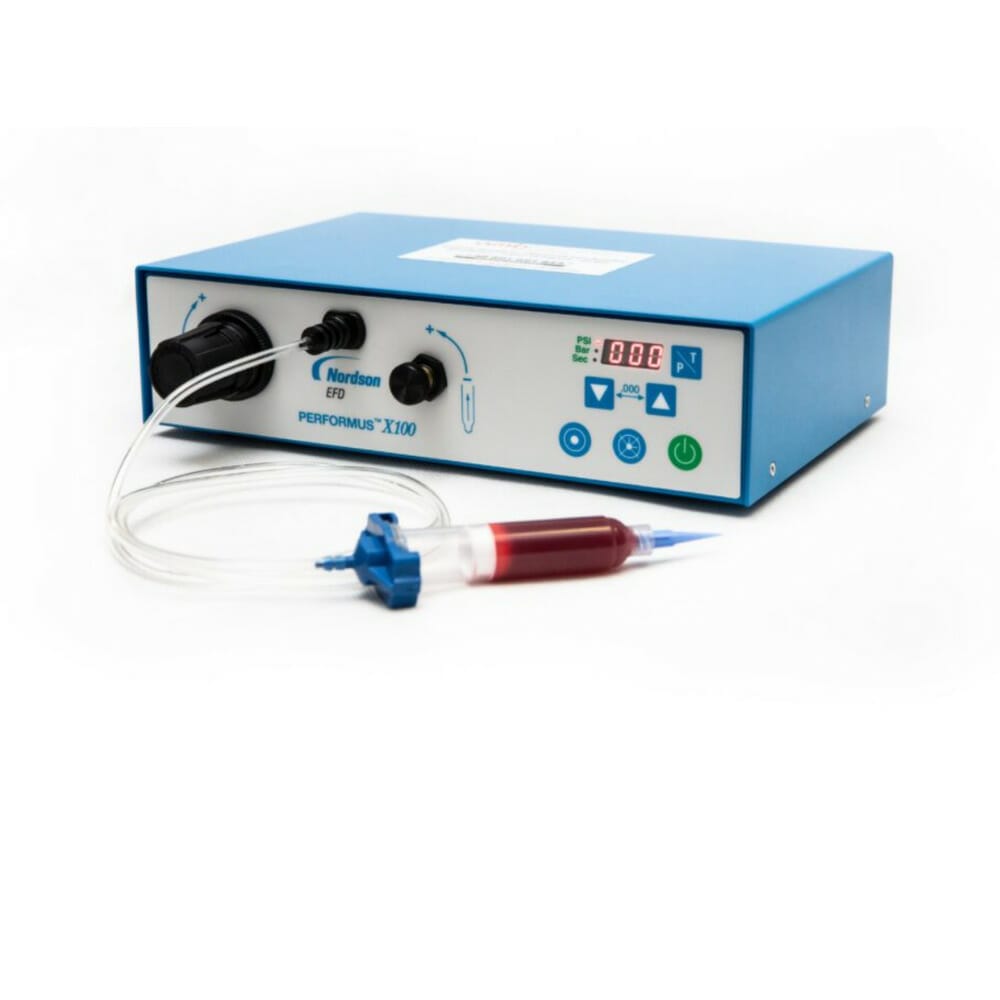

Performus X100

The Performus X100 features a 0-100 psi (0-7 bar) pressure regulator that handles all fluids.

Performus X15

The Performus X15 features a 0-15 psi (0-1 bar) pressure regulator that provides greater control when dispensing thin fluids.

Performus X100 and X15 units feature vacuum control, a convenient Teach function that makes it simple to set initial shot size, an I/O connection, and universal power supply.

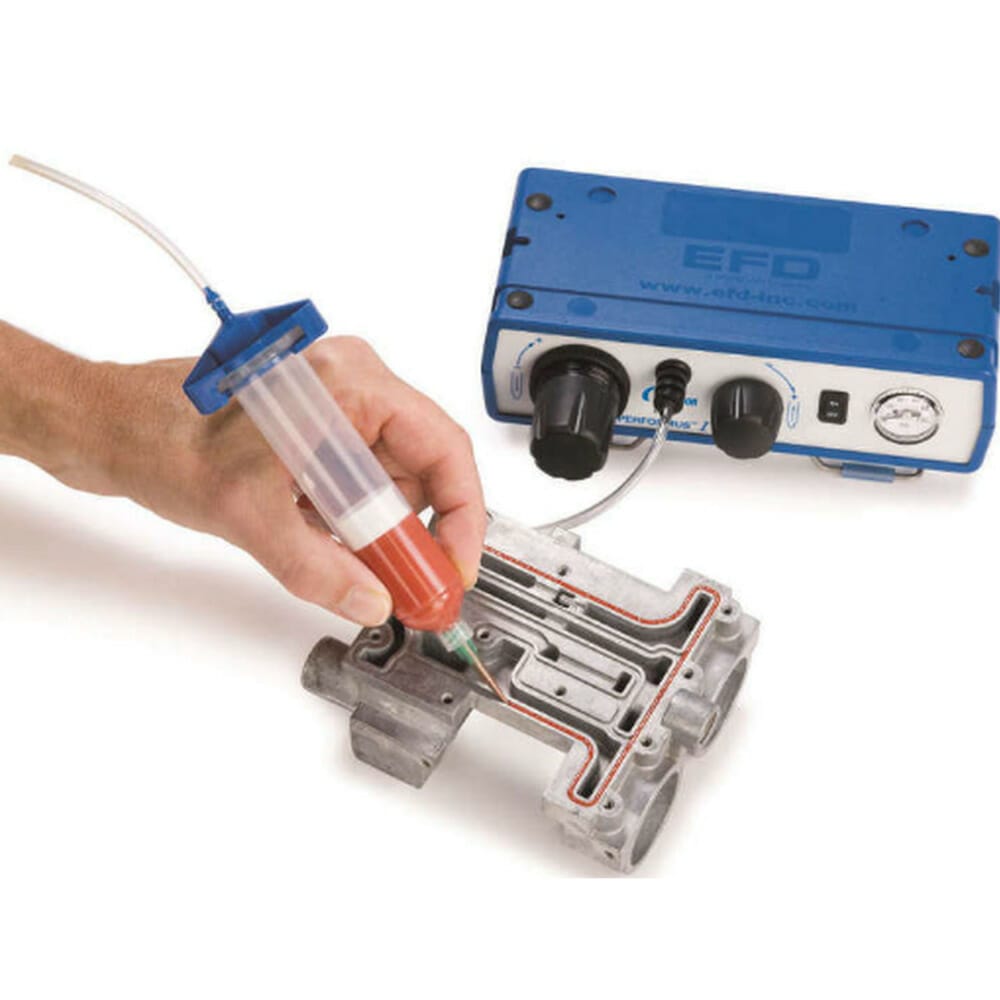

Performus I

Used for operator-controlled dispensing applications that do not require a timed shot, the Performus I handles all fluids to dispense dots, beads, and fills. It features an electric foot pedal, plus vacuum control to keep thin fluids from dripping.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Performus X
Specifications
Item Specification
Cabinet size 26.4×17.1D×6.7H cm (10.38W×6.75D×2.62H”)
Weight 1 kg (2.2 Ib)
Power adapter AC input: 100-240 VAC (+/-10%),~50/60Hz,0.6 Amp
DC output:24 VDC @0.75 Amp
Cycle rate Exceeds 600 cycles per minute
Time range 0-99.9 seconds
End-of-cycle feedback circuits 5-24 VDC,100 mA maximum
Cycle initiate Foot pedal,finger switch,or 5-24 VDC signal
Input air pressure 7.0 bar (100 psi) maximum
Air output 0-7.0 bar (0-100 psi)
Warranty 2 years,limited
Approvals CE,ETL,RoHS,HEEE,China RoHS
Note: Specifications and technical details are subject to engineering change without prior notification.
Performus I
Specifications
Item Specification
Cabinet size 183w×51H×86D mm (7.22W×2H×3.38D”)
Weight 1 Kg (2.2 Ib)
Power adapter AC input: 100-240 VAC,~50/60Hz
DC output: 24 [email protected]
Initiate circuits Foot pedal, finger switch
Cycle rate Exceeds 600 cycles per minute
Power requirements 24 VDC-1.04 Amp maximum
DC input power required 8W-20W
Internal voltage 24 VDC
Footswitch Voltage:24 VDC0
Current:20mA
Air Input requirements 100 psi (7 bar) maximum
Air Output 1-100 psi (1-7 bar)dependent on user setting
Ambient operating conditions Temperature:5°C to 45°C (41°F-113°F)
Humidity:85% RH at 30°C (86°F) non-condensing
Height above sea level: 2000 meters(6562 ft) maximum
Approvals CE,CSA,RoHS,HEEE&China RoHS Compliant Meets or exceeds CE and CSA requirements
