Diaphragm

Diaphragm

There are 3 diaphragm valve series available, i.e. standard, highflow and mini.

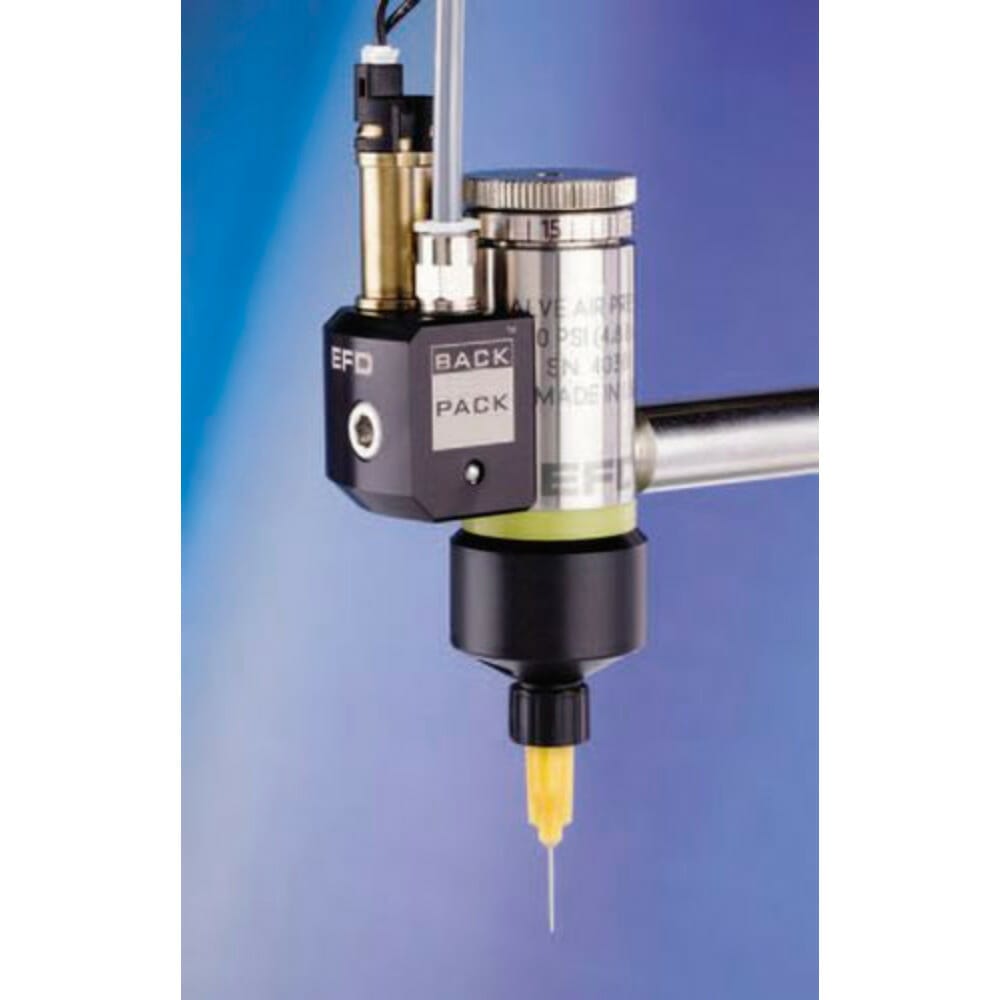

The 752V Series diaphragm valve delivers fine flow control when dispensing solvents, cyanoacrylates, anaerobics, fluxes, UV-cure adhesives, and other low- to medium-viscosity fluids. The open/close stroke is adjustable from 0.13 mm to 0.64 mm (0.005″ to 0.025″), producing a very fast response and positive shutoff.

Wetted components made from an inert ultra-high molecular weight (UHMW) polyethylene make the 752V Series an ideal solution for dispensing adhesives, anaerobic threadlockers, and other reactive fluids.

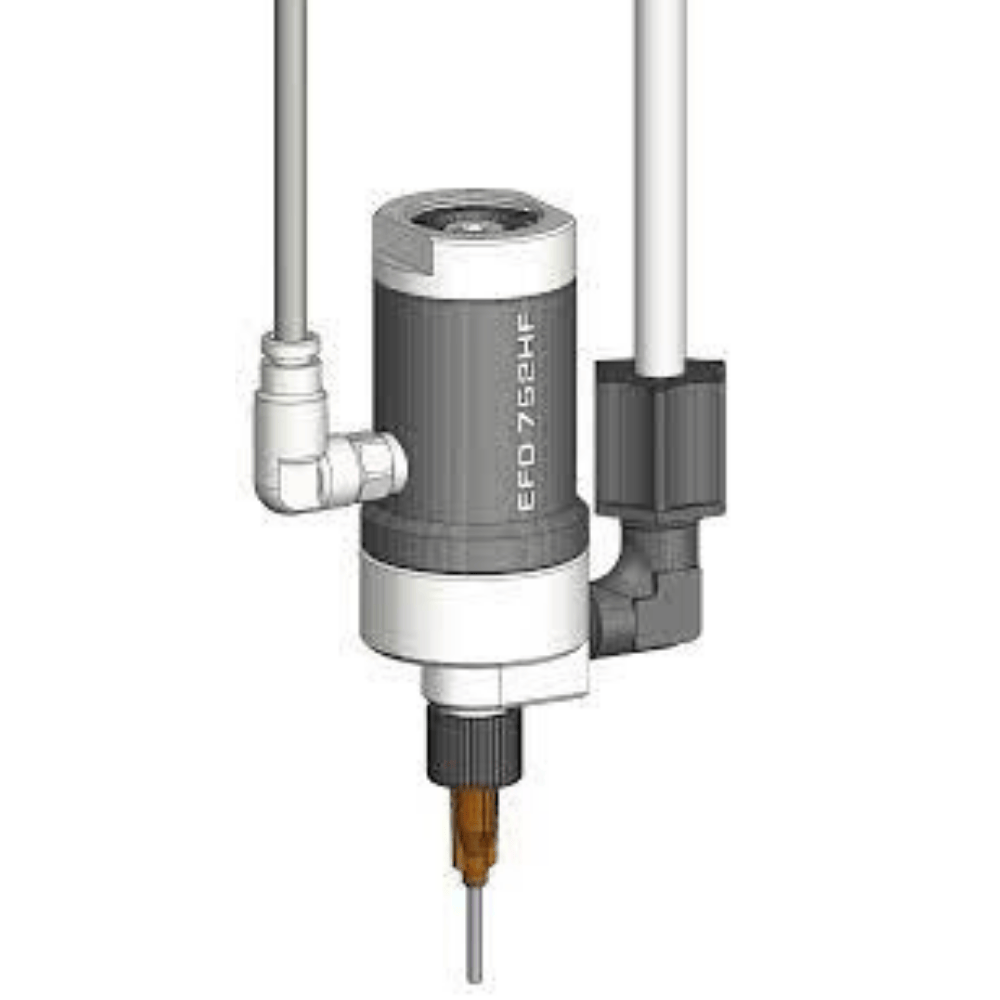

The 752HF Series high flow diaphragm valve provides precise, drip-free dispensing of UV-cure resins and similar fluids used in the media manufacturing of DVDs, Blu-Ray DVDs, and CDs. Designed for smooth, unrestricted material flow, the 752HF reduces turbulence and prevents micro-bubbles from forming. This creates a more consistent, higher-quality end product with fewer rejects.

The compact and lightweight 752HF-SS provides controlled, bubble-free dispensing for bonding and lacquer coatings. It features a 303 stainless steel fluid body, tamper-resistant stroke control adjustment, and a low-maintenance design. The 752HF-A is the same as the 752HF-SS, but features an acetal copolymer fluid body.

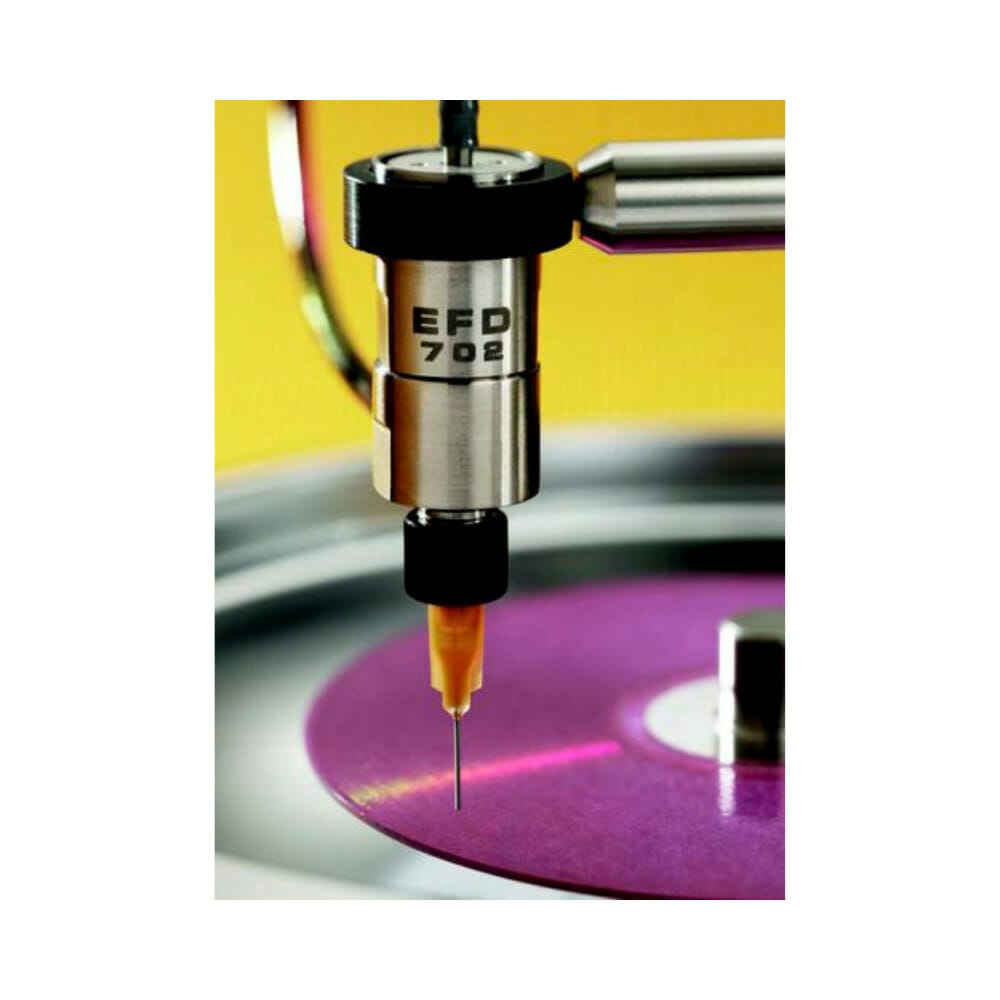

The 702 Series mini-diaphragm valve provides drip-free coating and consistent shot-to-shot bonding in optical media and other applications requiring smaller and lighter weight dispense valves. Nordson EFD’s mini-diaphragm valves feature a unique design that eliminates trapped air and bubbles. They are 60% smaller and 70% lighter than other dispense valves, which means less maintenance and wear on semi-automated and automated machine robotic arms.

Mount more valves per fixture plate and dispense in tighter spaces with the 702 Series valves.

Category Tags ,
Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



752V Series Specifications
Model Item Product
752V-UHSS Size 79.5 mm × 26.9 mm diameter (3.13″ × 1.06″)
Weight 173.6 grams (6.12 oz)
Air cylinder body Type 303 stainless steel
752V-SS Size 79.5 mm × 26.9 mm diameter (3.13″ × 1.06″)
Weight 181.4 grams (6.4 oz)
Air cylinder body Type 303 stainless steel
752V Size 79.5 mm × 26.9 mm diameter (3.13″ × 1.06″)
Weight 105 grams (3.7 oz)
Air cylinder body Hard-coated aluminum
General Actuating air pressure 70 psi (4.8 bar)
Maximum fluid pressure 70 psi (4.8 bar)
Fluid inlet thread 1/8 NPT female
Fluid outlet thread 1/4-28 UNF
Mounting (1) 10-32 UNF tapped hole
Cycle rate Exceeds 500 per minute
Fluid body UHMW* polyethylene, FDA approved
Fluid body options Acetal, 303 stainless steel, PTFE
Piston and piston rod Type 303 stainless steel
Tip adapter Polypropylene
Diaphragm UHMW* polyethylene, FDA approved
Diaphragm option PTFE
Wetted parts Fluid body, diaphragm, tip adapter
All stainless steel parts are passivated.
*Ultra High Molecular Weight polyethylene
