Liquidyn

Liquidyn

There are 2 Liquidyn series based on the material viscosity; which are Liquidyn P-Jet Series Jetting Valves and Liquidyn P-Dot Series Jetting Valves

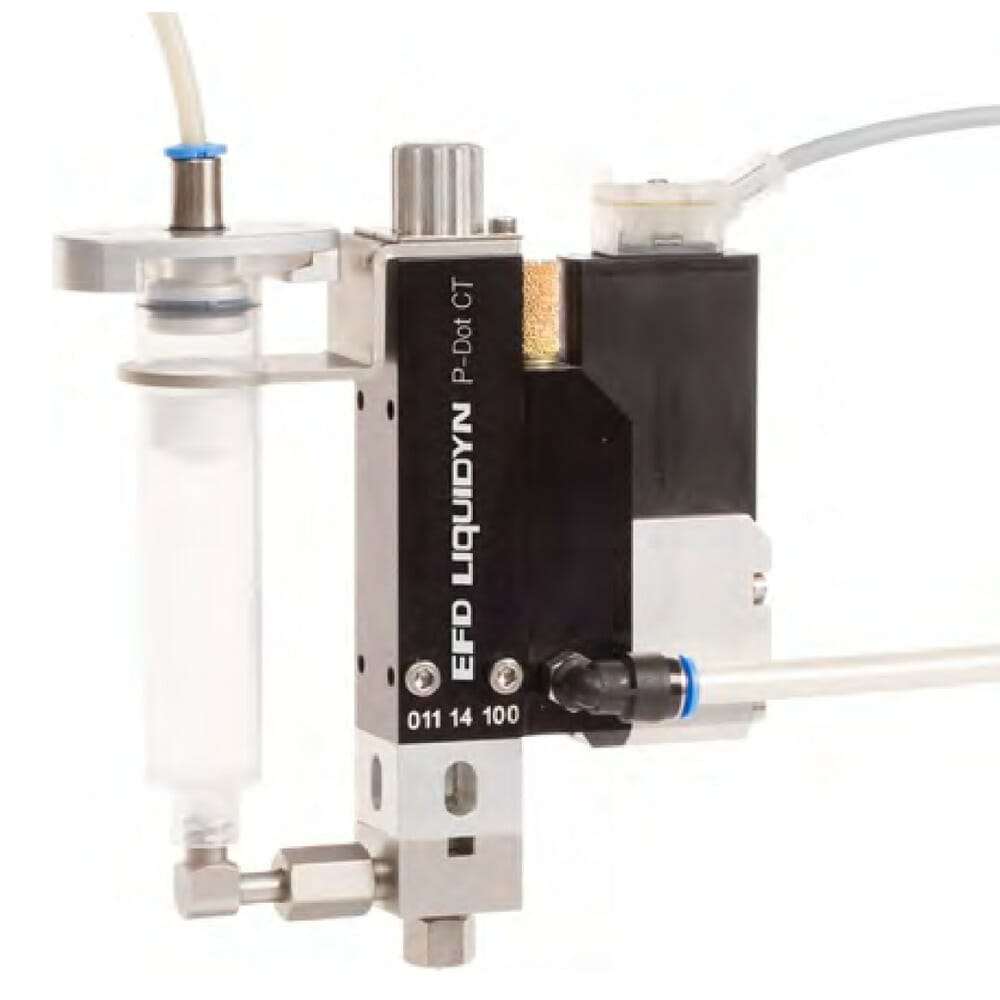

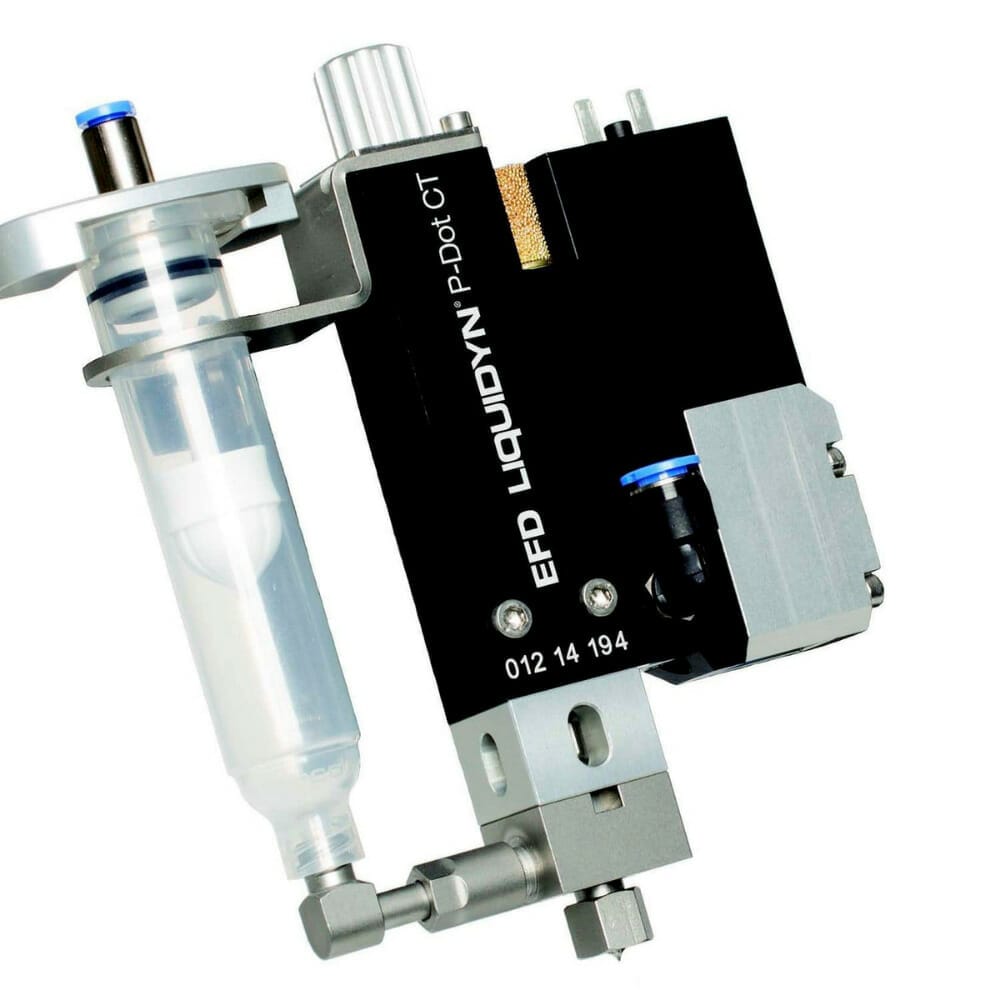

The pneumatically actuated Liquidyn® P-Dot jet valve provides very precise, repeatable jetting in the form of dots, beads, and lines, Designed for thicker medium-viscosity to highly viscous materials. With extremely short triggering intervals of less than 1 ms, it is possible to accurately apply small amounts of viscous fluids. Deposit volumes range from 3 nL to 200 nL and can be dispensed at frequencies up to 150Hz.

The Liquidyn P-Dot features interchangeable dispensing nozzles, tappets, and fluid inlet fittings, which make it easy to adapt for exacting application requirements. Wetted parts separate from the actuator simplify service and maintenance.

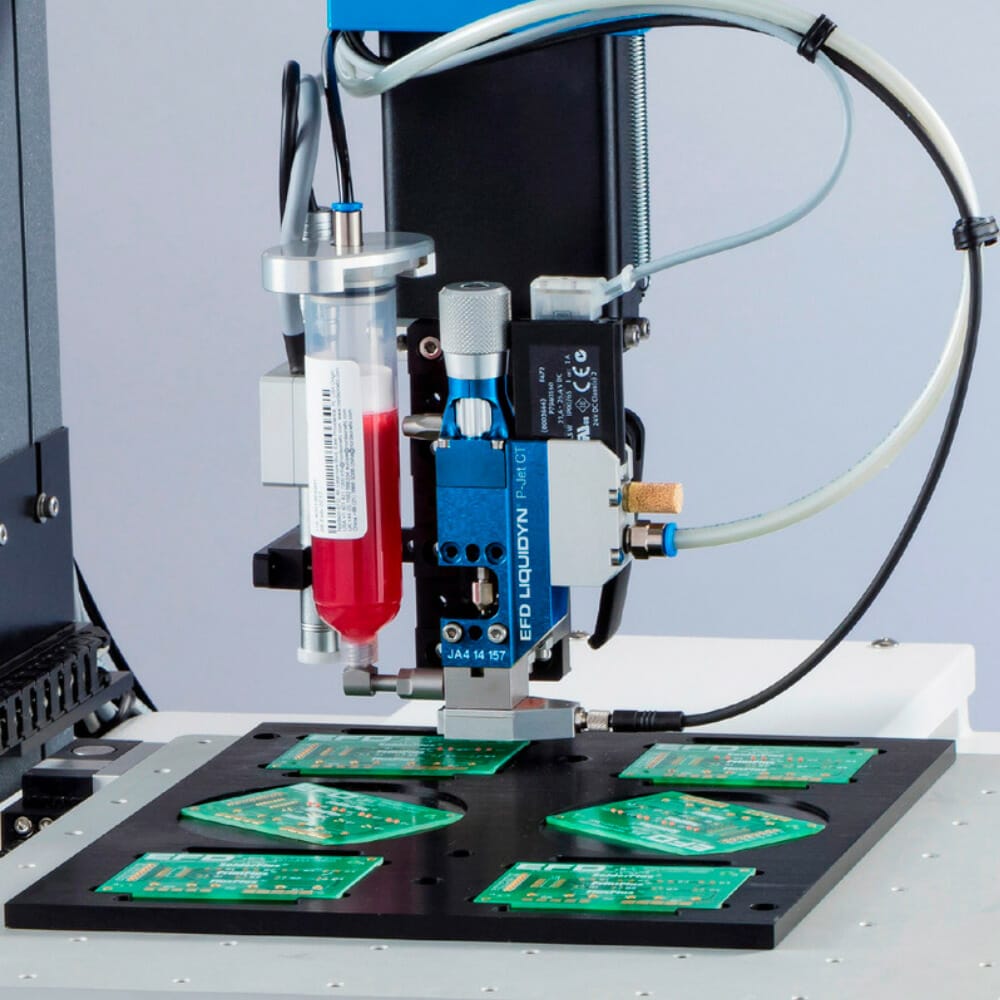

Dispense low- to medium-viscosity fluids in extremely accurate, repeatable beads and lines with the high-performance Liquidyn® P-Jet jet valve. Micro-deposits as small as 3 nL can be applied at up to 280Hz.

The Liquidyn P-Jet features easily exchangeable dispensing nozzles, tappets, and fluid inlet fittings, making it possible to customize for specific application requirements. Wetted parts separate from the actuator allow for fast, easy serviceability and maintenance.

Electro-pneumatically operated by a low voltage trigger, the Liquidyn P-Jet features an adjustable pulse signal. Valve open time can start at 2 ms. The dispensing tappet remains open until the trigger signal ends.

The valve was designed to dispense in industrial environments and features a low cost of ownership. Even the most demanding or delicate processes – whether due to product complexity or positional tolerances – are easy to implement with the Liquidyn P-Jet.
For Solder paste application, Nordson EFD SolderPlus® dispensing paste with high accuracy and repeatability at faster speeds for increased productivity. The pneumatically actuated Liquidyn® P-Jet SolderPlus jet valve features a modular design, which simplifies maintenance and reduces service time. Pre-qualified SolderPlus solder paste from Nordson EFD streamlines implementation of the system by delivering a complete, qualified solution.

The P-Jet SolderPlus valve jets Nordson EFD’s specialized, ISO-certified solder paste formulations in a wide variety of leaded and lead-free alloys. Contact EFD solder paste representatives to identify the SolderPlus formulation that best suits your jetting application.

Category Tags ,
Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Liquidyn P-Dot
Specifications
Item Specifitions
Size 38.6W×126.7H×61L mm (1.5W×5H×2.4L”)
Weight 270.0 g (9.5 oz)
Maximum fluid pressure 100 bar (1450 psi)
Fluid inlet M8×1,flat sealing
Mounting M3×25
Maximum operating frequency 150Hz
Pulse time 2 ms
Input air pressure 2-5 bar (29-73 psi)
Fluid body 303 stainless steel
Heater body Alumunum
Approvals CE
Warranty 1 year,limited
All stainless steel parts are passivated
Liquidyn P-Jet
Specifications
Item Specifications
Size 20W×138.5H×78.5L mm (0.8W×5.5H×3L”)
Weight 270.0 g (9.5 oz)
Maximum fluid pressure 100 bar (1450 psi)
Fluid inlet M8×1,flat sealing
Mounting M3×25
Maximum operating frequency 280Hz
Pluse time Starting at 2 ms
Input air pressure 3-8 bar (44-116 psi)
Fluid body 303 stainless steel or PEEK
Heater body Aluminum
Approvals CE
Warranty 1 year,limited
All stainless steel parts are passivated
Liquidyn Solder Plus
Specifications
Item Specification
Size 20.0W×138.5H×78.5L mm (0.8W×5.5H×3.0L”)
Weight 270.0 g (9.5 oz)
Maximum fluid pressure 100 bar (1450 psi)
Fluid inlet thread M8×1,flat sealing
Mounting M3×25
Maximum operating frequency 100Hz
Pluse time Starting at 2 ms
Input air pressure 3-8 bar (44-116 psi)
Fluid body 303 stainless steel
Heater body Aluminum
Approvals CE
