Pico

Pico

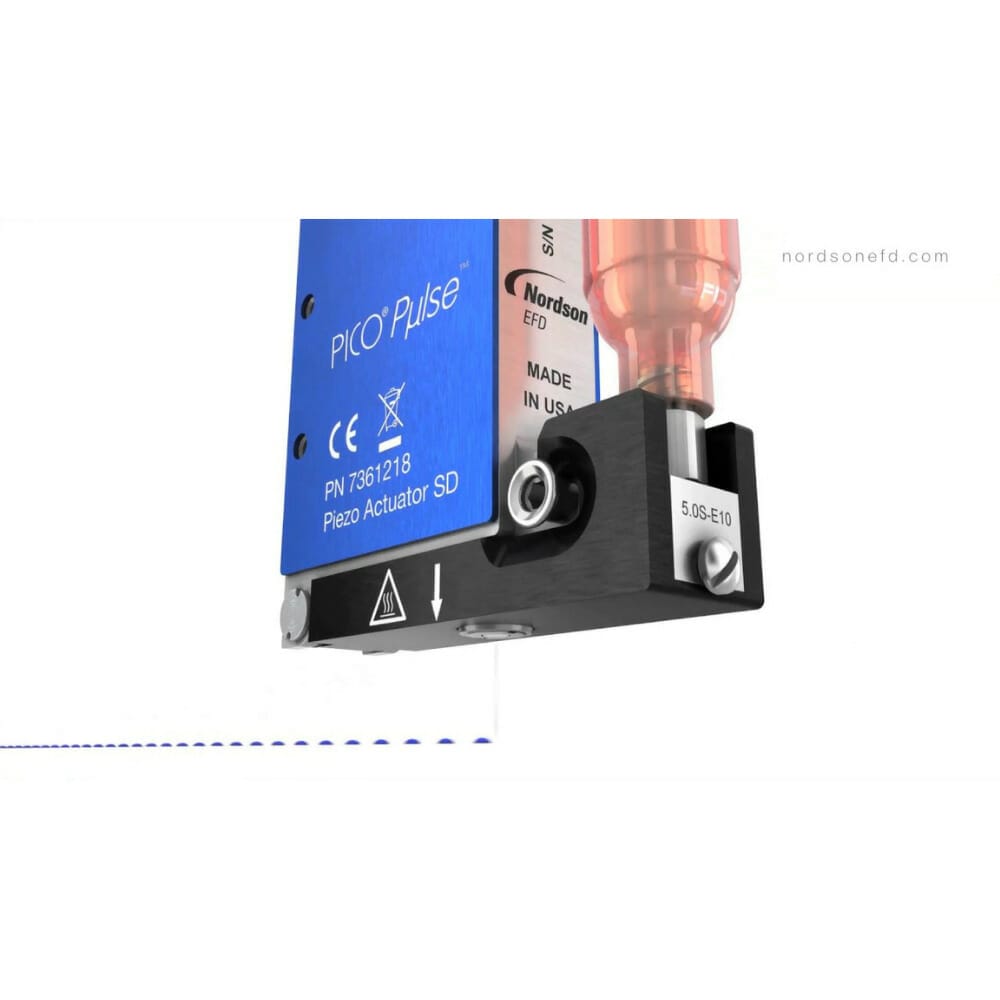

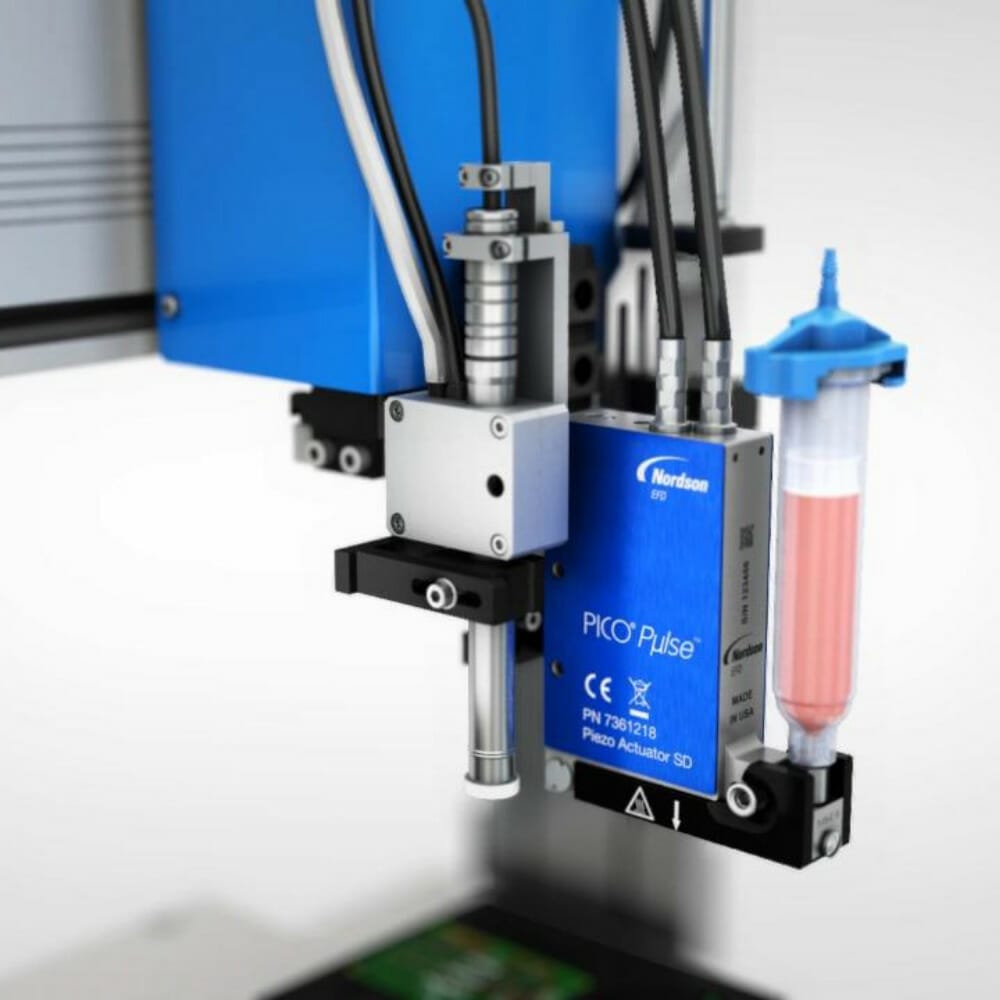

Nordson EFD’s PICO Pµlse® exchangeable, modular jet valve technology dispenses with industry-leading accuracy and speed to apply very precise, repeatable micro-deposits at 1000Hz continuous and bursts up to 1500Hz*.

The PICO Pµlse delivers faster, more precise jetting over any surface, including uneven and hard-to-reach surfaces. It dispenses with less turbulence for greater fluid deposit consistency, placement, and process control.

Engineered for the most demanding production environments, PICO Pµlse is considered one of the most robust jet dispensing valves in the marketplace. When used with the PICOToµch controller it is possible to achieve better stroke control, improved close time, and faster full stroke open time for exacting micro-deposit control.

Most importantly, the valve’s innovative tool-free latch mechanism allows for easy removal of wetted parts, reducing serviceability to seconds – significantly increasing production throughput. Its unique modular design and exchangeable parts allow it to dispense a wide range of assembly fluids and viscosities.

PICO Pµlse® series can be categorized into PICO Pµlse® contact and PICO Pµlse® Jetting valve

Category Tags ,
Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Pico Pulse contact
Specifications
Item Product
Size 22w×120H×75L mm (0.9w×5H×2.92L”)
Weught With tip adapter/with cable:538 g (19oz)
With tip adapter/ without cable: 376 g(13.3 oz)
Without tip adapter/with cable:524g (18.5 oz)
Without tip adapter/without cable:362 g (12.8 oz)
Maximum fluid pressure 35 bar (500 psi)
Fluid inlet M5
Mounting M4×0.7
Fluid body 303 stainless steel or PEEK*
Ball-and-seat Ceramic
Heater body Aluminum
Tip adapter kits 303 stainless steel
Approvals CE,WEEE,TUV
Warranty 1 year,limited
Pico Pulse jetting
Specifications
Item Product
Size 22w×120H×75L mm (0.9w×5H×2.92L”)
Weight With cable: 524.0 g(18.5 oz)
Without cable: 362.0 g (12.8 oz)
Maximum fluid pressure 35 bar (500 psi)
Fluid inlet M5
Mounting M4×0.7
Fluid body 303 stainless steel or PEEK*
Ball-and-seat Ceramic
Heater body Aluminum
Approvals CE,WEEE,TUV
Warranty 1 year,limited
