A high speed AOAC technology with compact and advanced heat efficiency

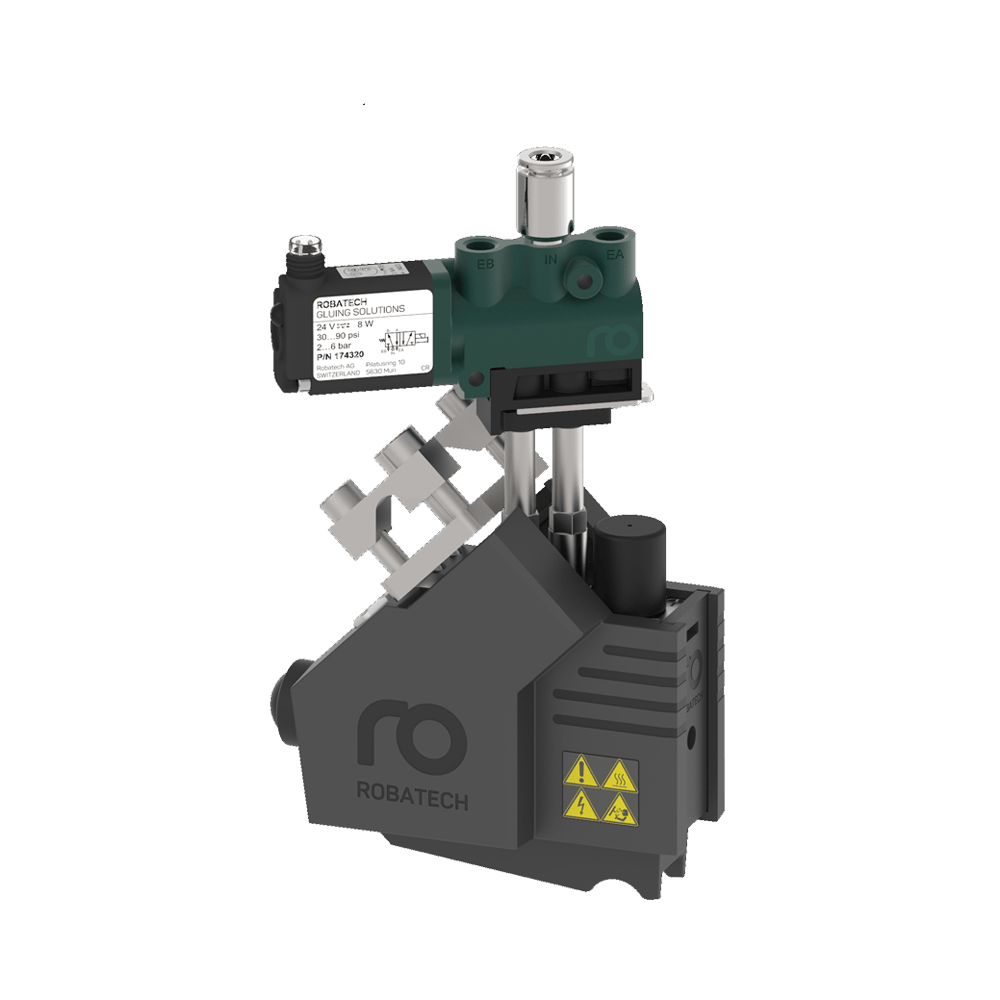

The durable application heads can be flexibly used and excel with small installation dimensions as well as precise adhesive application with perfect tear-off behaviour. With its long life-time, it is one of the most remarkable choice of jetting heads/dispensers in the market.

This jetting heads are suited for a precise dot and bead application at medium to high speed. Based on that and its small installation dimensions, it is ideally suited for retrofits and systems with limited space. The hot melt adhesive application heads are modular and available in different design versions and can thus be flexibly adopted to the respective application. Thanks to their variety, they can be flexibly used for different applications in diverse industries, such as the packaging and graphical industry.

The specially developed jetting elements and the robust solenoid valve make the application heads particularly durable. Thanks to the integrated filter in the heating block, nozzle blockage is prevented. Nozzle damage as well as heat loss are minimized through a nozzle guard. This results in even better tear-off behaviour and reduced operation interruptions.

Contact form



Temperature range 20 to 200°C
Adhesive pressure Max 75 bar
Adhesive Thermoplastic adhesives
Adhesive viscosity 500 to 5,000 mPas
Operating cycles 50 million * 200 million * (296 / KV)
100 million * (NV)
Switching frequency 120 Hz */**
Adhesive outlet 5 ms *
Jetting element width 18 mm
Nozzles 296 / 294 296 / 294 / KV / NV / NV long
Air connection 6 bar, cleaned and not oiled
Supply voltage 230 VAC (EN60204), 50/60 Hz
Supply voltage, solenoid valve 24 VDC / 8 W
Attachment For shaft Ø12 mm, flat steel or M5 thread
Noise level Approx. 65 to 70 dB (A)
Degree of protection IP42 (IP55 as option)
* For jetting element and valve. Depending on operating envitonment and conditions (adhesive, temperature, frequency, etc.)
** Continuous load maximum 10 Hz
