SPECIAL PRODUCTS
PUR Tube

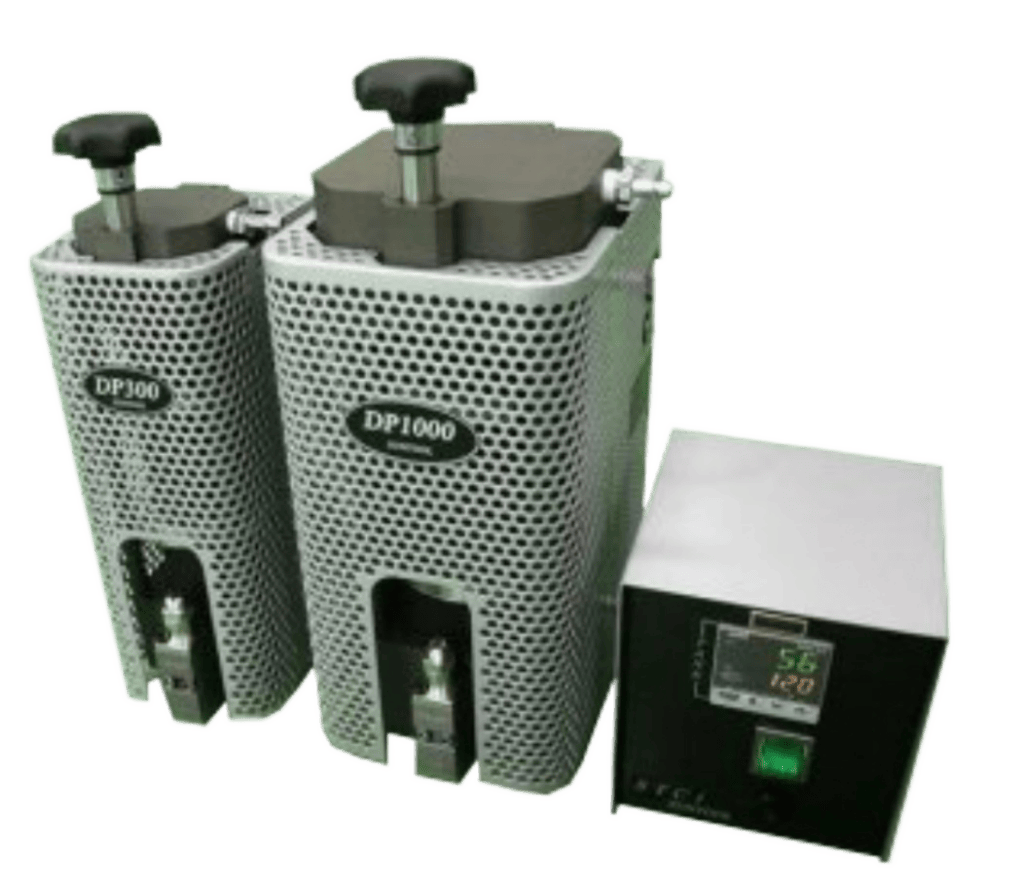

DP Series
For special material shape, or DP series is suitable for automation process being equipped with cartesian robot or other type of robots.
This product series allow our customers to easily attached the DP-series dispenser at the automation process in order to work with materials that come in aluminum tube package, like PUR tube, or the process that might not require high material consumption to prevent the material properties to downgrade from being heated for long period
Simple but multifunctional
- Suitable for various applications by changing the head
- Suitable for various applications by changing t Maintenance-free simple mechanism he head
- Improved user-friendliness with wealth of options
- Dispenser for reactive HMA is also available (DP300P)
- Commonly used for bonding small boxes and filling
DP300 application
Options for DP300
Technical Data
| DP1000 | DP300S | DP300P | |
|---|---|---|---|
| Tank capacity(cc) | 1000 | 300 | 300 cc cartridge |
| Operation temperature range | Normal temperature to 200°C | Normal temperature to 150°C | |
| Temperature control | PID control (temperature control 1 point) | PID control (temperature control 1 point) | |
| Used adhesive | All HMA (non-reactive type) | PUR reactive type | |
| Maximum viscosity （mPa・s） | 20,000 ※ | 20,000 ※ | |
| Pumping system | Compressed air addition | Compressed air addition | |
| Application signal | External signal to gun module | External signal to gun module | |
| Electric capacity | 100/200VAC 600W | 100/200VAC 340W | 100/200VAC 340W |
| External dimension (mm) | 143W×177D×374H | 103W×132D×347H | 103W×132D×347H |
| Weight (kg) | Approx. 8 kg | Approx. 4.5 kg | Approx. 4.5 kg |
| Option | Air regulator, solenoid valve, mounting stand, application timer, etc. | ||
- Values may vary according to the property of HMA to be used.
