Skip to content| Technical Specification | eldomix 100 | eldomix 100 |
|---|---|---|
| Flow rate | 5 ml to 1.2 1 / min, depending on mixing ratio and viscosity |
2 ml to 5 1/min, depending on mixing ratio and viscosity |
| Mixing ratio | 100:100 to 100:2, by volume | 100:100 to 100:2, by volume |
| Maximum working pressure | 100 bar max. | 100 bar max. |
| Mixing system | Static or static-dynamic mixing system – 2K valve – Disposal static mixer |
Static or static dynamic mixing system .2K valve * Disposal static mixer Dynamic mixing system |
| Material supply | Bench top version: Pressure vessels 4, 12 or 24 | Welded frame: Pressure vessels up to 45 I, larger on demand and / or drum pumps |
Pressure vessels 12 to 90 1 larger on demand and/or drum pumps |
| Viskosity range | 50 to 80,000 mPa s, with pressure vessel over 150,000 mPa s, with drum pumps |
50 to 80,000 mPa s, with pressure vessel up to 150,000 mPa s, with drum pumps viscosity |
PRODUCT
EldoMix
EldoMix

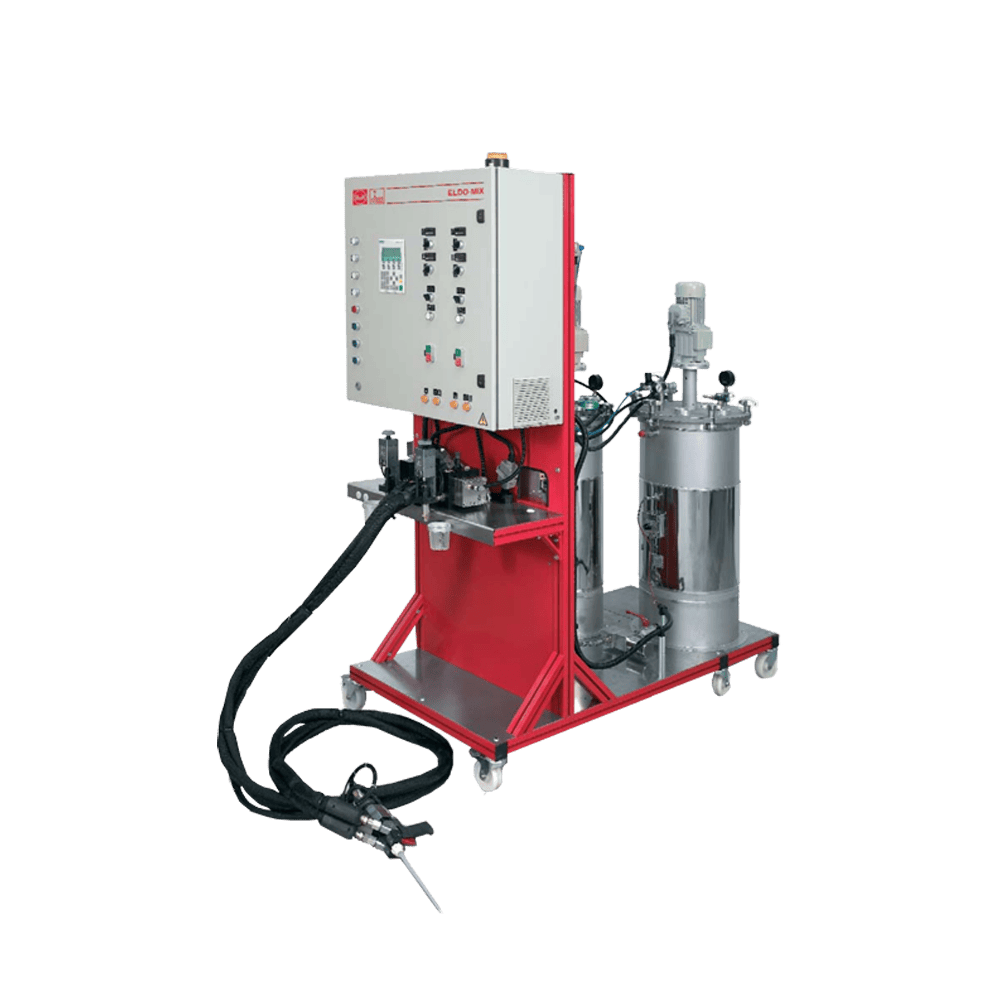

Eldomix : machine for epoxy potting, bonding and sealing; A compact, versatile and reliable system for precise dosing of 2K media
The eldomix 100/600 range of systems are compact, solvent free, gear pump driven metering and mixing systems. They are used to apply low to medium viscosity multiple component materials such as epoxies, polyurethanes and silicones. The material is supplied from pressure vessels. Special configurations to process high viscosity media are also available.
Pressure vessels are used to supply the material into the three phase asynchronous motor driven gear pumps where they are proportioned at the preselected ratio. Each gear pump is protected against over pressure as standard. Using optional integrated volume counters, the mixing ratio can be permanently controlled in freely configurable tolerances. In addition, the system can be equipped with a permanent air-fuel ratio control.
The eldomix is fitted with a metering computer with touch screen terminal and a static mixing system that includes a 2K valve combined with a disposable static mixer. Should mixed material be allowed to cure in the mixer, it can be replaced simply and inexpensively, thus avoiding a time consuming, expensive and environmentally damaging flushing cycle.
