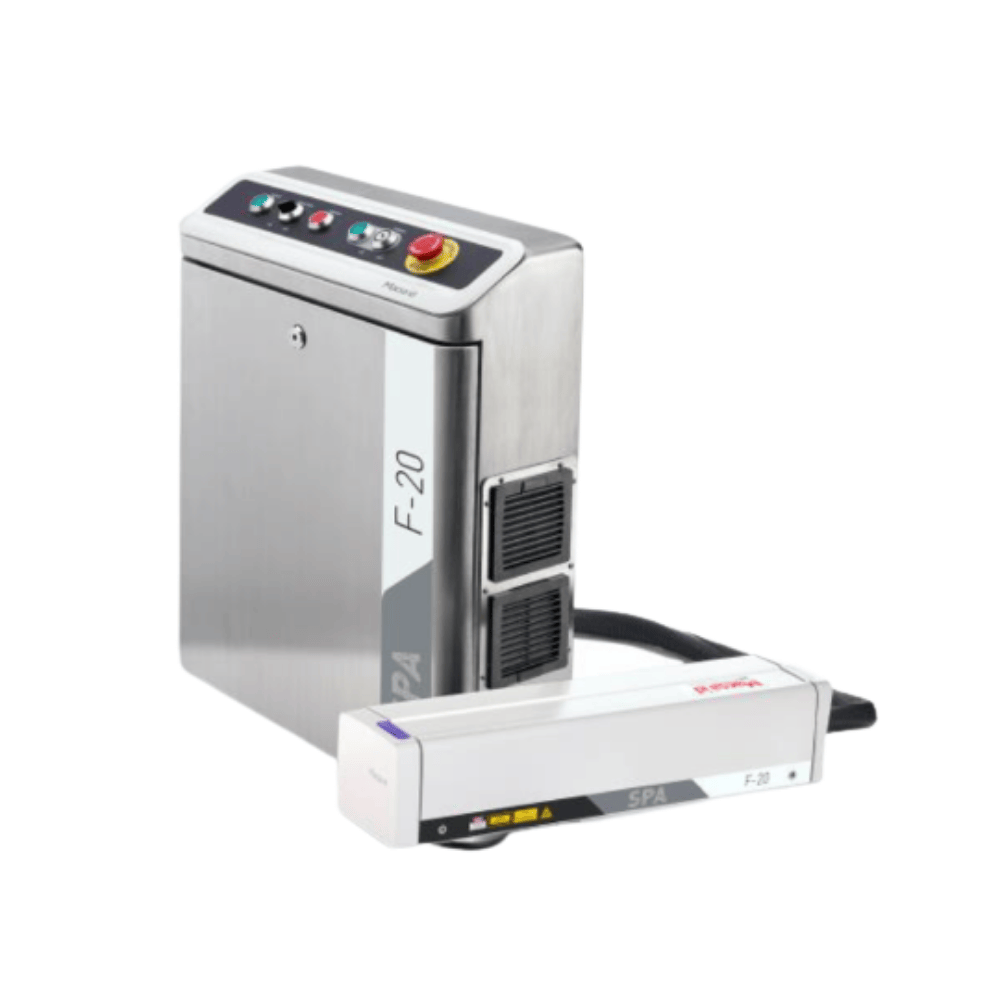

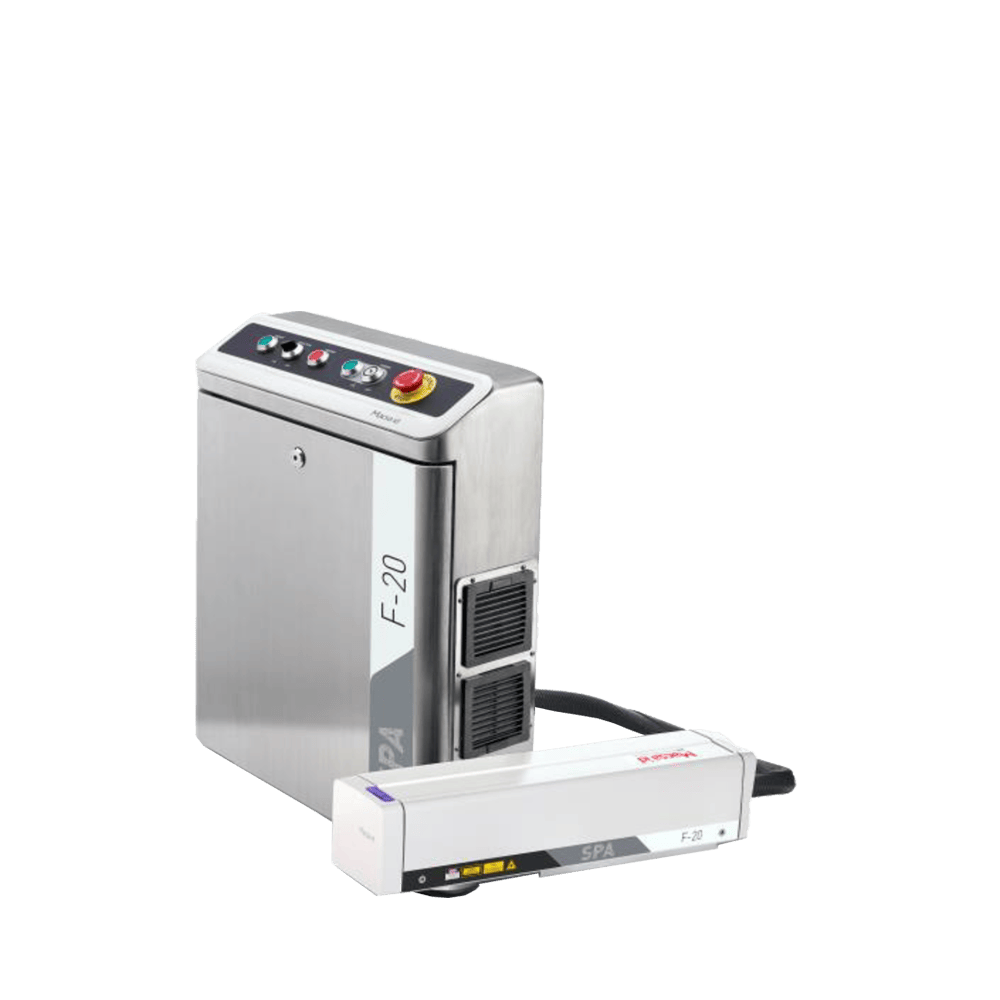

SPA F

SPA F

Specialized in applying various information on flexible films at high speed and offering permanent markings, guaranteeing the traceability of products.

SPA F can be categorized into Pulsed series and Film series. Both SPA F series are Fiber Laser specialized in coding and marking over a wide variety of materials such as foils, films, plastics and metals and other industrial products.

SPA F codes and marks information at a very high speed maintaining and excellent definition, without interruptions even in the most hostile conditions, where it offers excellent quality marking as it has been designed either for marking in metal, plastic and other materials in industrial sectors where an excellent quality marking is required.

With several features including Macsa’s propietary VCS, SPA F is offered to the market to ensure high print quality even on high-speed production lines, with support under adverse production environments thanks to IP54 guidelines

The coding of flexible packaging, laminated and metalized films, and other packaging covered with film, plastic and aluminum, is possible under the SPA F series.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Model
Film
Pilsed
Power
10W
20W
50W
10W
20W
30W
50W
Wavelength
F-10 Film
1.062μm
Laser system
F-10 Film
F-20 Film
F-30 Film
F-10 Pulsed
F-20 Pulsed
F-30 Pulsed
F-50 Pulsed
Mains supply
100V-240V
50/60 Hz
(1 phase+N)
350 VA
100V-240V
50/60 Hz
(1 Phase+N)
450 VA
100V-240V
50/60 Hz
(1 Phase+N)
650 VA
100V-240V
50/60 Hz
(1 Phase+N)
400 VA
100V-240V
50/60 Hz
(1 Phase+N)
500 VA
100V-240V
50/60 Hz
(1 Phase+N)
600 VA
100V-240V
50/60 Hz
(1 Phase+N)
700 VA
Dimensions Head
127×114.50×508 mm
127×114.50×508 mm
Dimensions Cabinet
182x642x505 mm
182x642x505 mm
182x642x505 mm
182x642x505 mm
Weight
Net weight: 23kg-Gross Weight:28Kg
Net weight: 26Kg-Gross Weight:30Kg
System
Optical isolator and collimator of the laser soure,galvanometric scanners built into the marking head Control and power electronics,drivers of the digital scanners,CPU,Power supplies and laser source built into the control cabinet. Optical isolator and collimator of the laser soure,galvanometric scanners built into the marking head Control and power electronics,drivers of the digital scanners,CPU,Power supplies and laser source built into the control cabinet.
Software
•ScanLinux V5.2.7 and later
•Marca Software V5.6.9 and later
•Internal Barcode
•Marca Lite Software.
•ScanLinux V5.2.7 and later
•Marca Software V5.6.9 and later
•Internal Barcode
•Marca Lite Software.
User interface
•Touch Screen
•Hand Held Terminal.
•PC
•Touch Screen
•Hand Held Terminal
•PC
Controlled By
•Hand Held Terminal with ScanLinux software
•Touch Screen with ScanLinux software
•Full Graphics Interface:includes Marca™ software. dongle and Ethernet cable [TCP/IP}
•Marca Lite Software includes Marca™ software.dongle and Ethernet cable [TCP/IP]
•Hand Held Terminal with ScanLinux software
•Touch Screen with ScanLinux software
•Full Graphics Interface:includes Marca™ software. dongle and Ethernet cable [TCP/IP}
•Marca Lite Software includes Marca™ software.dongle and Ethernet cable [TCP/IP]
Accessories
Handheld Terminal-Touch Screen Terminal-Beam pointer-Encoder Kit-Photocell kit-Alarm kit-Fume Extractor
-Mounting support-Mounting Bracket U-ARM-Marking paper-Protection goggles-Air Cooling kit
Handheld Terminal-Touch Screen Terminal-Beam pointer-Encoder Kit-Photocell kit-Alarm kit-Fume Extractor
-Mounting support-Mounting Bracket U-ARM-Marking paper-Protection goggles-Air Cooling kit
Environmental conditions
+15°C[59°F]at40°C[104°F]external temperature with 50% Duty Cycle or 36°C[100°F] external temperature with 100%
Duty cycle.Humidity between 10% and 95%.without condensation.
No vibrations.
+15°C[59°F]at40°C[104°F]external temperature with 50% Duty Cycle or 36°C[100°F] external temperature with 100%
Duty cycle.Humidity between 10% and 95%.without condensation.
No vibrations.
