K Series

K Series

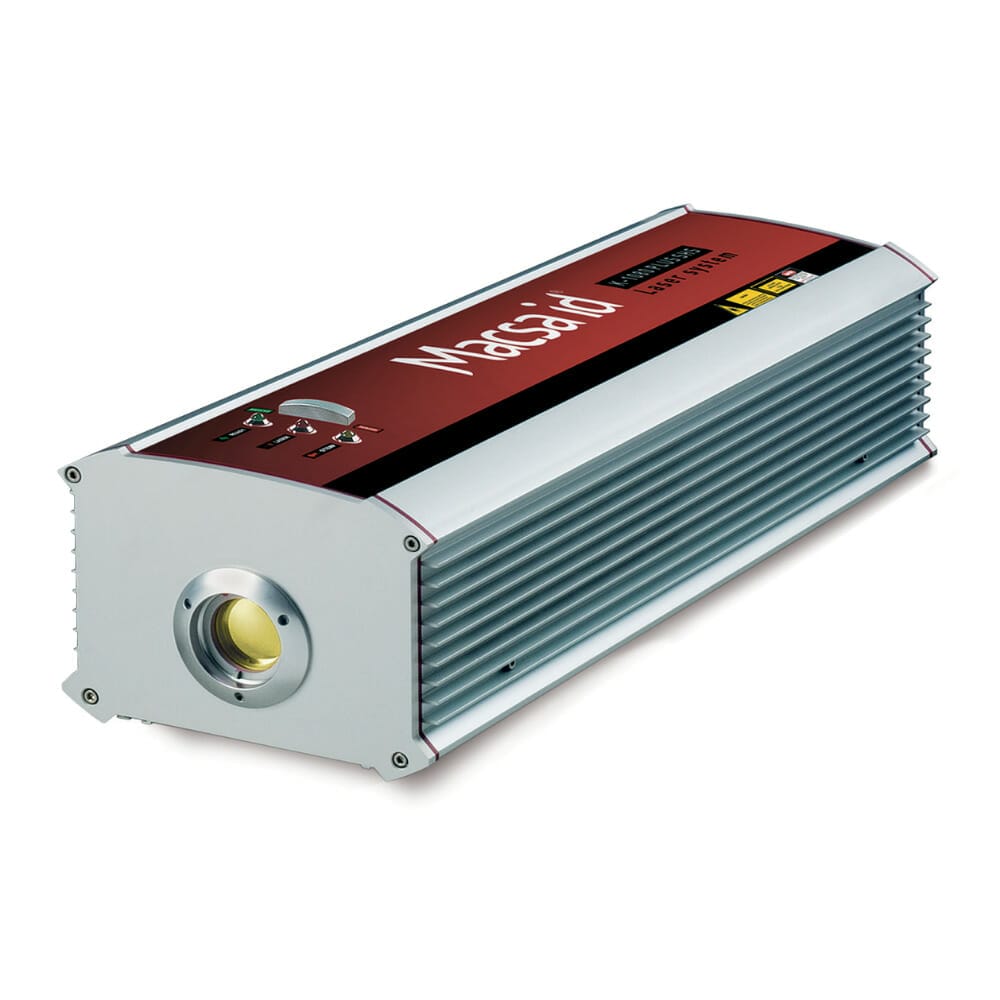

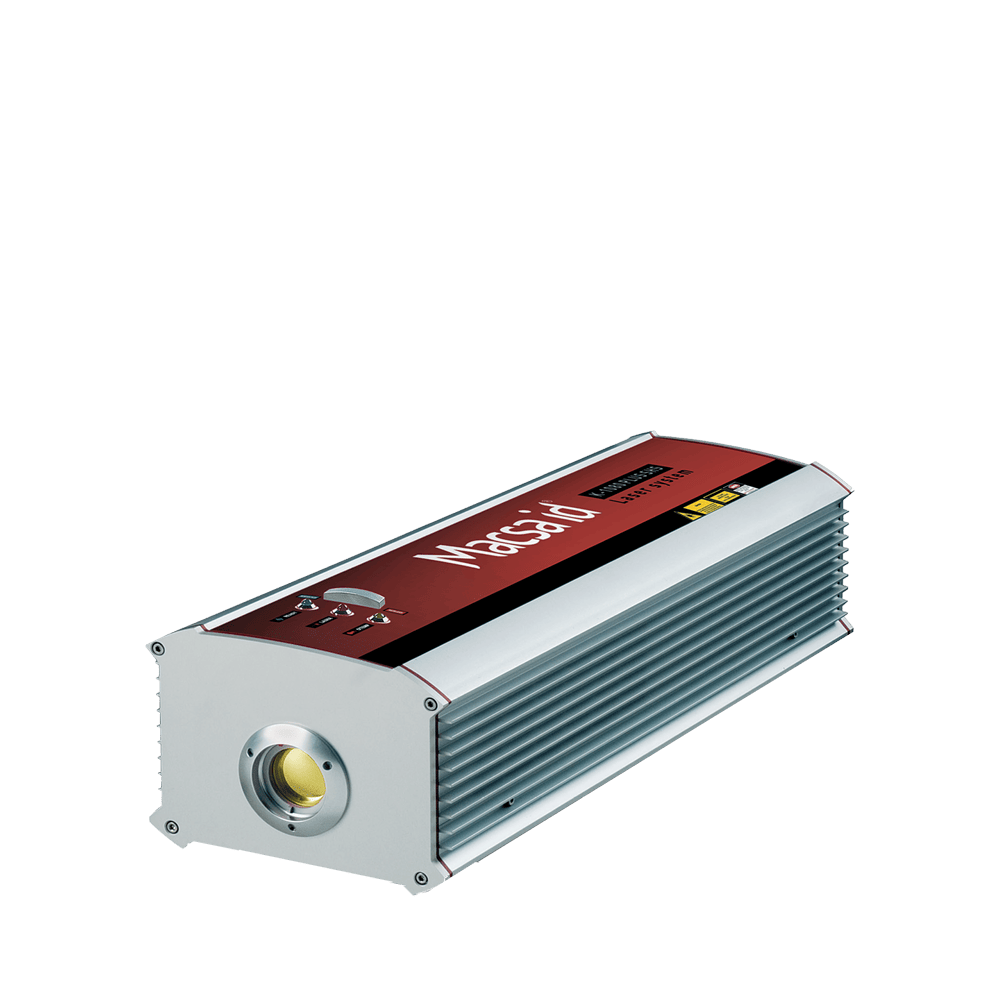

The K series is a CO2 laser coding and marking device developed by Macsa id. It is built for paper, board, glass and a wide range of plastics. The unit comes with easy installation, and an easy-to-network on-board computer. The framework is also utilizing a Marca software for coding and marking precisely and consistently. They can mark large complex graphics and deliver quality laser marks even on difficult substrates and when time is limited

In addition, the standard unit is mainly used by manufacturers of packaged goods and industrial products for coding and marking. Customers can also choose from a wide range of power and speed, as well as other options to meet the needs of most companies/customers . It is additionally available with with IP 65 protection rating suitable for damp and dusty environments. Furthermore in Macsa lasers, with MACSA’s software, you can link several K-1000 laser systems together for even greater control and increased production or to increase the graphic features of the K-1000 laser connecting a PC through the full graphic interface kit.

Category Tags ,
Inquiry
Contact form
SOUTHERN SUPPLY CO., LTD.

Share



System
K-1010 PLUS UHS
K-1030 PLUS UHS
K-1060 PLUS UHS
K-1080 PLUS UHS
Power
10W
30W
60W
80W
Wavelengh
9.3 μm / 10.2 μm / 10.6 μm
Mains supply
125V/230V
50/60 Hz
(1 Fase+N)330VA
125V/230V
50/60 Hz
(1 Fase+N)660VA
125V/230V
50/60 Hz
(1 Fase+N)1600VA
125V/230V
50/60 Hz
(1 Fase+N)1900VA
Dimensions
Split Head (optional)
108×106.5×114 mm
Tube (AxBxC)
190x141x621 mm
235x193x656 mm
235x193x774 mm

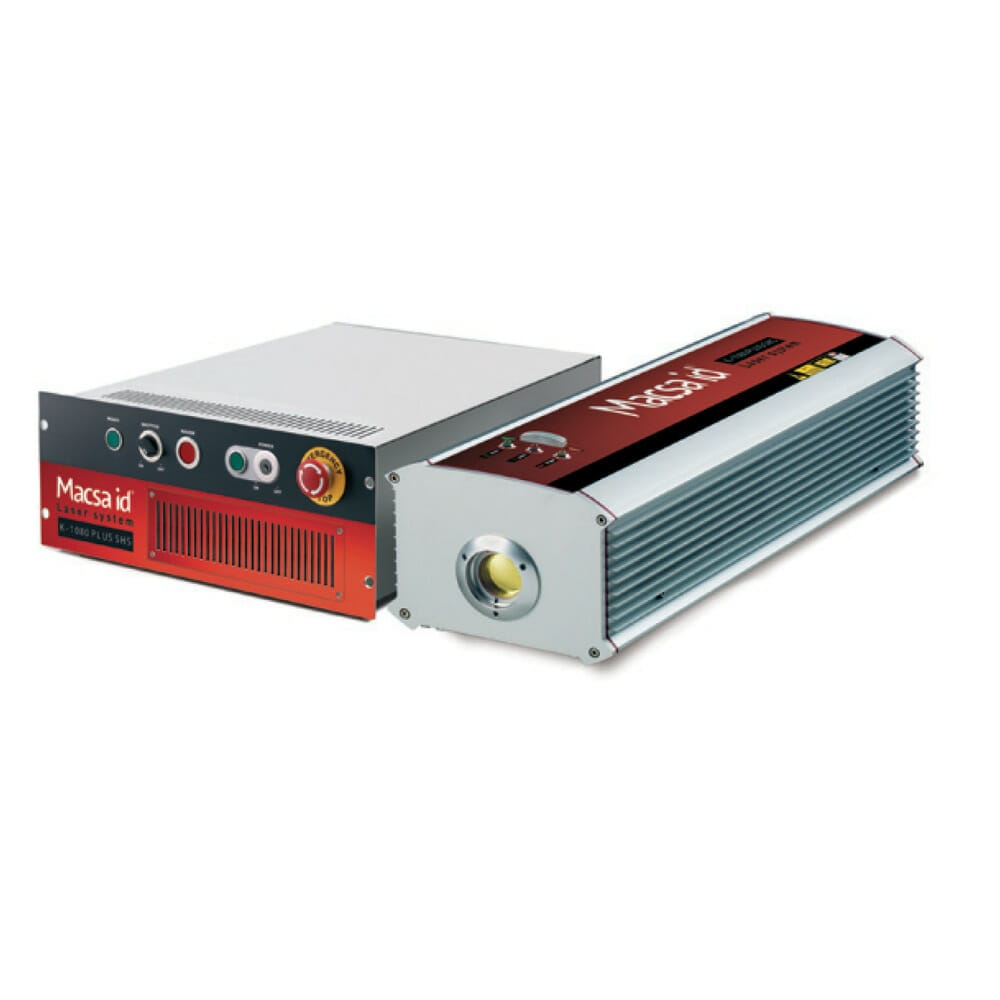

Rack
–
–
482x177x454 mm (19″x4ix454 mm)
Weight
Net: 19kg
Gross: 24kg
Net: 32kg
Gross: 40kg
Net: 71kg
Gross: 86kg
System
Laser source, and power
electronics,CPU and scanners built into the laser tube.
Laser source,scanners,control electronics
and CPU built into the laser tube.
Power electronics built into the control rack.
Optics
Working distance (mm)
Focal length (mm)
Marking area (mm x mm)
Beam diameter MODELS PLUS UHS
(μm)
85
95
60×60
<256μm-O
115
125
75×75
<337μm-O
150
160
100×100
<432μm-S
190
200
100×100
<540μm-O
230
240
150×150
<648μm-O
310
320
200×200
<864μm-O
400
410
250×250
<1107μm-O
μm: microns S: Standard O: Optional
Software •ScanLinux V5.2.7 and higher.
•Software Marca V5.6.9a and higher.
•Internal bar code.
•Software Marca Lite.
User interface •Hand held terminal/Touch screen/PC
Control by •Hand held terminal with ScanLinux software.
•Touch screen with ScanLinux software.
•Full graphics interface: it includes Marca software, Hasp key and Ethernet cable(TCP/IP)
•Software Marca Lite: it includes Marca software, Hasp key and Ethernet cable(TCP/IP)
Marking head
KS-1000-9.3 μm
KS2-1000-10.2 μm
K-1000-10.6 μm
CO2 sealed laser tube
R.F. technology
Wavelength:9.3 microns		 CO2 sealed laser tube
R.F. technology
Wavelength:10.2 microns 		CO2 sealed laser tube
R.F. technology
Wavelength:10.6 microns
Accessories
Beam pointer-Shaft encoder kit-Mounting support-Photocell kit
Enviromental conditions 10°C(50°F) to 40°C(104°F) external temperature
Humidity <95% non-condensation No vibrations
