F Series

F Series

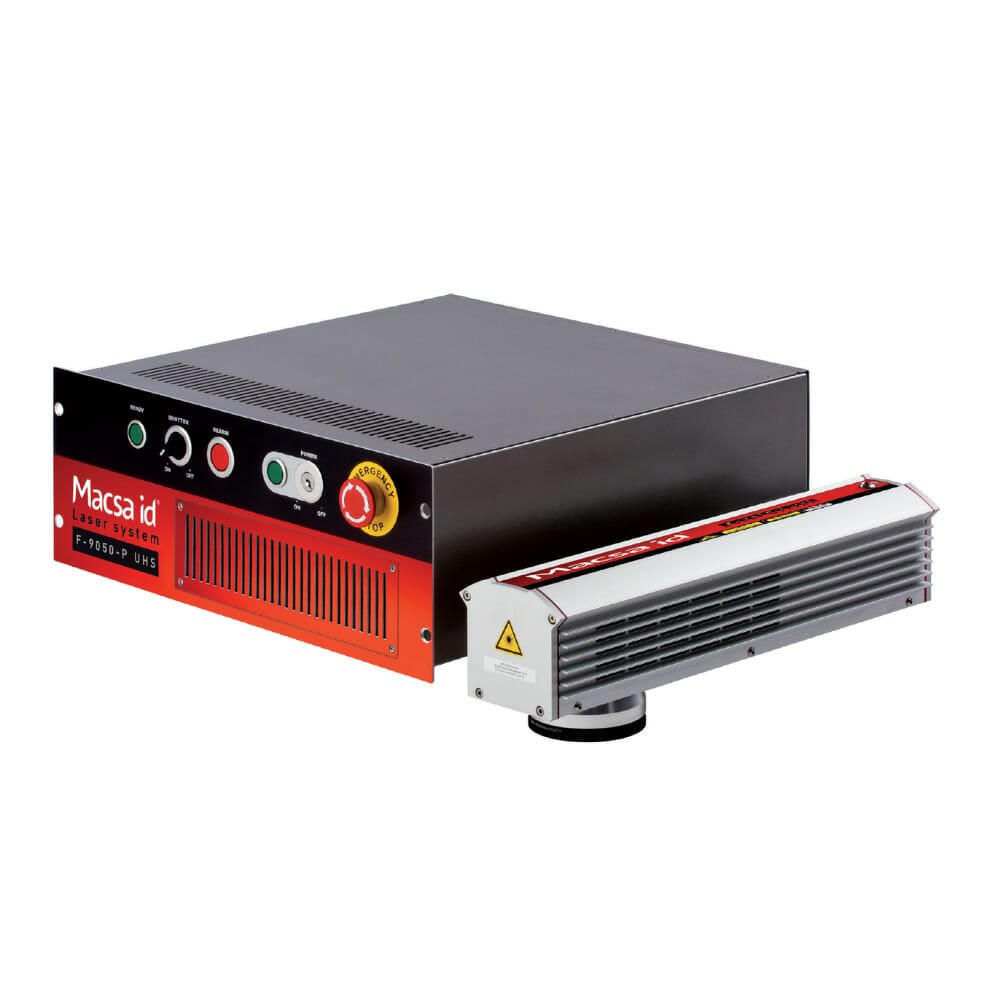

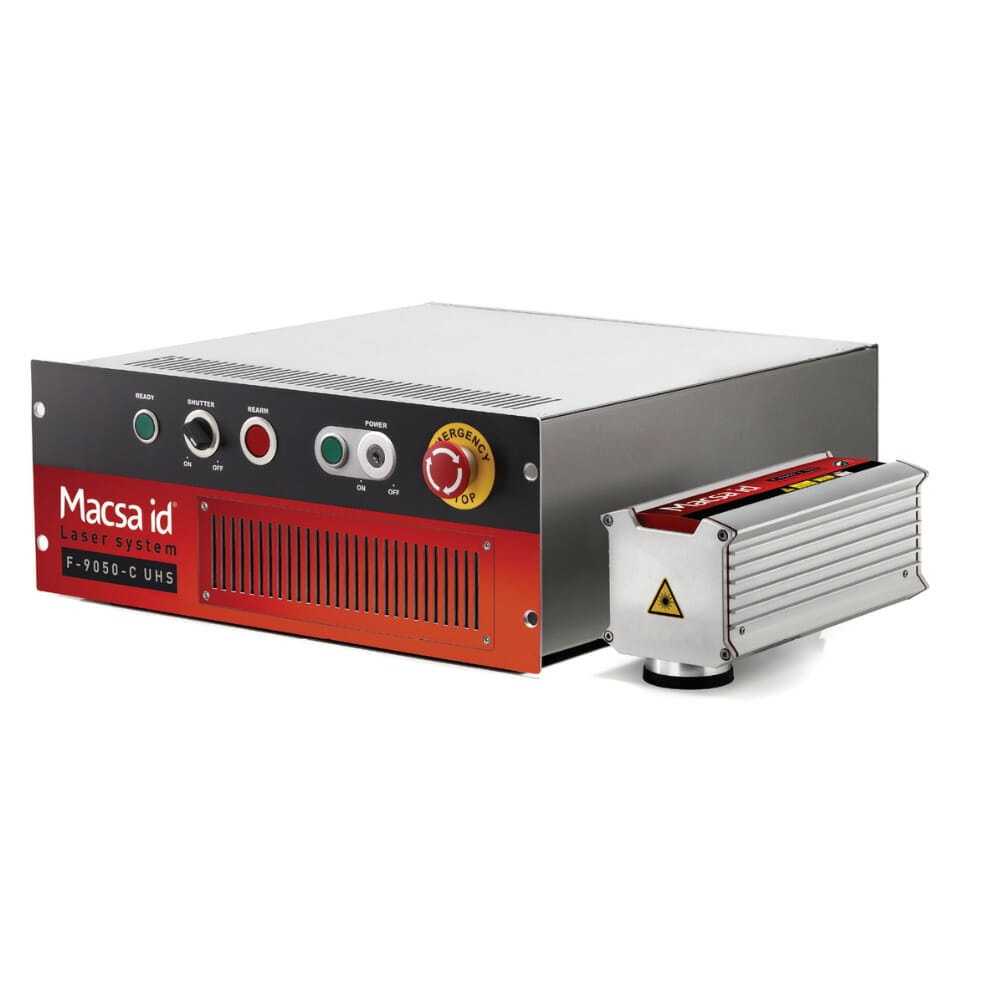

Industrial Fiber Laser for high precision markings.

Its compact design with adjustable marking head enables this laser to be installed on even the most complex production lines or in tight spaces where other lasers just won’t fit. Dynamic “on the fly” marking is a reality with this system thanks to MACSA’s sophisticated software and many years’ experience of high speed applications. It also offers low cost operation and superior marking quality with thanks to an innovative fiber source which requires no maintenance and no consumables. The sharper bar codes and more precise logos and technical drawings are possible with our fiber technology.

Besides, the advantage of Macsa products is operator friendly using different user interfaces with special software to design and control all your marking requirements.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



System type
F-9010-P
F-9020-P
F-9030-P
F-9050-P UHS
Power
10W
20W
30W
50W
Wavelength
1.062μm
Mains supply
115V/230V
50/60 Hz
(1 Phase+N)
400VA
115V/230V
50/60 Hz
(1 Phase+N)
500VA
115V/230V
50/60 Hz
(1 Phase+N)
600VA
115V/230V
50/60 Hz
(1 Phase+N)
700VA
Dimensions

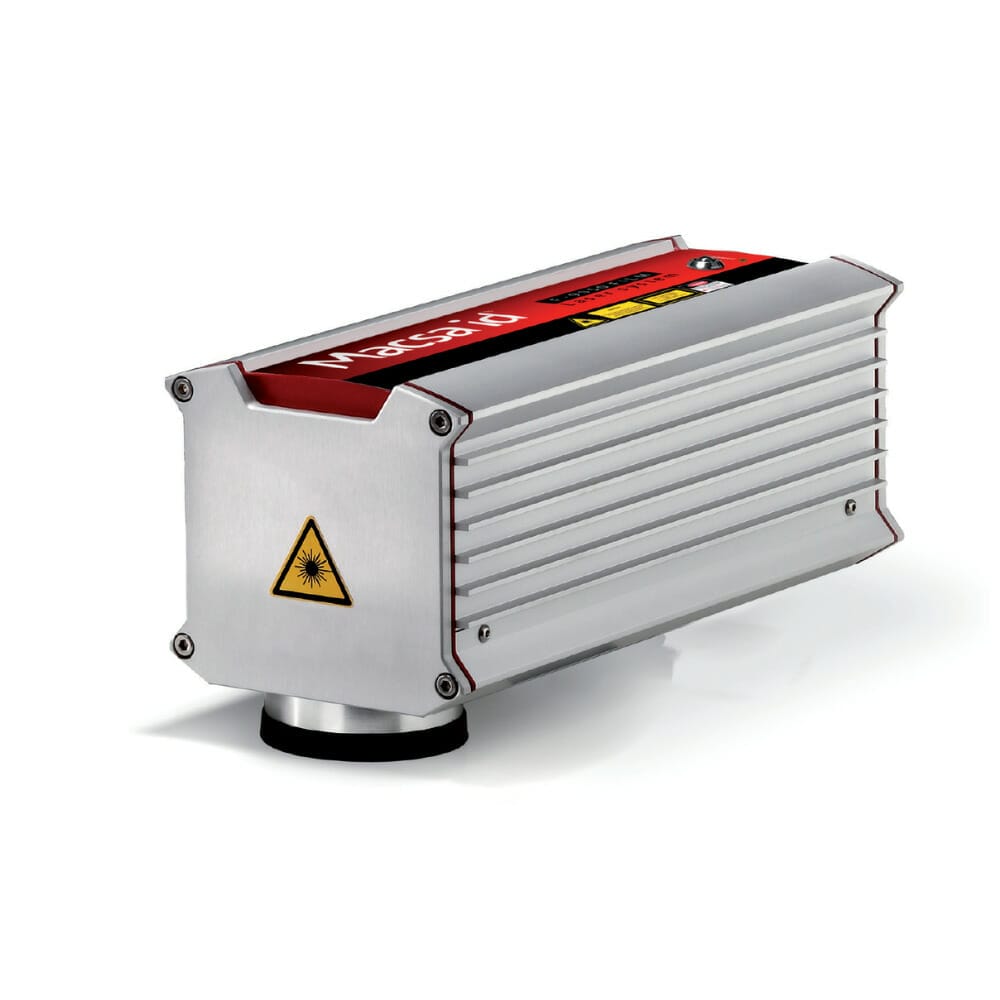

Head
108x126x459 mm
Rack
482x177x454 mm (19″ x 4u x 454 mm)
Weight
N.W.: 26kg
G.W.: 30kg
System Optical isolator and collimator of the laser source, DACs board, drivers of the analogue scanners
(F-9010-P,F-9020-P,F-9030-P, and F-9050-P UHS laser systems) and galvanometric scanners
built into the marking head.
Control and power electronics, drivers of the digtal scanners (F-9020-P,F-9030-P and F-9050-P UHS PULSED laser systems),power supplies and laser source built into the control rack.
Software •ScanLinux V5.2.7 and higher for the F-9000 laser system.
•Marca software V5.6.9a and higher for the F-9000 unit.
•Internal bar cod.
•Marca Lite software.
User interface •Hand Held terminal/Touch screen/PC
Controlled By •Hand held terminal with ScanLinux software.
•Touch screen with ScanLinux software.
•Full graphics interface: includes Marca software,dongle and Ethernet cable(TCP/IP)
•Marca Lite software: includes Marce software, dongle and Ethernet cable (TCP/IP)
Accessories •Beam pointer-Encoder kit-Mounting support-Photocell Kit
Enivronmental conditons +15°C(59F) at 40°C(104°F) external temperature
Humidity <95%. without condensation No vibrations
