SPA C

SPA C

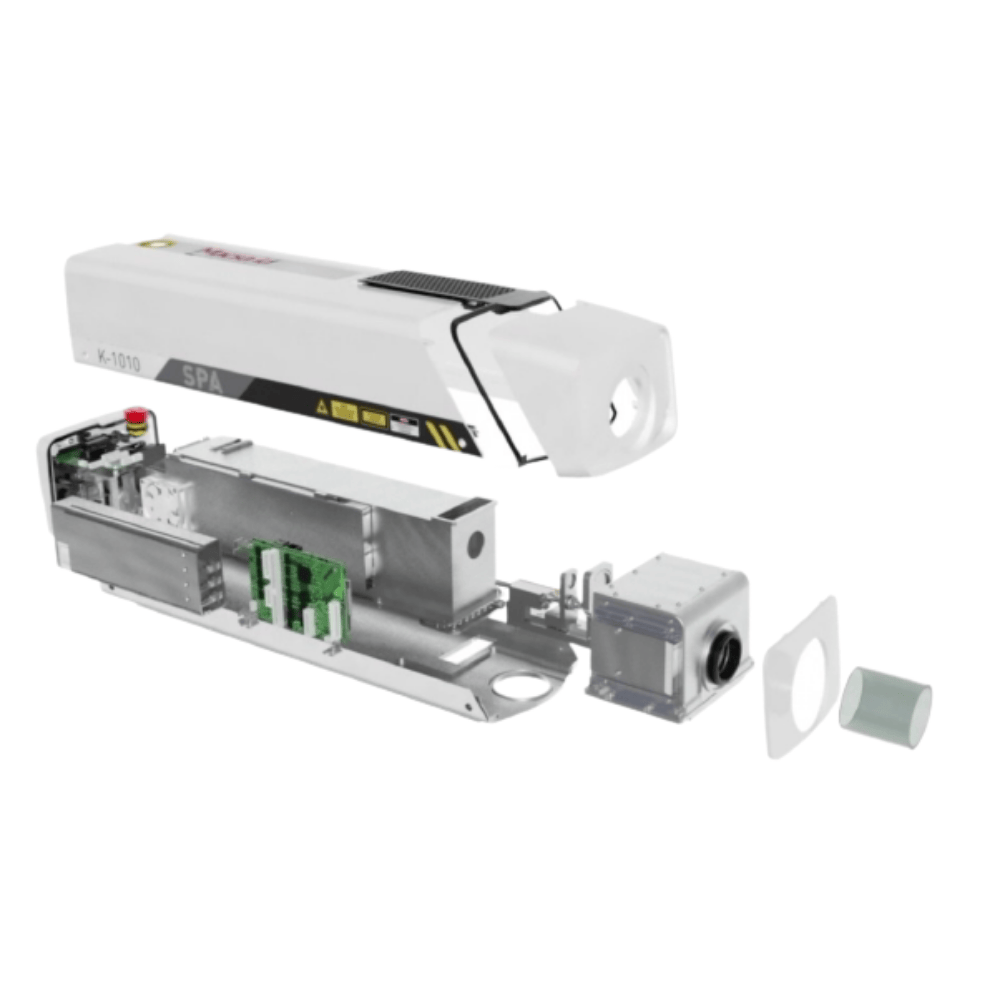

Macsa has developed the SPA Scalable Product Architecture, which created the SPA laser platform to simplify everything in laser machine. It’s modular so you can specify the laser which you need today knowing that you will be able to adapt it when your needs change tomorrow. SPA lasers incorporate features and technology enabling them to deliver better quality coding and marking at higher speeds more consistently over time.

SPA lasers are designed to operate reliably in dusty or damp environments even subject to extremes of temperature, which can operate even in harsh environment. They have been designed to meet IP54. This means that they are dust tight. This makes them more reliable.

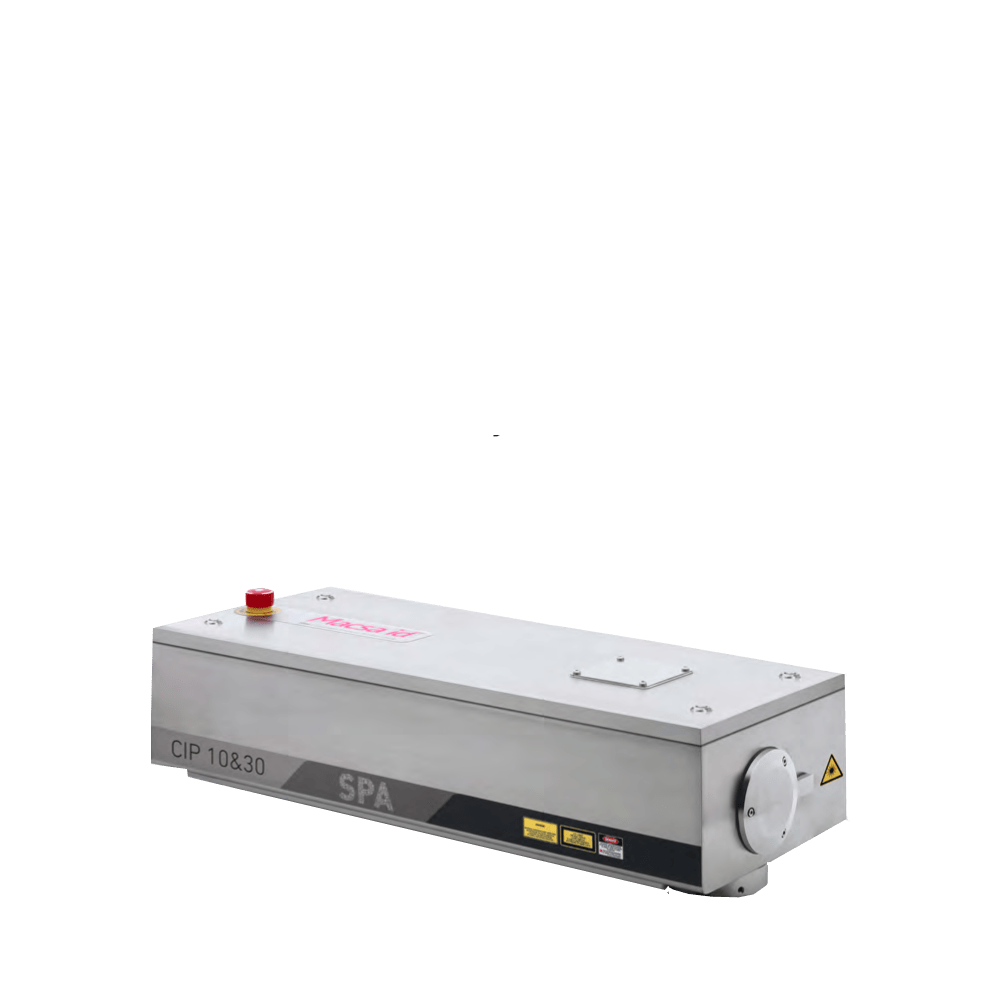

Furthermore, an affordable IP65 option is available, SPA CIP. This enables them to be equally reliable in wash down and other wet environments.

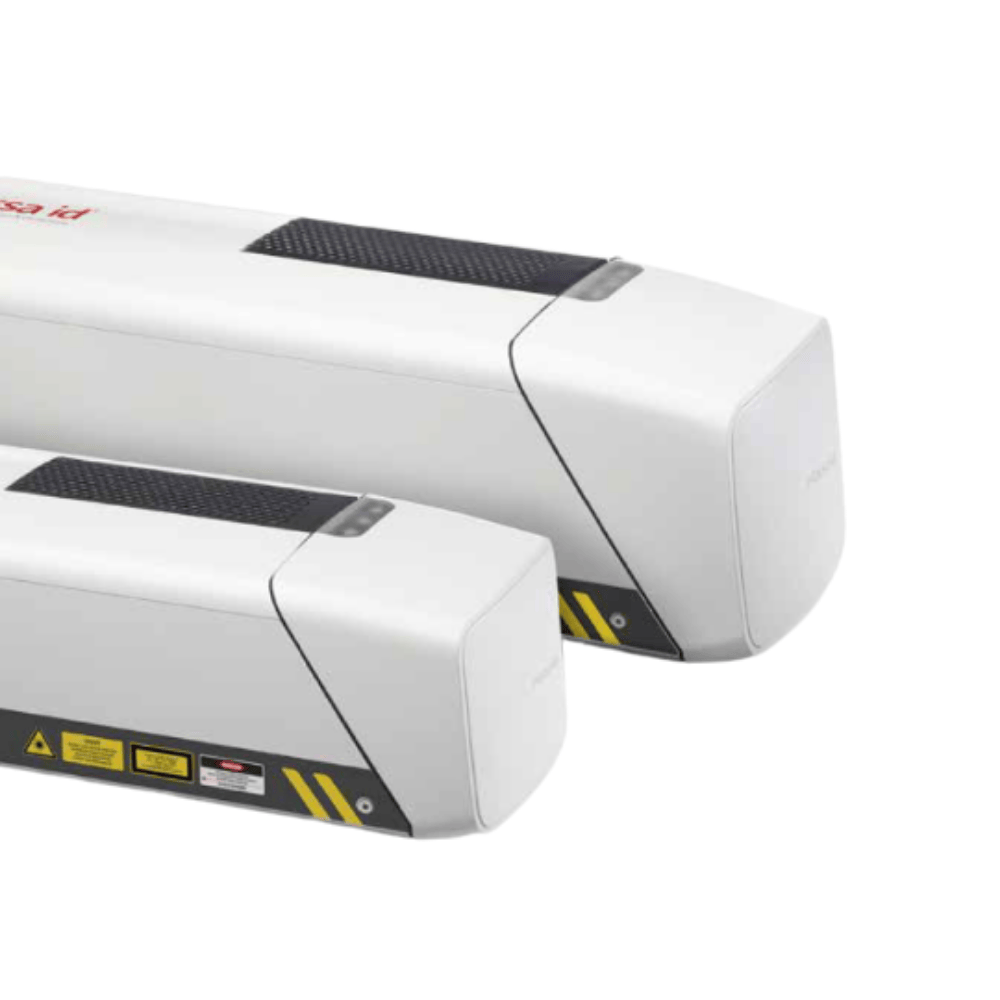

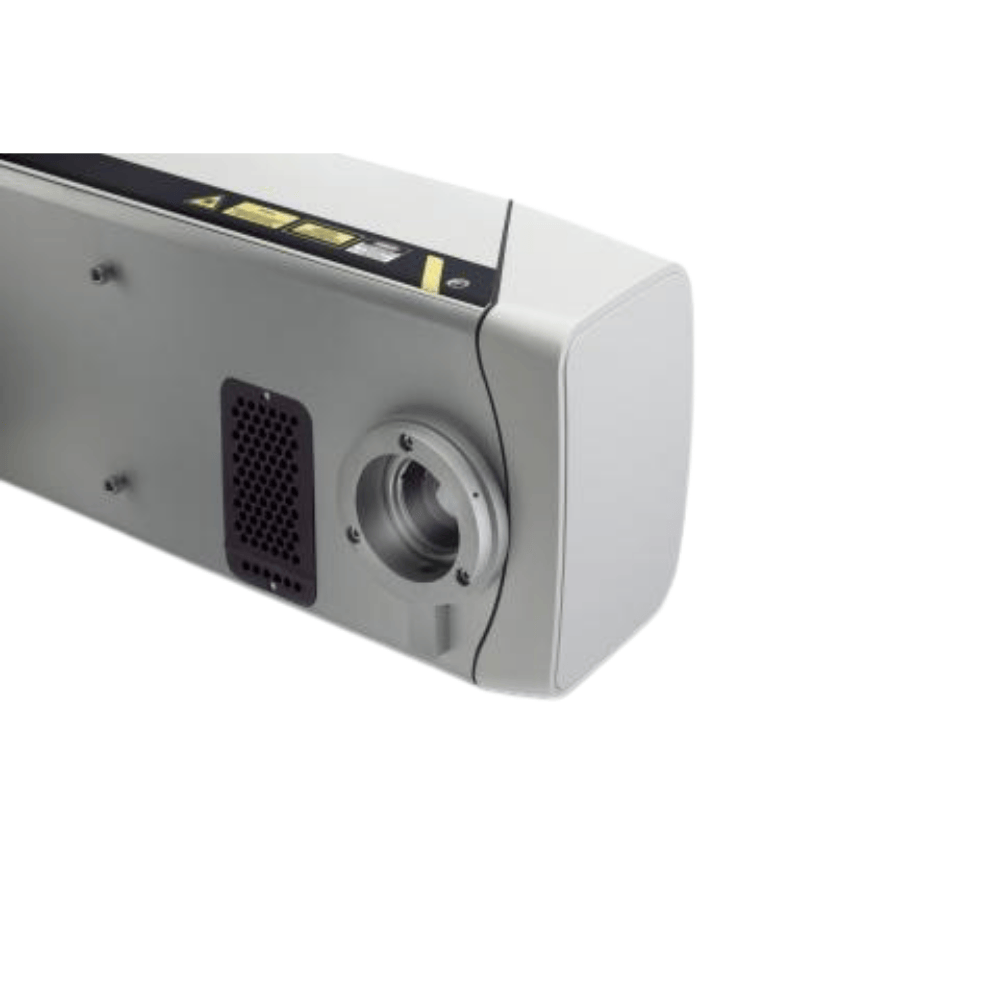

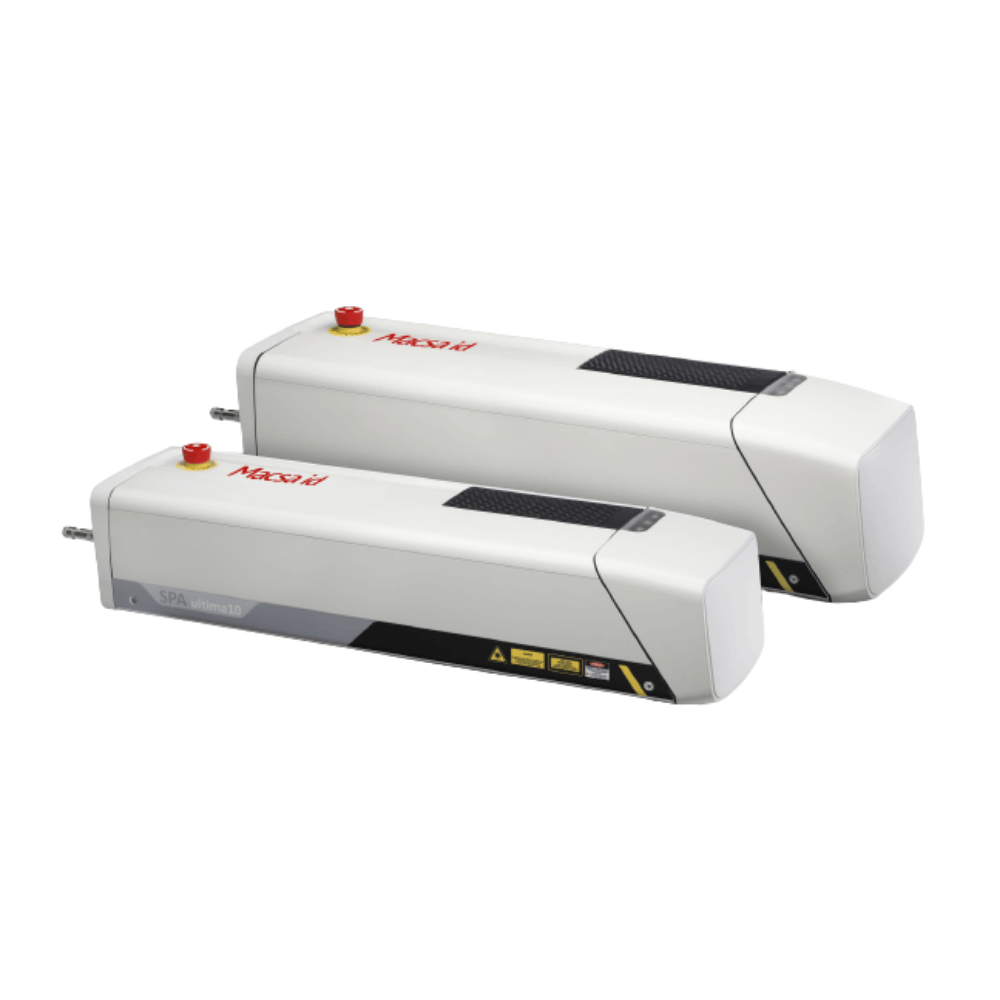

SPA C is the CO2 laser, offering you a wide range of powers, speeds and optional features so that you can choose the equipment that best suits your business. Do not hesitate to contact us to discover the many options of this modular laser.

It’s not just about selling lasers but about supplying, installing and supporting complete lasers systems.

Category Tags ,
Inquiry
Contact form
SOUTHERN SUPPLY CO., LTD.

Share



SYSTEM SPA C-10 NXT S SPA C-10 NXT P SPA C-30 NXT S SPA C-30 NXT P
POWER
10W
30W
WAVELENGHT
10.6 μm (For Bio Materials)/10.2 μm (Laminated Film) / 9.3 μm (PET Bottles)
DIMENSIONS
145.5x194x715 mm
176x216x723.5 mm
WEIGHT
Net:17kg:Gross:20kg
Net:25kg:Gross:28kg
SYSTEM
Laser.Scanners,Power Source,Controls Electronics and Computer built into laser tube
POWER
AC-100-120V // AC200-240 V (50/60 Hz)
CONSUMPTION
300 VA
600 VA



OPTICS SPA C-10 NXT S SPA C-10 NXT P SPA C-30 NXT S SPA C-30 NXT P
WD/FD Marking Area Spot Size (μm) Power Density
(W/mm^2)		 Spot Size (μm) Power Density
(W/mm^2)		 Spot Size (μm) Power Density
(W/mm^2)		 Spot Size (μm) Power Density
(W/mm^2)
54/65 40×40 301 141.47 150 565.88 420 216.54 210 866.15
84/95 60×60 439 66.22 219 264.99 614 101.35 307 405.54
114/125 75×75 577 38.26 289 152.97 808 58.55 404 234.14
189/200 100×100 739 23.35 369 93.41 1034 35.73 517 142.96
229/240 150×150 1108 10.38 554 41.5 1551 15.88 775 63.53
309/320 200×200 1477 5.84 739 23.35 2068 8.93 1034 35.73
339/410 250×250 1892 3.56 946 14.22 2649 5.44 1325 21.77



SIFTWARE
ScanLinux V5.27 and later // Marca Software 5.6.9a and later
USER INTERFACE
*MultiTouch Screen10″” // PC with Marca Software Lit Marca Software Full Graphics*
CONNECTIVITY
“1xUSB Port Type A for Files and Config Transferences // 1x Mini USB Port Type B for Touch Screen // 1x RJ-45 Ethernet Connector for TCP/IP Communication
SIGNALS CONTROL
Flexible Input/Output Connections: 12 Programmable Inputs // 4 Programmable Outputs
SAFETY
Automatic Electromechanical Shutter
PROTECTION
IP54 (IP65 Optional)
ACCESSORIES/OPTIONS
Diode Pointer Marking Area Indicator-Mounting Bracket-Photocell Kit-Encoder Kit-Beam Expander-Alarm Kit
ENVIRONMENTAL CONDITIONS
“15°C(59°F)to 40°C(104°F)external temperature // Humidity<95% withouth condensation // Vibrations Free Area"
