3 Axis ProPLUS

3 Axis ProPLUS

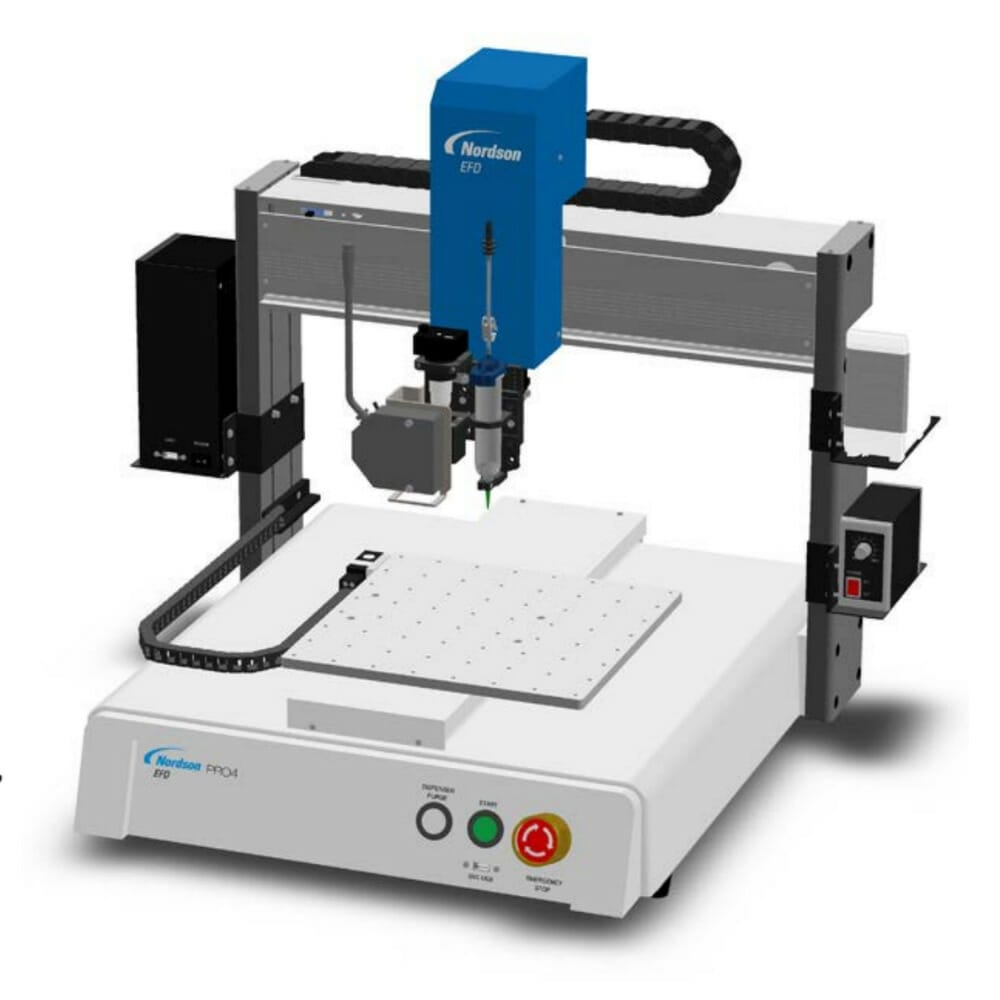

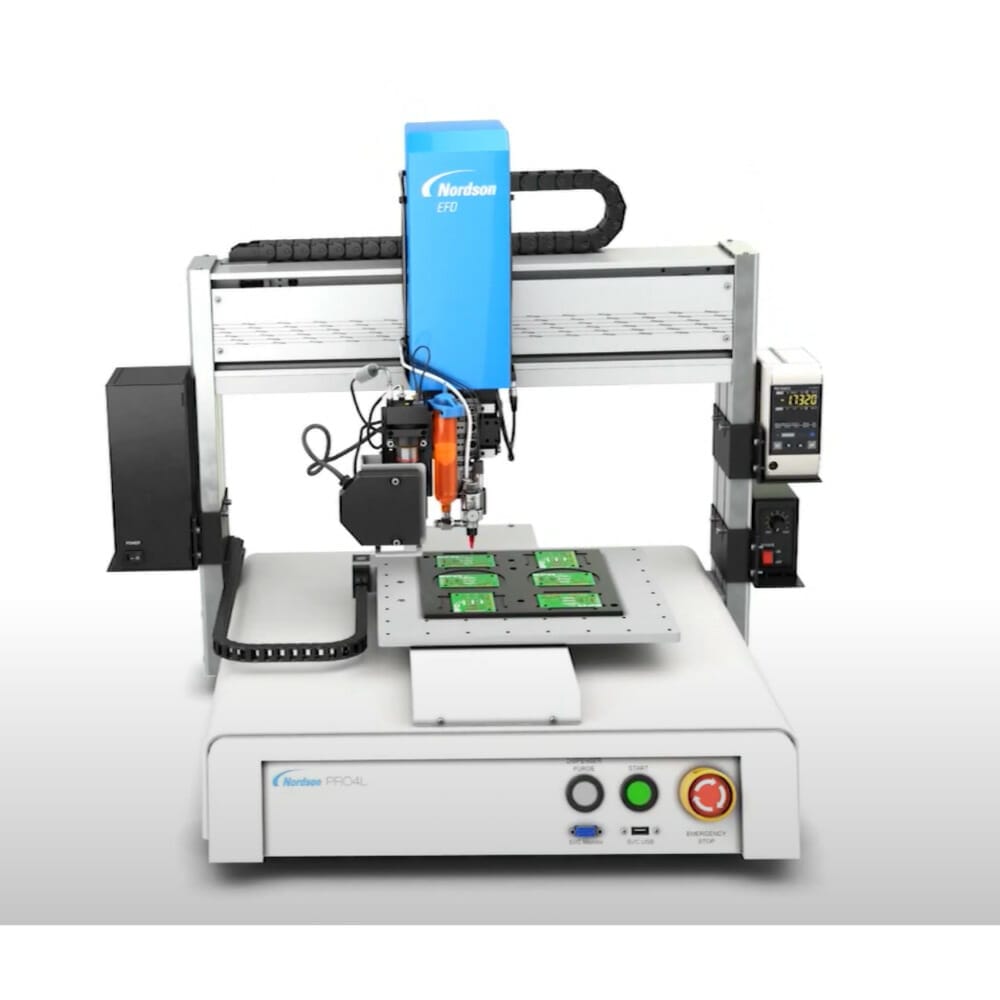

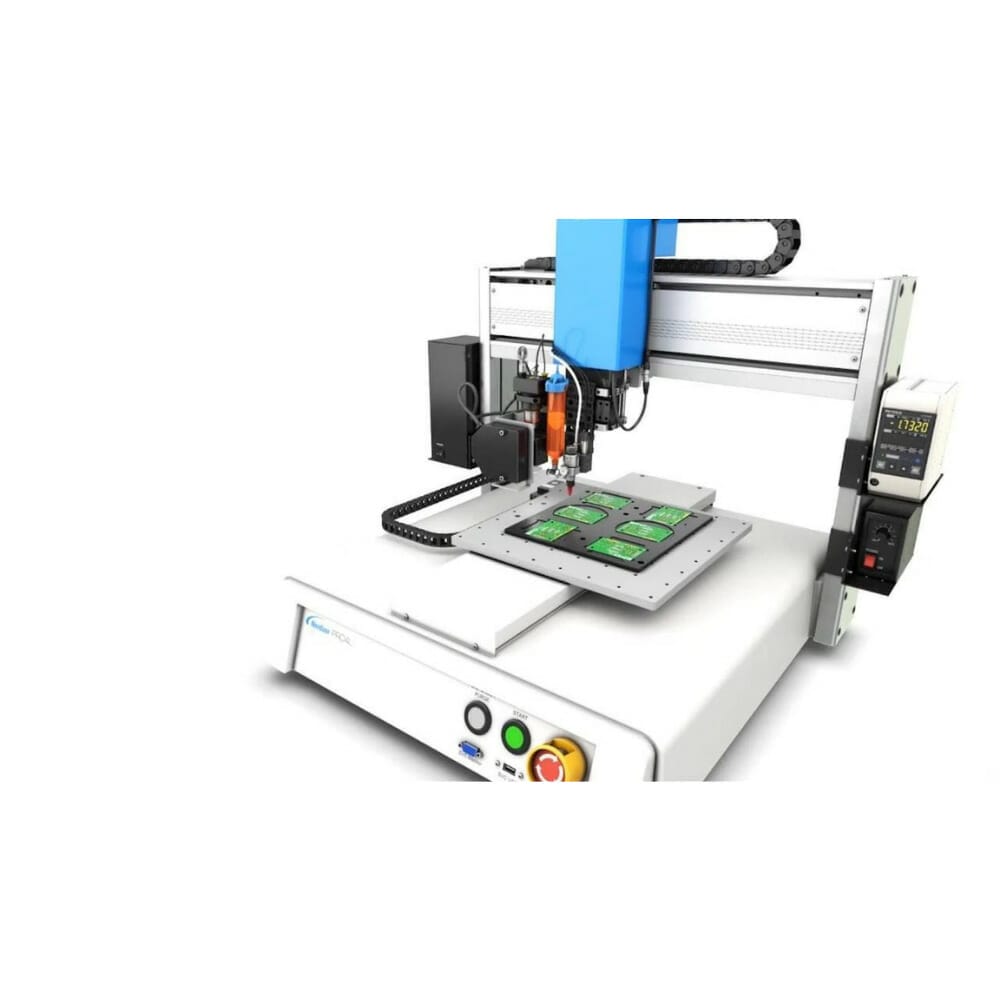

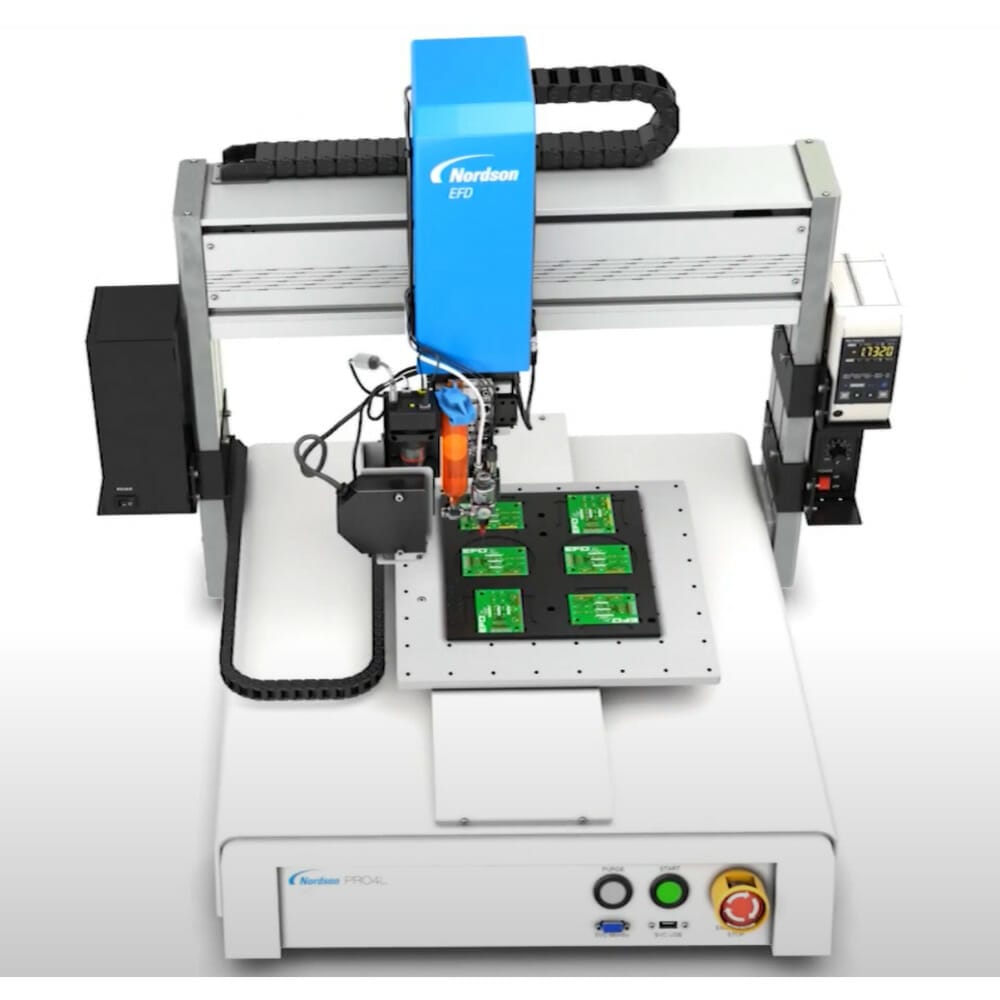

The vision-guided PROPlus / PRO Series is Nordson EFD’s most advanced automated dispensing system, designed and configured for precision and simplified usability.

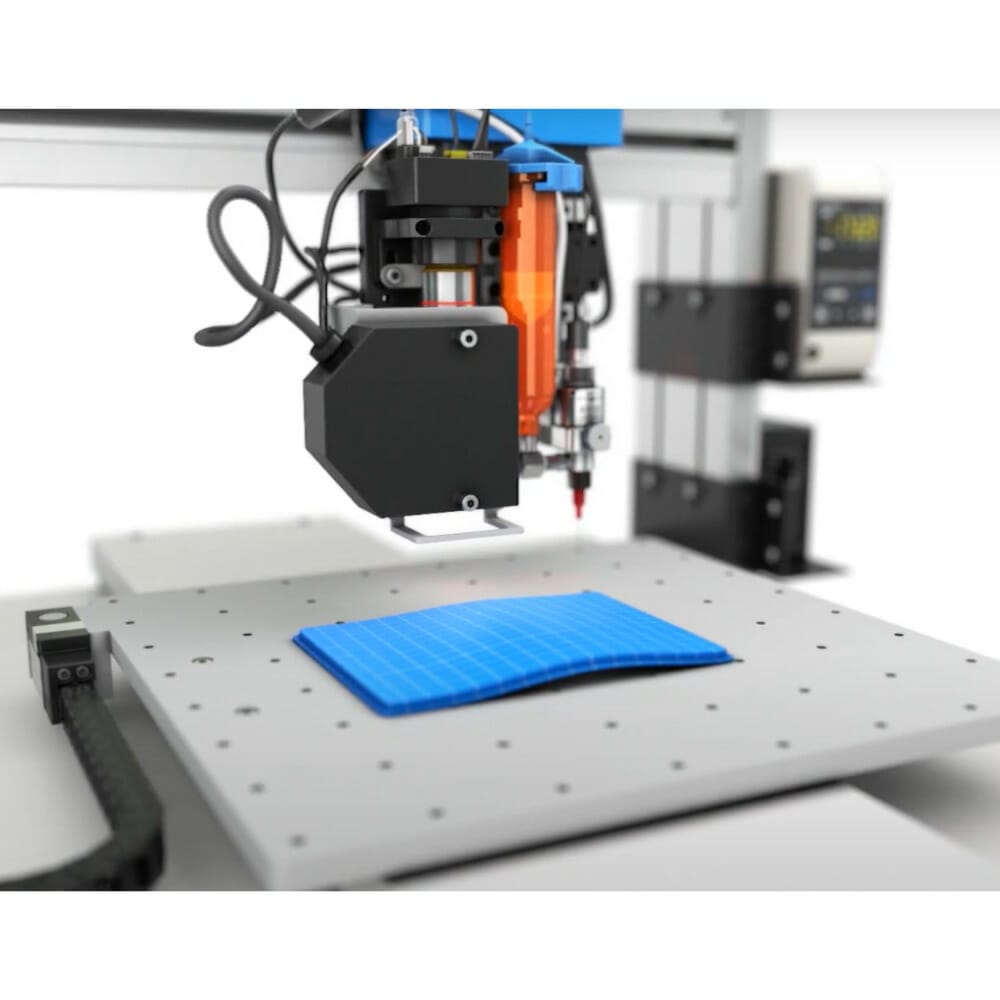

As the only system that includes specialized DispenseMotion™ software with a fully integrated CCD smart vision camera and three types of feedback – contact, optical, and non-contact laser height sensing – the PROPlus / PRO Series ensures absolute accurate fluid placement, even over rough or uneven surfaces.

It delivers best-in-class dispensing performance and process control with closed-loop encoding and simplified, intuitive setup. Benefit from improved product quality and yield while tackling more complex projects that require very precise dispensing and fluid placement.

The PROPlus delivers best-in-class repeatability of +/- 0.003 mm and provides higher dispensing accuracy. Specialized software is designed to optimize the performance of PICO® and Liquidyn® jet valve systems. Fiducial recognition allows for multiple image captures for higher resolution offset.

Verify fluid deposit placement and accuracy with the OptiSure™ automated optical inspection (AOI) software. When paired with the OptiSure confocal laser, the AOI system measures the height of fluid deposits in addition to width and diameter, providing 3D dispense verification.

Features

– Dual linear guide, advanced servomotor, and ball screw actuation (PROPlus only)

– Simplified setup and programming

– On-screen preview and confirmation of the dispense path

– Constant closed-loop feedback

– Streamlined file import and conversion

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Item/Model PRO3 PRO3L(Laser A/B) PROPlus3 PROPlus3L(Laser A/B)
Part# 7362911 7362913(A)
7362914(B)
7363536 7363538(A)
7363537(B)
Part# Europe 7363829 7363830(A)
7363831(B)
7363650 7363652(A)
7363651(B)
Number of axes
←3 axes→
Maximum working area (X/Y/Z) 250/250/100 mm (10/10/4″) 250/200/100 mm (10/9/4″) 250/250/100 mm (10/10/4″) 250/220/100 mm (10/9/4″)
Workpiece payload 10.0 kg (22.0 Ib) 10.0 kg (22.0 Ib) 25.0 kg (55.1 Ib) 25.0 kg (55.1 Ib)
Tool payload 3.5 kg (7.7 Ib) 1.5 kg (3.3 Ib) 6.0 kg (13.2 Ib) 6.0 kg (13.2 Ib)
Weight 45.0 kg (99.2 Ib) 46.5 kg (102.5 Ib) 50.5 kg (111.3 Ib) 52.0 kg (114.6 Ib)
Dimensions 720W×690H×590D mm (28W×27H×22D”) 793W×690H×590D mm (31W×27H×22D”) 720W×690H×590D mm (28W×27H×22D”) 793W×690H×590D mm (31W×27H×22D”)
Maximum speed (XY/Z) 500/250 mm/s (20/10″/s) 500/250 mm/s (20/10″/s) 800/250 mm/s (31/10″/s) 800/250 mm/s (31/10″/s)
Drive system 5-phase micro-stepping motor 5-phase micro-stepping motor Servomotor Servomotor
Memory capacity
←PC storage→
General purpose I/O
←8 inputs/ 8 outputs (16/16 optional)→
Input AC (to power supply)
←100-240 VAC,±10%,50/60Hz,20 Amp maximum. 380W→
Repeatability* ±0.004 mm/axis ±0.004 mm/axis ±0.003 mm/axis ±0.003 mm/axis
Vision
←CCD smart camera→
DispenseMotion software
←Included→
Tip detection
←Included→
Laser height detection Optional Included Optional Included
Approvals
←CE,RoHS.WEEE.China RoHS→
Warranty
←1 year,limited→
Item/Model PRO4 PRO4L(Laser A/B) PROPlus4 PROPlus4L(Laser A/B)
Part# 7360860 7360861(A)
7360862(B)
7363539 7363541(A)
7363540(B)
Part# Europe 7361353 7361354(A)
7361355(B)
7363653 7363655(A)
7363654(B)
Number of axes
←3 axes→
Maximum working area (X/Y/Z) 350/350/100 mm (14/14/4″) 350/320/100 mm (14/13/4″) 350/350/100 mm (14/14/4″) 350/320/100 mm (14/13/4″)
Workpiece payload 10.0 kg (22.0 Ib) 10.0 kg (22.0 Ib) 25.0 kg (55.1 Ib) 25.0 kg (55.1 Ib)
Tool payload 3.5 kg (7.7 Ib) 1.5 kg (3.3 Ib) 6.0 kg (13.2 Ib) 6.0 kg (13.2 Ib)
Weight 57.5 kg (126.8 Ib) 59.0 kg (130.1 Ib) 63.5 kg (140.0 Ib) 65.0 kg (143.3 Ib)
Dimensions 820W×690H×690D mm (32W×27H×27D”) 833W×690H×690D mm (33W×27H×27D”) 820W×690H×690D mm (32W×27H×27D”) 833W×690H×690D mm (33W×27H×27D”)
Maximum speed (XY/Z) 500/250 mm/s (20/10″/s) 500/250 mm/s (20/10″/s) 800/250 mm/s (31/10″/s) 800/250 mm/s (31/10″/s)
Drive system 5-phase micro-stepping motor 5-phase micro-stepping motor Servomotor Servomotor
Memory capacity
←PC storage→
General purpose I/O
←8 inputs/ 8 outputs (16/16 optional)→
Input AC (to power supply)
←100-240 VAC,±10%,50/60Hz,20 Amp maximum. 380W→
Repeatability* ±0.004 mm/axis ±0.004 mm/axis ±0.003 mm/axis ±0.003 mm/axis
Vision
←CCD smart camera→
DispenseMotion software
←Included→
Tip detection
←Included→
Laser height detection Optional Included Optional Included
Approvals
←CE,RoHS.WEEE.China RoHS→
Warranty
←1 year,limited→
