General Purpose Tips

General Purpose Tips

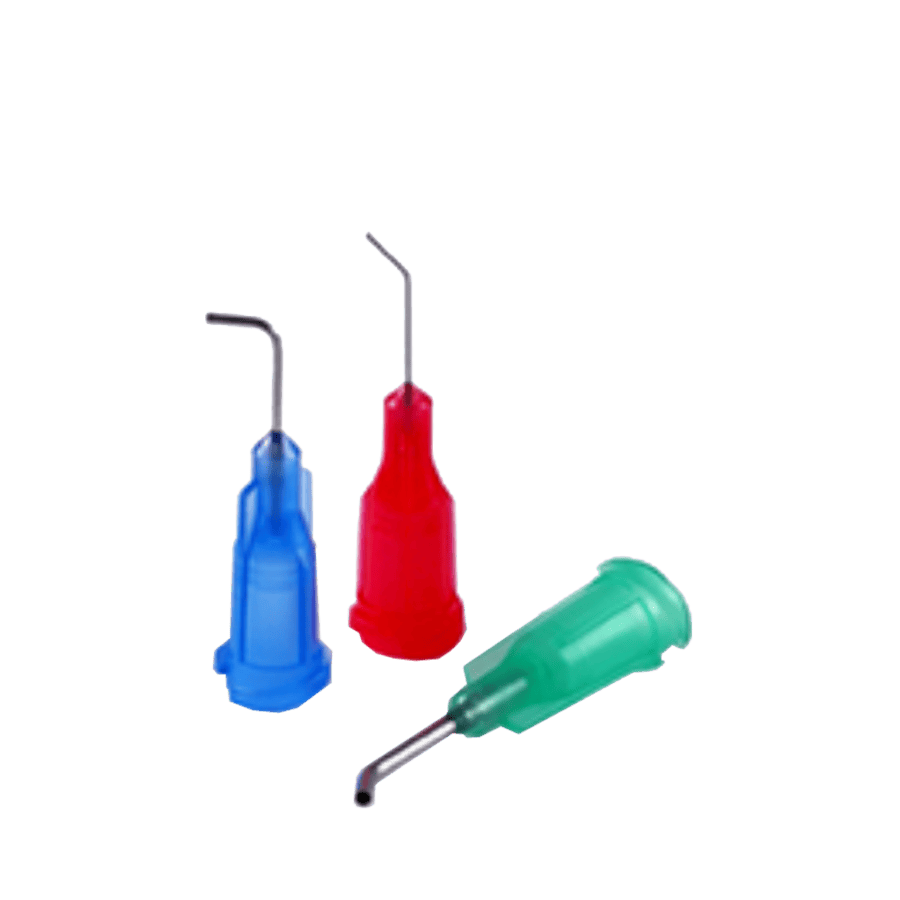

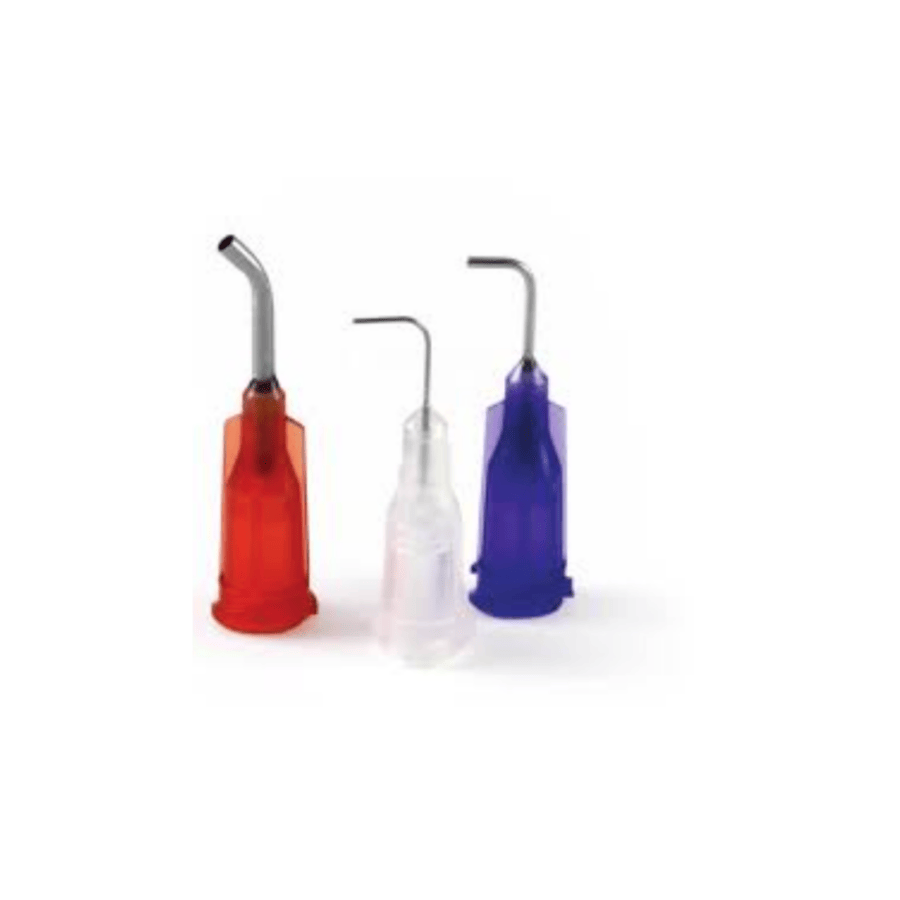

Made from burr-free, polished passivated stainless steel, Optimum® general purpose dispense tips are ideal for handling a wide range of assembly fluids.



These tips deliver precise, consistent deposits every time. Designed with our own unique polypropylene SafetyLok™ hubs that fit securely onto the barrel reservoir, general purpose tips prevent leakage and ensure drip-free dispensing.



Each hub is designed with flush mating of the hub to the cutoff for smooth fluid flow and to prevent trapped air, which causes dripping and drooling. Burr-free passivated stainless steel tubing ensures consistent fluid deposits. Each hub is also manufactured and quality-tested to be free of molding flash – bits of plastic that can block fluid flow and cause inconsistent deposits.



All Optimum dispensing tips are manufactured in the USA in silicone-free facilities to prevent fluid contamination and are certified for industrial use.



Tip hubs are color coded by size to help identify the gauge or internal diameter. Tips are also packaged in clear boxes for easy inventory control – with lot numbers, part numbers, and other information clearly labeled for greater process control and traceability.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share



General Purpose Stainless Steel Tips
6.35 mm
0.25″
12.7 mm
0.5″
25.4 mm
1.0″
38.1 mm
1.5″
Gauge Color ID OD
7018029 7018043 7018032 7018035 14 Olive 1.54 mm
0.060″
1.83 mm
0.072″
7018056 7018068 7018059 7018062 15 Amber 1.36 mm
0.053″
1.65 mm
0.065″
7018107 7018122 7018110 7018113 18 Green 0.84 mm
0.033″
1.27 mm
0.050″
7018163 7018178 7018166 7018169 20 Pink 0.61 mm
0.024″
0.91 mm
0.036″
7005005 7018233 7018222 7018225 21 Purple 0.51 mm
0.020″
0.82 mm
0.032″
7018260 7018272 7018263 7018266 22 Blue 0.41 mm
0.016″
0.72 mm
0.028″
7018302 7018345 7018305 7018308 23 Orange 0.33 mm
0.013″
0.65 mm
0.020″
7018333 7018345 7018336 7018339 25 Red 0.25 mm
0.010″
0.52 mm
0.020″
7018395 7005008 n/a n/a 27 Clear 0.20 mm
0.008″
0.42 mm
0.016″
7018424 7018433 n/a n/a 30 Lavender 0.15 mm
0.006″
0.31 mm
0.012″
7018462 n/a n/a n/a 32 Yellow 0.10 mm
0.004″
0.24 mm
0.009″
