Cartridge Syringe Barrel

Cartridge Syringe Barrel

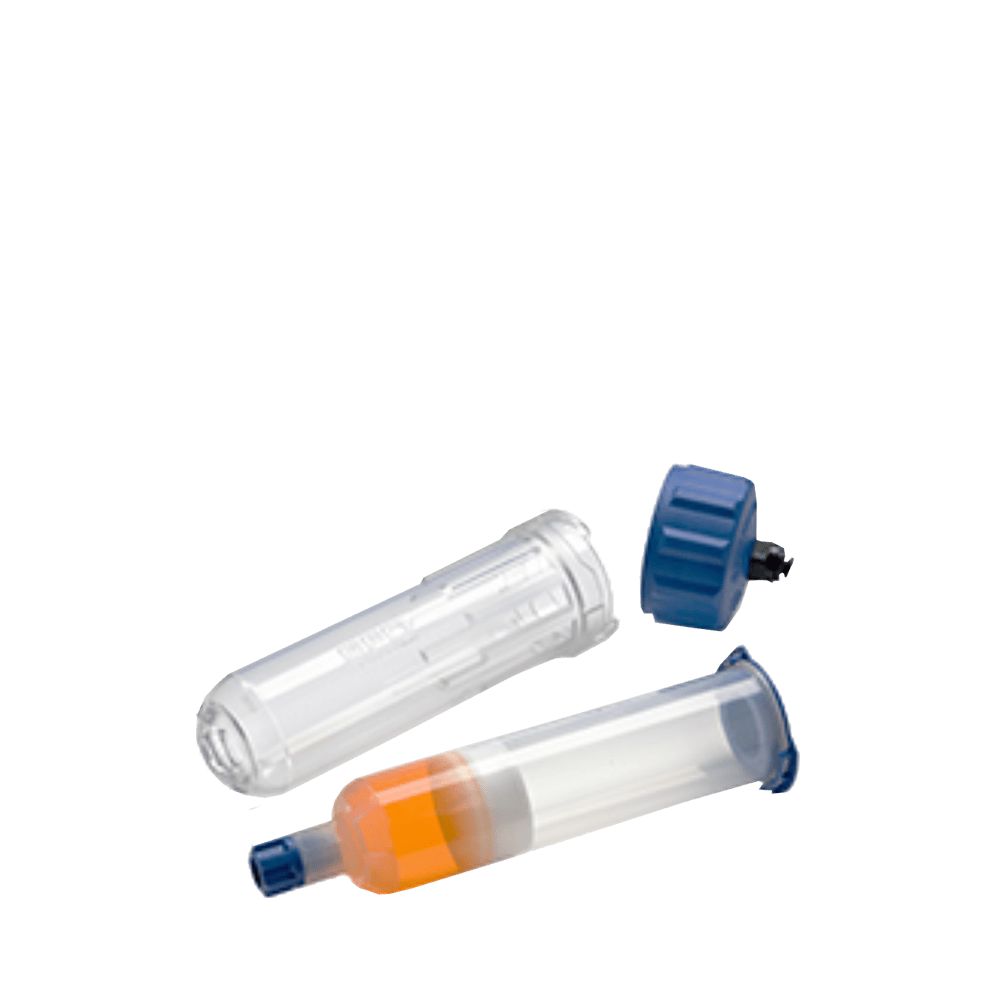

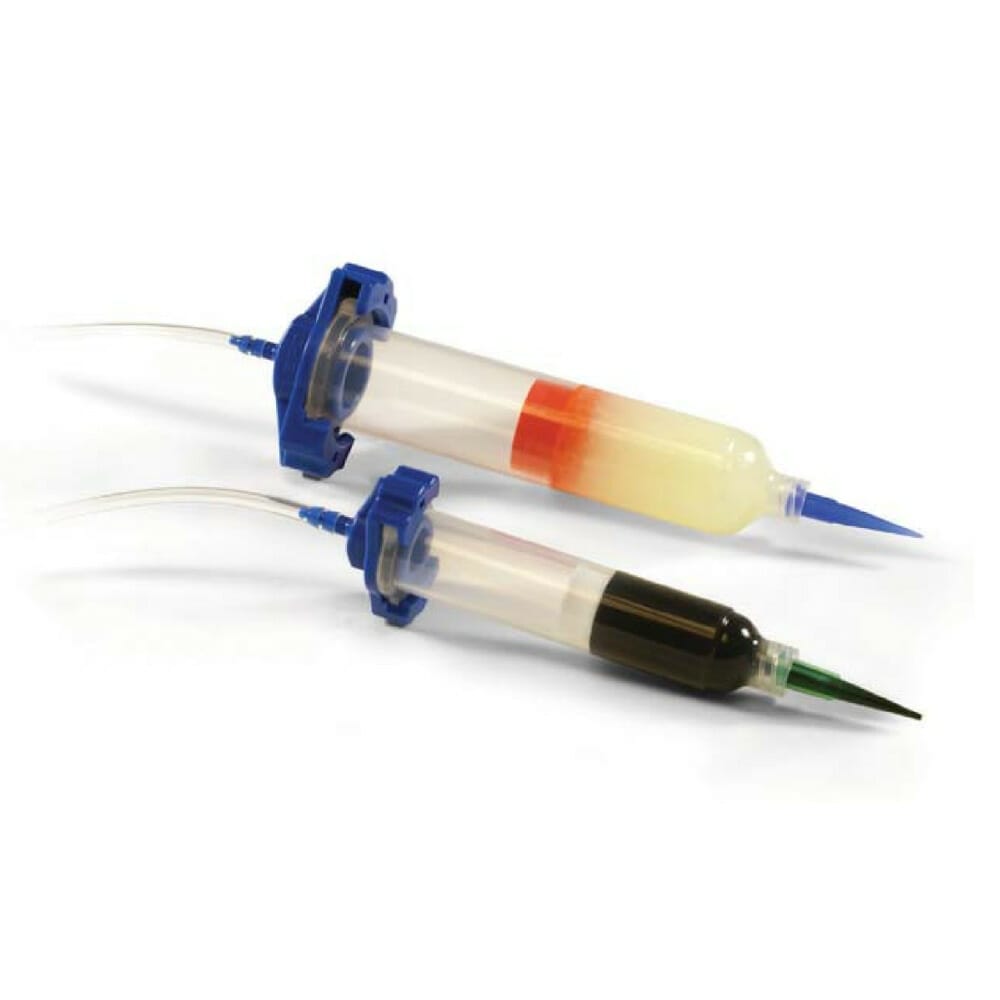

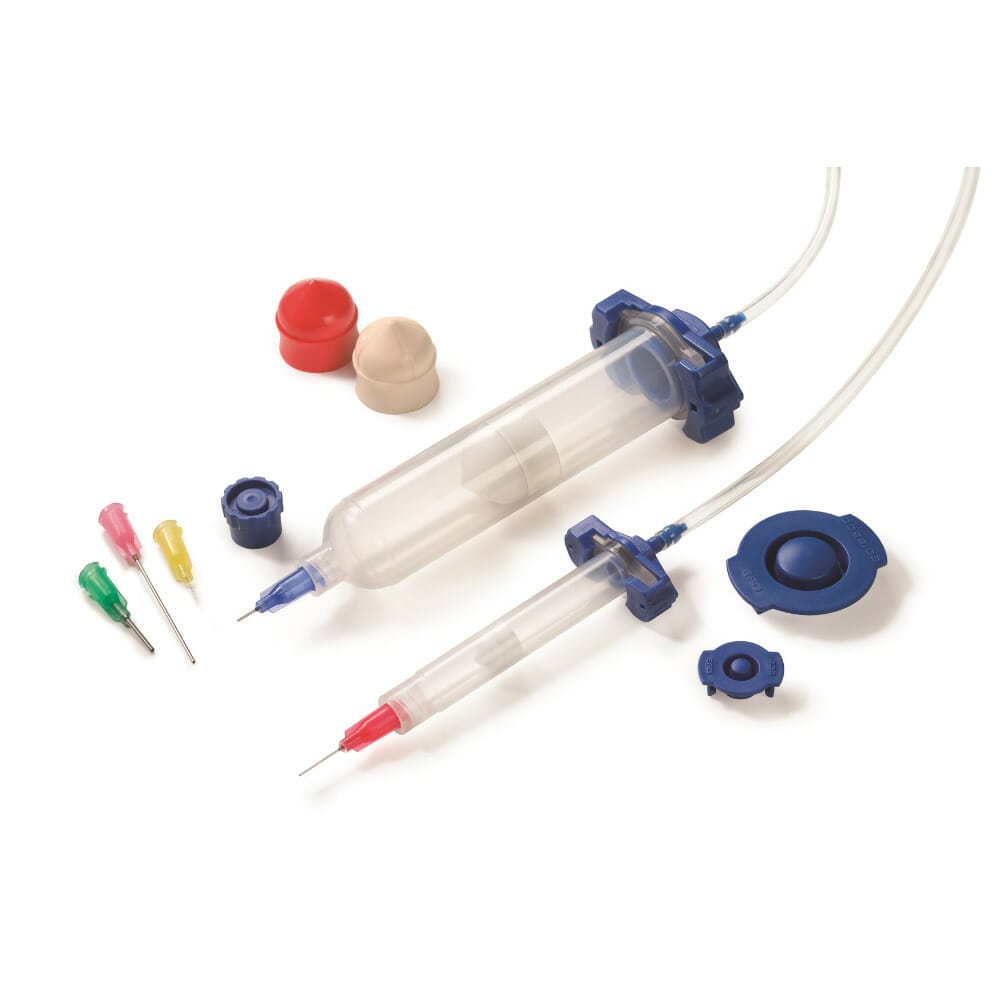

Molded from proprietary FDA- and RoHS-compliant polymer, Optimum® cartridges provide exceptional clarity, chemical compatibility, impact strength, and dimensional stability.



The Zero Draft™ design improves fluid flow characteristics and reduces turbulence by ensuring the internal diameter is consistent from top to bottom with no taper restricting piston travel or affecting process results.



Unique external ribs at the outlet end prevent splitting when installing fittings or nozzles. Precision molded threads and a tapered counterbore at the 0.25” NPT outlet create a secure, leakproof seal.



A molded hex around the outlet fits into a matching orifice on the cartridge retainer for tool-free fitting and nozzle installation.

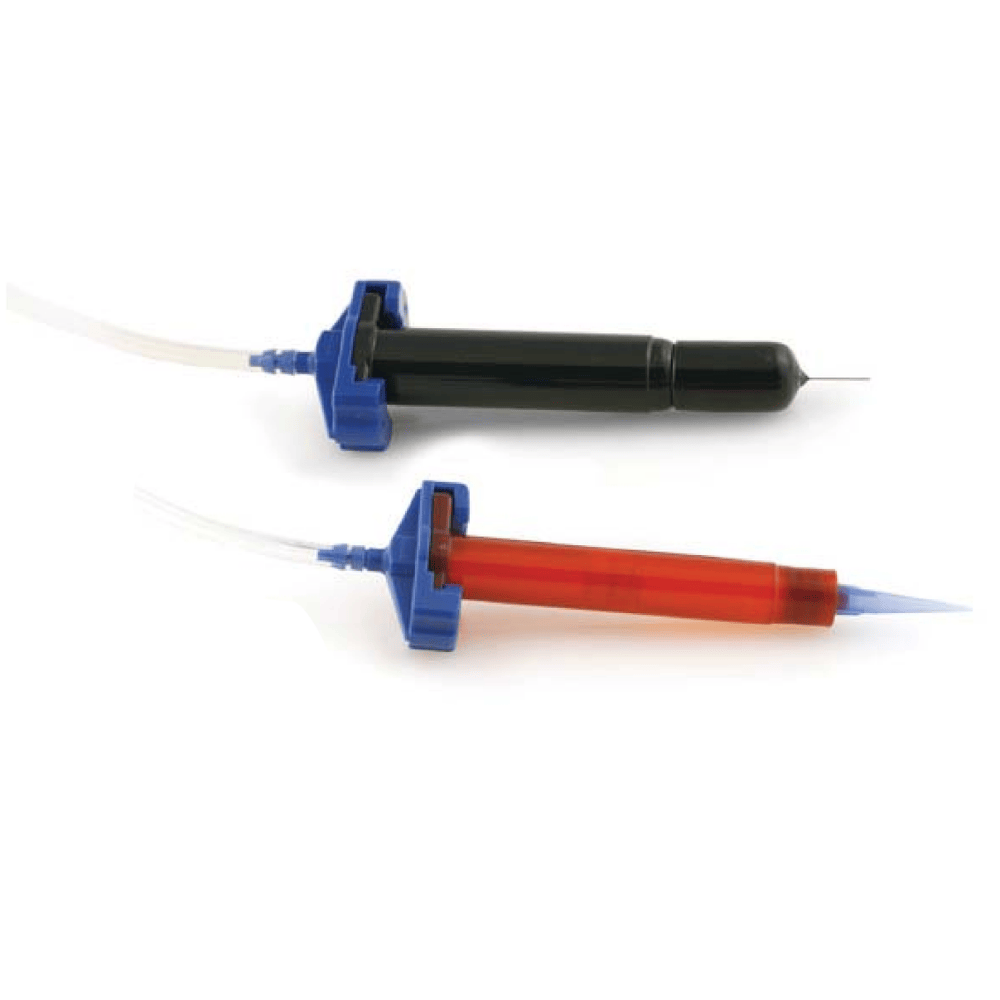

Optimum cartridges are available in clear, UV-blocking amber, light-blocking black, green, and white configurations. Capacities include 2.5 oz (74ml), 6 oz (177ml), 12 oz (355ml), 20 oz (591ml), and 32 oz (946ml).



Optimum cartridges are compatible with most retainers on the market today.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share



Optimum Cartridges
Part# Part# w/Pistons Installed Description Specification Qty/Box
7012389 n/a Clear 2.5 fl oz (75ml) 25
7012398 n/a Clear 6 fl oz (180 ml) 25
7012407 n/a Clear 12 fl oz (360 ml) 25
7012416 n/a Clear 20 fl oz (600 ml) 10
7014088 n/a Clear 32 fl oz (960 ml) 10
7012392 7012395 Clear 2.5 fl oz (75 ml) 250
7012401 7012404 Clear 6 fl oz (180 ml) 250
7012410 7012413 Clear 12 fl oz (360 ml) 250
7012417 7012418 Clear 20 fl oz (600 ml) 100
7014092 7014096 Clear 32 fl oz (960 ml) 100
7012390 n/a Amber 2.5 fl oz (75 ml) 25
7012399 n/a Amber 6 fl oz (180 ml) 25
7012408 n/a Amber 12 fl oz (360 ml) 25
7012736 n/a Amber 20 fl oz (600 ml) 10
7014089 n/a Amber 32 fl oz (960 ml) 10
7012393 7012396 Amber 2.5 fl oz (75 ml) 250
7012402 7012405 Amber 6 fl oz (180 ml) 250
7012411 7012414 Amber 12 fl oz (360 ml) 250
7012737 7012738 Amber 20 fl oz (600 ml) 100
7014093 7014097 Amber 32 fl oz (960 ml) 100
7012391 n/a Black 2.5 fl oz (75 ml) 25
7012400 n/a Black 6 fl oz (180 ml) 25
7012409 n/a Black 12 fl oz (360 ml) 25
7013878 n/a Black 20 fl oz (600 ml) 10
7014091 n/a Black 32 fl oz (960 ml) 10
7012403 7012406 Black 6 fl oz (180 ml) 250
7012412 7012415 Black 12 fl oz (360 ml) 250
7013879 7013880 Black 20 fl oz (600 ml) 100
7014167 n/a Green 2.5 fl oz (75 ml) 25
7014169 7012396 Green 2.5 fl oz (75 ml) 250
7014172 7012405 Green 6 fl oz (180 ml) 250
7014175 7012414 Green 12 fl oz (360 ml) 250
7014178 7012738 Green 20 fl oz (600 ml) 100
