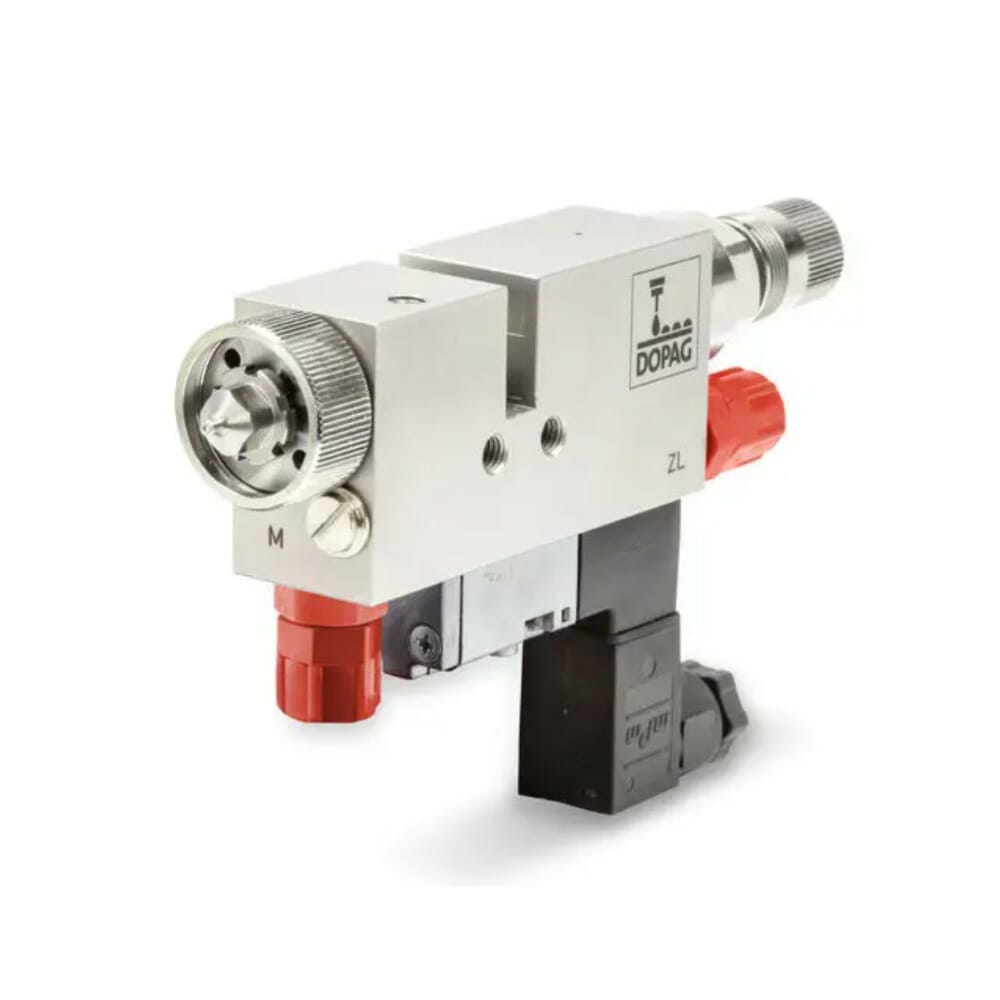

Spray Valve

Spray Valve

The spray valve is a special kind of valve designed for full-surface application of greases and oils. It is suitable for both intermittent and continuous material applications. A unique feature of this valve is the integration of a membrane, which is used for the adjustment of the air blow duration after each material shot – this serves the cleaning of the nozzle. Short air ways in the body of the valve and a flange-mounted 5/2 way solenoid valve allow a very fast and accurate intermittent operation. A wide range of available extensions and attachments open up the possibility of spray application in hard-to-access areas, while various air-caps allow the customization of the spray coating pattern.

Features

– Spray application

– Nozzle size Ø 0.2 – 1.5 mm

– Material input pressure max. 35 bar

– With 24 V solenoid valve (SPV-01) / Compact construction without solenoid valve (SPV-02)

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Spray valves SPV-01
Article 1004412 1004413
Nozzle size mm ⌀0.5 ⌀1.0
Functionality
Spring closing/manually adjustable air blow
Material inlet pressure max. bar
35
Pneumatic pressure min bar
5-6
Material connection G
iG 1/8
G1/8 for pressure sensor
Yes
Weight kg
0.53
Spray valves SPV-03
Article 1009996 1011651
Nozzle size mm
⌀1.0
Functionality
Spring closing/manually adjustable air blow
Material inlet pressure max. bar
35
Pneumatic pressure min bar
5-6
Material connection G
iG 1/8
G1/8 for pressure sensor Yes No
Weight kg
0.53
Spray valves SPV-04
Article
1012009
Nozzle size mm
⌀1.0
Functionality
Pneumatic closing/ air blow externally controllable
Material inlet pressure max. bar
35
Pneumatic pressure min bar
5-6
Material connection G
iG 1/8
G1/8 for pressure sensor
Weight kg
0.53
