High-Speed Valve

High-Speed Valve

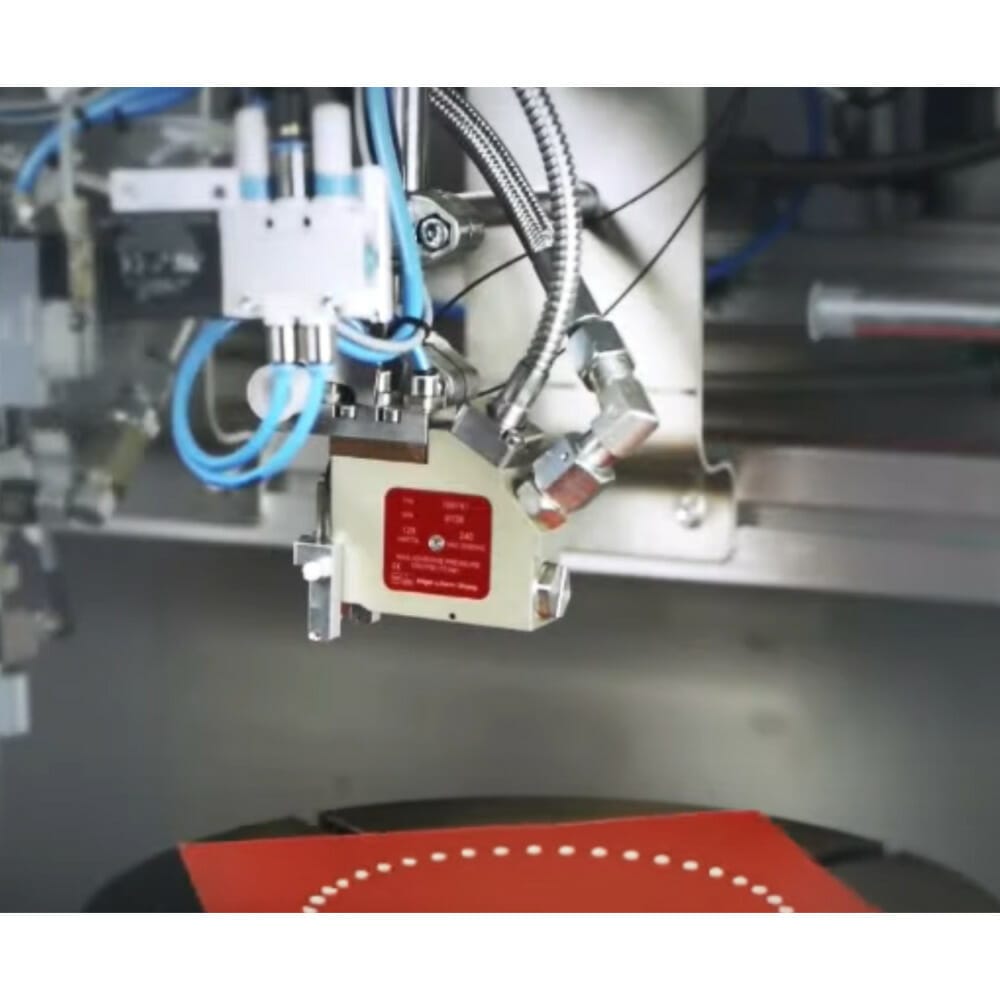

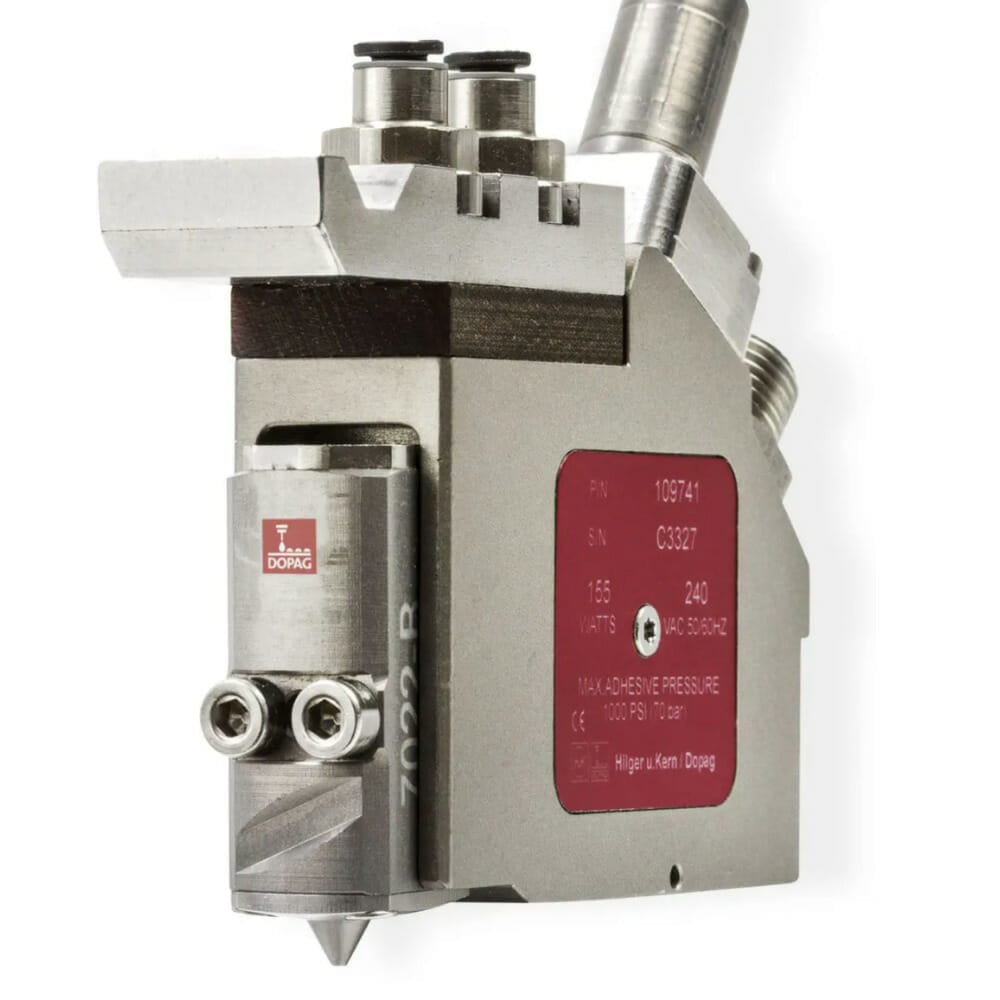

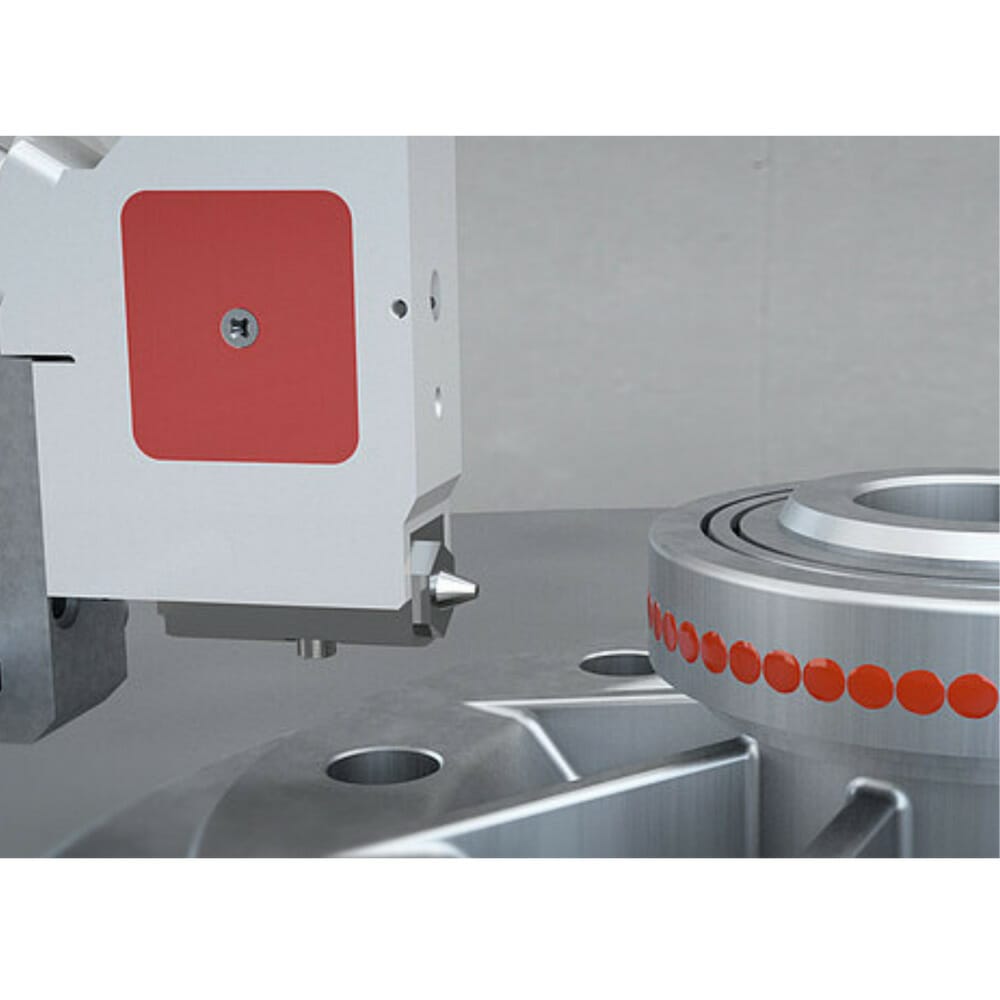

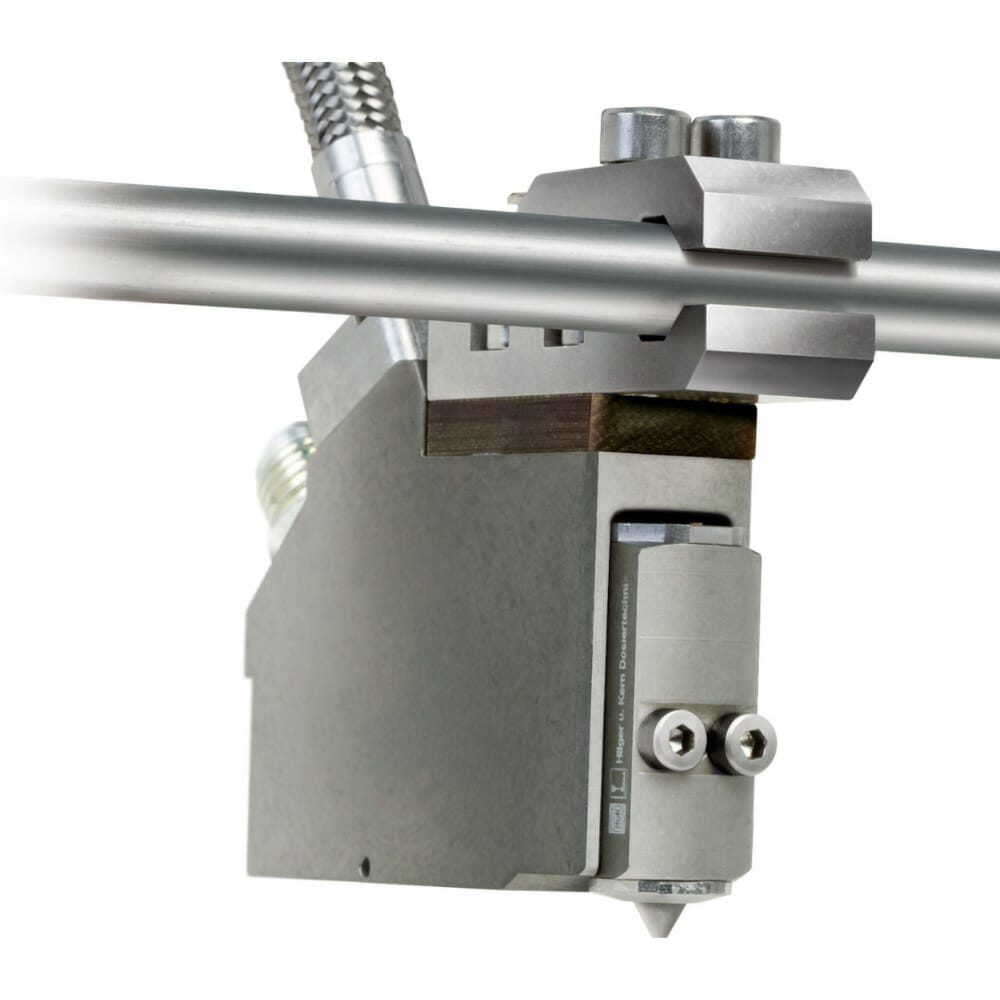

The high-speed valve is used in contactless (from a distance) applications of grease and oil where stringing must be avoided. The compact design of the valve enables an effortless and effective greasing of narrow and hard-to-reach spaces. The dot application takes place in the longitudinal direction of the nozzle with a perfect material cut off after each shot. With short cycle times, this valve is ideal for integration into highly efficient processes. Thanks to an innovative nozzle with a self-cleaning effect and an integrated filter, the high-speed valve delivers a perfectly clean application every time. An integrated heating element keeps the material properties at their optimum, ensuring high process stability and reproducibility.

Features

– Shot application

– Nozzle size Ø 0.21 – 0.81 mm

– Input pressure max. 70 bar

– 24V DC solenoid valve for maximum shot frequency of 100 Hz

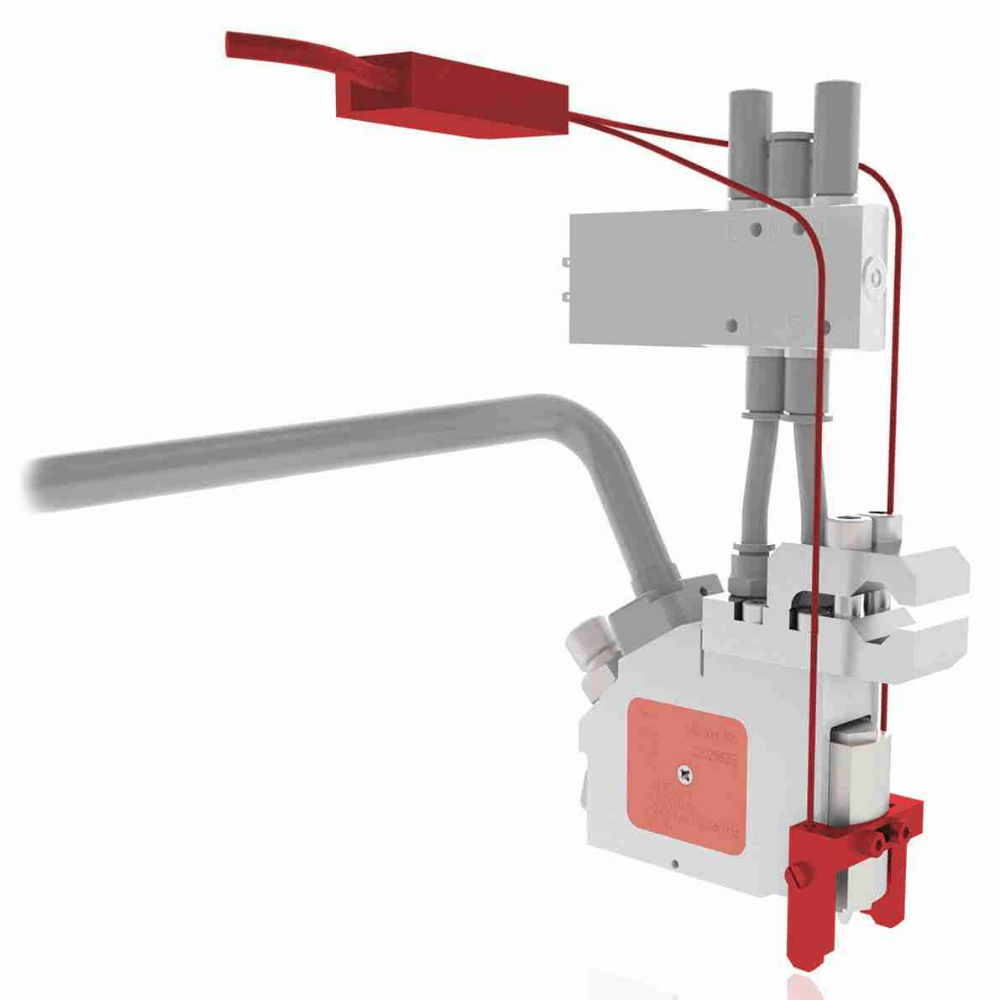

– Integrated 230 V AC / 155 W heating with a temperature sensor PT100

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Technical data
Article no. 420.00.01 420.00.03 420.00.04 420.00.05 1005384 1005385 1005386
Descriotion High-speed valve 0.21 High-speed valve 0.31 High-speed valve 0.41 High-speed valve 0.51 High-speed valve 0.61 High-speed valve 0.71 High-speed valve 0.81
Nozzle size mm ⌀0.21 ⌀0.31 ⌀0.41 ⌀0.51 ⌀0.61 ⌀0.71 ⌀0.81
Connection
aG1/460°
Shot frequency Hz
100
Pneumatic pressure bar
4-8
Shot volume mm³
10-20 mm³/shot
Viscosity range mPas
<150,000
Working pressure bar
1-70
Dimensions(AxB) mm
71.5×73.5×22
Weight kg
0.58
