Chamber metering Valve

Chamber metering Valve

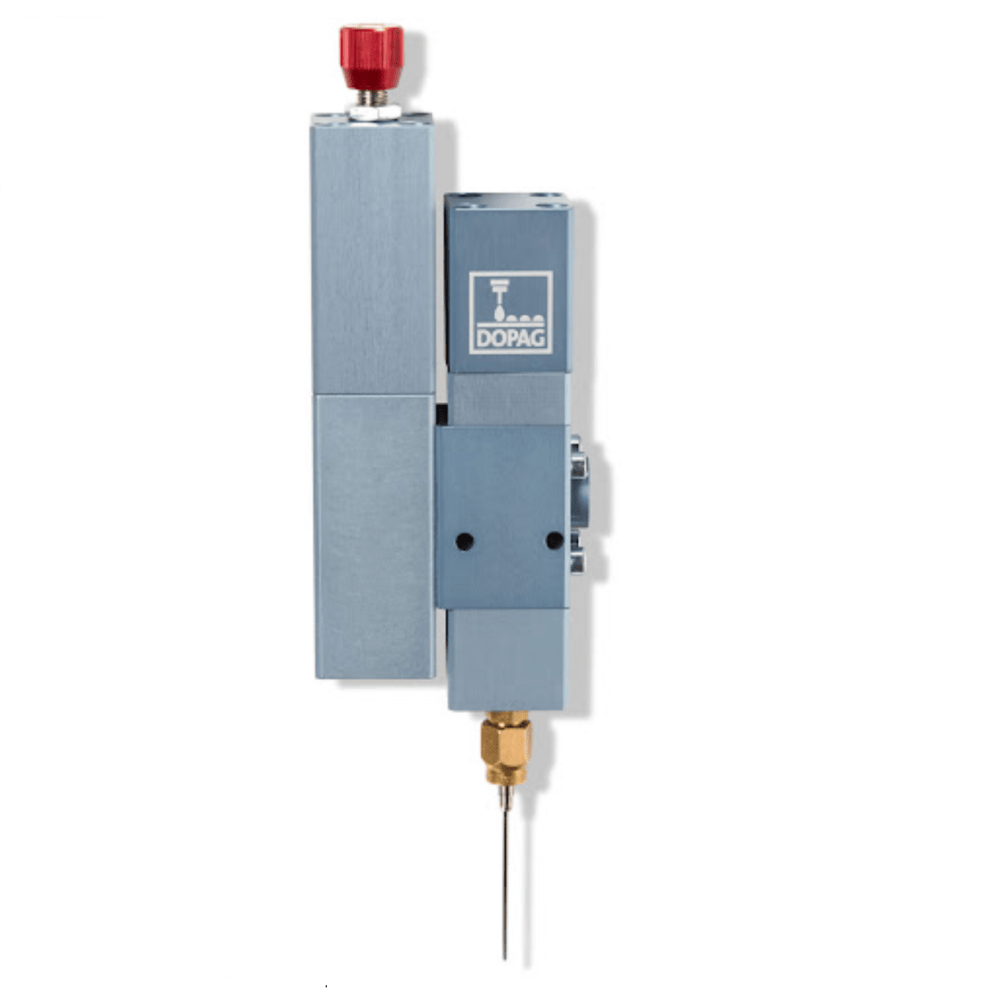

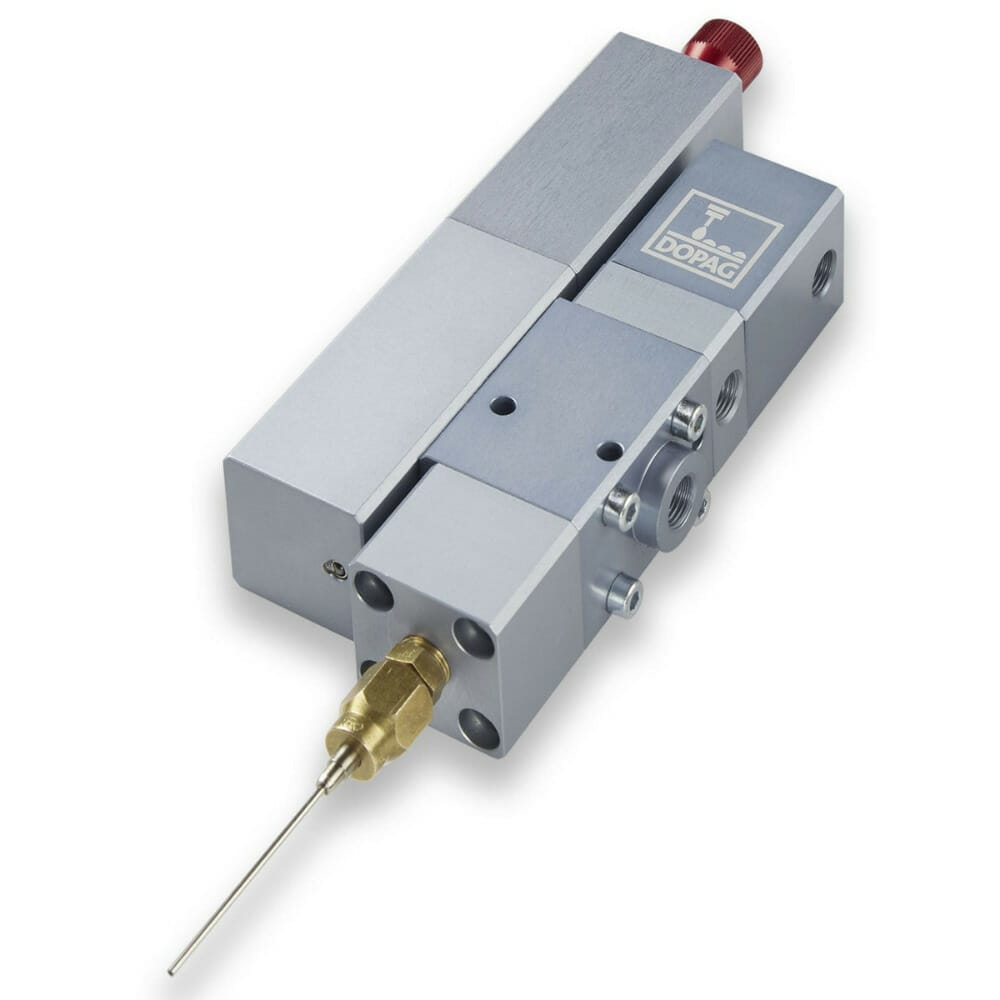

Chamber metering valves are used for dot application of low to high viscosity media. Compared to the needle metering valve, they offer a larger range of shot sizes. Thanks to an innovative design that features a ‘snuff back‘ effect, these valves are characteristic for their high process stability and dripfree application when dispensing low-viscosity media. The shot size is determined by the chamber volume, which can be adjusted within a predetermined range using a stop screw. The metering cycle is controlled either pneumatically or electrically via a solenoid valve. This valve series allows a highly repeatable metering of small quantities up to 100 ml within short cycle times. Manual application with a handle is just as possible as the integration into a fully automated process.



Features

– Dot application (volumetric metering)

– Shot size 0.05 – 100.00 ml (depending on model)

– Material input pressure 40 – 80 bar

– Compatible with stroke detection

– Snuff -back eff ect

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

Description



Article no. 450.10.06 450.10.07 415.12.21 415.101.0
Metering volume per shot ml 0.05-0.2 0.1-3 0.5-12.0 5-100
Material inlet pressure min. bar
40
Material inlet pressure max bar
80
Viscosity range mPas
1,000-1,000,000
Material connection G
1/8″
1/4″
Reversing valve
ID3
ID8
Dimensions(AxB) mm
68×30
107×40 39×60
Height max.(C) mm 151 194 171 278
Weight kg 0.6 0.73 1.96 4.6
