Fluid Tank reservoir

Fluid Tank reservoir

Nordson EFD tank reservoirs not only maintain steady fluid pressure, but also prevent fluid contamination and evaporation, and contain fumes. There are two options available: analog regulator/gauge and precision digital regulator/gauge

For analog regulator/gauge; tanks are available with 0-15 psi (0-1 bar) or 0-100 (0-7 bar) constant-bleed air regulators to handle different fluid viscosities. Select the 0-15 psi (0-1 bar) regulator for low-viscosity fluids and the 0-100 (0-7 bar) regulator for high-viscosity fluids.

And for digital regulator/gauge; watery or low-viscosity fluids require the 0-10 psi (0-7) bar constant-bleed air regulator, while thicker or high-viscosity fluids require the 0-100 psi (0-7 bar) regulator.

Other features include tighter setting tolerances, faster response, and the ability to reset to the exact pressure settings for increased repeatability. This results in more precise fluid pressure regulation and better process control.

Available Holding Options

– 1.0 liter (0.3 gallon)

– 5.0 liter (1 gallon)

1.0 liter (0.3 gallon) accommodates one pound/one liter bottles and is recommended for pourable fluids only, whereas 5.0 liter (1 gallon) accommodates fluid poured into the liner. Or the fluid container may be put into the reservoir for direct dispensing.

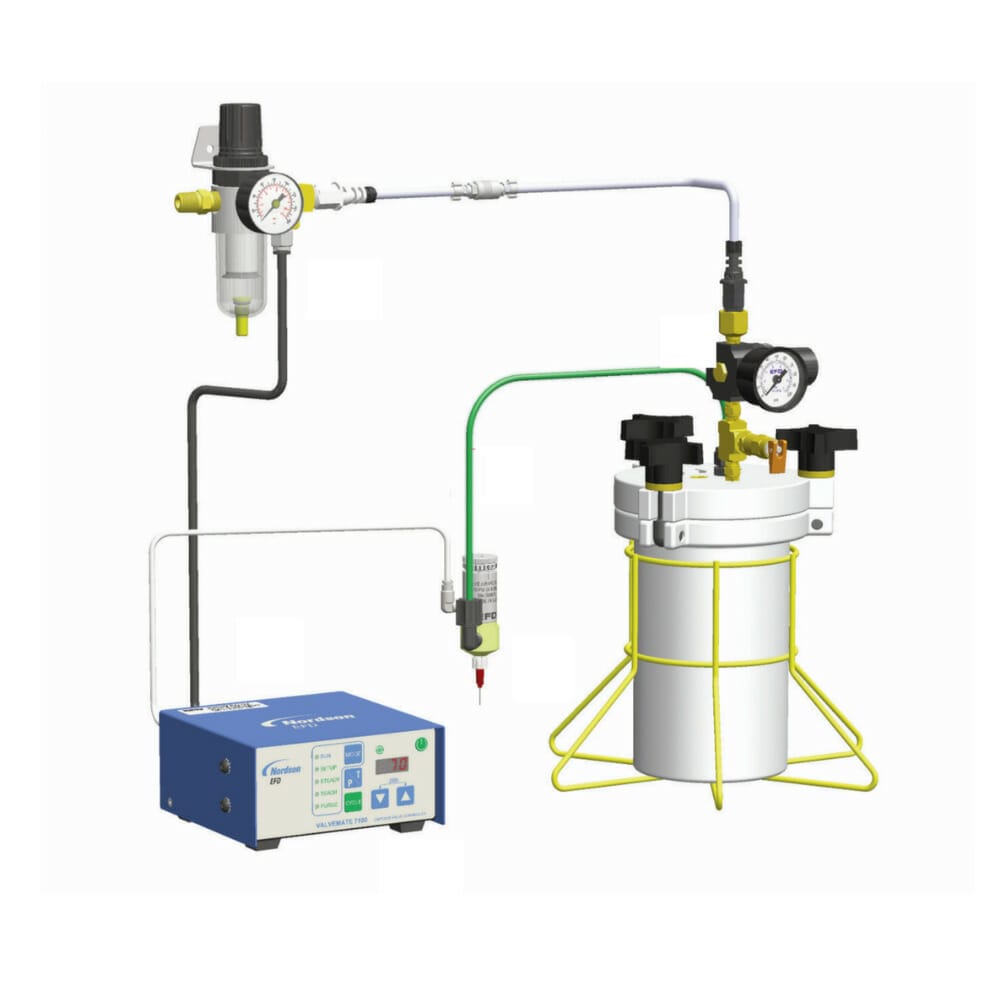

Since tanks are charged by plant air, we recommend the 5-micron filter/regulator to filter contaminants. Each fluid tank comes complete with air regulator and gauge, air hose with shutoff valve, liner, and fluid feed tubing.

Contact form
SOUTHERN SUPPLY CO., LTD.

Share

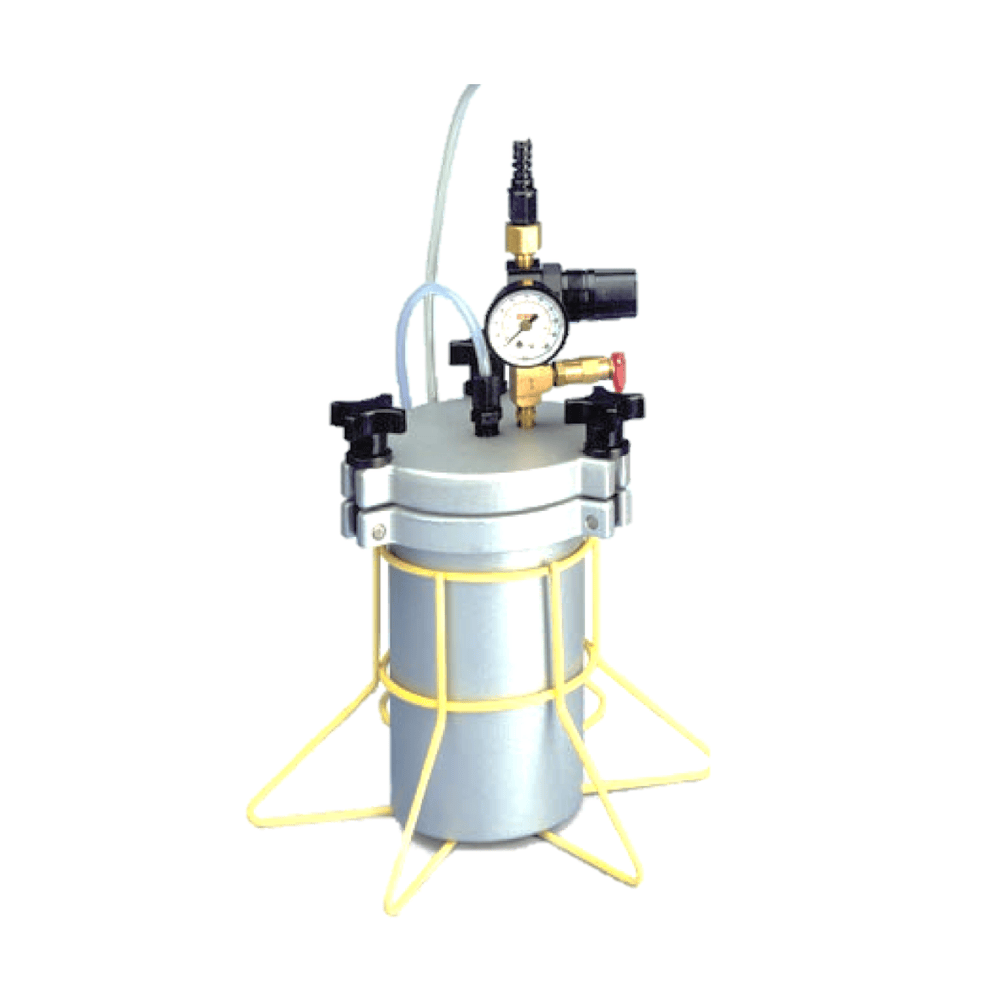

Analog series
Model 615 Series 1.0 Liter Tanks 626 Series 5.0 Liter Tank
Tank body Cast aluminum Cast aluminum
Replaceable liner Polyethylene (0.5 liter capacity) Polyethylene (3.8 liter capacity)
Insied diameter 9.7 cm (3.82″) 17.3 cm (6.81″)
Inside depth 17.4 cm (6.87″) 24.8 cm (9.75″)
Overall width 17.3 cm (6.81″) 28.3 cm (11.14″)
Overall height 35.6 cm (14.01″) 40.6 cm (15.98″)
Regulator&gauge 615DTH:7.0 bar (100psi)
615DTL:1.0 bar (15 psi)
615DTH:7.0 bar (100psi)
615DTL:1.0 bar (15 psi)
Maximum operating pressure 7.0 bar (100 psi) 7.0 bar (100 psi)
Approvals TUV,CE

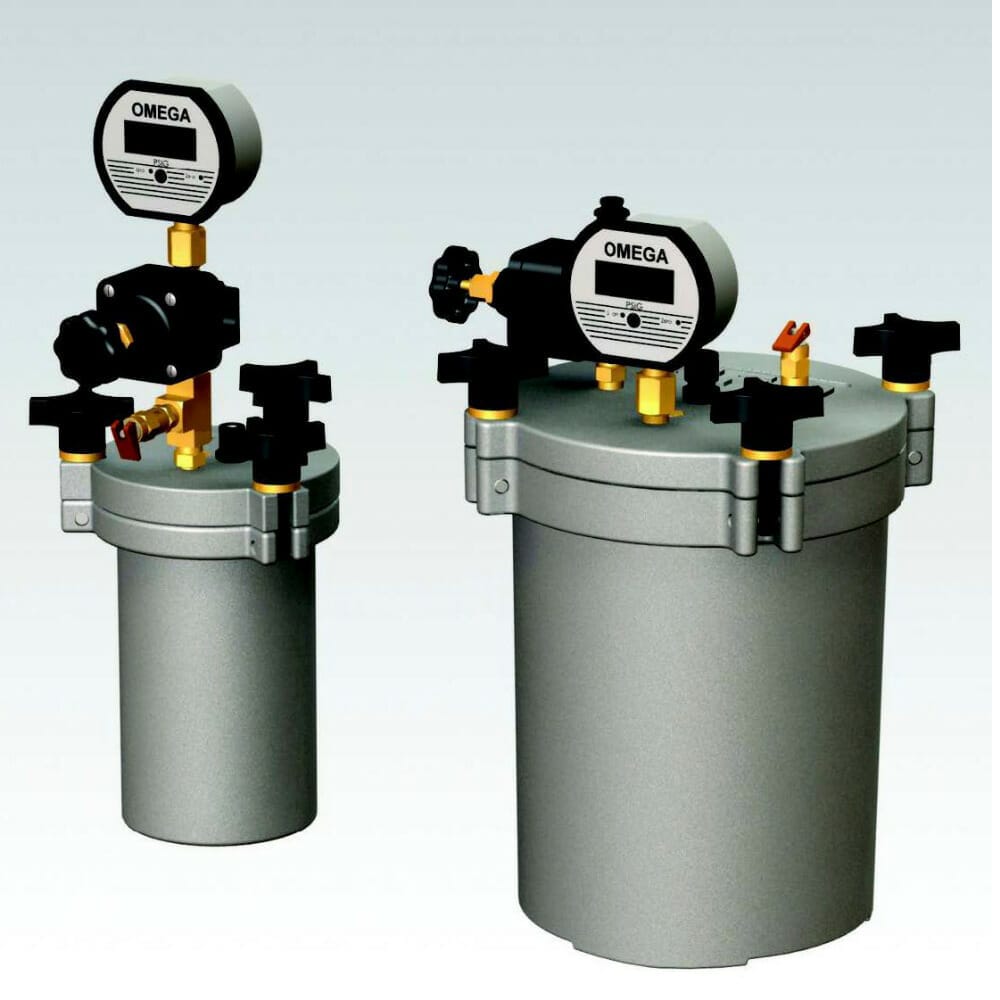

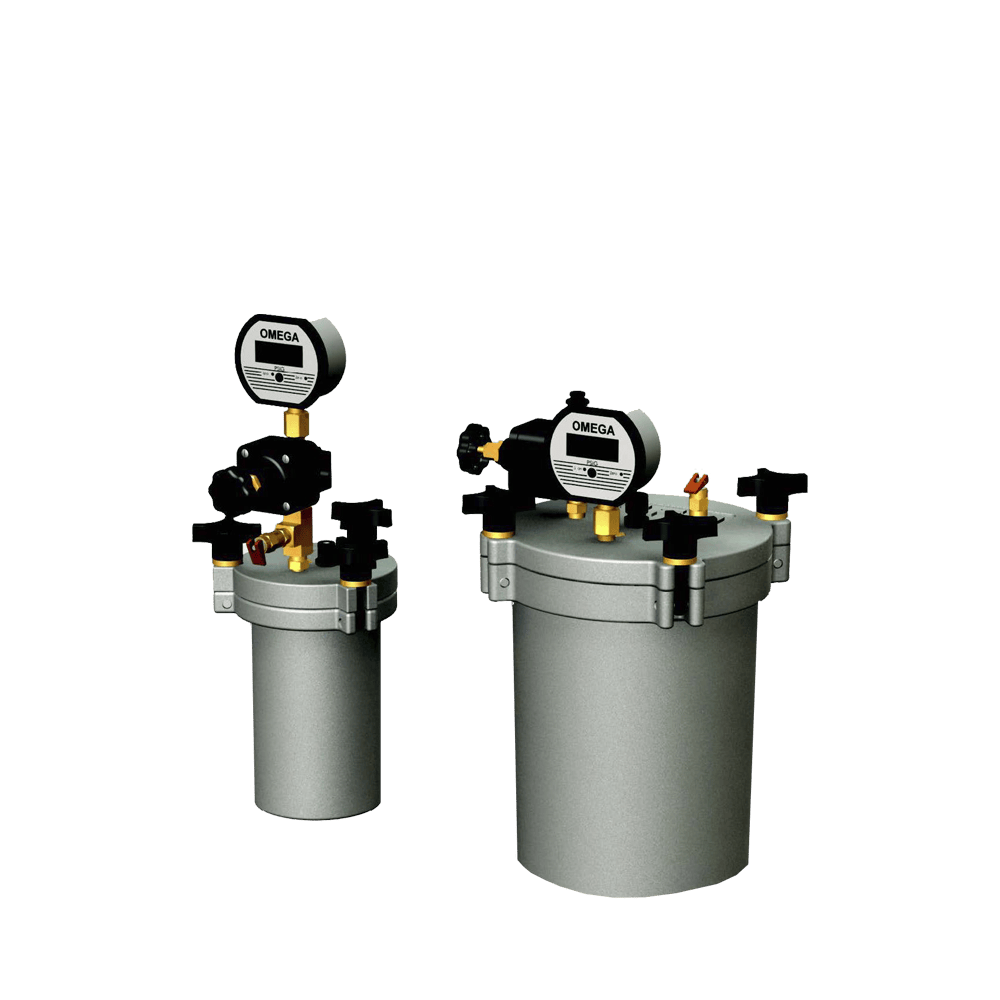

Digital series
1-Liter Specification
Tank body cast aluminum cast aluminum
Capacity 1 liter
Maximum Operating Pressure 100 psi (7.0 bar)
Maximum Operating Temperature 50°C (122°F)
Weight 3.0 kg(6.60 Ibs)
Height 350 mm(13.75″)
Diameter (Cover Maximum) 172 mm(6.75″)
All necessary fittings and feed tubing are included with each reservoir.
5-Liter Specifications
Tank body Cast aluminum cast aluminum
Capacity 5 liter
Maximum Operating Pressure 100 psi (7.0 bar)
Maximum Operating Temperature 50°C (122°F)
Weight 9.4 kg (20.1 Ibs)
Height 413 mm(16.25″)
Diameter (Cover Maximum) 251 mm(9.85″)
